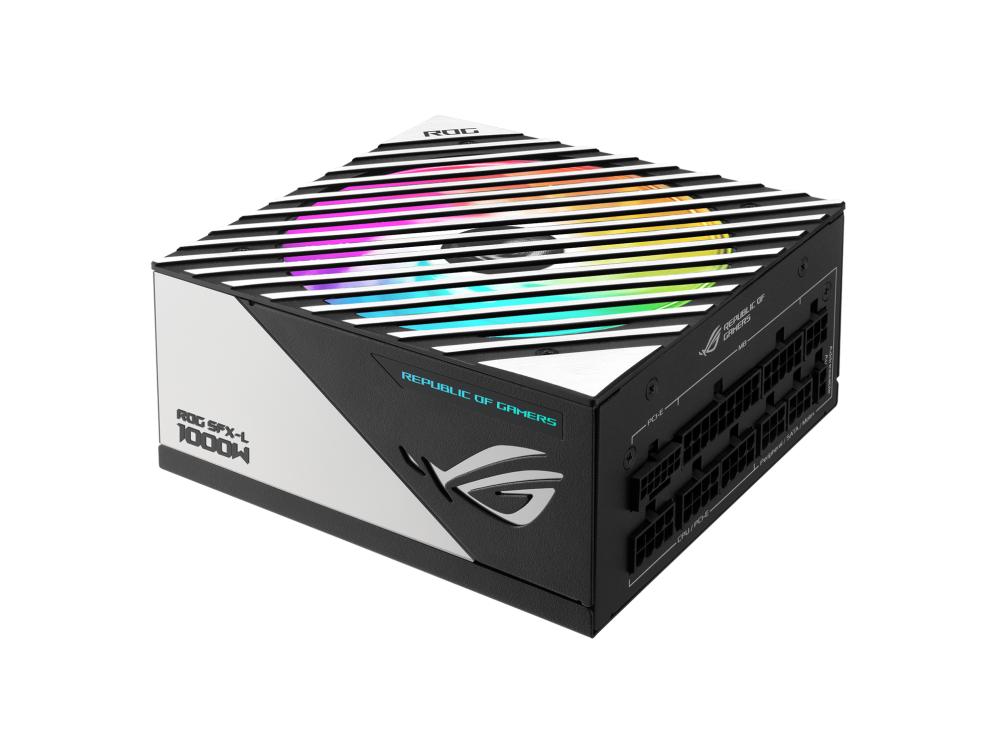

ROG LOKI SFX-L 1000W Platinum
Intel Form Factor
SFX-L
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 83.3A 0.8A 2.5A
Combined Load
110W 110W 1000W 9.6W 12.5W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
1.83kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
