PFC Type
Active PFC
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Titanium
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 133.3A 0.3A 3A
Combined Load
100W 100W 1600W 3.6W 15W
Total Output
1600W (115V-240V). 1300W (100V-115V)

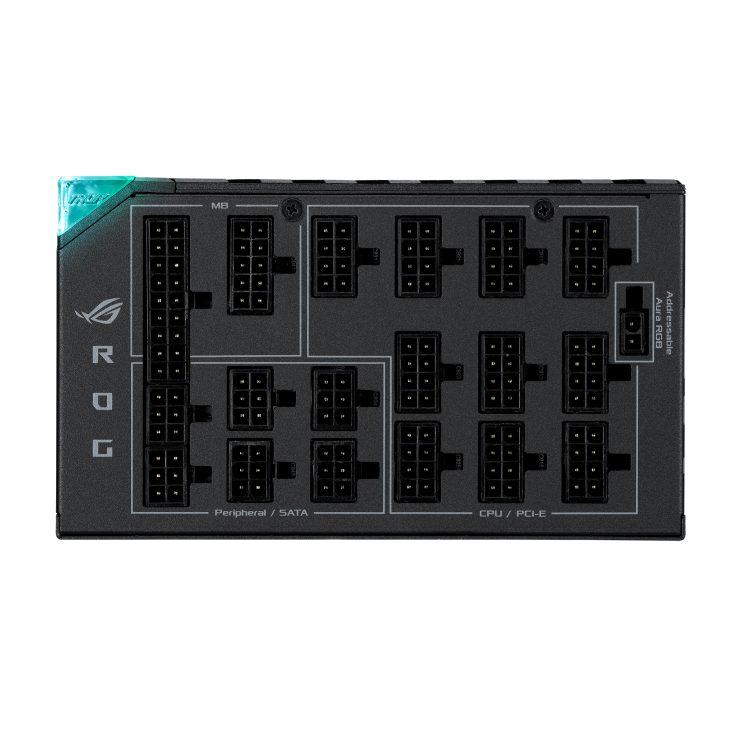

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
16-pin PCI-E Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 6 (675mm)
PCI-E 1-to-2 Cable x 2 (675+75mm)
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
Peripheral 1-to-2 Cable x3 (450+120mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
16-pin PCI-E Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 6 (675mm)
PCI-E 1-to-2 Cable x 2 (675+75mm)
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
Peripheral 1-to-2 Cable x3 (450+120mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight
2.69kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
