Home / GIGABYTE UD GOLD 1000W, MODULAR, ATX3.0

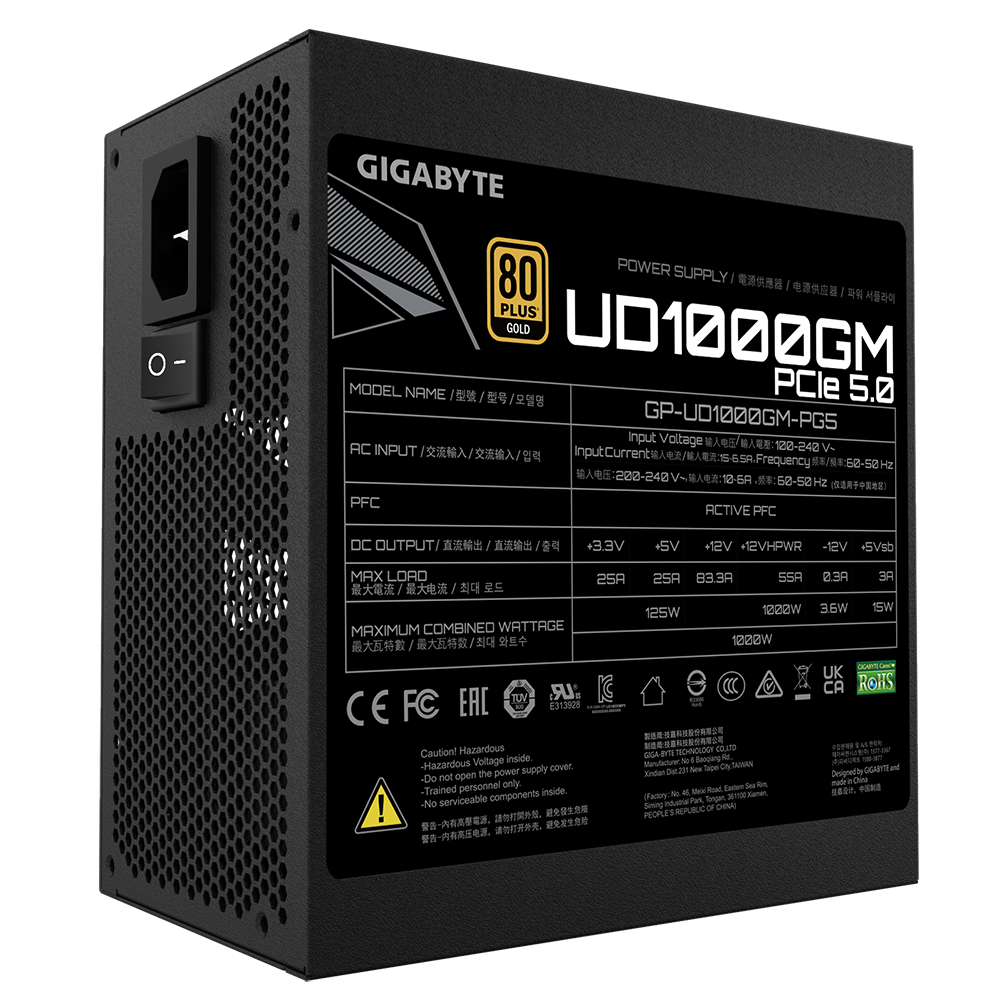

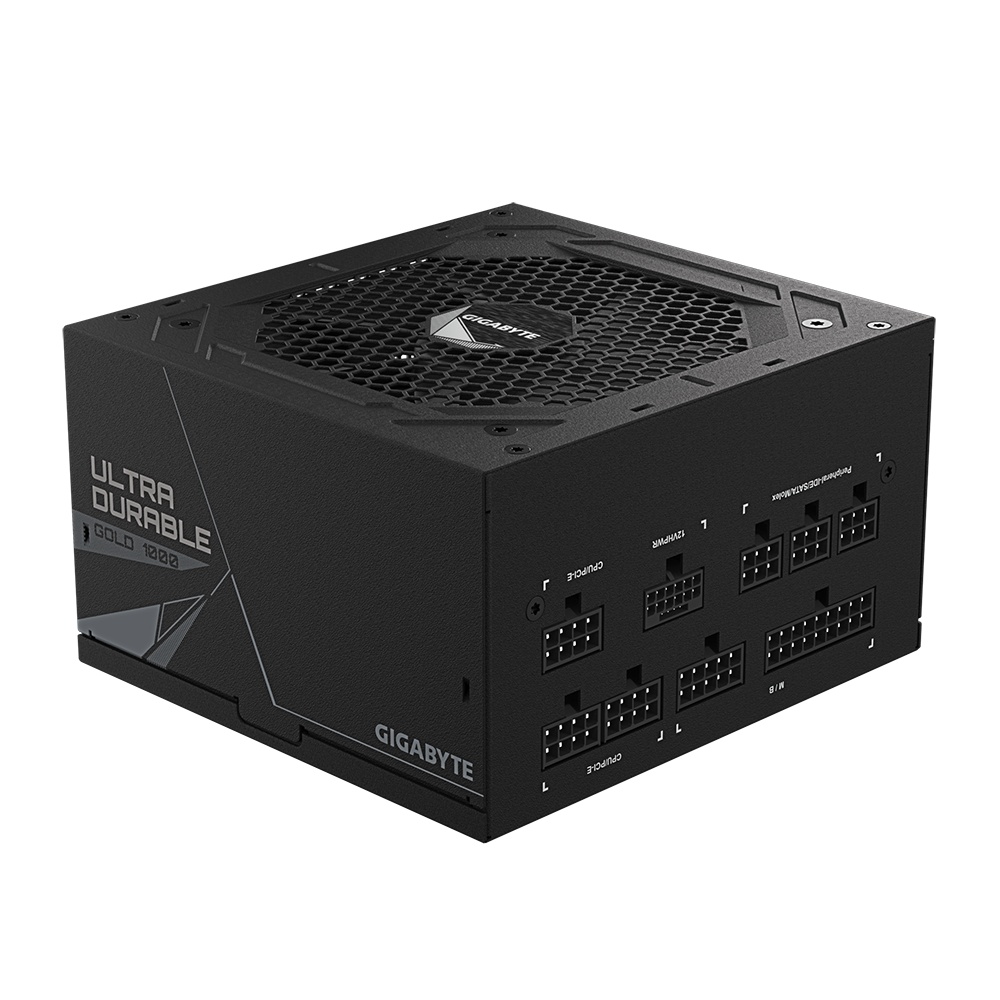

GIGABYTE UD GOLD 1000W, MODULAR, ATX3.0

KEY FEATURE Ultra Durable | Main Japanese capacitors | Enhanced thermal solution | 120mm smart hydraulic bearing (HYB) fan | OVP/OPP/SCP/UVP/OCP/OTP protection | Support PCIe Gen 5.0 graphics card | High-quality native 16-pin cable supports 600W output | 80 PLUS Gold certified | Fully modular design | Compact design Warranty - 10 years
Save $40.00 SGD
$229.00 SGD
$269.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$229.00 SGD each
Local Shipping
Local Warranty
Secure payments
  • Model
    GP-UD1000GM PG5
  • Type
    Intel Form Factor ATX 12V
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    15-6.5A
  • Input Frequency
    60-50 Hz
  • Output Capacity
    1000W
  • Dimension
    150 x 140 x 86 mm

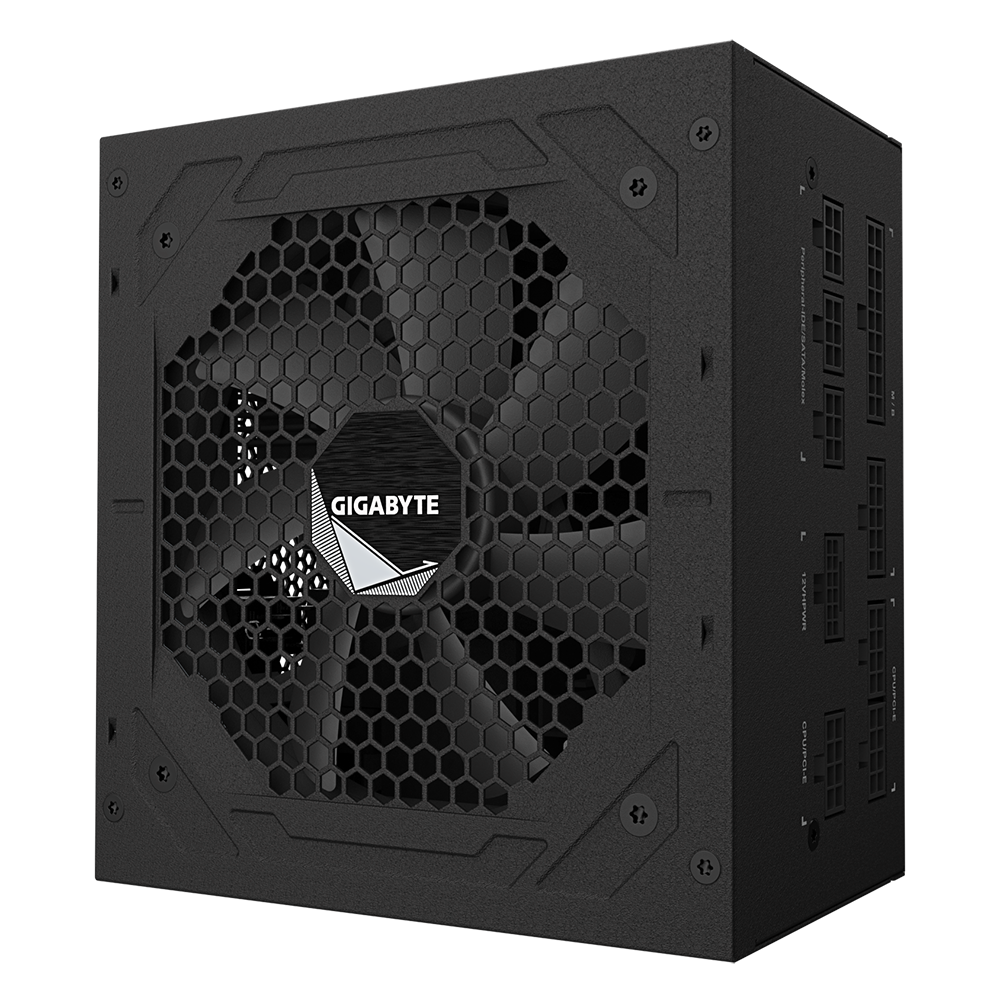

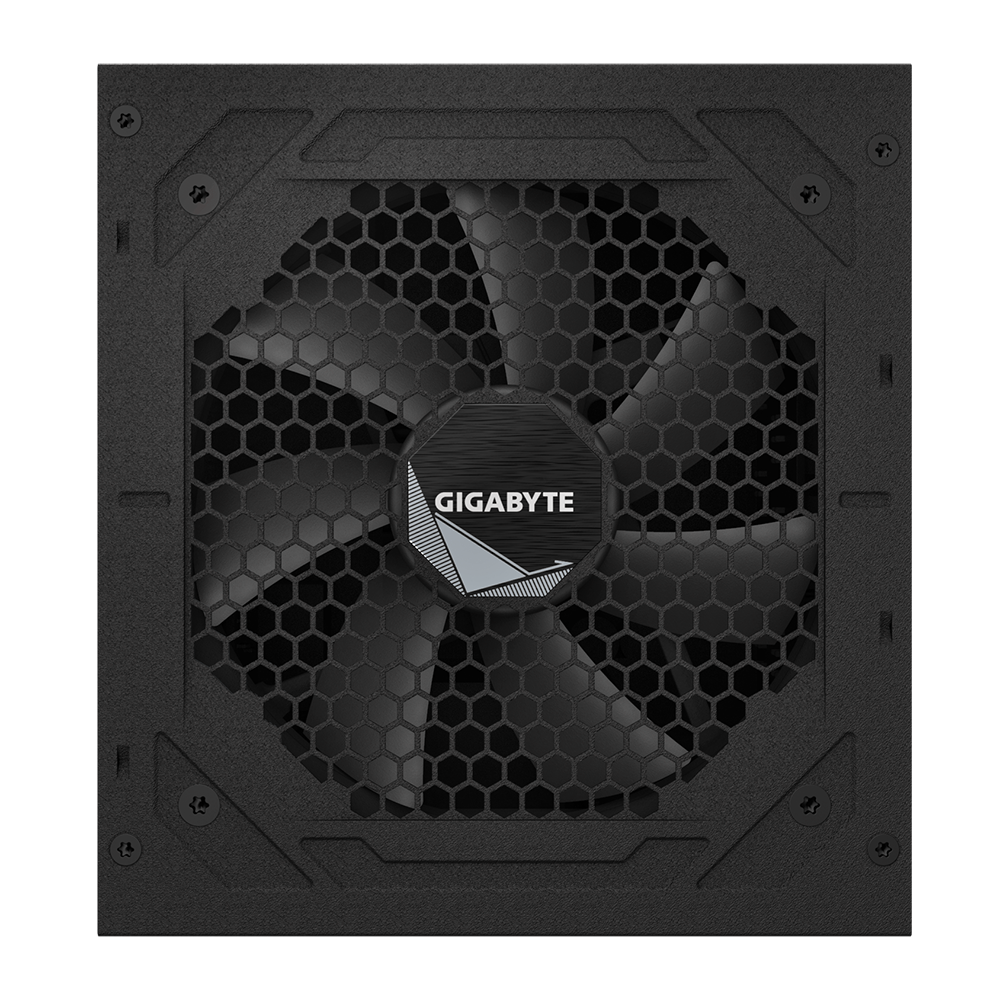

  • Fan Type
    120mm Hydraulic Bearing(HYB)fan
  • 80 PLUS
    Gold
  • Efficiency
    90% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-150ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All black

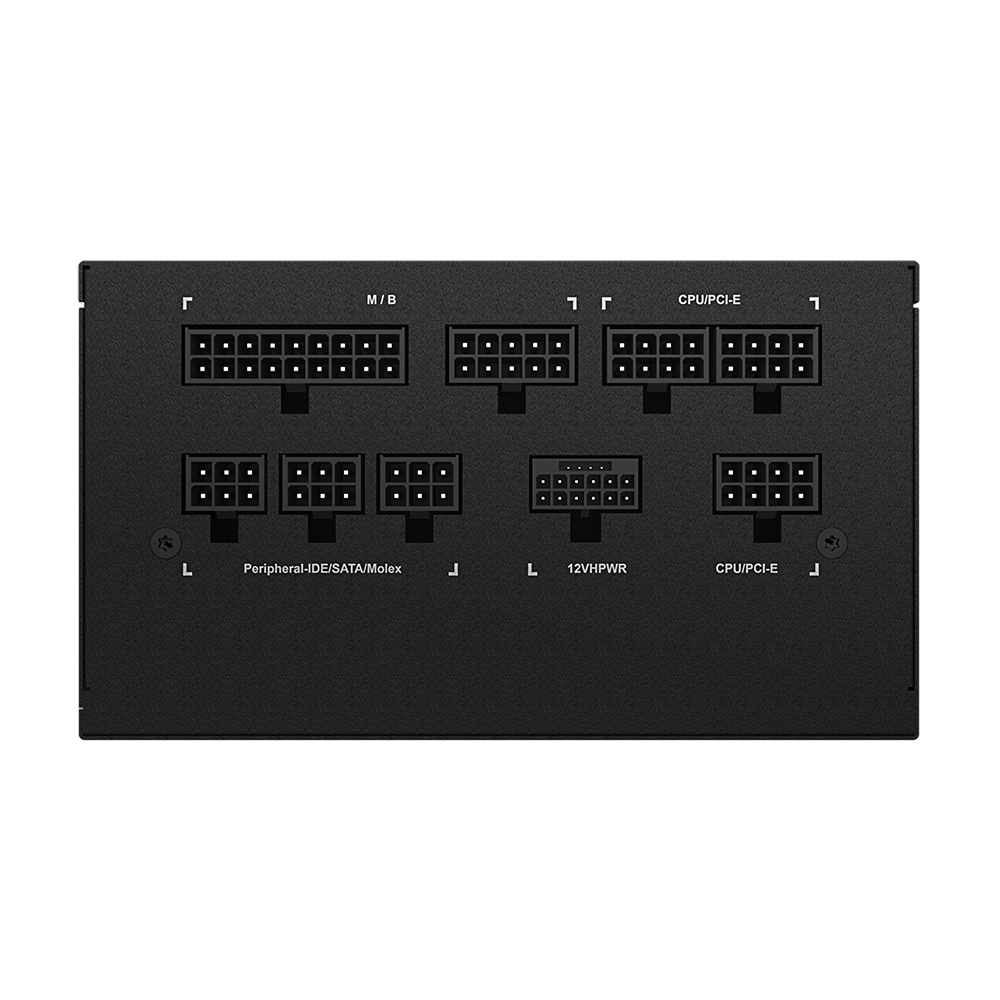

  • Connectors
    ATX/MB 20+4 Pin x 1 : 610mm*1
    CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

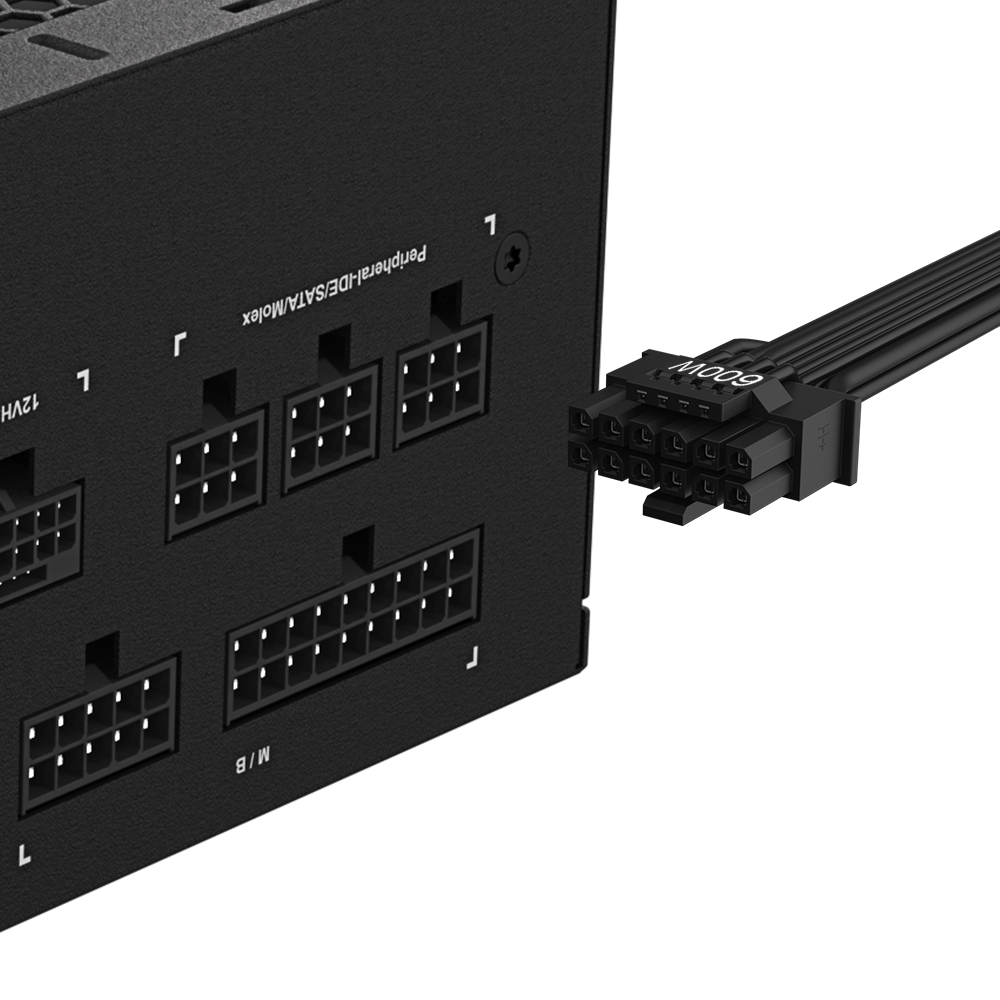

    PCI-e 16 Pin x 1: 700mm*1
    PCI-e 6+2 Pin x 4 : 600mm+150mm*2
    SATA x 8 :
    600mm+150mm+150mm+150mm*2
    4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
