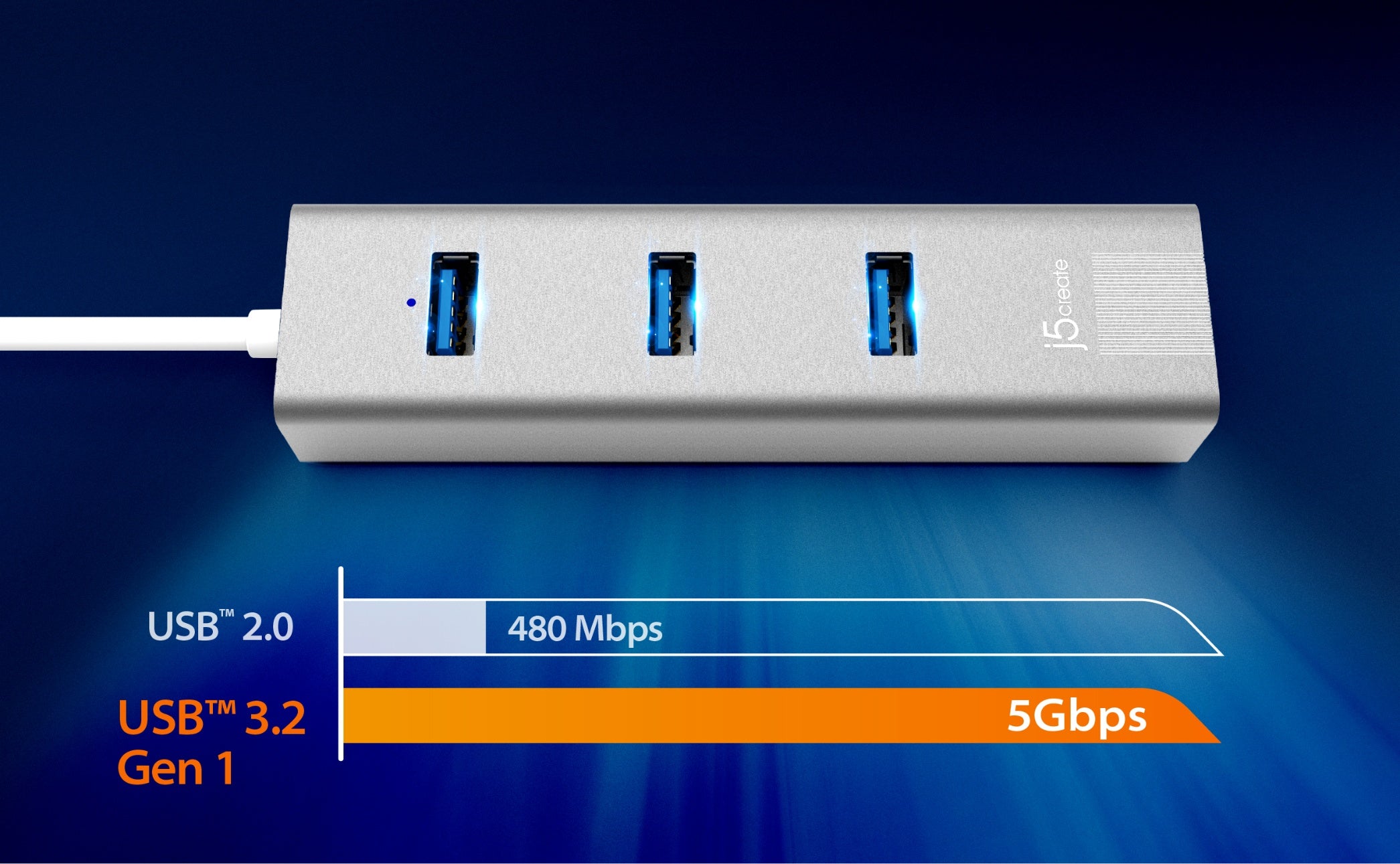

SuperSpeed USB™ 5Gbps

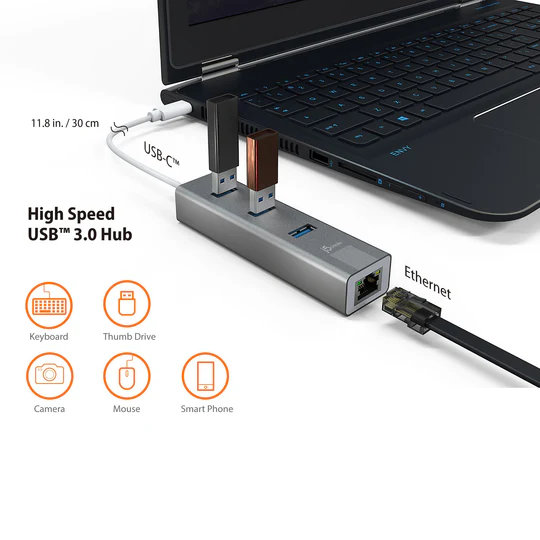

Three USB™ Type-A ports let you connect anything from a mouse and keyboard to a USB™ webcam

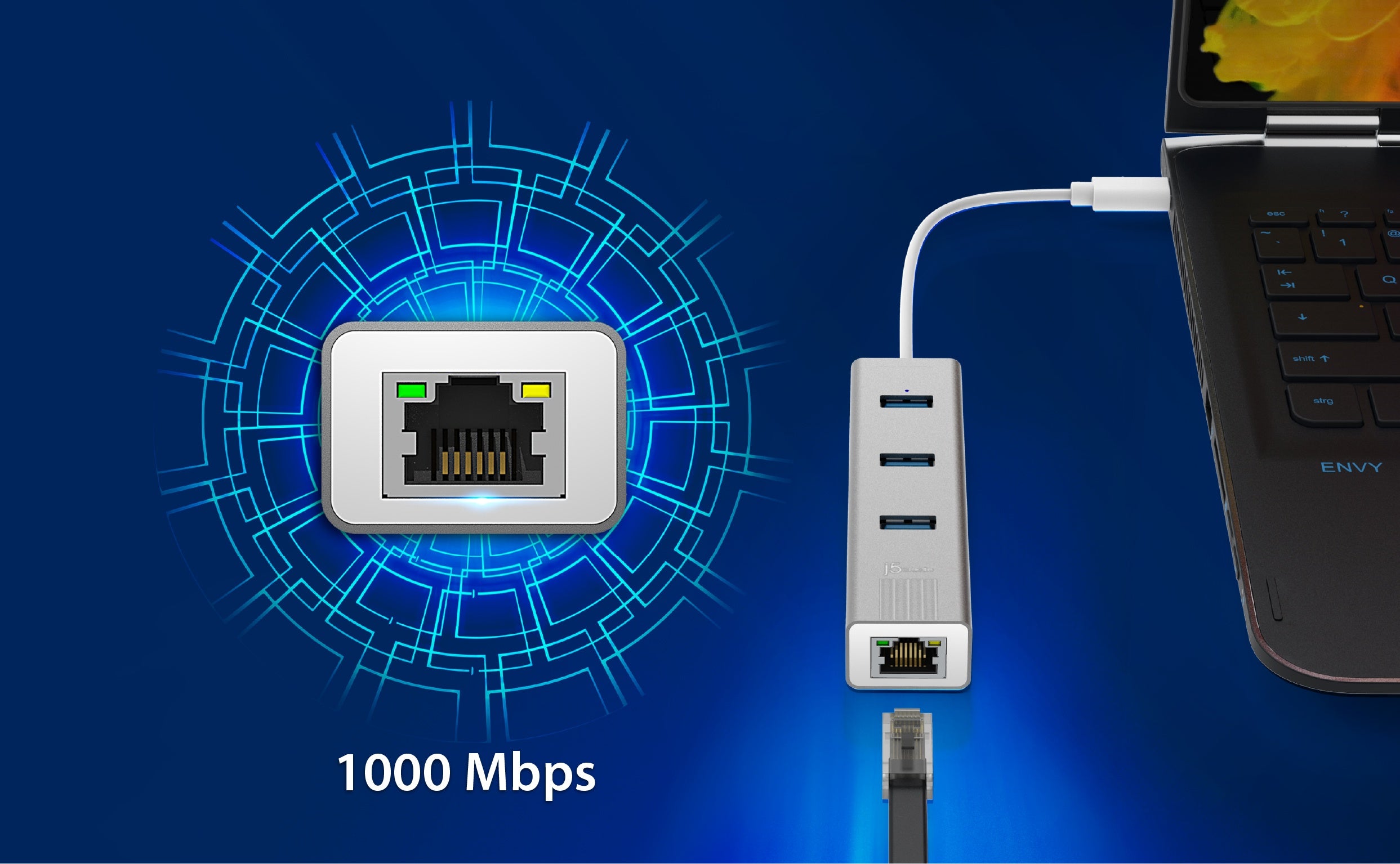

Wired Network Connection
The RJ45 Gigabit Ethernet port allows wired network connectivity for fast 10/100/1000 Mbps transfer speeds

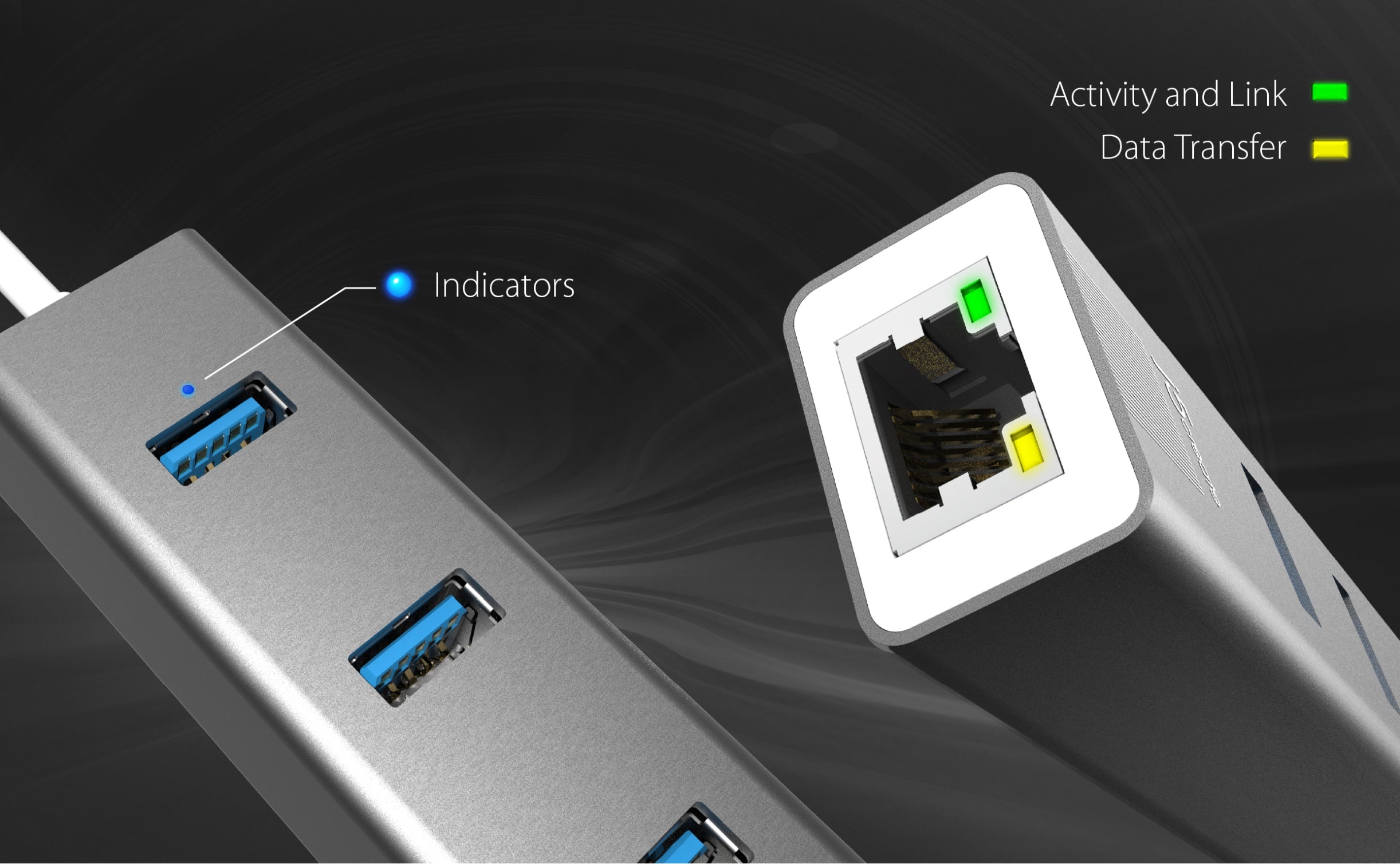

LED Activity Indicator
Green LED : Activity and Link
Amber LED : Data Transfer
Blue LED : Indicators

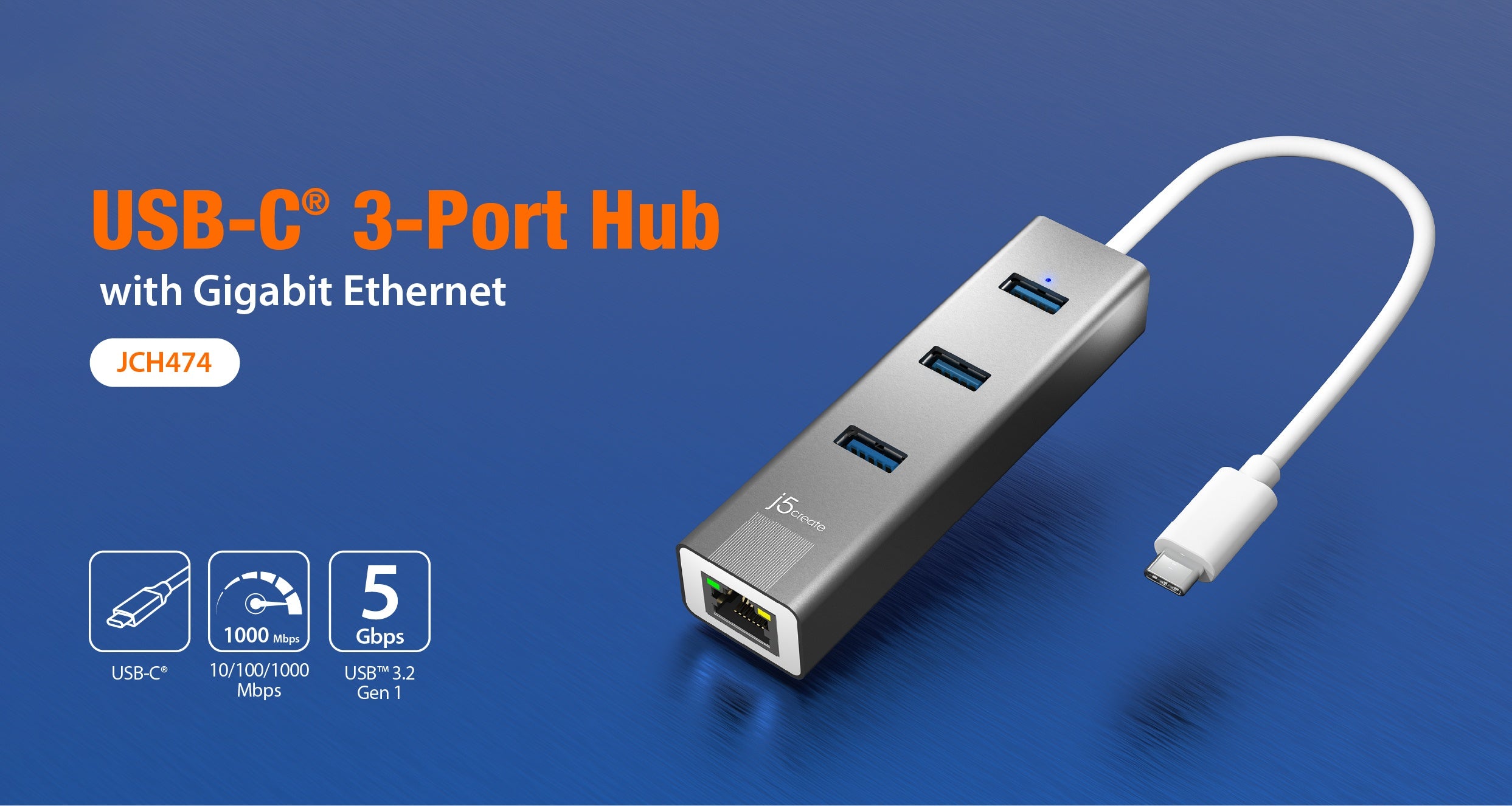

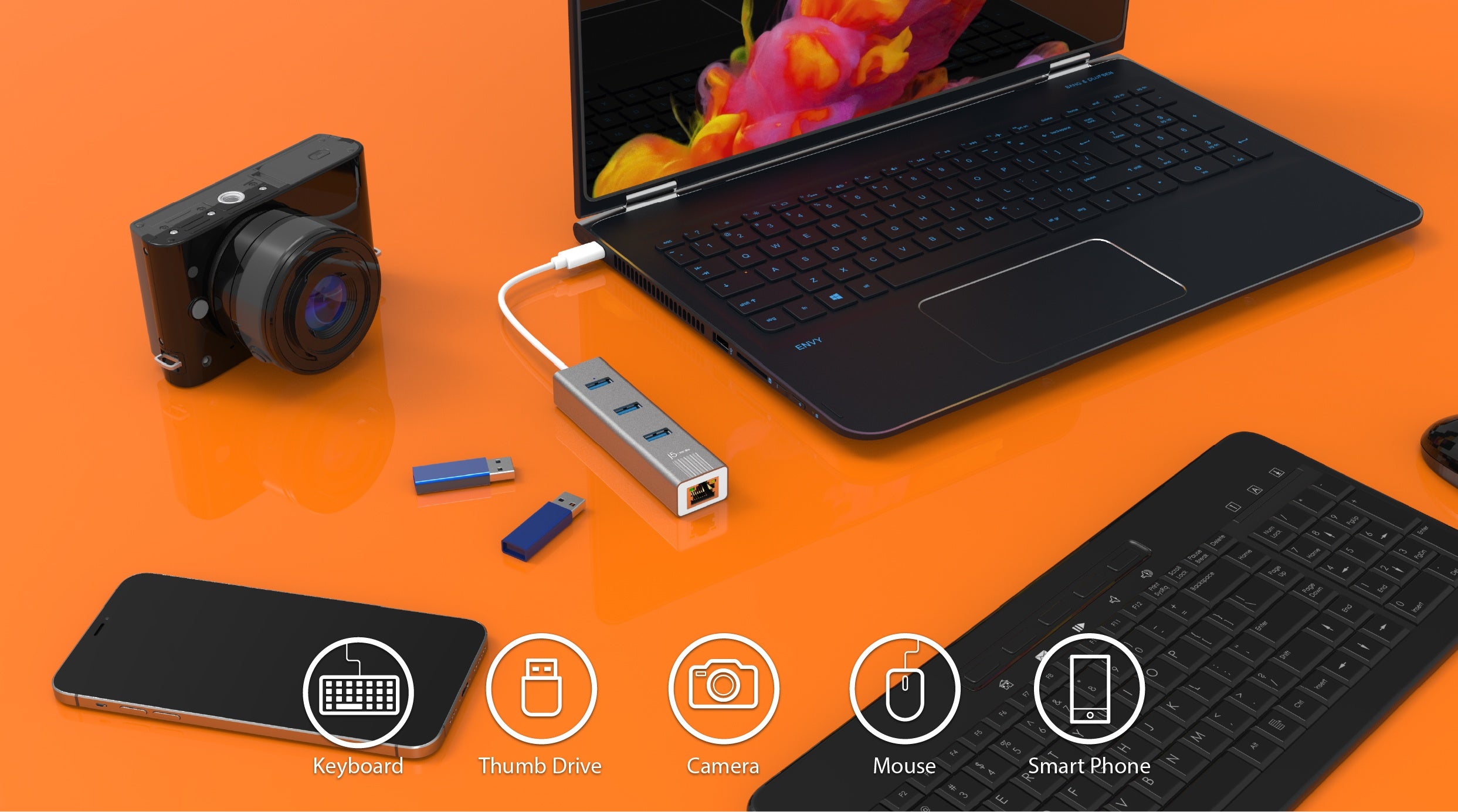

Ready for Your Digital Work

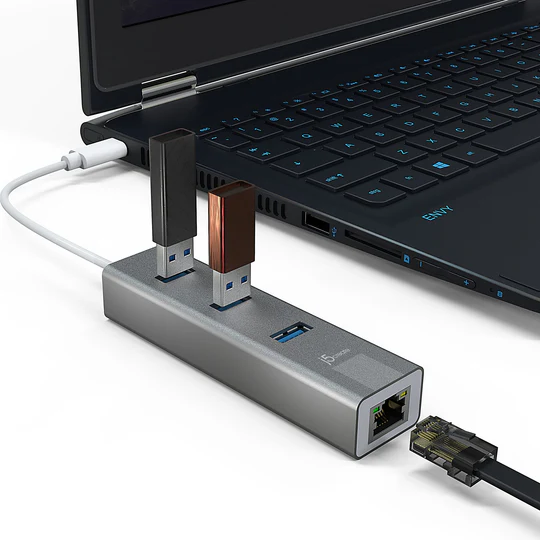

Expand a single USB-C® port into a connection central that can accommodate up to 3 USB™ peripherals and a wired network connection

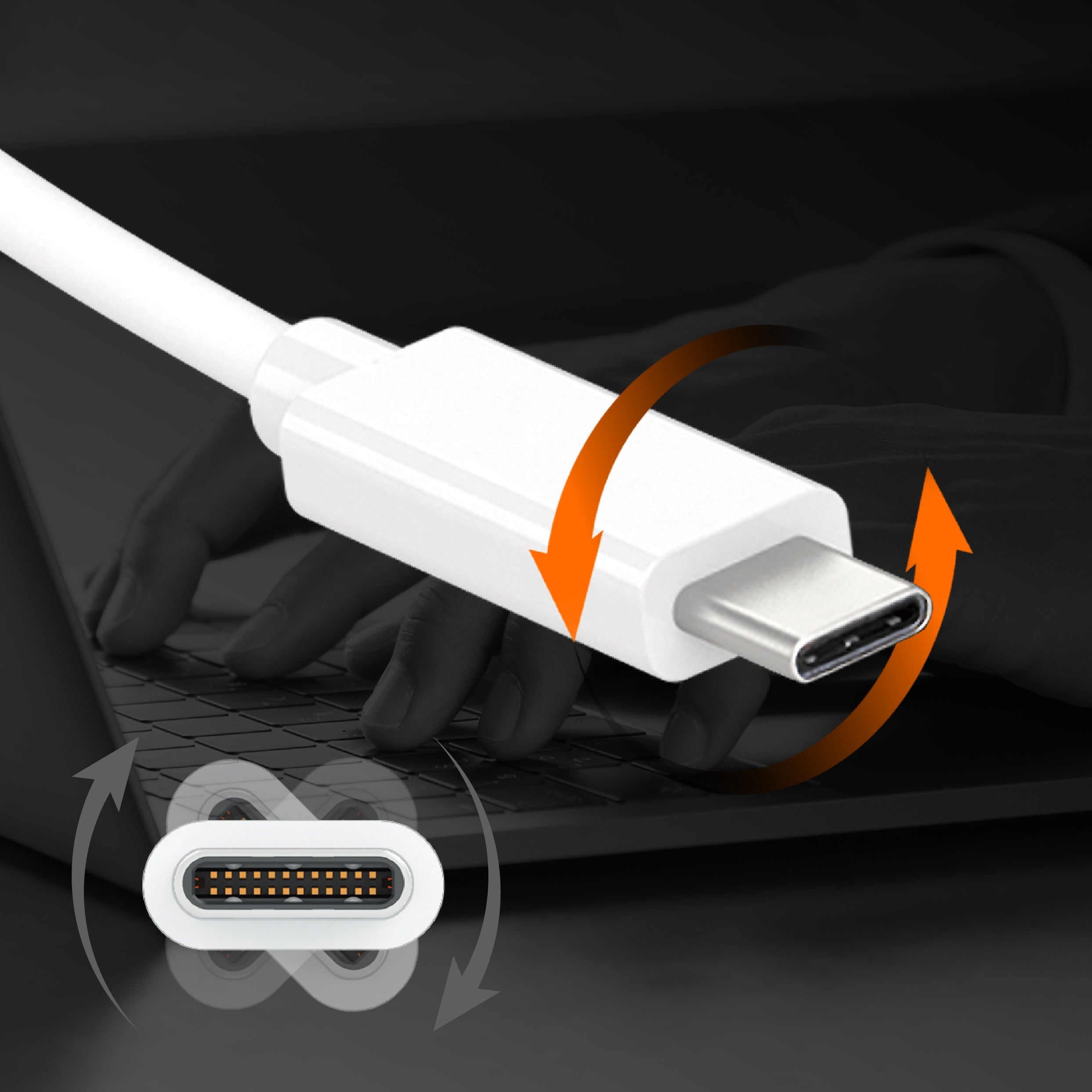

Reversible USB-C® Connector

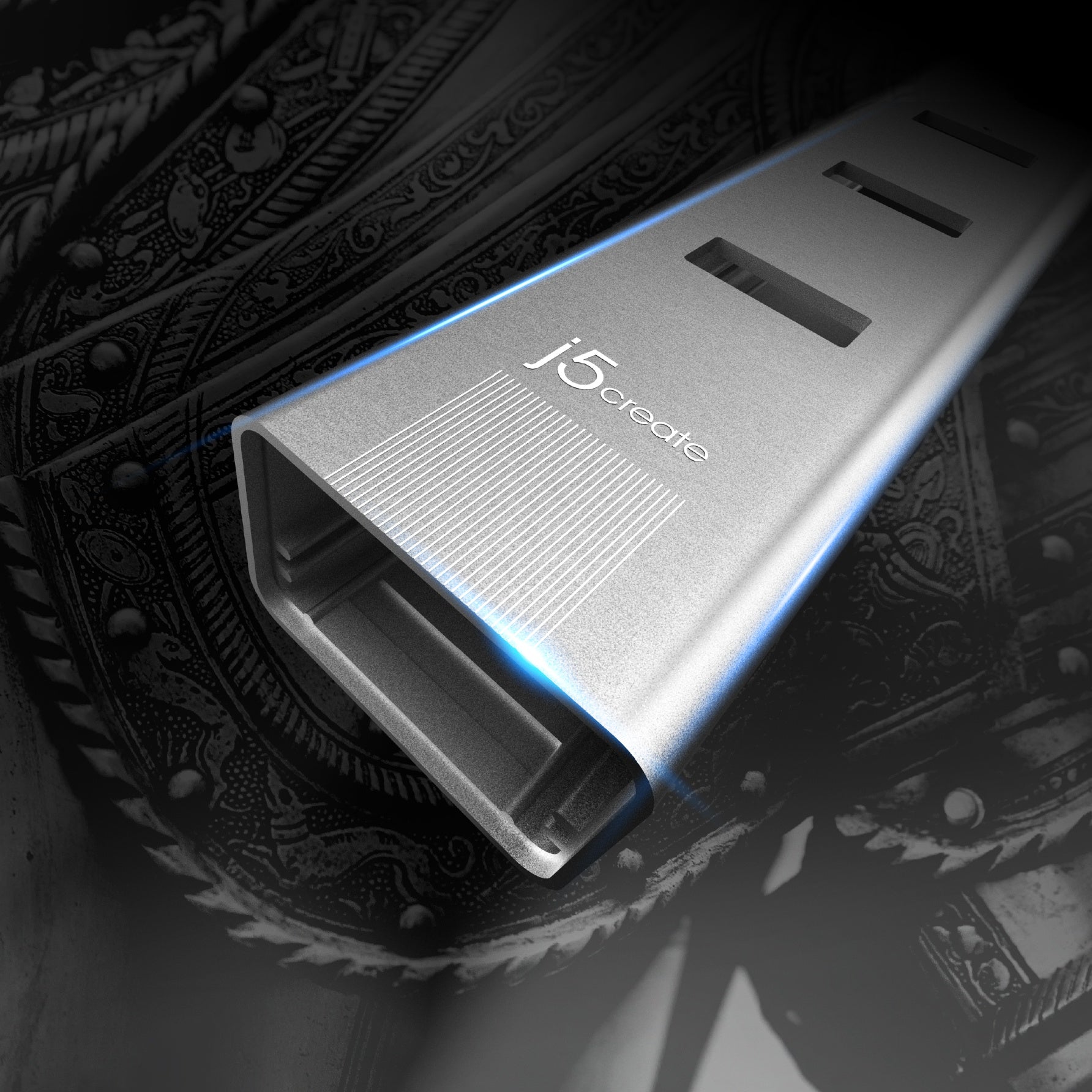

Aluminum Heat-Dissipating Housing

Universal Compatibility
Compact and Lightweight Design
Hardware | |
---|---|
host connector
1 - USB-C® Male led indicators
Green LED: 10M/100M/1000M Amber LED: Blinking: Activity data transmitting network interface
RJ-45 female connector
ports
3 - USB™ 3.0 Type-A Female 1 - RJ-45 Female power source
Bus-powered
usb pass-through
Yes warranty
2 Year Limited
|
|
Performance | |
ethernet ieee
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x ethernet modes
- Supports Wake on LAN function, suspend mode, and remote wakeup via link-change, Magic Packet™, or Microsoft® wakeup frame - Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering - Supports Jumbo Frame - Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload ethernet transfer rate
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
fast charging
N/A
max data transfer rate
5Gbps |
|
Power | |
power consumption
≥ 500 mA
power delivery
No
|
|
Physical Specifications | |
cable length
11.8 in. (300 mm)
color
Space Grey
enclosure type
Aluminum
operating humidity
< 85% non-condensing
operating temperature
32 to 118°F (0 to 48°C)
product depth
2.7 in. (68.5 mm)
product height
0.75 in. (19 mm)
product weight
1.94 oz (55g)
product width
4.13 in. (105 mm)
storage humidity
< 85% non-condensing
storage temperature
14 to 149°F (-10 to 65°C)
|
|
Package Contents | |
|
- Gigabit Ethernet and 3-Port Hub over a USB-C® connection
- Transfer all your files almost instantly over a true Gigabit network
- IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- The 3 USB™ 3.0 ports support 5Gbps transfer rate, backwards compatible with USB™ 2.0 / USB™ 1.0 specifications
- USB™ bus-powered
- Activity and link LED & blue LED indicators
- Aluminum housing / USB-C® cable 30 cm
- No drivers required
