Capacity
500GB 1TB 2TB
-
2,100/1,700 MB/s
-
400,000/400,000 IOPS(500GB, 1TB)
360,000/400,000 IOPS(2TB) -
Usage
Client desktops and laptops
Capacity / dimensions
-
Capacity
500GB, 1TB, 2TB
-
Form Factor
M.2 Type 2280-S2-M
-
Interface
PCI Express® Base Specification Revision 3.1a (PCIe®)
-
Flash Memory type
BiCS FLASH™ TLC
-
Interface Maximum Speed
32 GT/s (PCIe® Gen3x4)
-
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.23 mm
-
Interface Command
NVM Express™ Revision 1.3c command set
-
Weight
500GB, 1TB: 6.8 g (typ.)
2TB: 7.1 g (typ.)
Performance
-
Max Sequential Read Speed*1
2,100 MB/s
-
Max Sequential Write Speed*1
1,700 MB/s
-
Max Random Read Speed*2
500GB, 1TB: 400,000 IOPS
2TB: 360,000 IOPS -
Max Random Write Speed*2
400,000 IOPS
-
Endurance: TBW*3
500GB: 200 TB
1TB: 400 TB
2TB: 800 TB -
MTTF
1.5 million hours
Operating environment / protection performance
-
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
-
Storage Temperature
-40 ℃ to 85 ℃
-
Certification
RoHS compliant*5
-
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
-
Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
-
Supply Voltage
3.3 V ±5 %
-
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.) -
Power Consumption (Active)
500GB, 1TB: 3.5 W (typ.)
2TB: 5.3 W (typ.)
Compatibility
-
PCI Express
Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
-
Connector Type
M.2 M key Socket
-
Target Applications
Client desktops and laptops
Others
-
Services and Support
Up to 5-year manufacturer's warranty*4
-
Performance Optimization
TRIM, Idle Time Garbage Collection
Product Info
-
500GB
PN: LRC20Z500GG8
EAN: 4582563853980 -
1TB
PN: LRC20Z001TG8
EAN: 4582563853997 -
2TB
PN: LRC20Z002TG8
EAN: 4582563854000Features
- BiCS FLASH™
- NVMe™ 1.3c Technology

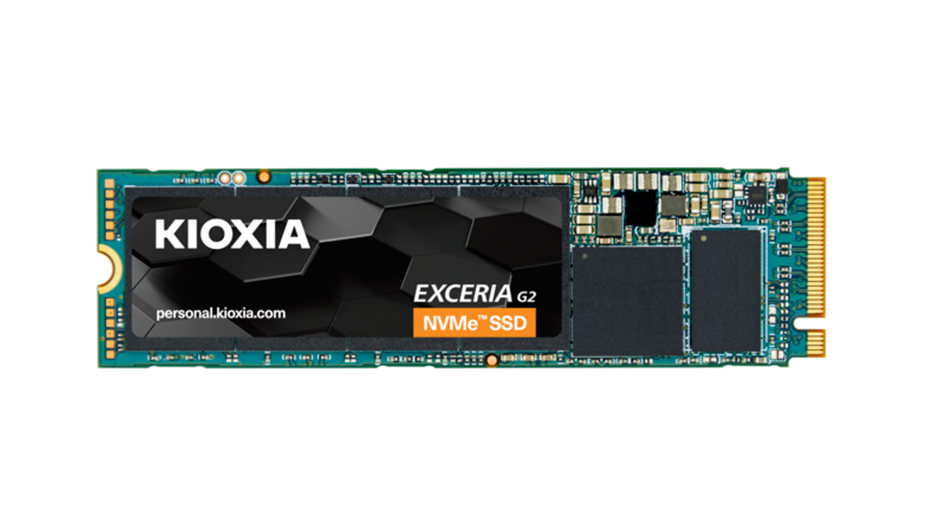

- M.2 2280 Form Factor
- PCIe® Gen3 x4
- SSD Utility Management Software
Performance Made Affordable
The KIOXIA EXCERIA SSD series redefines mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs, the EXCERIA G2 SSD series delivers balanced performance and value that will transform your system.
![]()
![]()
Small and Compact for an Easy Upgrade
Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
![]()
![BiCS FLASH™ logo]()
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
