Asus Mini PC PN41

Ultracompact computer with 11th Gen Intel Celeron or Pentium mobile processor, fanless chassis for 6W CPU, USB Power Delivery – including input, 2.5 GbE LAN, WiFi 6, Windows 10 Pro and dual USB 3.2 Type-C. Warranty - 3 years
$469.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$469.00 SGD each
Local Shipping
Local Warranty
Secure payments
  • Windows 10 Pro: ASUS recommends Windows 10 Pro for business. Other editions also available.
  • Powerful processor: 11th Gen Intel® Pentium® Silver or Celeron®
  • Fanless chassis: Supports a 6-watt CPU while minimizing noise and dust ingress
  • USB Power Delivery input support: Space-saving design that also reduces cable redundancy
  • Onboard 2.5 Gbps Ethernet: High-speed network connectivity, built right in
  • Easy-access USB-C®: Dual Type-C ports, including one with support for DisplayPort  1.4
  • High-speed wireless: Integrated Intel WiFi 6 (Gig+) and Bluetooth 5.2 for easy cordless connections
  • Configurable port: Optional DisplayPort 1.4, VGA, Ethernet or COM socket
  • Optional feature pack: Card reader, microphone array and infrared sensor
  • 24/7 reliability: Extensively tested to ensure long-term dependability

Easy modification, maximum possibilities

ASUS Mini PC PN41 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Gen Intel® Pentium® Silver or Celeron® mobile processor with Intel UHD Graphics, plus support for high-speed 2933 MHz DDR4 memory, Mini PC PN41 is ready for everyday multitask computing, yet its diminutive size makes it well-suited for applications where traditional PCs won’t fit – from digital signage to small home-office setups.

PN41-keyvisual

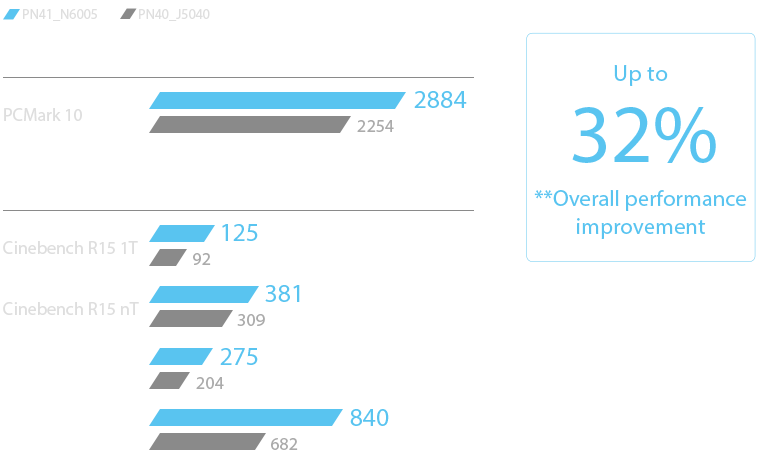

Performance

ASUS Mini PC PN41 is powered by the latest 11 Gen Intel® Pentium® Silver or Celeron® mobile processor. Compared with traditional same-tier mobile processors, these Intel mobile processors deliver performance improvements of up to 36.45% for single-thread computing, up to 31.8% for multi-thread computing, and up to a 32% lift for the entire system – ensuring smooth operations for everything you do.

Up to 32%

*Testing configuration: PN41 / PN40, Windows 10 Pro (64 bit), Intel® Pentium® Silver processor, DDR4 2 x 4 GB RAM, Intel® 545s SATA SSD, 1920 x 1080 at 60 Hz.

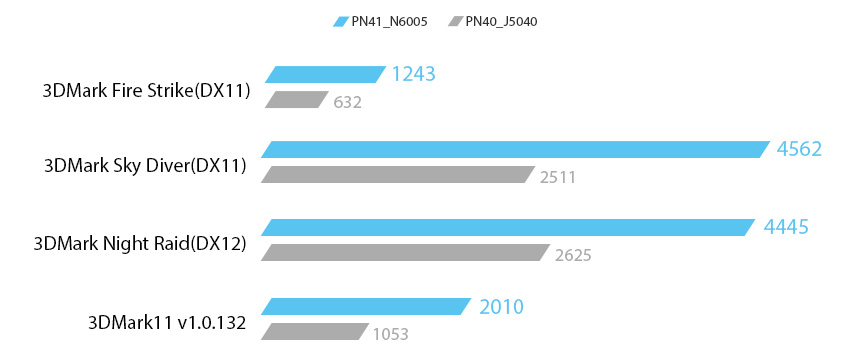

Powerful graphics

ASUS Mini PC PN41 delivers class-leading graphics performance with Integrated Intel UHD Graphics. In fact, compared to previous-generation mobile processors, PN41’s graphics performance in 3DMark11 v1.0.132 has increased by over 90% — and by an impressive 120% in 3D Mark Fire Strike.

Powerful graphics chart

*Testing configuration: PN41 / PN40, Windows 10 Pro (64 bit), Intel® Pentium® Silver processor, DDR4 2 x 4 GB RAM, Intel® 545s SATA SSD, 1920 x 1080 at 60 Hz.

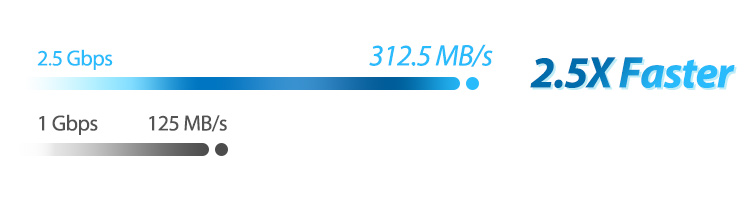

Hyper-fast 2.5 Gbps networking

ASUS Mini PC PN41 is engineered with onboard networking that runs at up to 2.5 Gbps – or 2.5X faster than even gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient.

Hyper-fast 2.5 Gbps networking

Power Delivery input

With support for USB Power Delivery input, PN41 can receive power from a supported display or other device via a cable, eliminating the need for separate power adapters to keep your workspace uncluttered.

* Power Delivery input only on selected models.
* Power Delivery input support requires a power supply with an output capability of at least 65 watts.

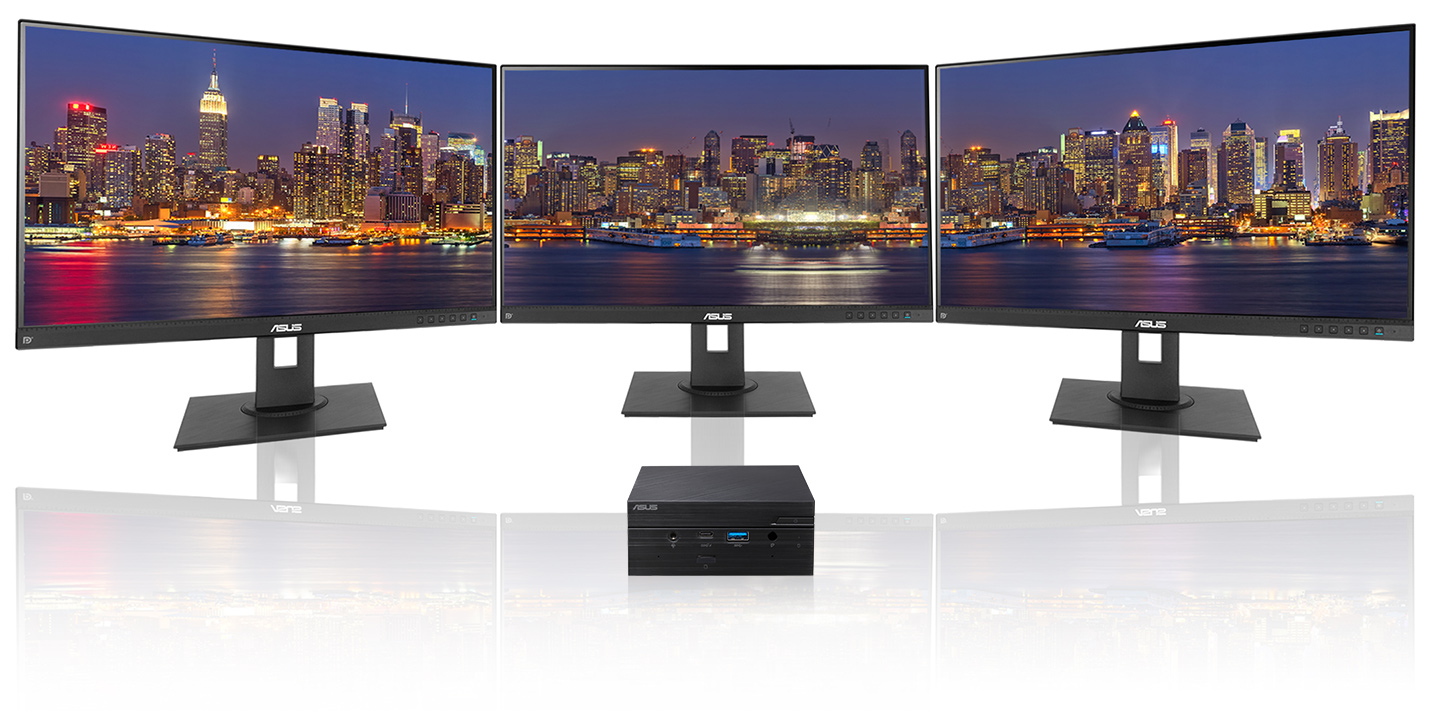

Triple-display suppor

ASUS Mini PC PN41 supports up to three displays with 4K UHD resolution through HDMI, DisplayPort* over USB-C and a user-configurable port*, extending your workspace across multiple monitors for more efficient and comfortable productivity experiences.

* Configurable ports must be specified during the order process.
* Configurable VGA port does not support 4K or higher resolutions.
* PN41 supports DisplayPort 1.4 protocol, up to 4K at 60Hz and 10-bit color depth.

Triple-display support

Diverse application

With support for up to three displays and a fanless design, ASUS Mini PC PN41 is versatile enough for all sorts of commercial applications – from digital signage in shops, exhibition halls and retail stores, to interactive kiosks, home working and online learning. PN41 is also compact and powerful, making it the perfect choice for conference rooms and offices, including home working, or even for remote learning. With built-in Power Delivery input and onboard 2.5 Gbps Ethernet, PN41 makes setup and communication swift, smooth and efficient.

  • Digital Signage

    Digital Signage

  • Kiosk

    Kiosk

  • Small Office or Home Office

    Small Office or Home Office

  • Cloud Learning

    Cloud Learning



Design

Modern, space-saving chassis

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN41 easily blends into home, office and retail environments. Compact and lightweight at 115 x 115 x 49 mm, and with a mere 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.

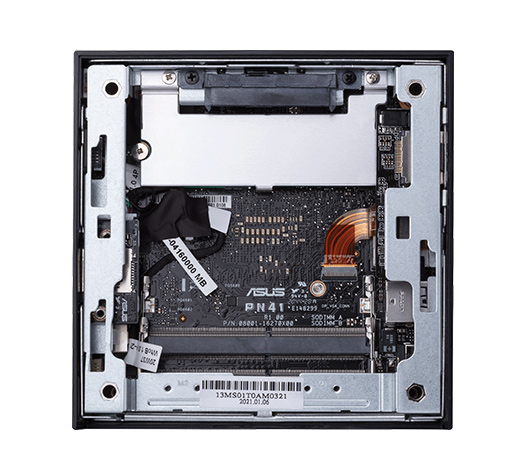

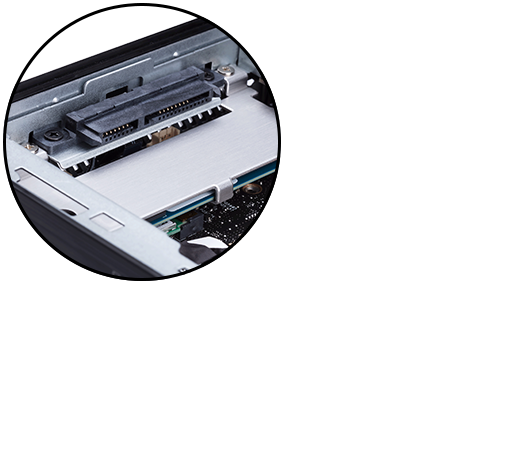

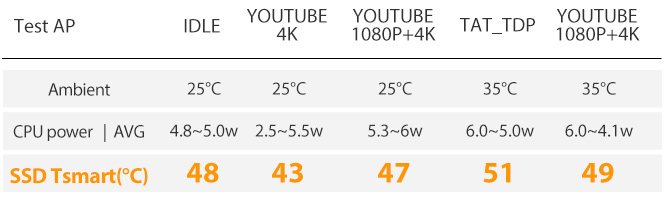

Fanless chassis and a dedicated SSD heatsink

ASUS Mini PC PN41 has a fanless design to support a 6-watt CPU, so it’s ideal for industrial applications where reliability, durability and low noise levels are paramount. It also has a dedicated heatsink to cool the SSD, keeping the average temperature of the drive at a mere 50° C.

*Testing configuration: Intel® Pentium® Silver N6000 processor, DDR4 2933 MHz 32 GB RAM and 512 GB M.2 SSD.

Fanless chassis and a dedicated SSD heatsinkFanless chassis and a dedicated SSD heatsink

Connectivity

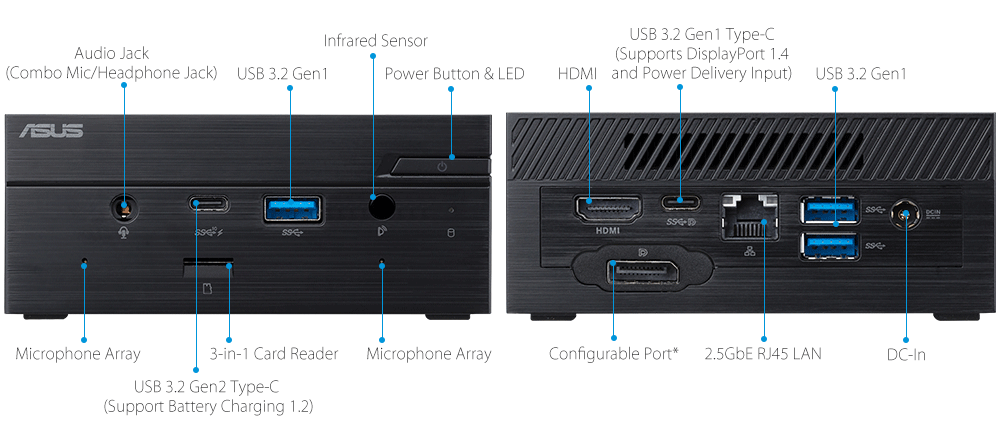

High-speed connectivity

ASUS Mini PC PN41 provides comprehensive connectivity with multiple ports, including a USB 3.2 Gen 2 Type-C port with DisplayPort 1.4 support and a configurable port* to support legacy devices, additional displays or multiple network connections. PN41 also provides Power Delivery input for setup simplicity and easier cable management.

The configurable port offers the option of VGA, DisplayPort, COM or LAN connectivity, making it ideal for a variety of monitor types or legacy devices* – from barcode scanners to receipt printers. With such port versatility, PN41 is perfect for a wide range of business scenarios, including signage, point-of-sale (POS) systems and intelligent vending machines.

* Configurable port options may vary by model or region.

High-speed connectivity

Seamless media experience

ASUS Mini PC PN41 supports HDMI® CEC and has a built-in IR sensor*, allowing you to manage almost all your media devices, from audio and video playback to menu navigation, via a single remote control.

PN41 also sets the standard for the best Windows 10 experience, with a dual-microphone array* that supports Microsoft Cortana – the personal digital assistant that helps you get things done easily. The array mic ensures accurate voice control, even in noisy conditions.

* Specifications may vary by model or region.

windows 10 and Hi. I'm Cortana. logos
  • HDMI CEC Header & IR Sensor

    HDMI CEC Header & IR Sensor

  • Dual-Microphone Array

    Dual-Microphone Array

Reactive cooling

To ensure stable performance, ASUS Mini PN41** has dedicated thermal monitoring for the SSD. It also has numerous preset cooling policies to cater to a diverse variety of scenarios.

*Testing performed on ASUS Mini PC PN62, without SSD Heatsink.
**Only supported on with fan SKU.

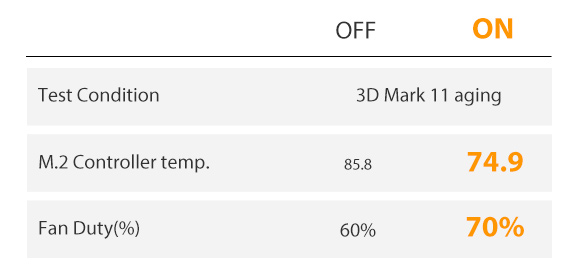

Whole-system cooling:
Fan speed is automatically adjusted according to the M.2 SSD temperature, achieving better heat dissipation. With previous models, only the CPU temperature was monitored.
Whole-system cooling

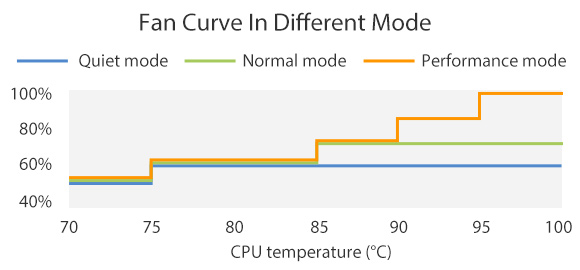

Multiple operating modes:
Three thermal policies are offered in the BIOS, so you’re free to choose the one that best suits the usage situation.
Multiple operating modes

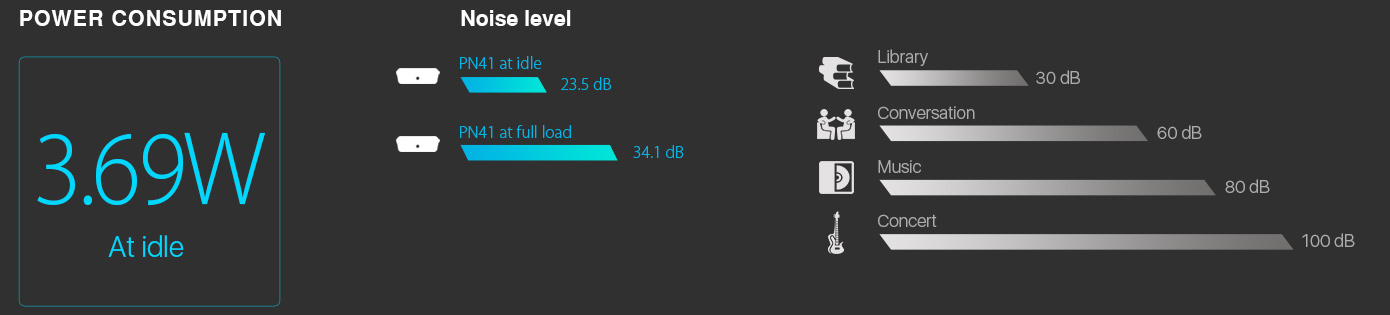

Energy savings

Reduce environmental impact while lowering operating costs

ASUS Mini PC PN41 has an energy-efficient design that reduces environmental impact while helping to lower operating costs. Eco-friendly ASUS Mini PCs are recipients of some of the industry's highest environmental certifications, including ENERGY STAR®. Specifically, PN41 consumes as little as 3.69 watts at idle. It is also whisper-quiet, with the fan-cooled model generating just 34.1 dB(A) at full load. Its fanless sibling generates a mere 23.5 dB(A) at full load.

  • Energy Star logo
  •
  • Green ASUS logo

Reduce environmental impact while lowering operating costs

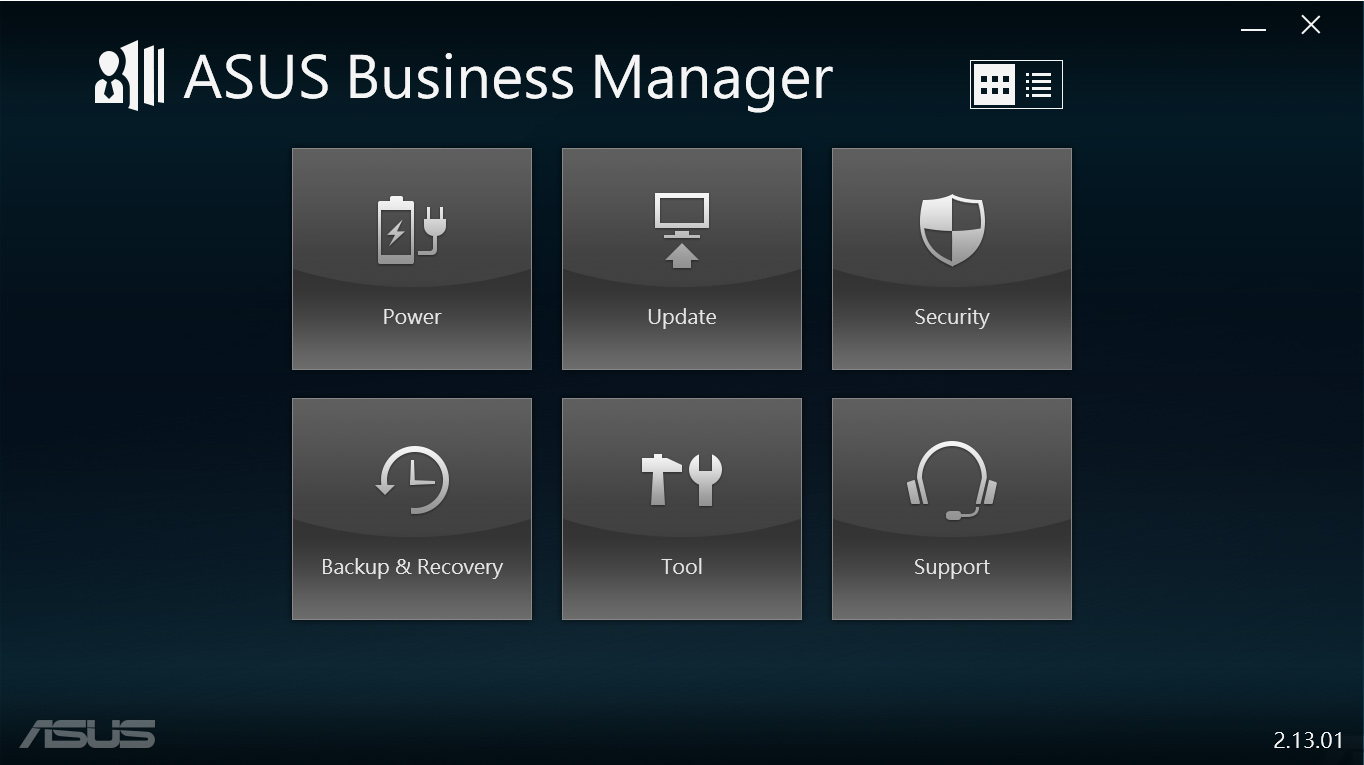

ASUS Business Manager

The ASUS Business Manager software suite provides exclusive features for Mini PC PN41. Designed for businesses that lack adequate IT support, it simplifies the processes of management and maintenance.

ASUS Business Manager

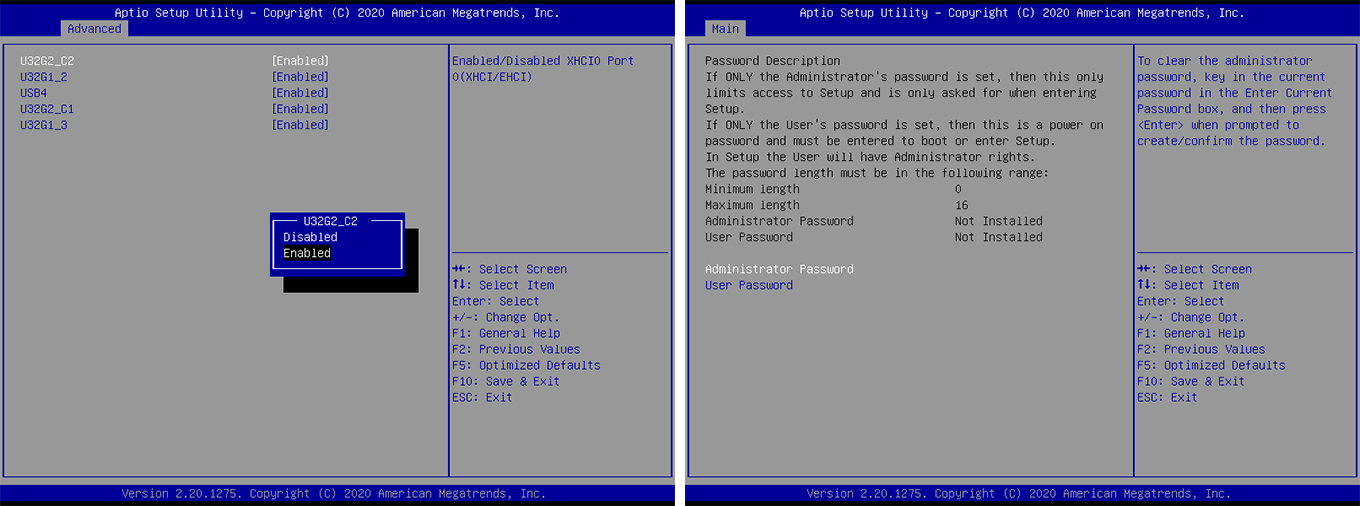

USB port management and administration security

ASUS Mini PC PN41 offers UEFI-level management of USB ports, so they’re easy to selectively enable or disable. An admin password can also be applied to ensure that only authorized users are able to access the system’s security settings.

USB port management and administration security

Longevity and manageability

Corporate Stable Model (CSM)

The ASUS Corporate Stable Model (CSM) program is an initiative designed to provide businesses with stable product supply and enhanced aftersales support. Each CSM mini PC purchase entitles the customer to the ASUS Control Center IT-management software suite (CSM Edition, a $60 value)* that provides comprehensive control and monitoring. ASUS CSM products also include a stable roadmap and assured 36-month supply availability to ensure customers need not worry about material-supply gaps or extended supply.

Learn More

* Program offerings may vary by region. Please consult your local sales representative for more information.

Reliability

Thoroughly tested

ASUS Mini PCs undergo rigorous noise, vibration, drop and thermal-shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. You can rest assured that your ASUS Mini PC can cope with extreme conditions for extended periods, ranging from dry 0° C temperatures to humid and hot environments exceeding 50° C.

  • 168hrs

    Aging time

  •
  • 35°C

    Temperatures

  •
  • 80%

    Relative Humidity


  • Vibration Test

    Vibration Test

  •
  • Drop Test

    Drop Test

  •
  • Port Test

    Port Test

  •
  • Temperature and Humidity Test

    Temperature and Humidity Test

  •
  • Noise Test

    Noise Test

  •
  • Line Voltage and Frequency Test

    Line Voltage and Frequency Test

Model
Mini PC PN41
Operating System
Windows 11 Pro
Free Upgrade to Windows 11¹ (when available, see below); Barebone and Non-OS SKUs are excluded
CPU
Intel® Pentium® Silver N6000 Processor, 6W TDP
Intel® Celeron® N5100 Processor, 6W TDP
Intel® Celeron® N4500 Processor, 6W TDP
Intel® Pentium® Silver N6005 Processor, 10W TDP
Intel® Celeron® N5105 Processor, 10W TDP
Intel® Celeron® N4505 Processor, 10W TDP
Graphics
Integrated - Intel® UHD Graphics
Memory
2 x DDR4 SO-DIMM, Max. 16GB x 1 or 8GB x 2
* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
Storage
eMMC onboard, supports 32GB~128GB
1 x M.2 2280 PCIe Gen3x2, supports 128GB~1TB NVMe™ SSD
1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD
* 2.5" HDD bay only supports 7mm height
Wireless Data Network
Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
Intel® Wi-Fi 5 (Gig+) 1x1 + Bluetooth® 5.1 Wireless Card
Intel® Wi-Fi 5 (Gig+) 2x2 + Bluetooth® 5.1 Wireless Card
LAN
10/100/1000/2500 Mbps, 2.5G LAN
Audio
Realtek® ALC3251 or ALC3236-VB2 HD Audio CODEC (optional)
Front(Side) I/O Ports
1 x USB 3.2 Gen2 Type-C ((w/ quick charge)
1 x USB3.2 Gen1 Type-A
1 x IR Receiver
1 x Dual-Microphone Array
1 x 3-in-1 Card Reader
1 x Audio Jack
1 x Kensington Lock(side)
1 x USB 3.2 Gen2 Type-C(w/ quick charge)
1 x USB 3.2 Gen1 Type-A
1 x Audio Jack
1 x Kensington Lock(side)
Back I/O Ports
1 x USB 3.2 Gen1 Type-C (w/ DP output, PD input)
1 x HDMI,2 x USB 3.2 Gen1
1 x Configurable Port (option:VGA/COM/DP/LAN)
1 x 2.5G(RJ45) LAN
1 x DC-in
Configurable Port Options
1 x DisplayPort 1.4
1 x COM
1 x VGA
1 x LAN
Speaker
No
Power Supply
19Vdc, 3.42A, 65W Power Adapter
Dimensions (W x D x H)
115 x 115 x 49 mm
Weight
700g (include 2.5" HDD)
Color
Black
Accessories
AC Adapter
Driver DVD (non OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Remark
¹The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec).
