Transcend PCIe SSD 115S
1/ 1
Home / Transcend PCIe SSD 115S

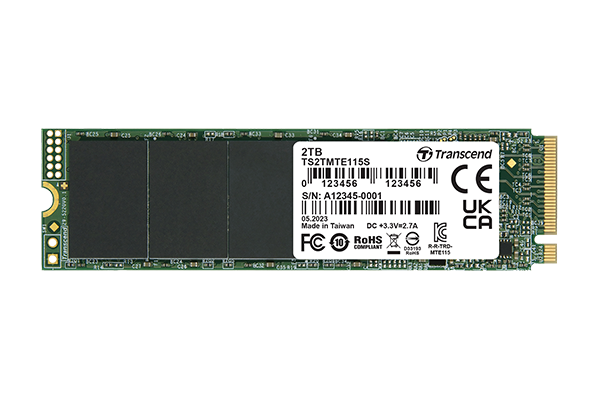

Transcend PCIe SSD 115S

Upgrade your computer performance to a whole new level with Transcend's PCIe SSD 115S! Boasting the slick PCIe Gen 3x4 interface and slim M.2 2280 size, the PCIe SSD 115S is the perfect speedy and sizable companion for your desktops, laptops, and ultrabooks! Warranty - 5 years
Save $20.00 SGD
$88.00 SGD
$108.00 SGD
(tax included)
Color
1TB
2TB
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$88.00 SGD each
Local Shipping
Local Warranty
Secure payments

Specifications

Appearance
Type
  • M.2 2280

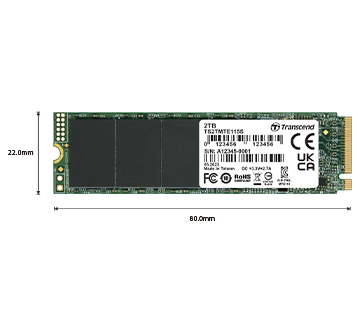

Dimensions Single-sided: 80 mm x 22 mm x 2.23 mm (3.15" x 0.87" x 0.09")
Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight 8 g (0.28 oz)

Interface
Bus Interface
  • NVMe PCIe Gen3 x4

Storage
Flash Type
  • 3D NAND flash
Capacity
  • 250GB/
  • 500 GB/
  • 1 TB/
  • 2 TB

Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 3.3V±5%

Performance
Sequential Read/Write (CrystalDiskMark)
  • 2 TB
    Up to 3,200/1,900 MB/s
    •
  • 1 TB
    Up to 3,200/2,000 MB/s
    •
  • 500 GB
    Up to 3,000/1,600 MB/s
    •
  • 250 GB
    Up to 3,000/1,300 MB/s
4K Random Read/Write (IOmeter)
  • 2 TB
    Up to 200,000/250,000 IOPS
    •
  • 1 TB
    Up to 250,000/170,000 IOPS
    •
  • 500 GB
    Up to 250,000/170,000 IOPS
    •
  • 250 GB
    Up to 250,000/170,000 IOPS
Terabytes Written (TBW)
  • 2 TB
    800 TBW
    •
  • 1 TB
    400 TBW
    •
  • 500 GB
    200 TBW
    •
  • 250 GB
    100 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.2 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
  • Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Warranty
Certificate
  • CE/
  • UKCA/
  • FCC/
  • BSMI/
  • KC/
  • RCM
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

System Requirement
Operating System
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later
Note
  • Please make sure that your computer has a M.2 slot.
  • Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

Technology
S.M.A.R.T.
Advanced Garbage Collection
RAID Engine
  • -
LDPC Coding
DRAM Cache
  • -
