Specifications

  • VESA Plate Monitor Mount

    75x75mm, 100x100mm

  • Desk Mount Base

    C-Clamp, Grommet mount

  • Ergonomic Adjustment System

    Mechnical Spring

  • Supported Monitor Size Range

    17" - 34"

  • Weight Capacity Range (Each Monitor Arm)

    2 - 9 Kg

  • Color

    White

View More

Product Information
ERGONOMIC ADJUSTMENT SYSTEM SUPPORTED MONITOR SIZE RANGE
Mechnical Spring 17" - 34"
BUILT IN CABLE MANAGEMENT WEIGHT CAPACITY RANGE (EACH MONITOR ARM)
Yes 2 - 9 Kg
MAXIMUM HEIGHT ADJUSTABLE HEIGHT RANGE
495 mm 250 mm
STRETCH LENGTH RANGE TILT RANGE
455 mm -15⁰ ~ +90⁰
SWIVEL RANGE PIVOT RANGE
-90⁰ ~ +90⁰ 360⁰

Design
Color Material
White Alluminium Alloy

Product Dimensions and Weight
PACKAGING DIMENSIONS (LXWXH) NET WEIGHT
405x195x115 mm 2.4kg
  GROSS WEIGHT
  2.8kg

Connectivity Information
VESA PLATE MONITOR MOUNT DESK MOUNT BASE
75x75mm, 100x100mm C-Clamp, Grommet mount
Grommet Mounting C-Clamp Mounting
Surface hole from 2.36" wide
and up to 1.97" thick		 Desk surface thickness
from 0.59" to 1.97"

Warranty
Warranty Period
5 Years

You may also like

  • AOC AM400S C-Clamp and Grommet Desk-Mount Single Monitor Arm - for monitors 17"-34" and weight 2 to 9kg

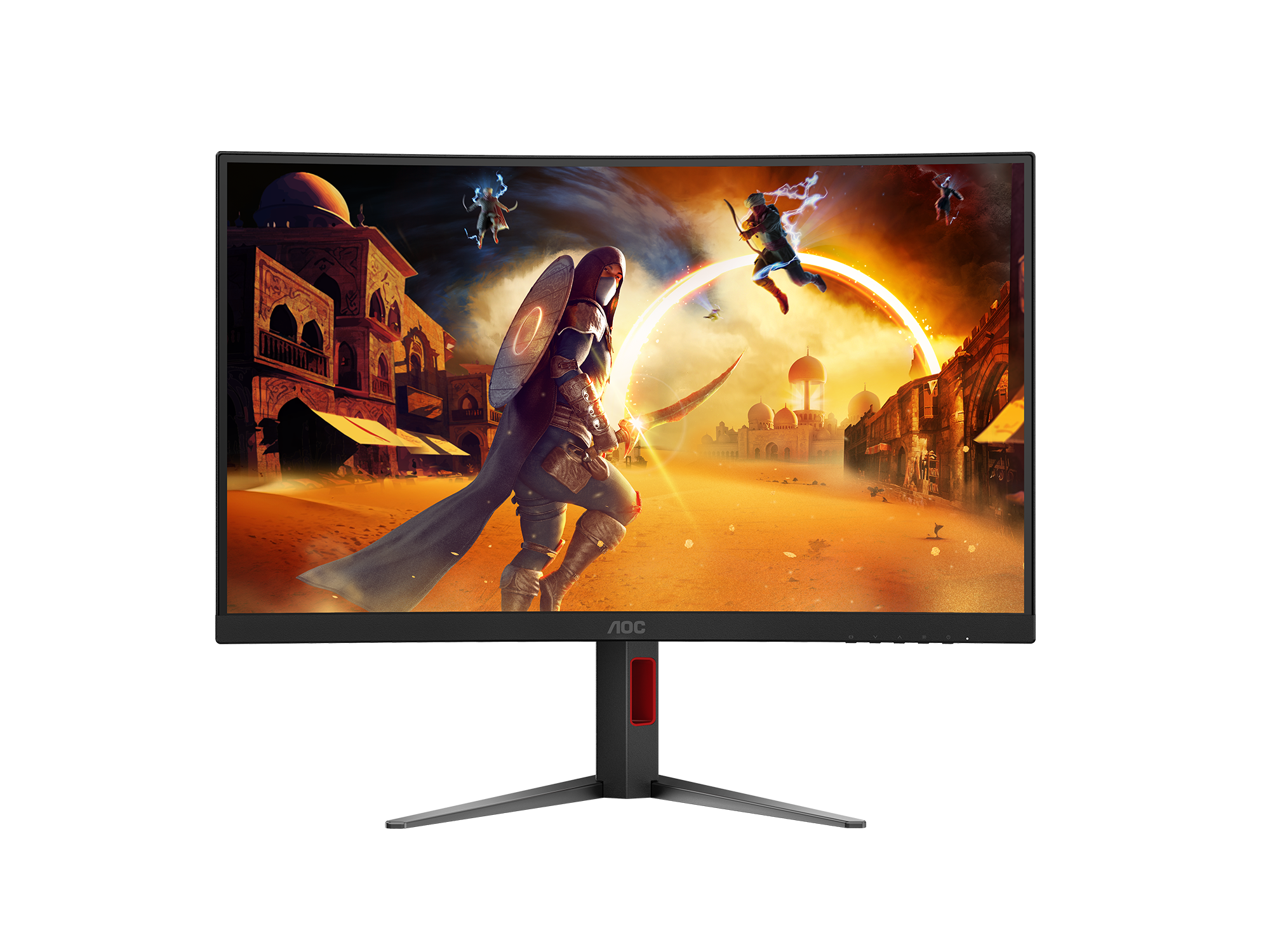

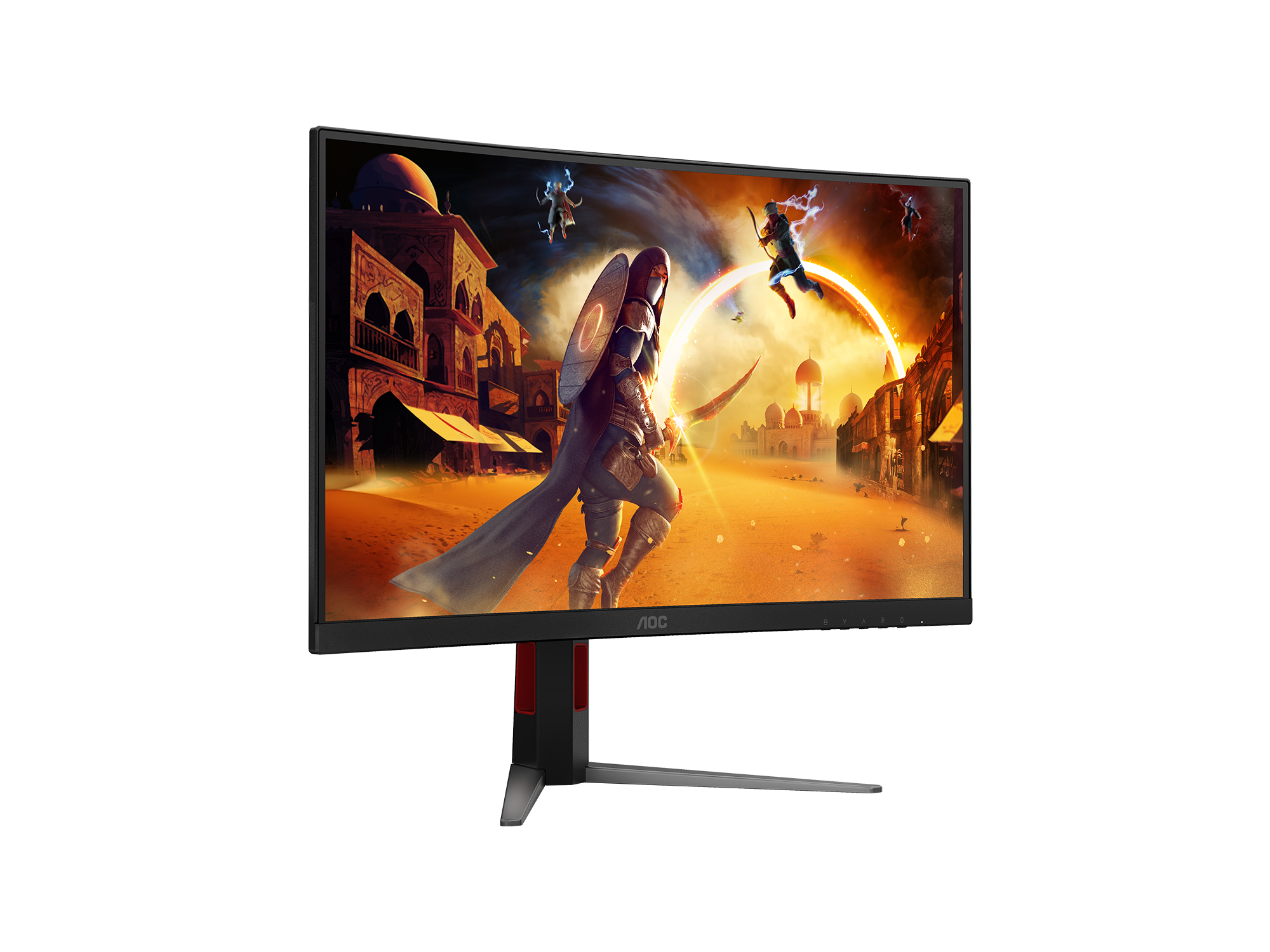

  • AOC CQ27G4 ADAPTIVE SYNC 180Hz 0.5ms QHD HDR10 CURVED GAME MONITOR

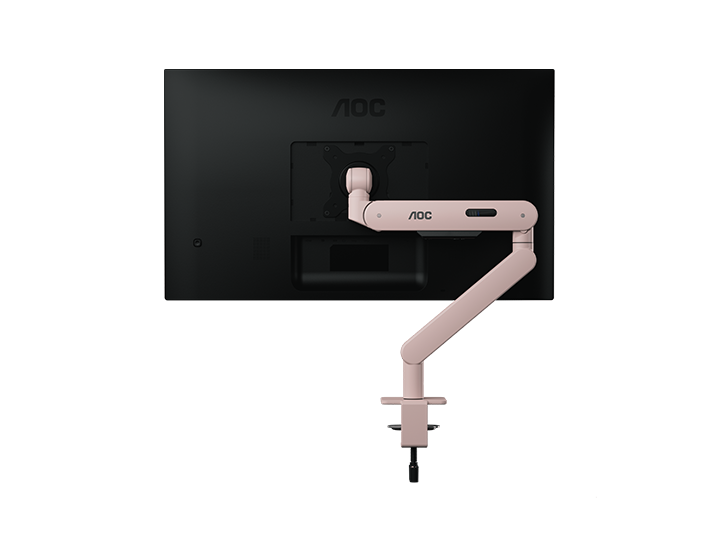

    AOC AM400P C-Clamp and Grommet Desk-Mount Single Monitor Arm - for monitors 17"-34" and weight 2 to 9kg
  •

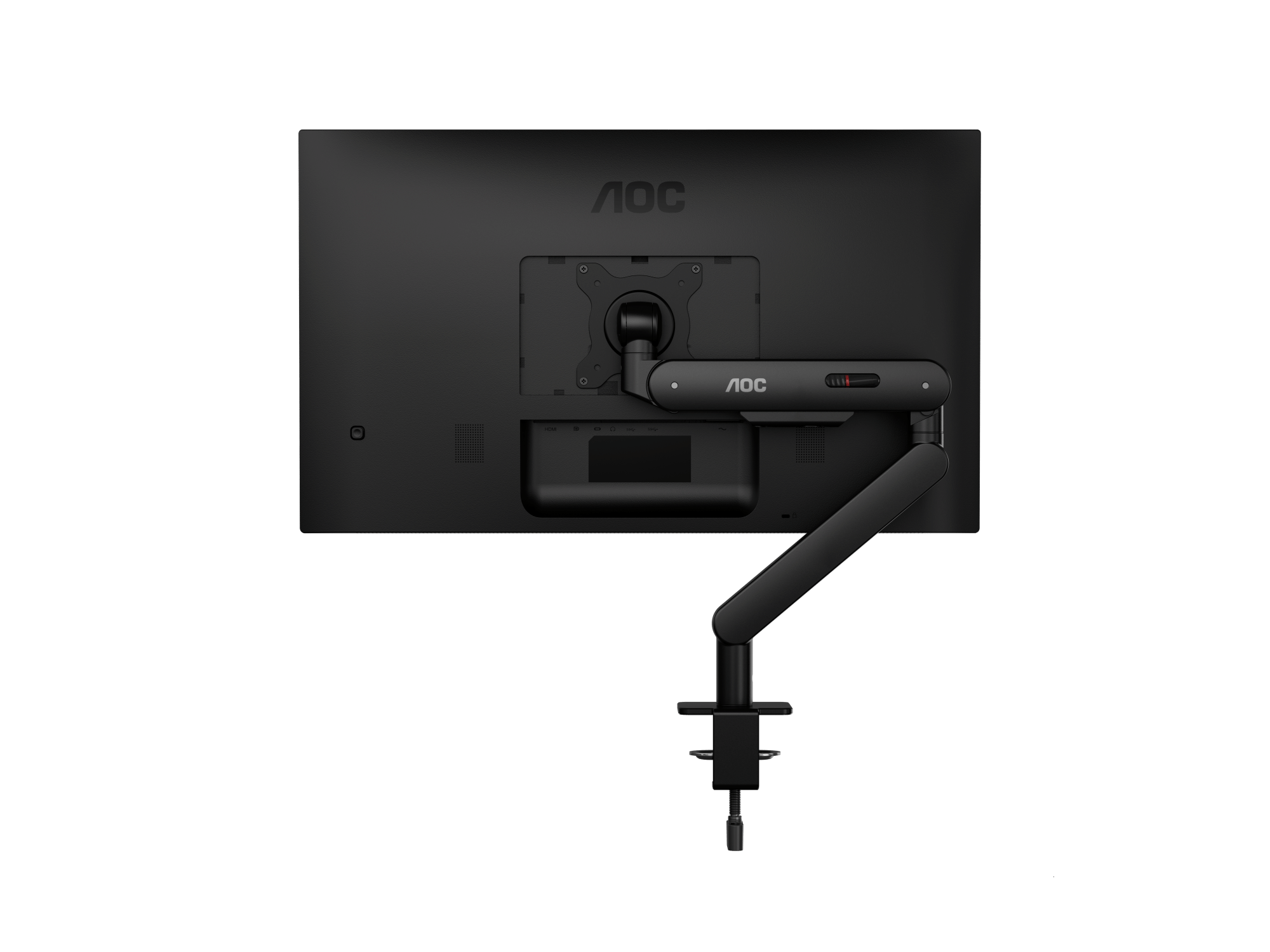

  • AOC AM400B C-Clamp and Grommet Desk-Mount Single Monitor Arm - for monitors 17"-34" and weight 2 to 9kg
