Technical specifications & manual
General Specifications

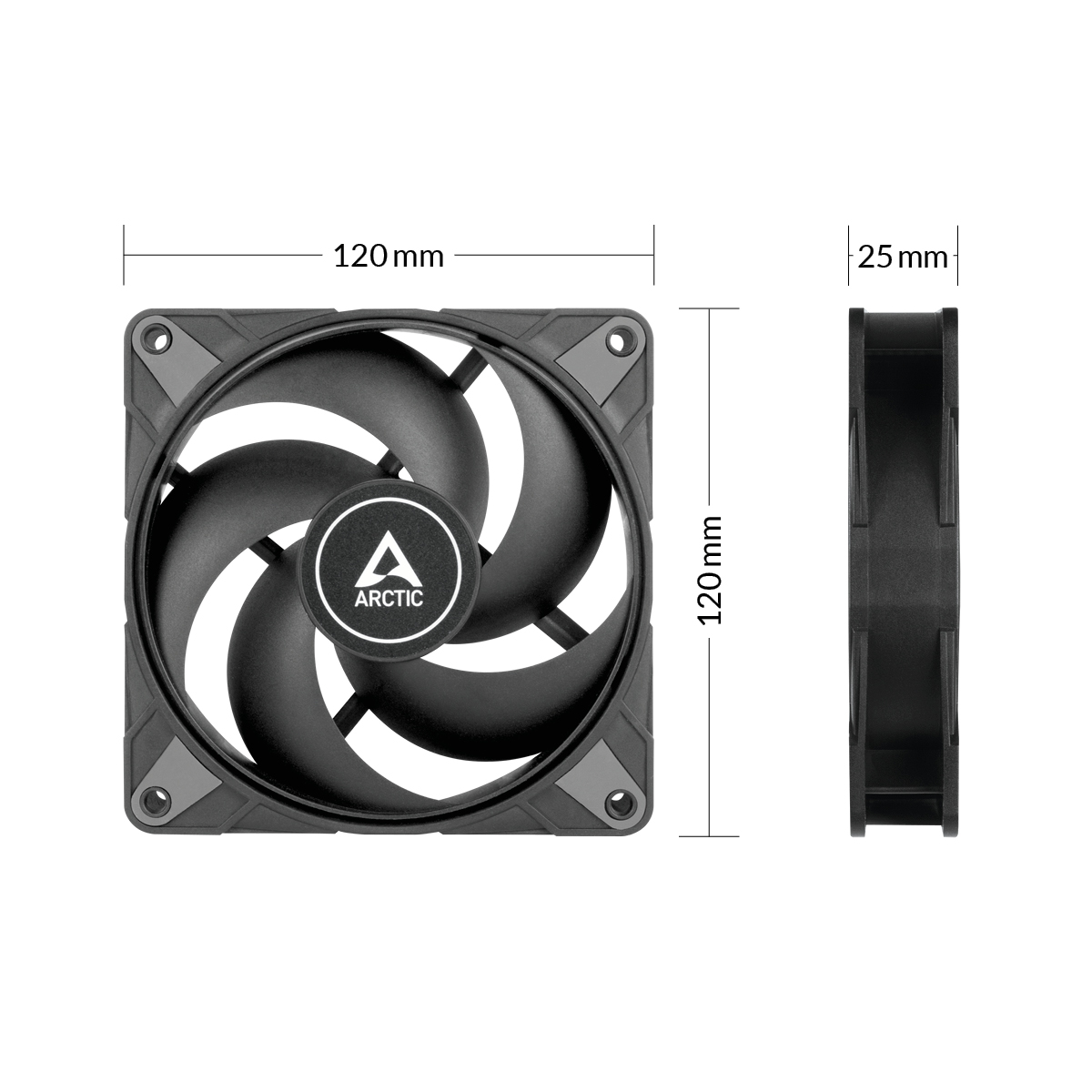

Dimensions:
120 (L) x 120 (W) x 25 (H) mm
Net Weight:
184 g
Operating Ambient Temperature:
0–40 °C
Warranty:
6 Years
Fan Specifications
Fan Speed:
200–3300 rpm (PWM controlled), 0 rpm below 5 % PWM
Airflow:
81.04cfm | 137.69m³/h
Static Pressure:
4.35 mmH2O
Noise Level:
0.6 Sone
Fan Bearing:
Fluid Dynamic Bearing
Typical Voltage:
12 V DC
Start Up Voltage:
3.9V DC
Current:
0.29 A
Cable Length:
400 mm
Connector:
4-Pin PWM Connector
Packaging
- Width: 127 mm
- Height: 30 mm
- Length: 125 mm
- Weight: 0.214 kg
Manufacturer Info
Manufacturer: ARCTIC (HK) Ltd., Unit 1301-05, The Octagon, 6 Sha Tsui Road, Tsuen Wan NT, Hong Kong, hk@arctic.de
EU Representative: ARCTIC GmbH, Bevenroder Str. 149, 38108 Braunschweig, Germany, info@arctic.de, +49 531 60945294
EAN: 4895213704076
UPC: 840033401883
