Arctic P12 Slim PWM PST 120 mm Low-Profile PWM Fan with Cable Splitter
Arctic P12 Slim PWM PST 120 mm Low-Profile PWM Fan with Cable Splitter
1/ 1

Arctic P12 Slim PWM PST 120 mm Low-Profile PWM Fan with Cable Splitter

Warranty - 6 years limited
$22.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$22.00 SGD each
Local Shipping
Local Warranty
Secure payments

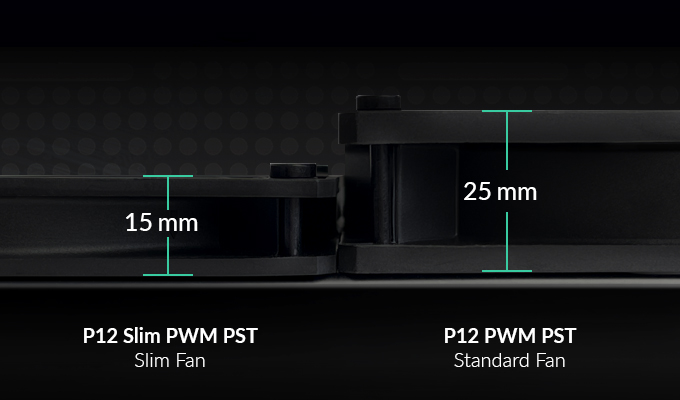

p12-slim-pwm-pst-height-comparison-en

Ideal for Small Spaces

Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

p12-slim_pwm_pst-pressure-optimised

Optimised for High Static Pressure

Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

p12-slim-pwm-pst-maximum-quietness-en

Maximum Quietness, Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

p12-slim-pwm-pst-extended-lifespan-en

Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

PWM-PST-Cable-black

300 to 2100 rpm Controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

p12-slim-pwm-pst-fluid-dynamic-bearing-en

High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

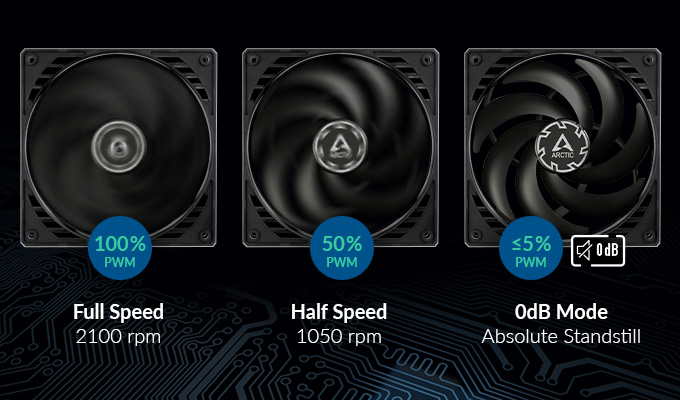

p12-slim-pwm-pst-0dB-en

0dB Mode — Zero rpm

The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.

p12-slim-pwm-pst-intake-exhaust-in-case

Versatile Use

The P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.

Technical specifications & manual

General Specifications
Performance
Fan Speed:
300—2100 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow:
42.10 cfm |71.53 m³/h
Static Pressure:
1.45 mmH2O
Noise Level:
0.3 Sone
Warranty:
6 Years
Fan
Fan Frame:
Standard
Control Type:
PWM PST
Connector:
4-Pin Connector + 4-Pin Socket
Fan Bearing:
Fluid Dynamic Bearing
Operating Ambient Temperature:
0—40 °C
Electric Characteristics
Typical Voltage:
12 V DC
Starting Voltage:
5 V
Current | Voltage:
0.12 A | 12 V DC
Cable Length:
400 mm
Size & Weight
Length:
120 mm
Width:
120 mm
Height:
15 mm
Weight:
85 g
Packaging
  •  Width: 127 mm
  •  Height: 16 mm
  •  Length: 123 mm
  • Weight: 0.11 kg
Manufacturer Info

Manufacturer: ARCTIC (HK) Ltd., Unit 1301-05, The Octagon, 6 Sha Tsui Road, Tsuen Wan NT, Hong Kong, hk@arctic.de

EU Representative: ARCTIC GmbH, Bevenroder Str. 149, 38108 Braunschweig, Germany, info@arctic.de, +49 531 60945294

EAN: 4895213703130

UPC: 840033400930
