The plug-and-forget Wi-Fi upgrade!

Extreme 5th-generation Wi-Fi speed

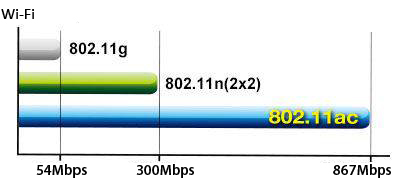

Super-fast Wi-Fi ever becomes more accessible via USB, going up to 867Mbps on the clear 5GHz band. Using 802.11ac wireless, faster connectivity and enjoyment come to all your devices.
Multi-user MIMO support
MU-MIMO technology boosts connection speed when multiple compatible clients are online.

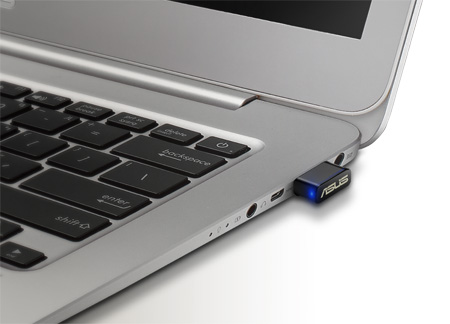

Travel-friendly design
The USB-AC53 Nano is specially-designed to be compact and durable to safely and securely stay plugged into a notebook PC even inside a slim carrying case.

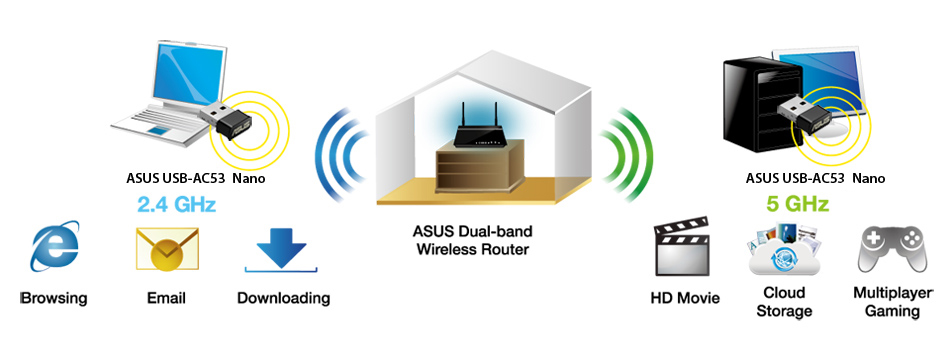

Selectable dual-band 300Mbps/ 867Mbps bandwidth
Dual-band operation suits mainstream and power users. The 2.4 GHz band is perfect for web browsing, email, and social networking, while the 5 GHz frequency enables smooth 4K streaming and online gaming for blazingly fast and lag-free home entertainment.


Model
USB-AC53 Nano
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
Interface
USB 2.0
Antenna
2 x PIFA
Internal 1.81 dBi antenna x 2
Internal 1.81 dBi antenna x 2
Security
64-bit WEP, 128-bit WEP, WPA/WPA2/WPA3-Personal
Certificates
CE, FCC, IC, NCC
OS Support
OS Support : Windows 10
Windows 8.1
Windows 8
WindowsR 7
Mac OS X 10.7 to 10.12
Windows 8.1
Windows 8
WindowsR 7
Mac OS X 10.7 to 10.12
Package Content
Support CD
Warranty card
Warranty card
Product Weight (g)
5 g
Product Dimensions
20 x 14 x 7 ~ mm (WxDxH) (Without Bezel)
Note
*The network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.
Out Put power as below:
2412-2472MHz (802.11n HT40 MCS0): 17.24 dBm
5180-5240MHz (802.11n HT20 MCS0): 17.38 dBm
5260-5320MHz (802.11ac VHT80 MCS0): 15.8 dBm
5500-5700MHz (802.11n HT20 MCS0): 13.31 dBm
Out Put power as below:
2412-2472MHz (802.11n HT40 MCS0): 17.24 dBm
5180-5240MHz (802.11n HT20 MCS0): 17.38 dBm
5260-5320MHz (802.11ac VHT80 MCS0): 15.8 dBm
5500-5700MHz (802.11n HT20 MCS0): 13.31 dBm
