Model
NUC14LNK(Mini PC)
Form Factor
Mini PC
Operating System
Windows 11 Pro
Windows 11 Home
*Pre-configured Windows OS version may differ by country inquire with local sales
Windows 11 Home
*Pre-configured Windows OS version may differ by country inquire with local sales
CPU
Intel® Core™ Ultra 5 Processor 226V, cTDP 30W
Chipset
Integrated
Graphics
Intel® Arc™ Graphics 140V(U7/U9)
Intel® Arc™ Graphics 130V(U5)
Intel® Arc™ Graphics 130V(U5)
Memory
Included: 16GB LPDDR5x-8533 2ch memory
Storage
Support:
256GB~4TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Included:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
256GB~4TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Included:1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
Wireless Data Network
Intel® Wi-Fi 7 BE201, Bluetooth 5.4
LAN
Intel® Ethernet Controller I226-V, 2.5G
Audio
Realtek ALC3288

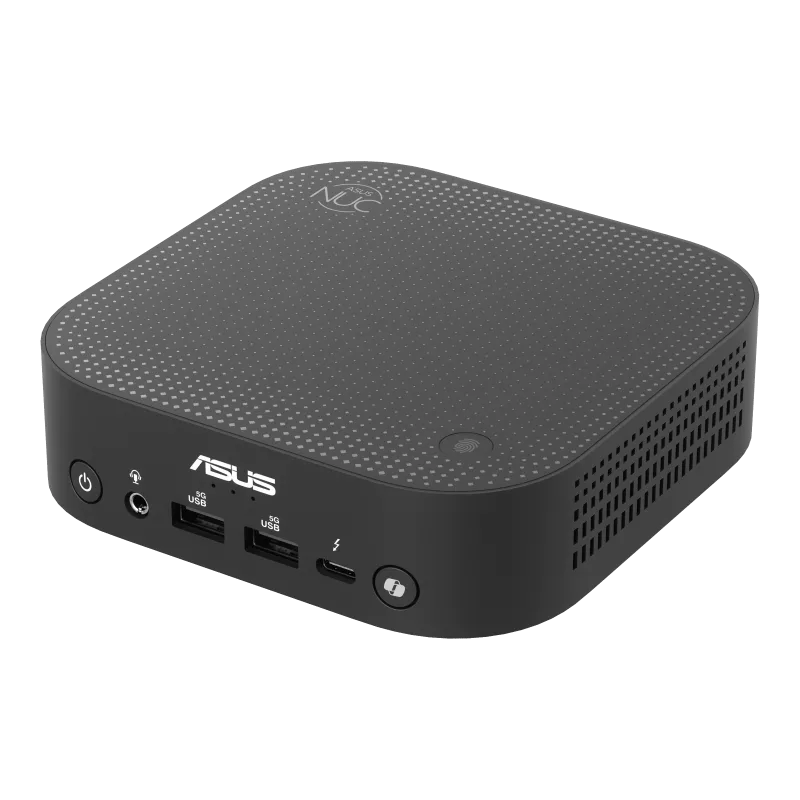

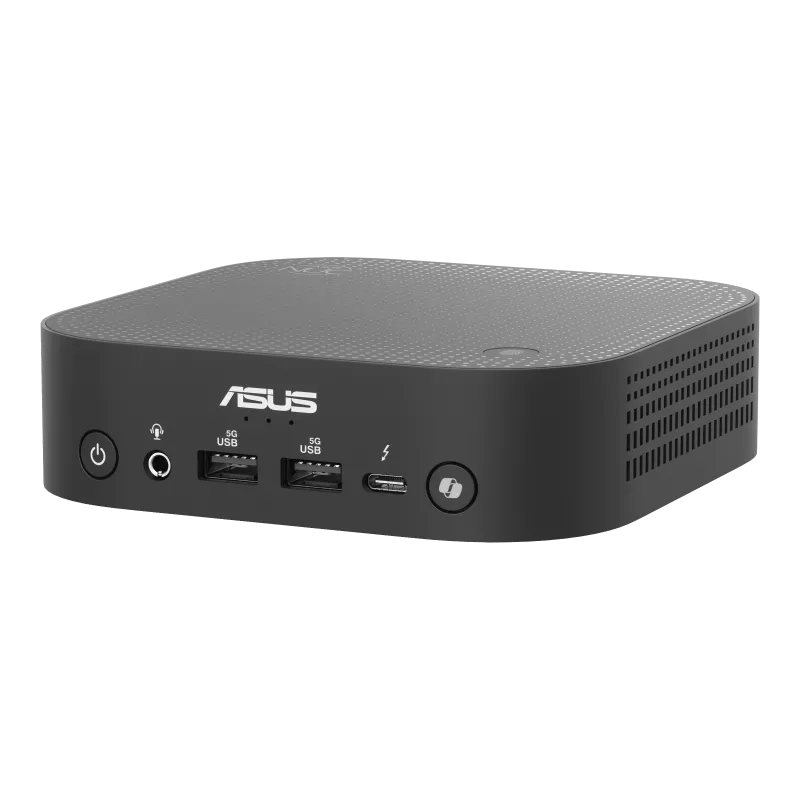

Front(Side) I/O Ports
(Top)
1 x Finger Print module
(Front)
1 x Power button
1 x Copilot button
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen1 Type-A
1x 3.5mm Headset Jack
(Side)
1 x Kensington Lock slot
1 x Finger Print module
(Front)
1 x Power button
1 x Copilot button
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen1 Type-A
1x 3.5mm Headset Jack
(Side)
1 x Kensington Lock slot

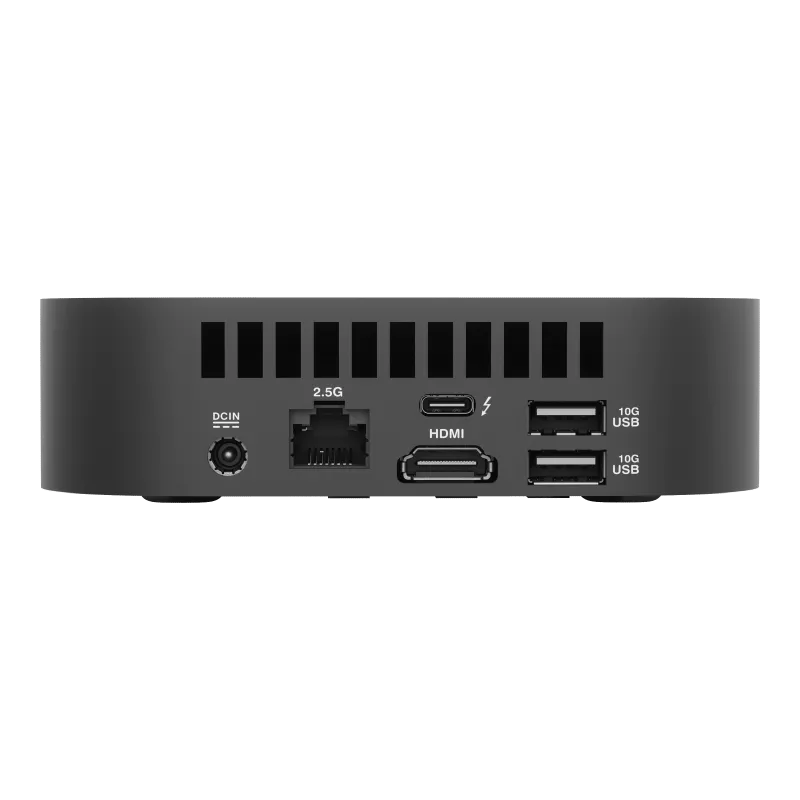

Back I/O Ports
1 x Thunderbolt™ 4 Type-C w/ DisplayPort 2.1
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
2 x USB 3.2 Gen2 Type-A
1 x HDMI 2.1 (TMDS)
1 x 2.5G RJ45 LAN
1 x DC-in
Dimensions (W x D x H)
130mm x 130mm x 34 mm
Weight
0.5kg
ID
Black, With ASUS LOGO
Accessories
AC Adapter+Power Cord*
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
Warranty Card
VESA Bracket and Screws
Safety/Caution/Regulatory Insert
Warranty Card
