Model

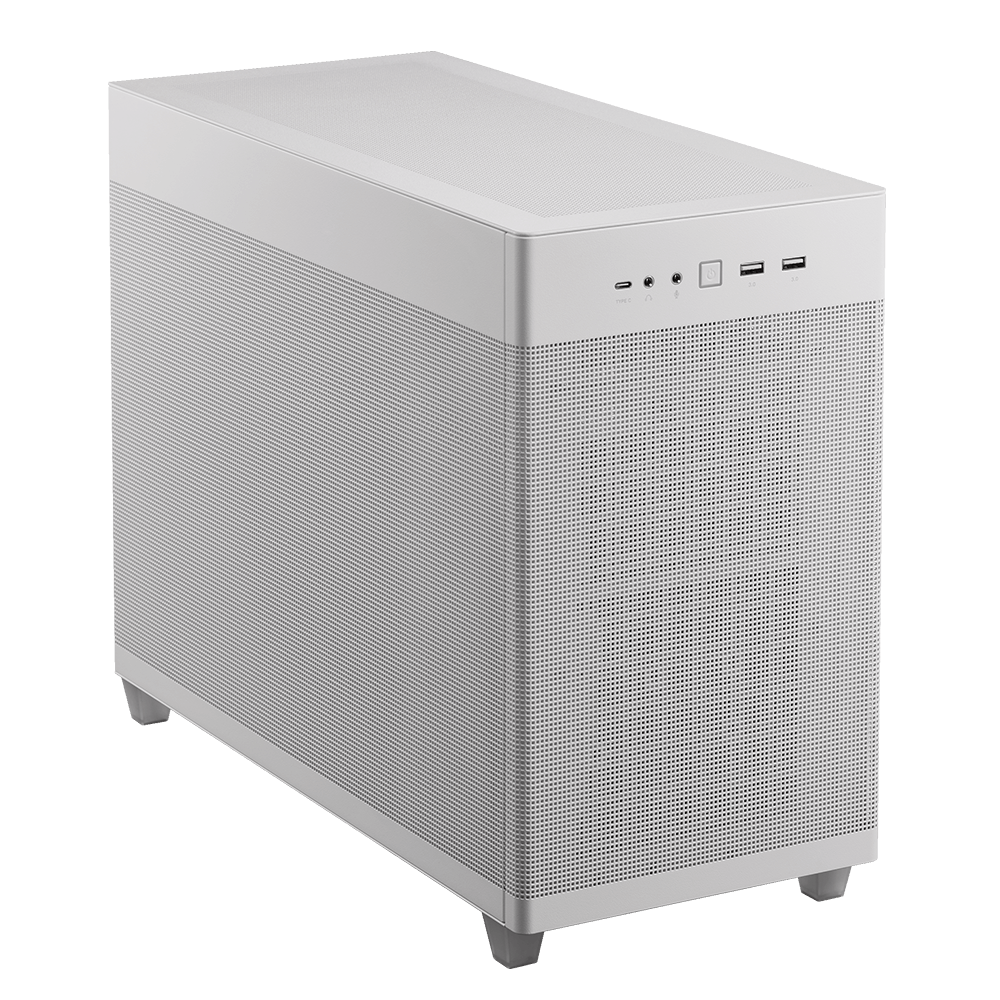

ASUS Prime AP201 MicroATX Case
Case Size
Small Tower
Motherboard Support
Micro-ATX
Mini-ITX
Mini-ITX
Drive Bays
1 x 2.5" Bay
3 x 2.5"/3.5" Combo Bay
3 x 2.5"/3.5" Combo Bay
Expansion Slots
4

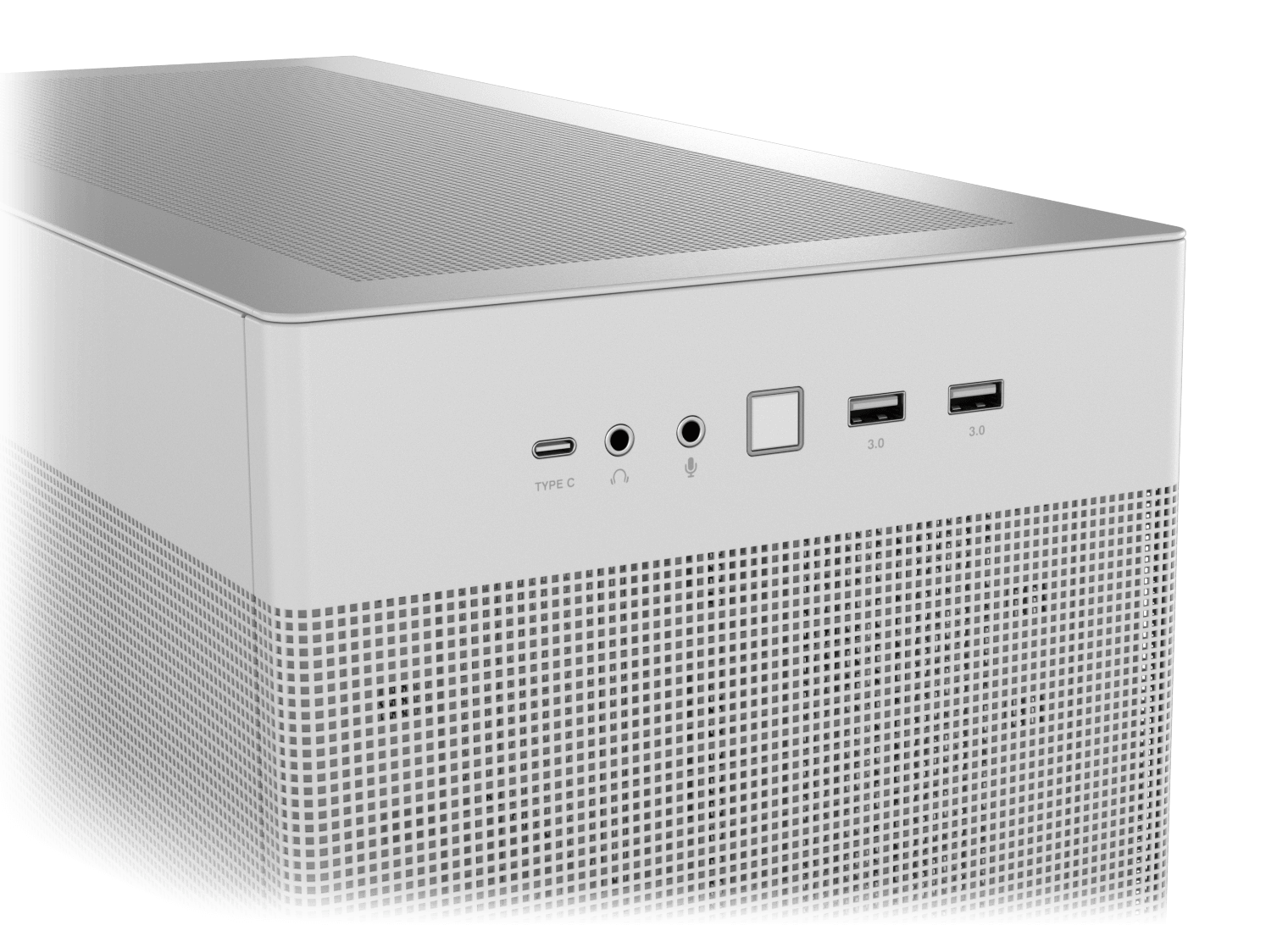

Front I/O Port
1 x Headphone
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
Pre-installed Fans (Front)
None
Pre-installed Fans (Rear)
1 x 120 mm
Maximum CPU Cooler Height
170 mm
Maximum GPU Length
338 mm
Maximum PSU Length
140-180 mm
Removable Dust Filters
Bottom
Maximum Cable Management Space
32 mm
Dimensions
205 x 350 x 460 mm
Weight
5.8 Kg (Mesh Edition)
6.3 Kg (Tempered Glass Edition)
6.3 Kg (Tempered Glass Edition)
