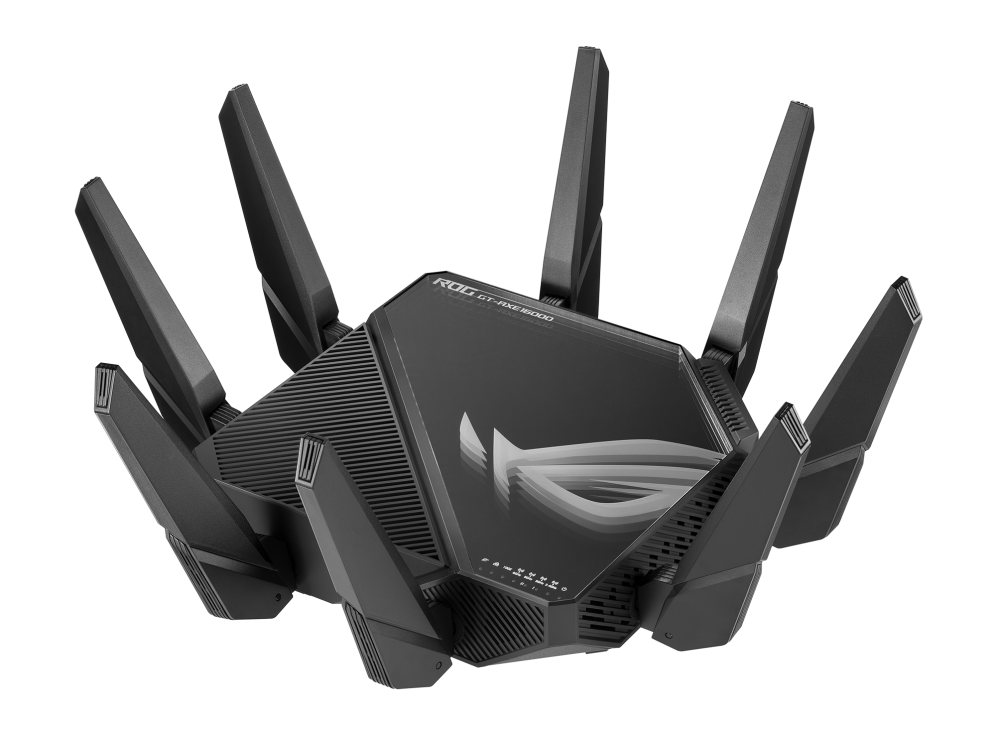

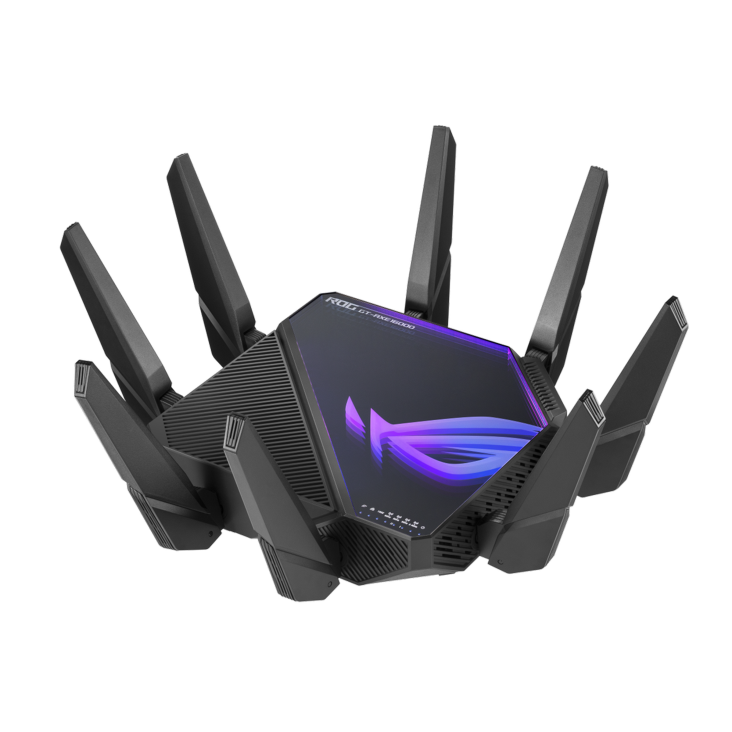

GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security
- World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps
- New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.
- Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
- Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options
- Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports.
- 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6.
- Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game server

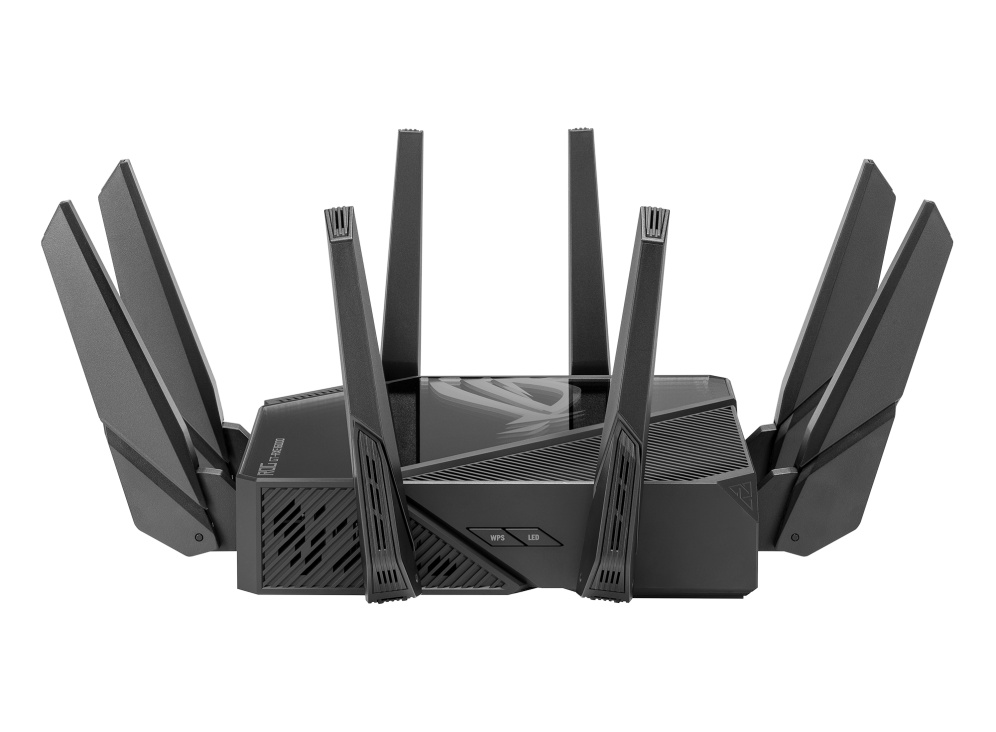

The world's first quad-band WiFi 6E gaming router
The trailblazing ROG Rapture GT-AXE16000 is the world's very first quad-band WiFi 6E gaming router, delivering incredible speeds of up to 16000 Mbps. We've unlocked the full potential of the four frequency bands — 2.4 GHz, two 5 GHz* bands, and 6 GHz — with 160 MHz channels in the 5 GHz and 6 GHz bands to bring you the fastest speeds possible.
*The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Built as the ultimate AiMesh router

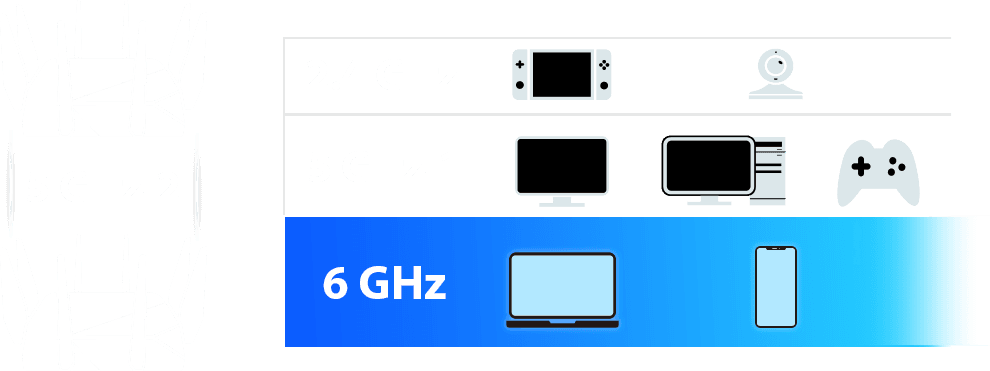

By default, one of GT-AXE16000's two 5 GHz bands is used as a dedicated backhaul connection to the central router, so your devices still have full tri-band access to the 2.4 GHz band, the second 5GHz band and the 6 GHz band.
Built as the ultimate AiMesh router

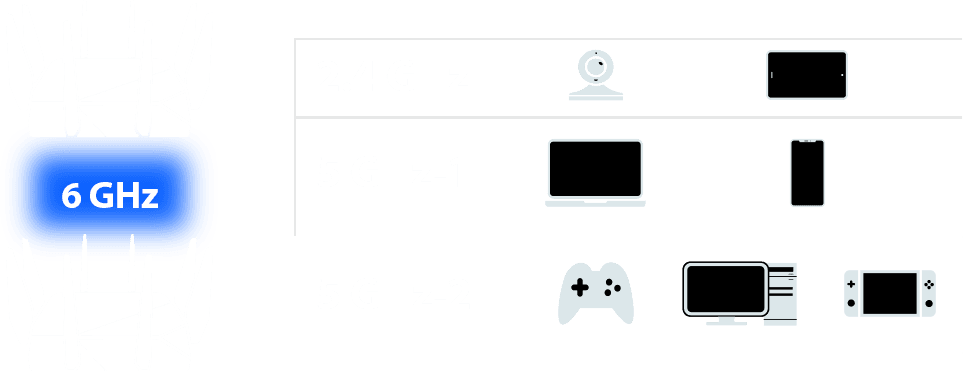

Alternatively, with WiFi 6E AiMesh nodes you can configure a 6 GHz backhaul connection, providing fast and interference-free transmission between nodes for an optimized mesh experience.
WiFi 6E - 6 GHz band

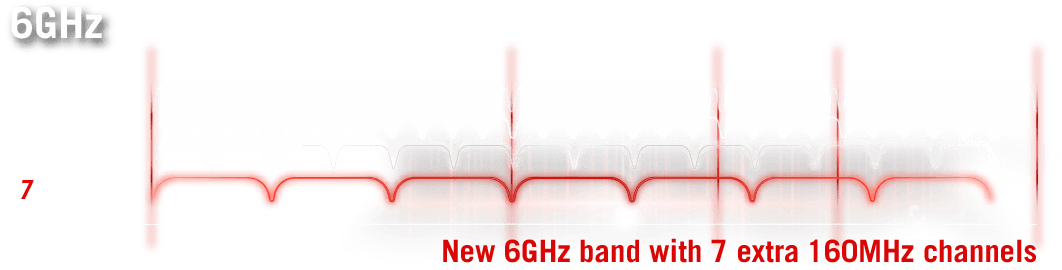

WiFi 6E gives you up to seven* additional high-speed 160 MHz channels, for multi-gigabit speeds with stable and consistent connections. It dramatically increases network capacity while reducing bandwidth congestion, delivering higher performance for every WiFi 6E device.
*Subject to regulatory limitations, and co-existence with 5 GHz WiFi. Number of channels may be less than 7. If no 6 GHz SSID is displayed, please check whether your OS and client device are fully licensed to support the newly released 6 GHz band. You can check with your OS and client device provider for the WiFi 6E driver release schedule.

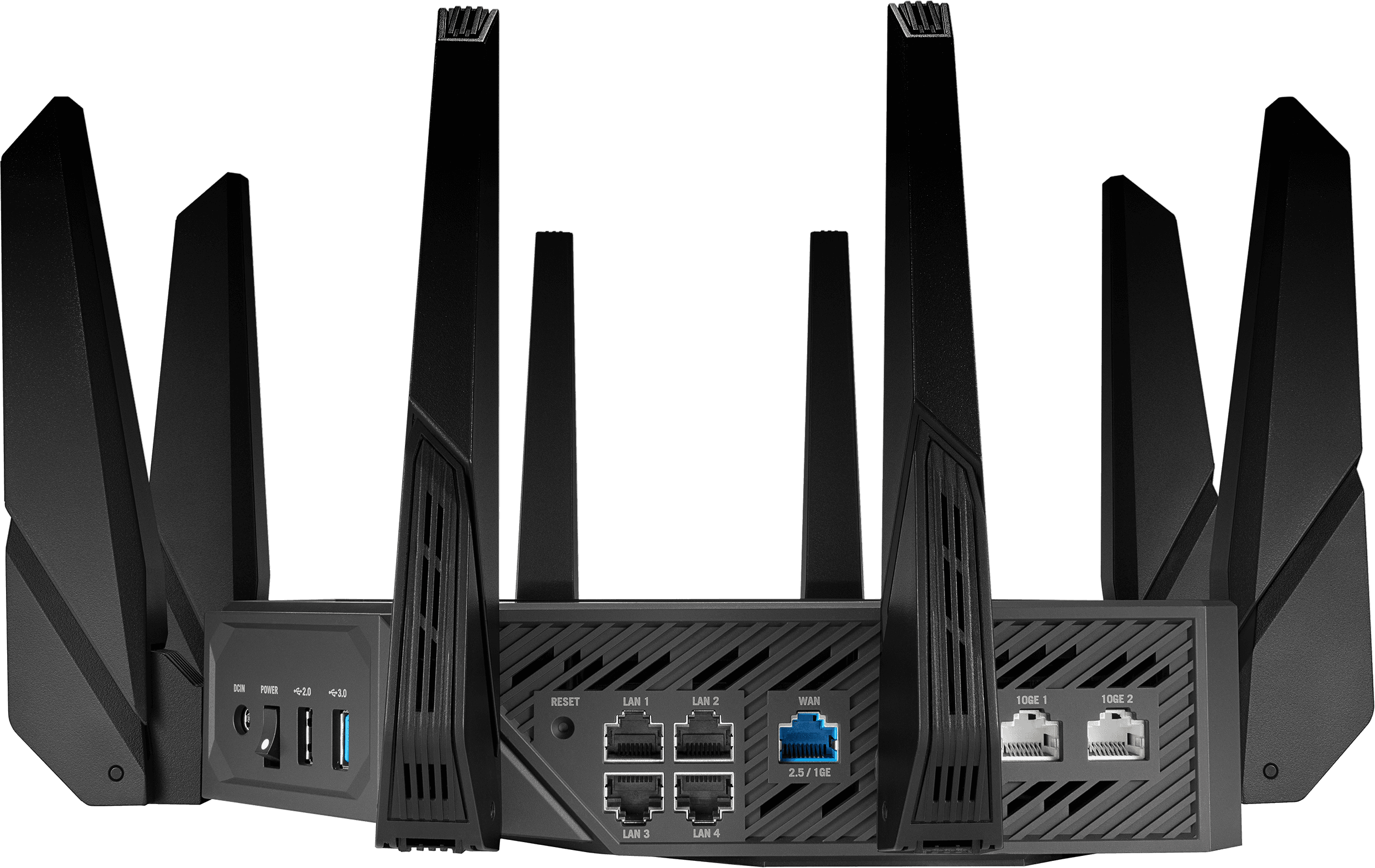

Flexible network port configuration

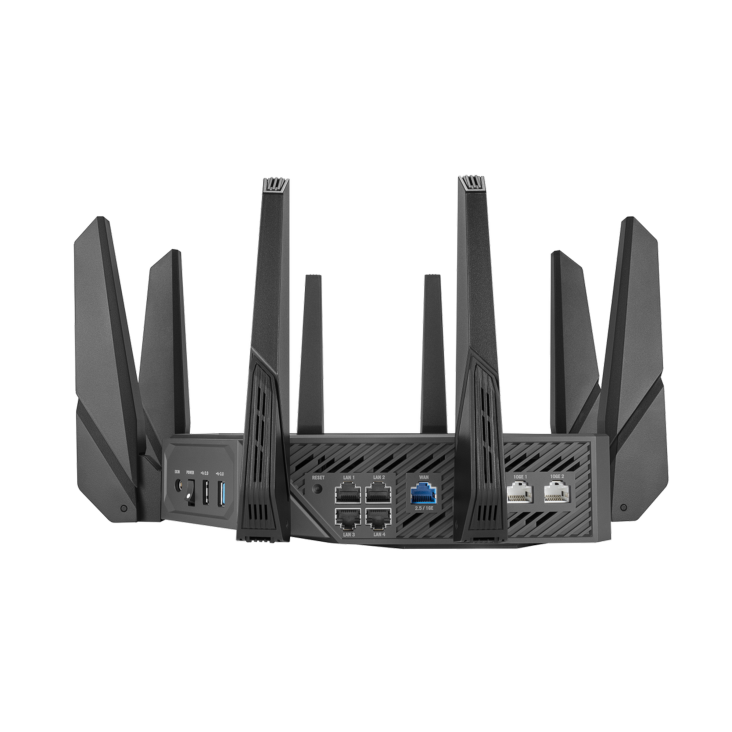

ROG Rapture GT-AXE16000 has two dual-function 10 Gbps WAN/LAN ports, four 1 Gbps LAN ports, and a 2.5 Gbps WAN port. This flexibility gives you the ability to deliver massive bandwidth to your wired devices, and take advantage of ultra-high-speed internet connections in any scenarios.
Built for the ultimate speed

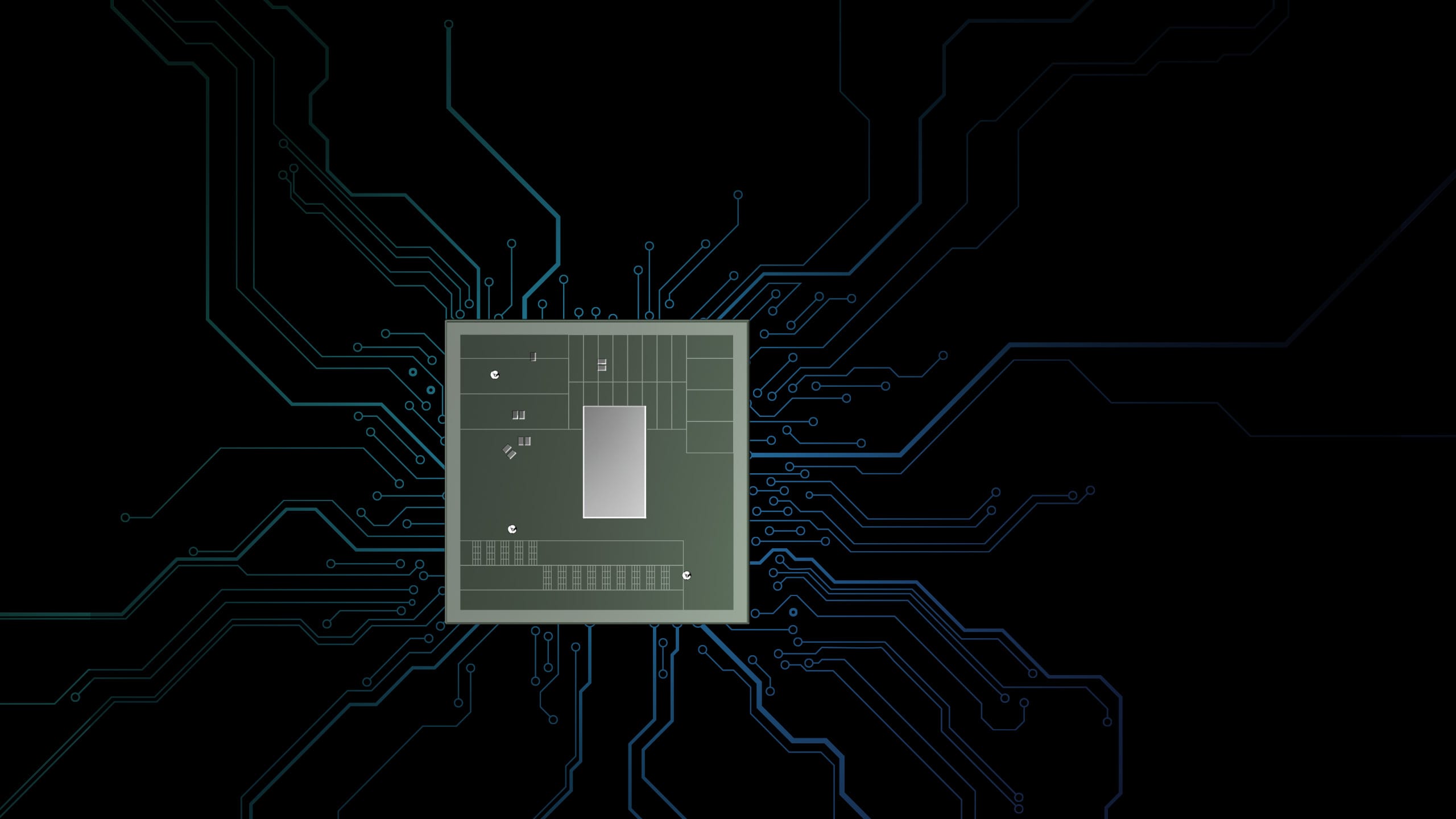

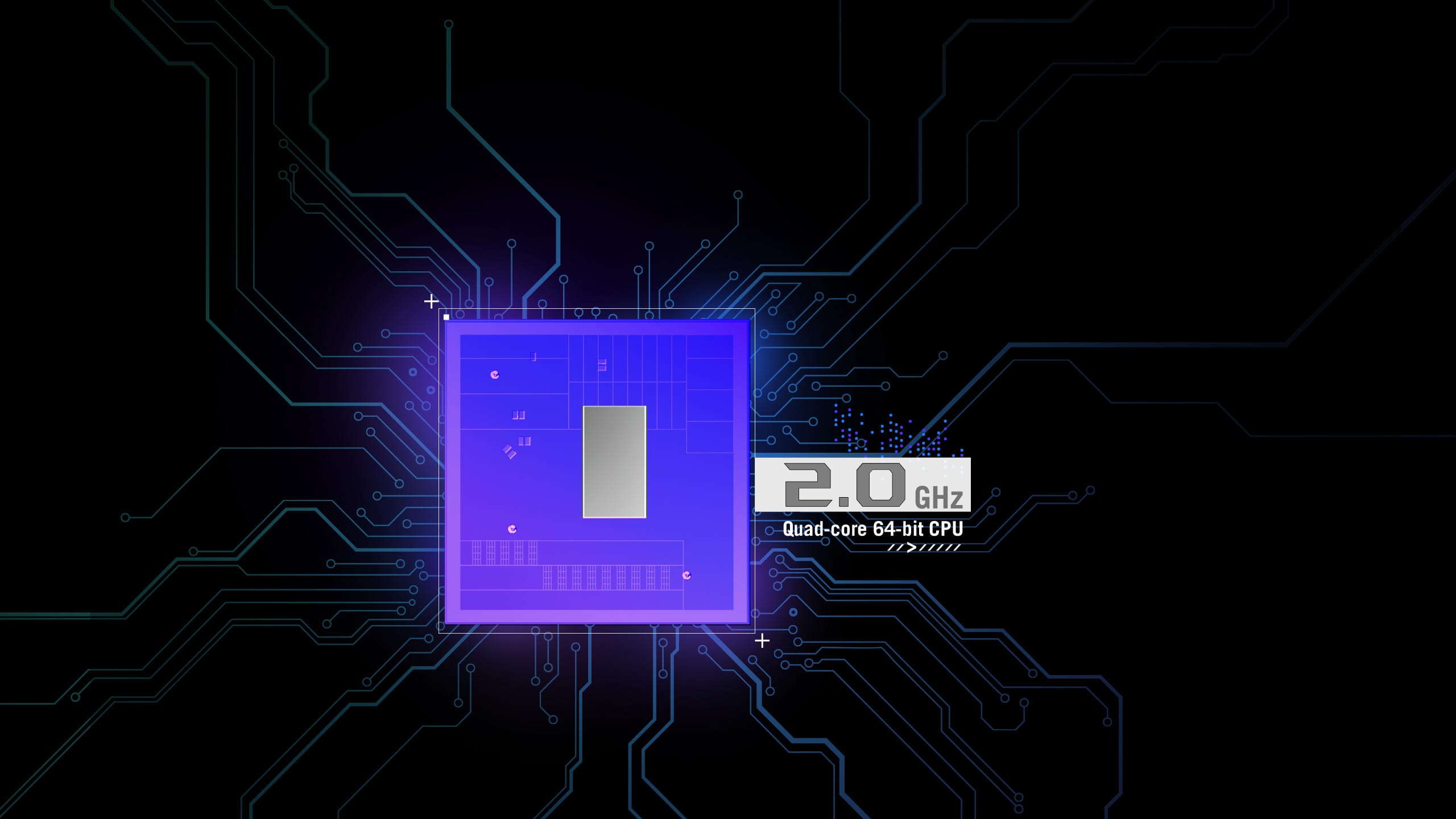

ROG Rapture GT-AXE16000 is powered by the latest 2.0 GHz quad-core 64-bit CPU and WiFi chipsets, giving it the performance to handle even the most demanding gaming networks. Maximum network throughput is increased by up to 18%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience.
*Disclaimer: Compared with former WiFi 6 platform
Built for the ultimate speed
ROG Rapture GT-AXE16000 is powered by the latest 2.0 GHz quad-core 64-bit CPU and WiFi chipsets, giving it the performance to handle even the most demanding gaming networks. Maximum network throughput is increased by up to 18%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience.
*Disclaimer: Compared with former WiFi 6 platform
Built for the
ultimate coverage

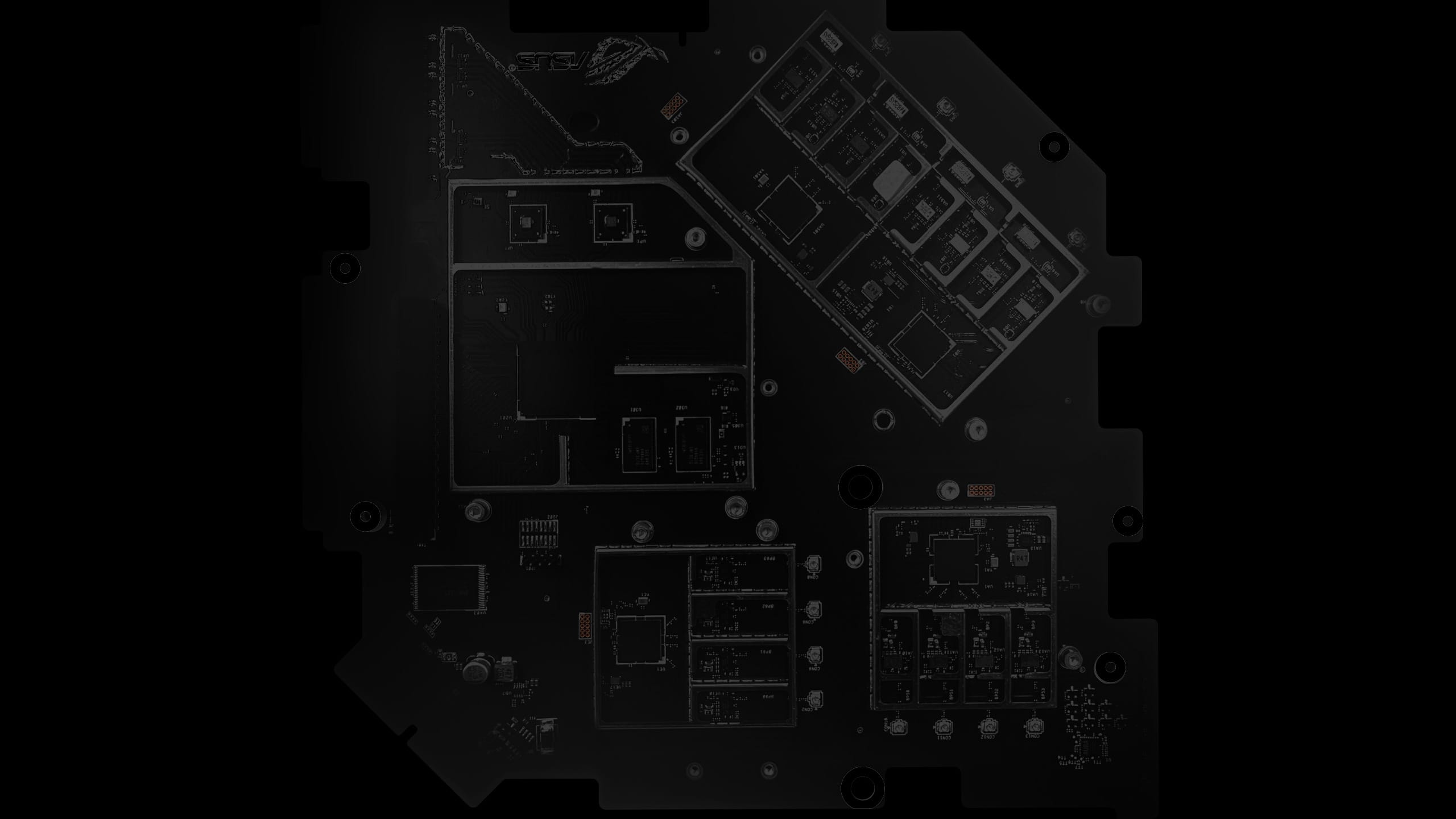

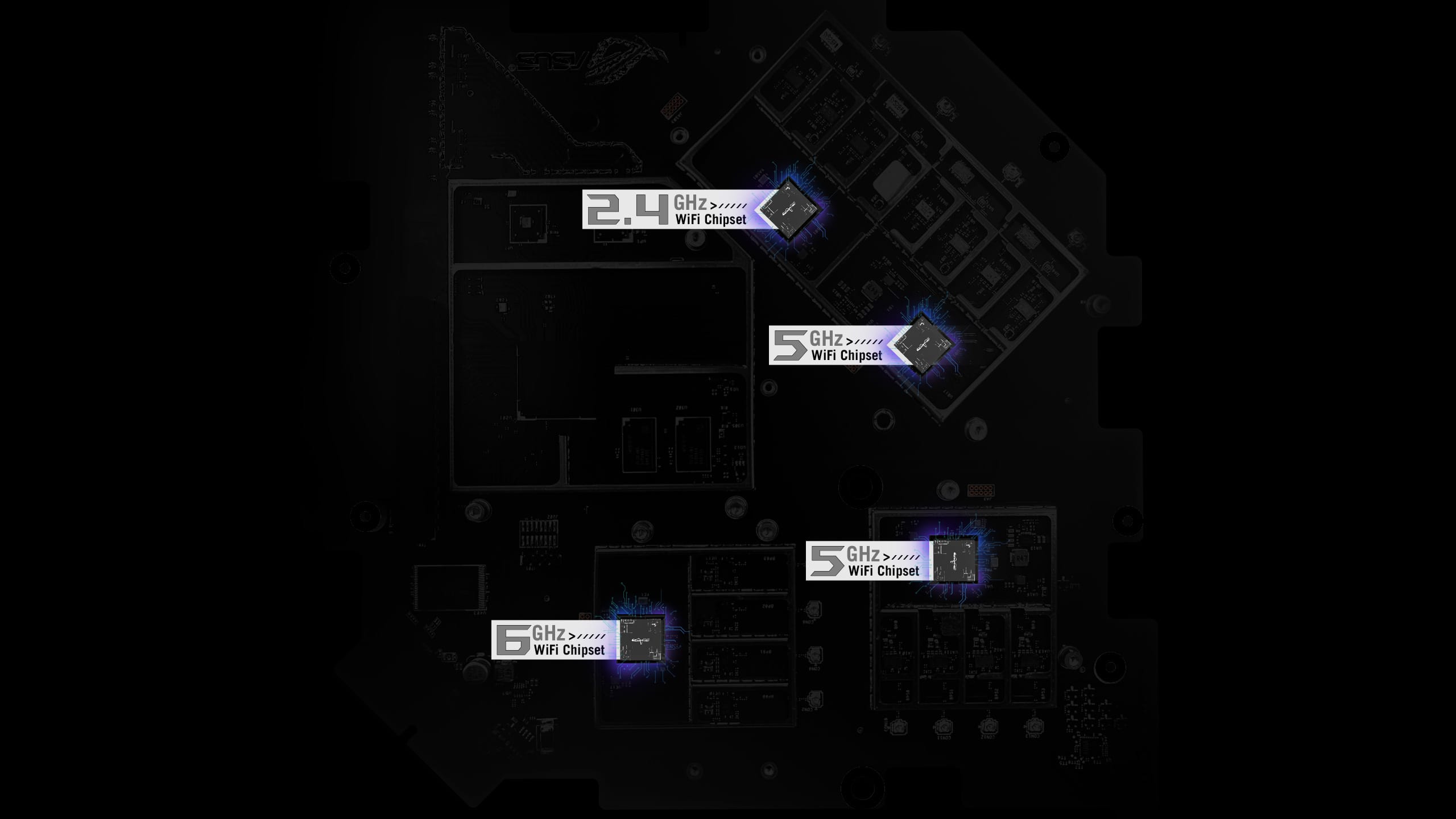

ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve coverage and WiFi performance significantly compared to other models without RangeBoost. By using next-gen flagship Broadcom WiFi chipsets with the exclusive ASUS RF technology, RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%*.
*Measured using WiFi 6 client connected at 200 Mbps to WiFi 6 router with RangeBoost Plus, compared to same WiFi 6 client connected at 200 Mbps to WiFi 5 router without RangeBoost Plus.
To infinity and beyond

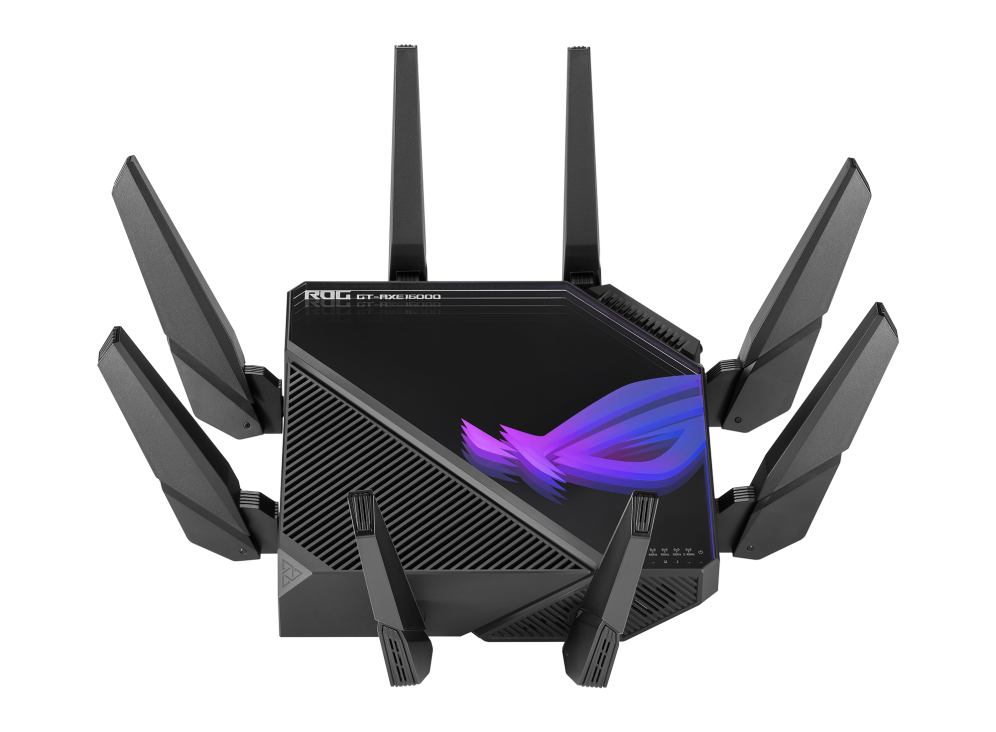

For the ultimate style, ROG Rapture GT-AXE16000 has an infinity mirror on the top of the case that adds a unique touch to the multiple Aura RGB lighting effects. GT-AXE16000 shows your true style while gaming!
GT-AXE16000 b-roll video focusing on Aura lighting.

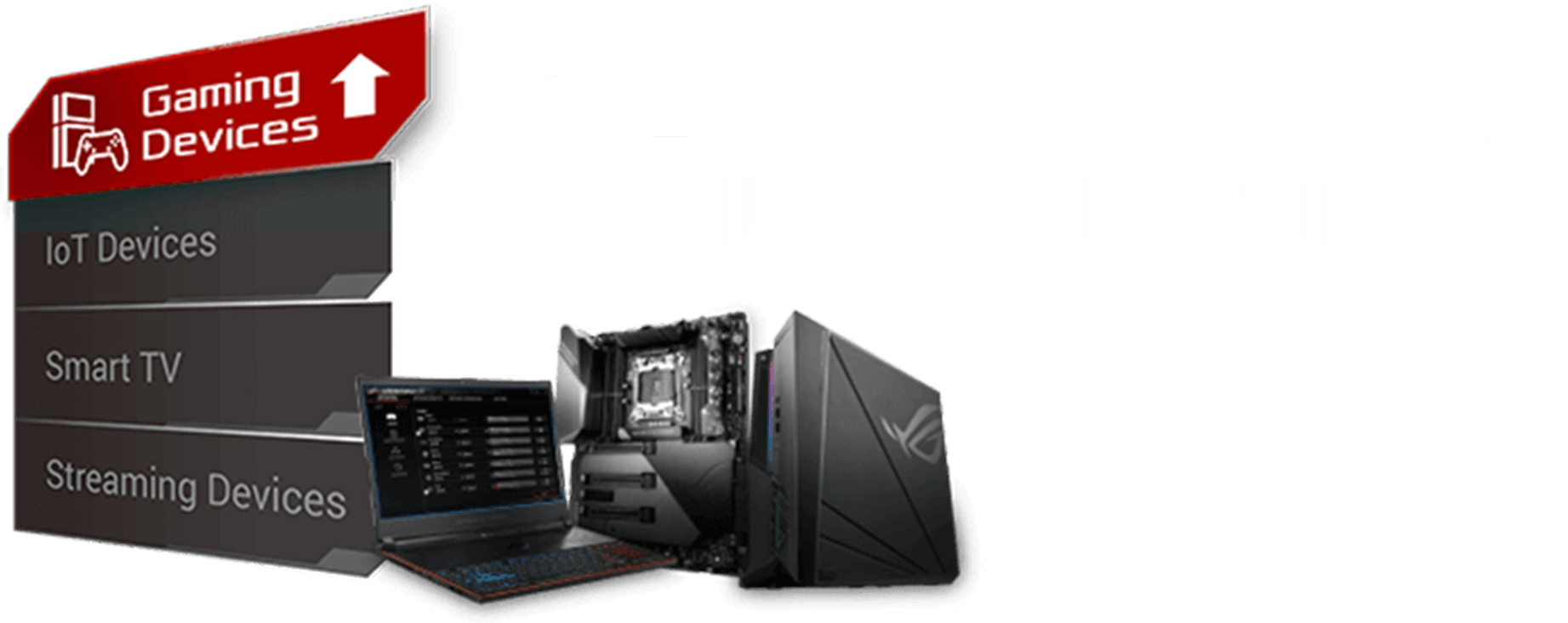

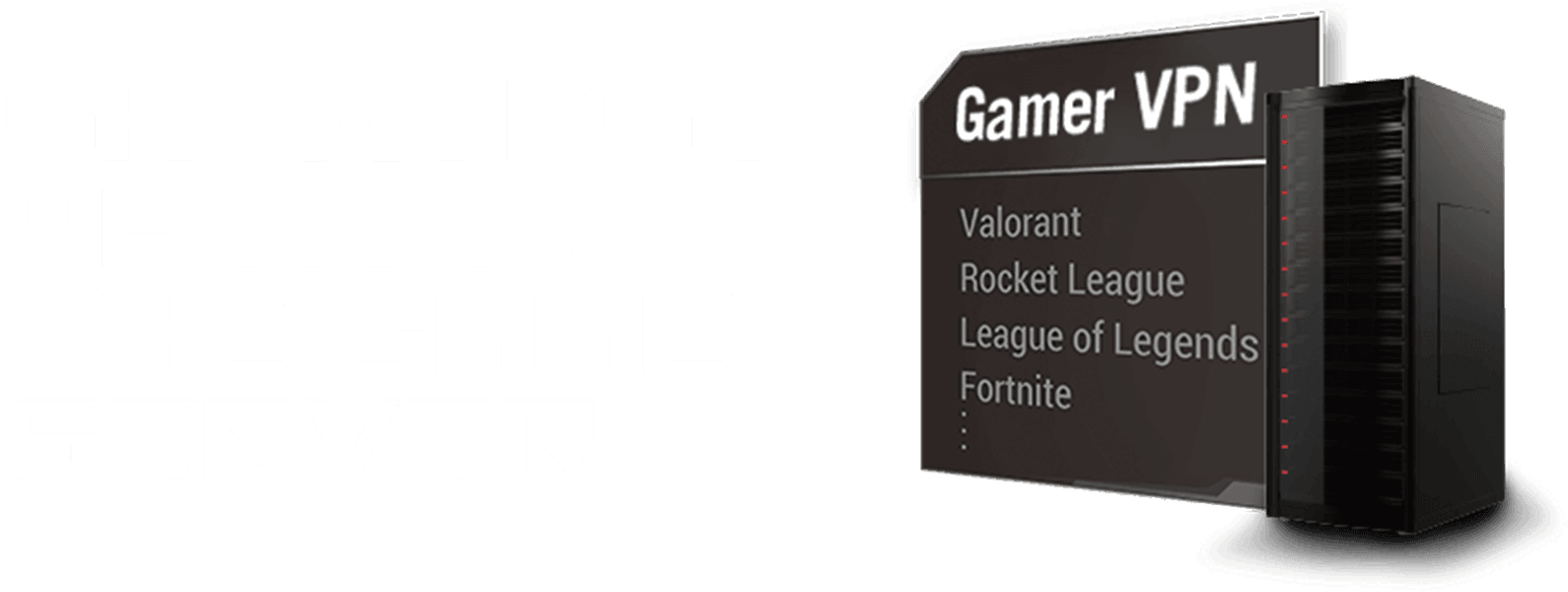

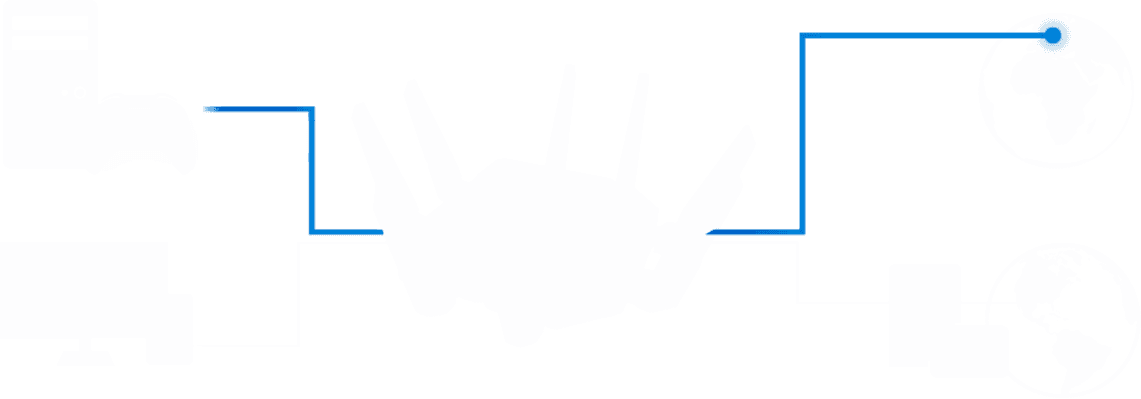

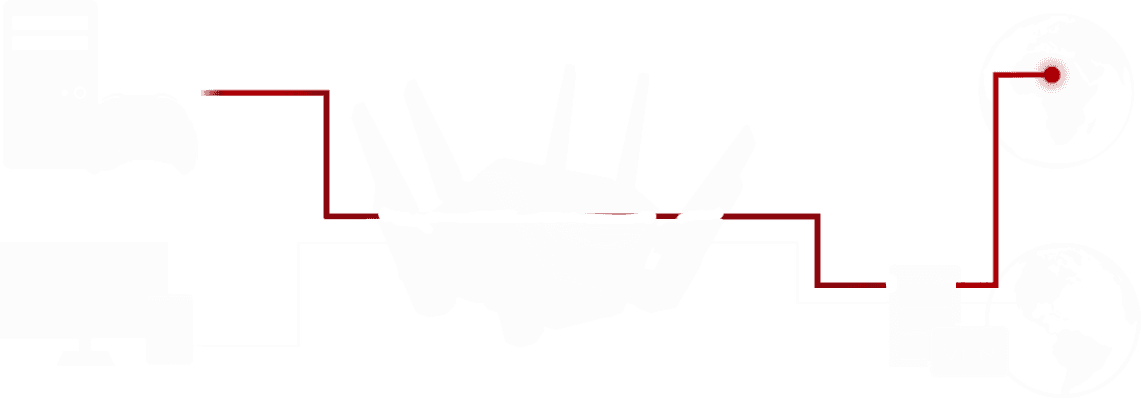

Triple-level game acceleration
GT-AXE16000 boosts your gaming traffic every step of the way, from your PC all the way to the game server. The exclusive triple-level game acceleration stabilizes your connections to prevent jitter, reduce lag, lower ping and increase speed for amazing gaming experiences.
*Free trial only applies to one selected device with limited daily time and limited feature support; users can upgrade their gaming experience by subscribing to the advanced version with more GPN traffic and features.
Game without boundaries

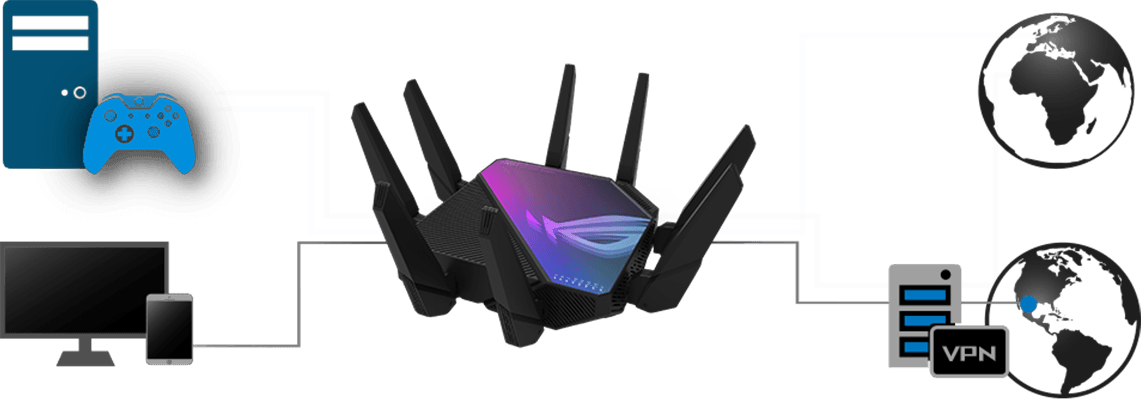

VPN Fusion lets you run both a VPN and an ordinary internet connection — simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Complete security for everyone and everything
For total peace of mind, GT-AXE16000 includes ASUS AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. The automatic, regularly updated security signatures help protect all your devices and personal data from internet threats.
Make free WiFi secure, wherever you are
The free public WiFi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure. ASUS Instant Guard uses VPN technology to create a secure data tunnel to your GT-AXE16000, adding rock-solid security to any public WiFi connections you use.
Download ASUS Instant Guard app
Model
ROG Rapture GT-AXE16000
Model Name
Network Standard
Product Segment
WiFi Data Rate
Antenna
Internal antenna x 4
Transmit / Receive
Processor
Memory
Boosts Speed
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
Operating Mode
I/O Ports
2 x 10 Gigabit WAN/LAN Ports
4 x Gigabit LAN Ports
1 x USB 3.2 Gen 1 Port
1 x USB 2.0 Port
Buttons
LED Indicator
2.4G x 1
5GHz-1 x 1
5GHz-2 x 1
6G x 1
10GE Port x 1
LAN x 1
WAN x 1
Power Supply
DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
Package Content
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
