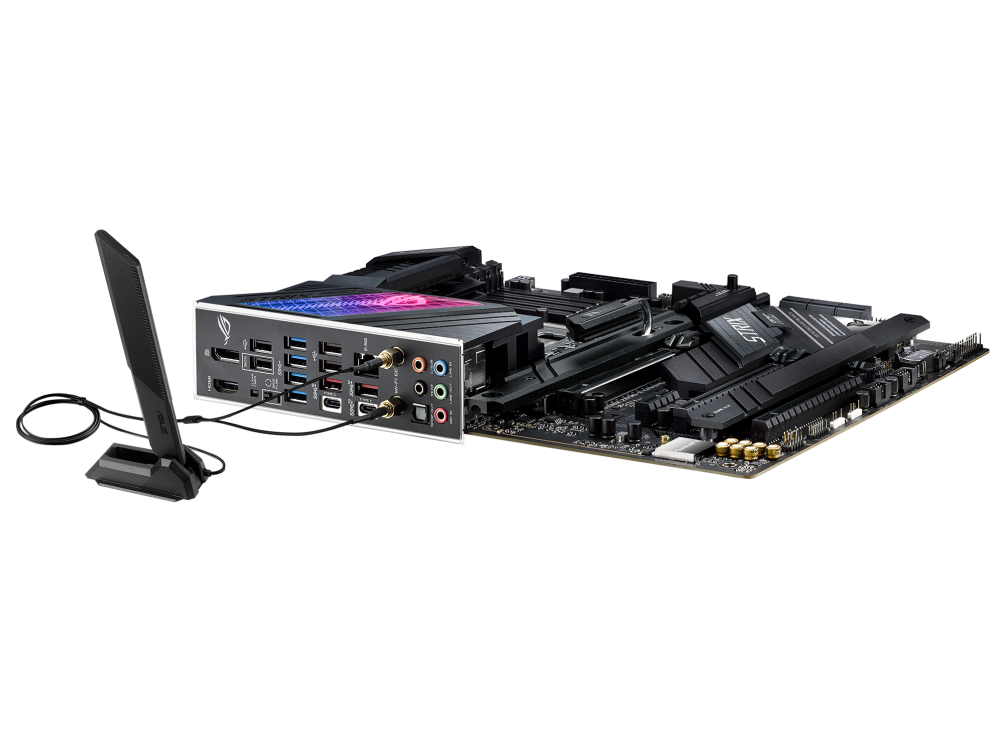

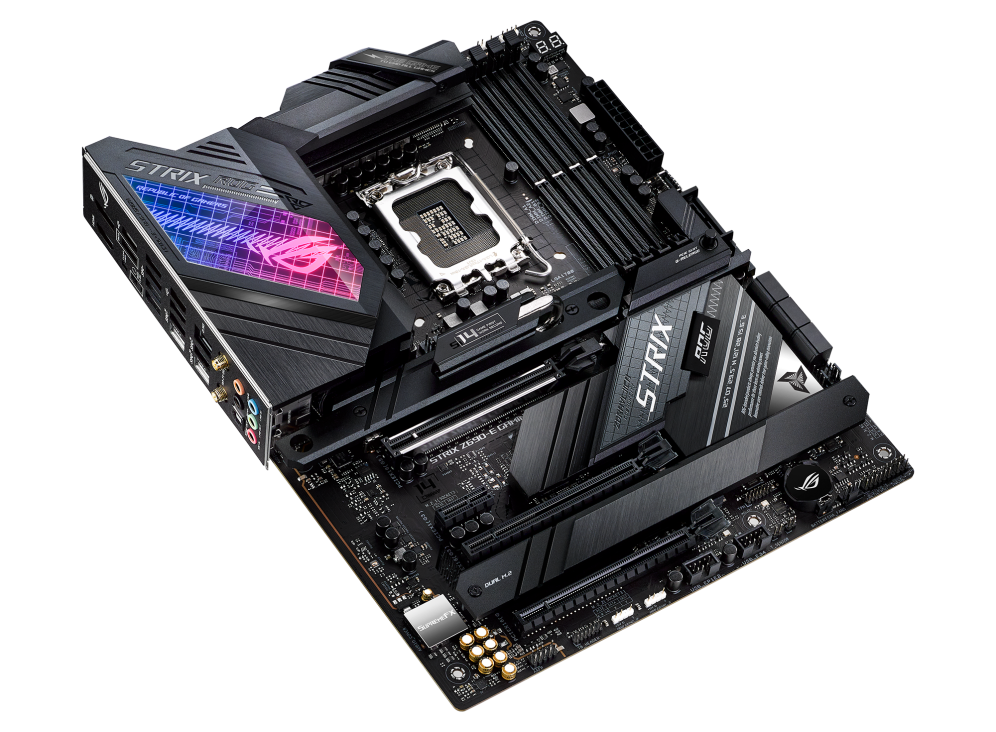

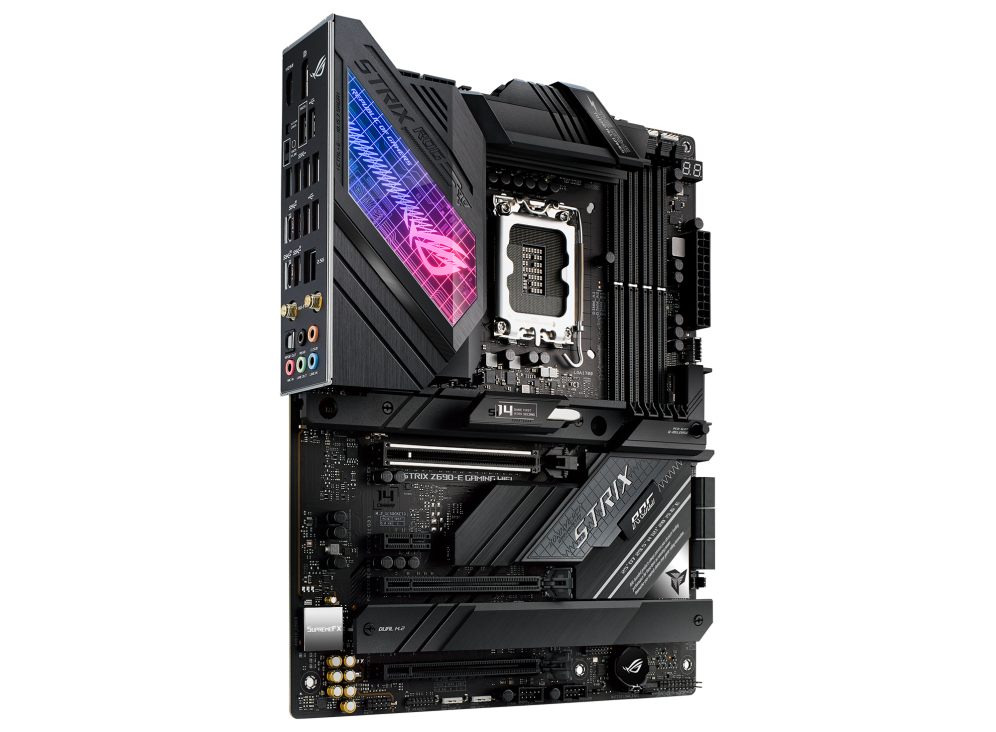

ASUS ROG STRIX Z690-E GAMING WIFI

ROG STRIX Z690-E GAMING WIFI

Intel^® Z690 LGA 1700 ATX motherboard with PCIe^® 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel^® 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe^® 5.0 NVMe^® SSD support, M.2 Combo-Sink, M.2 backplate, PCIe^® Slot Q-Release, USB 3.2 Gen 2x2 Type-C^®, SATA and Aura Sync RGB lighting

• Intel^® LGA 1700 socket: Ready for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe^® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel^® WiFi 6E (802.11ax) and Intel^® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort^™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C^®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe^® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack^™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Model



ROG STRIX Z690-E GAMING WIFI





CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^® Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors

Chipset

Z690

Storage

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Ethernet

1 x Intel^® 2.5Gb Ethernet

Wireless & Bluetooth

Intel^® Wi-Fi 6E

USB

Rear USB:Total 12 ports

Front USB:Total 7 ports

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX

30.5cm x 24.4cm
