Your Winning Choice
for Mobile Gaming!
Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86U Pro dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 Mbps**, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.
Ultrapowerful WiFi 6
Lower latency Faster speeds
Energy efficient Longer range
Engineered for Intel Evo

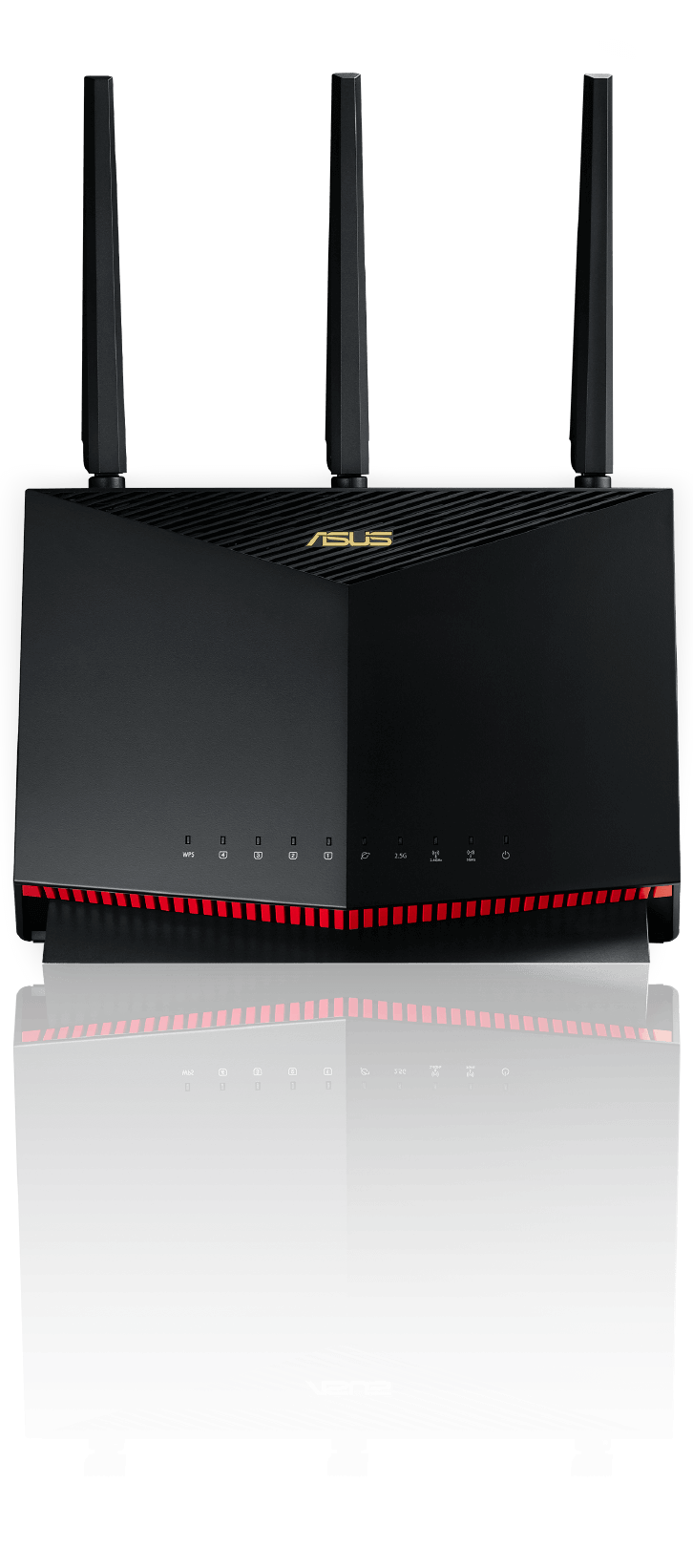

RT-AX86U Pro brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices! ***
The RT-AX86U Pro has been Engineered for Intel® Evo™ laptops and meets or exceeds intel’s strict requirements and is guaranteed to provide the best overall experience for Intel® Evo™ laptops. Enjoy simple out-of-the-box setup, high- performance home networking, and unparalleled stability.
What's WiFi 6 ?
*
Boost Your Mobile Gaming
Minimize lag and latency for mobile gaming with just a tap on the ASUS Router app.
*
Gaming Without Limits
Prioritize via Gaming Port
Prioritize via Gear Accelerator
Eliminate WiFi Congestion
*
The dedicated gaming port on RT-AX86U Pro automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.
Beyond Performance
RT-AX86U Pro is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.
*Disclaimer: Compared with former WiFi 6 platform
Lightning-Fast
2 Gbps Internet
RT-AX86U Pro is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.
How is internet speed unlocked?

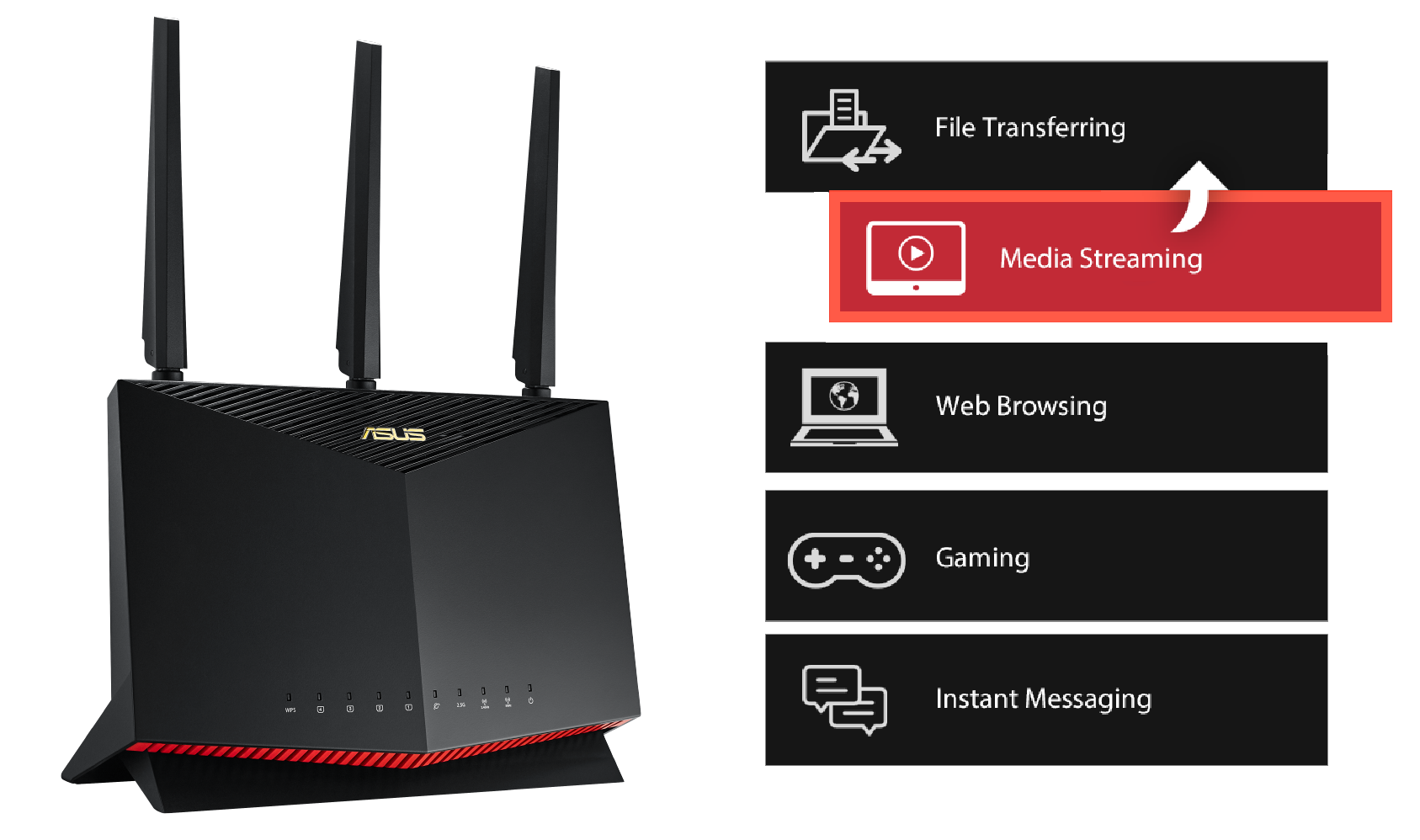

Remove Network Bottlenecks
Adaptive QoS (Quality of Service) lets you keep your network running smoothly by prioritizing network traffic. You can prioritize applications such as streaming video or web surfing, as well as gaming. It's the perfect ally for delivering low-latency WiFi anywhere in your home.
Whole-Home Gaming
Does your router leave you with WiFi dead spots? RT-AX86U Pro supports ASUS AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!

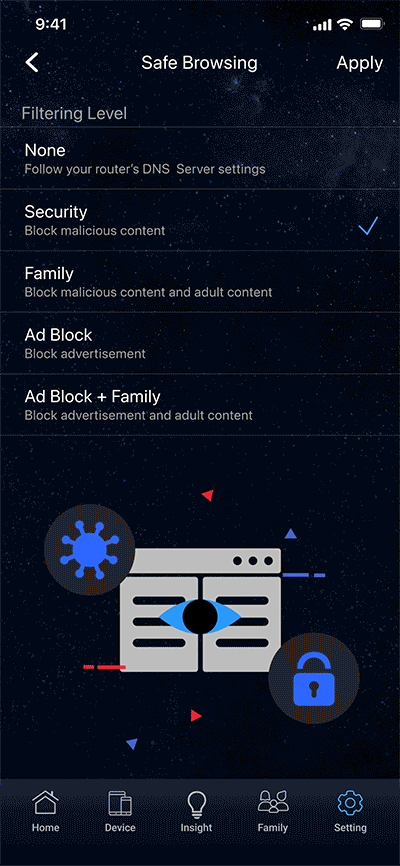

A Safer Browsing Experience
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.
Enhanced Security Anywhere
-
COMMERCIAL-GRADE
NETWORK SECURITY -
ADVANCED
PARENTAL CONTROLS -
MORE PRIVACY,
ANYWHERE -
AN UPGRADED
VPN
Complete Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS RT-AX86U Pro also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.

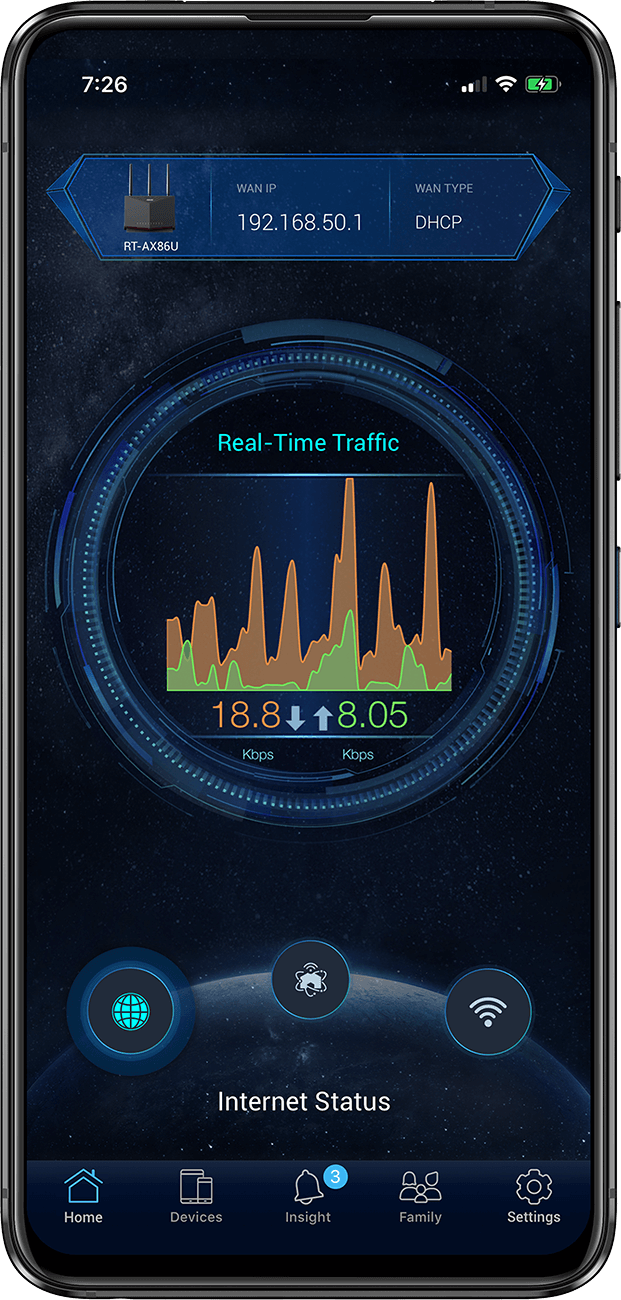

Easy Management Via Mobile App
Traffic Analyzer
Graphical monitoring of real-time traffic.
Network Diagnostics
Pinpoint your network problems with just one tap.
Guest WiFi
The easy way to share your WiFi securely without difficult passwords.
Disclaimer:
*This feature is only available on RT-AX86U Pro
** Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
*** To benefit from WiFi 6 features, the WiFi client needs to be WiFi 6 capable.
**** The speed is calculated based on the combination of data rate over both 2.4GHz and 5GHz band.In this case, it is 861 Mbps and 4804 Mbps respectively.Note that some DFS channels may not be available in some countries due to local regulation.
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Internal PCB antenna x 1
5GHz 4x4
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
12 V with max.3 A current / 19.5 V with max. 2.31 A current
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
242 x 100 x 164 (without antenna)
• Primary AiMesh Router
• AiMesh Node
Mobile Game Mode
Gear Accelerator
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Filter Rule : 64
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
