IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
5GHz 4x4
6GHz 2x2
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
RJ45 for Gigabits BaseT for WAN/LAN x 1,
RJ45 for Gigabits BaseT for LAN x 3,
USB 3.2 Gen 1 Port x 1,
Reset Button
WPS Button
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3
DC Output: 12 V with max. 3.0 A current
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
• Primary AiMesh Router
• AiMesh Node
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Filter Rule : 64
• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Secure Connections,
Superior Speed

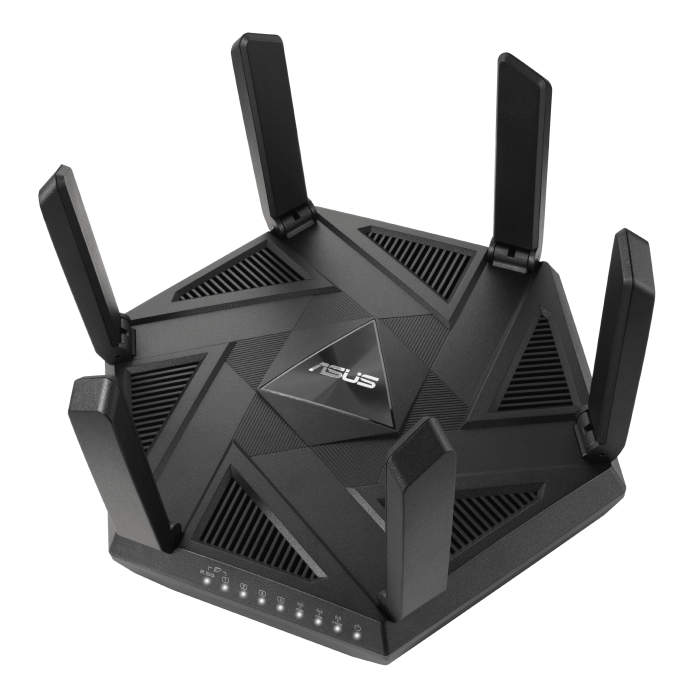

Explore ultimate technology with the ASUS RT-AXE7800 tri-band WiFi 6E router. Its breakthrough performance of up to 7800 Mbps WiFi speed can meet and exceed your internet needs, with comprehensive network protection provided by advanced ASUS security tech. Gear up for ultrafast connectivity!
Ultra-Fast WiFi 6E Technology
- WHOLE NEW 6GHZ BAND
- 7 EXTRA 160MHZ CHANNELS
- ZERO WAIT
Low Latency & Less Interference

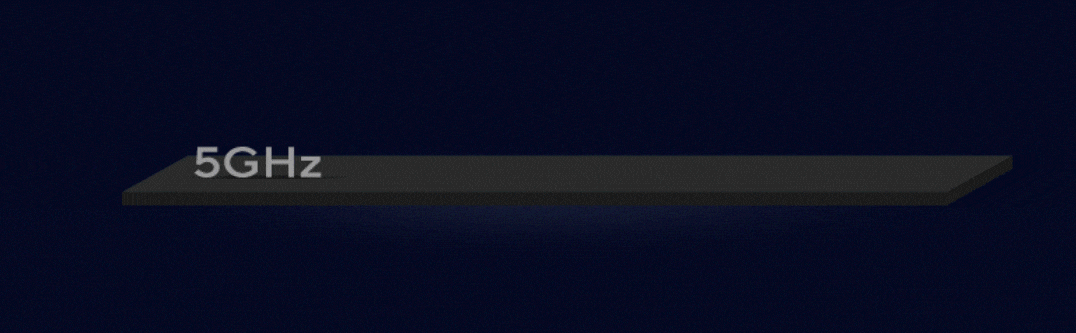

The newly available 6 GHz frequency band is dedicated purely to WiFi 6E devices. This means that older WiFi devices can’t interfere with 6E signals at all, enabling faster and more reliable connections for your 6E devices.
One-Tap Safe Browsing
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
Enhanced Security Anywhere
- COMMERCIAL-GRADE
NETWORK SECURITY - FREE
PARENTAL CONTROLS - MORE PRIVACY,
ANYWHERE - AN UPGRADED
VPN
Complete Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS RT-AXE7800 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.
Multi-Gigabit Wired Connection

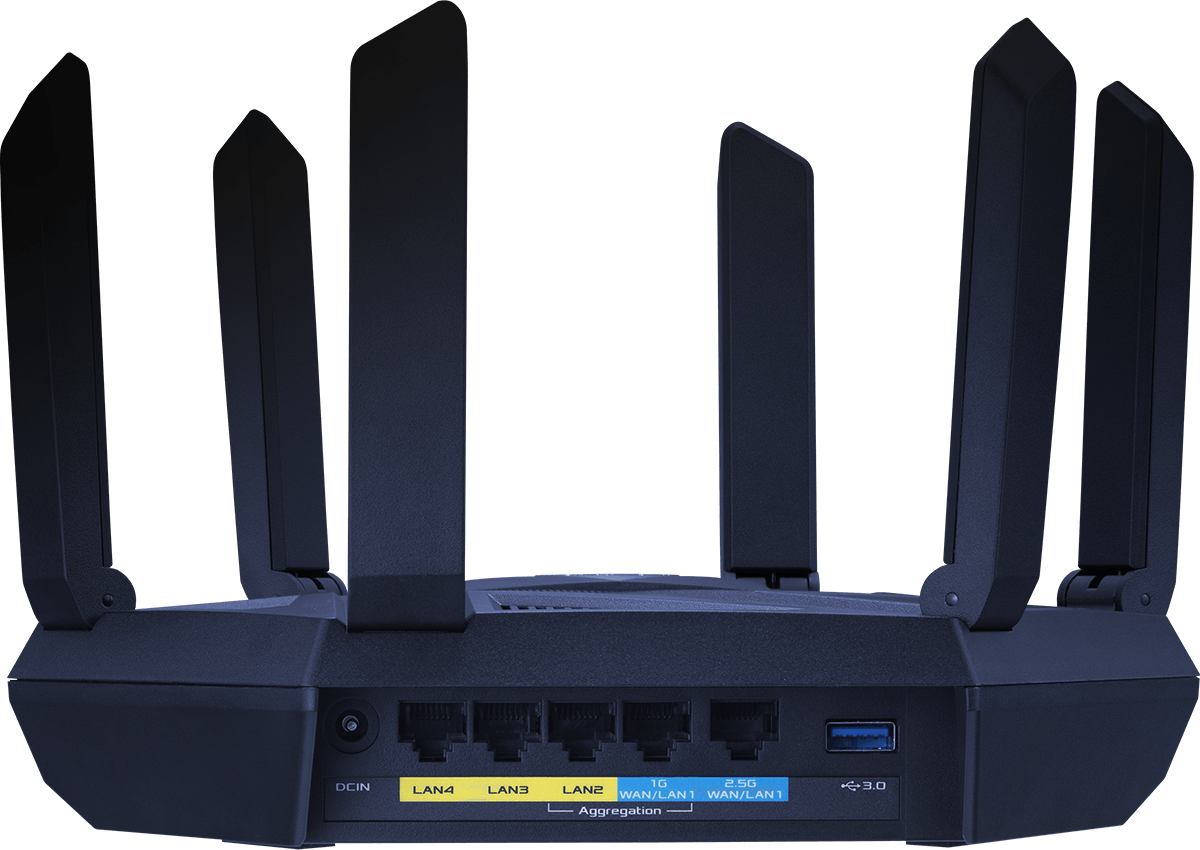

Equipped with a 2.5 Gbps WAN/LAN port, the ASUS RT-AXE7800 also features both WAN and LAN aggregation*, providing you with more options when assembling your network**. This flexibility lets you deliver massive bandwidth to your wired devices and takes advantage of ultra-high-speed internet connections in many scenarios***.
**The 2.5G port does not support WAN aggregation. Please set the 1G WAN/LAN1 port as WAN to enable WAN aggregation. For more details, please visit the ASUS support site (https://www.asus.com/support/FAQ/1048826).
***Internet speeds are dependent on your ISP.
Network Control in Your Way
Easily setup and manage your RT-AXE7800 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.
- UPGRADED EASY APP
- WEB GUI
Simple but Complete Functions
The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AXE7800 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.
Easy scalability for your network
With ASUS AiMesh technology, it’s easy to combine multiple AiMesh-compatible ASUS router to create a whole-home WiFi network with centralized control. You can even use a single SSID for your entire home or office network, with seamless coverage and no more dead zones!
