Model

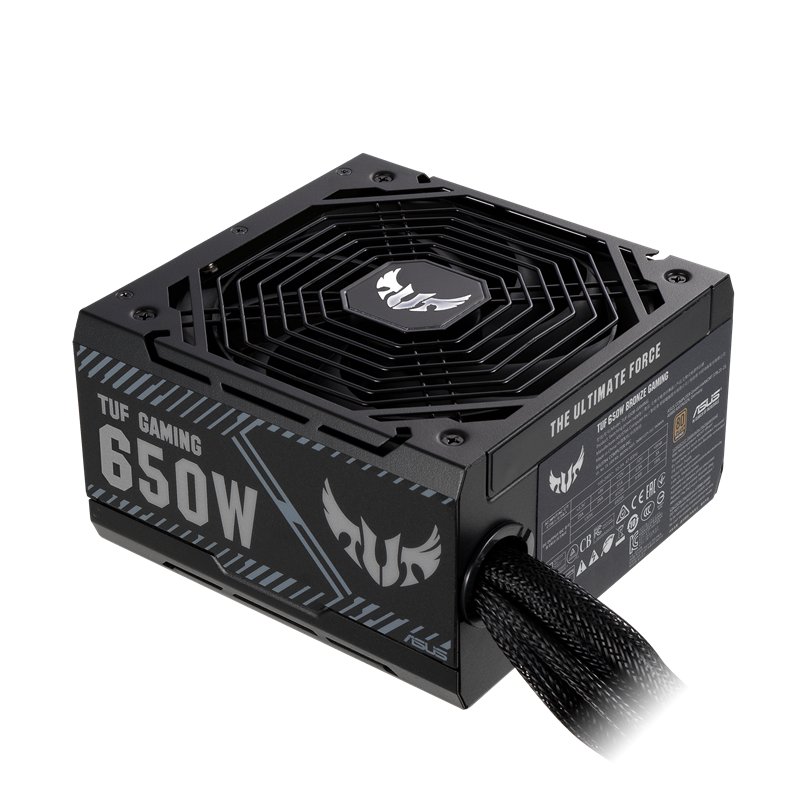

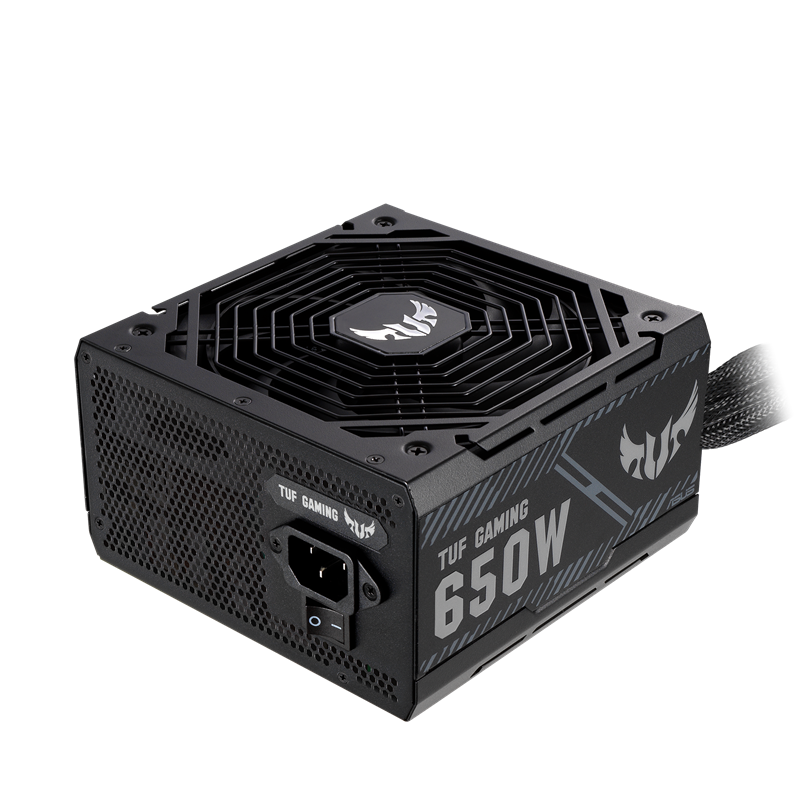

TUF-GAMING-650B
PFC Type
Active PFC
Dimensions
15 x 15 x 8.6 Centimeter
Efficiency
80Plus Bronze
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS

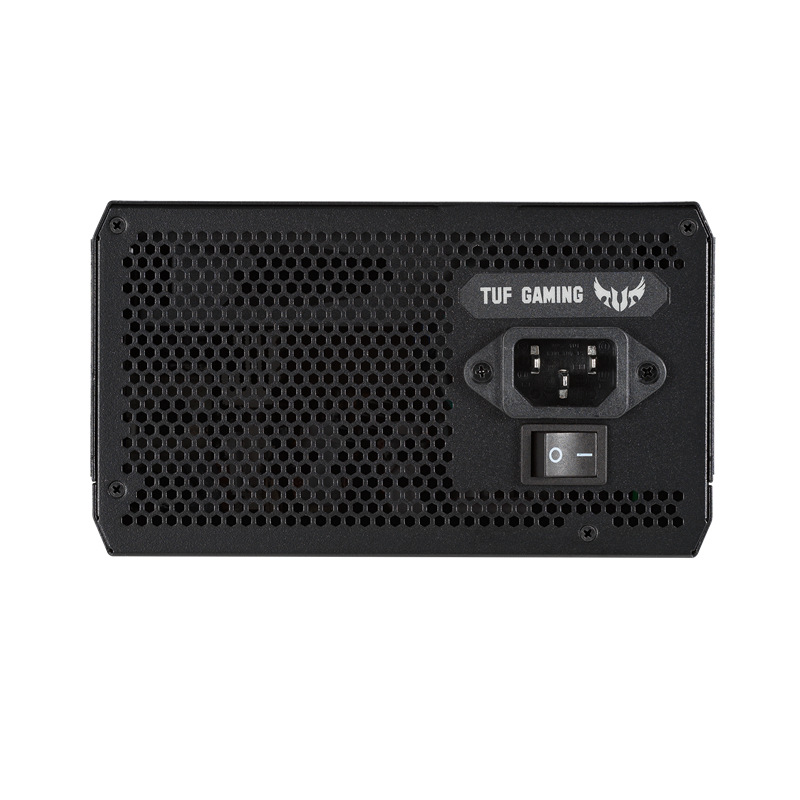

AC Input Range
100-240Vac

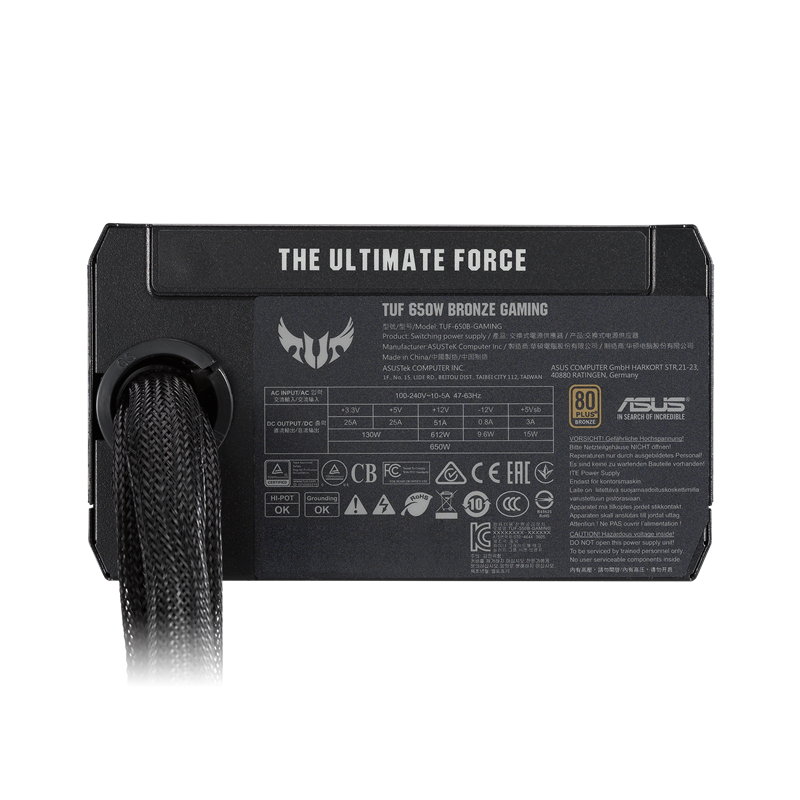

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 51A 0.8A 3A
Combined Load
130W 130W 612W 9.6W 15W
Total Output
650W
Cable Connectors
MB 24/20-pin x1
CPU 4+4-pin x2
PCI-E 6+2-pin x4
SATA x5 Periplheral x4
CPU 4+4-pin x2
PCI-E 6+2-pin x4
SATA x5 Periplheral x4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (800mm)
PCI-E 1-to-2 Cable x 2 (600mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-4 Cable x 1 (400+120+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming sticker x1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (800mm)
PCI-E 1-to-2 Cable x 2 (600mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-4 Cable x 1 (400+120+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming sticker x1
Weight
Single PSU : 2.06KG
Product Weight (with packing) : 2.75KG
Product Weight (with packing) : 2.75KG

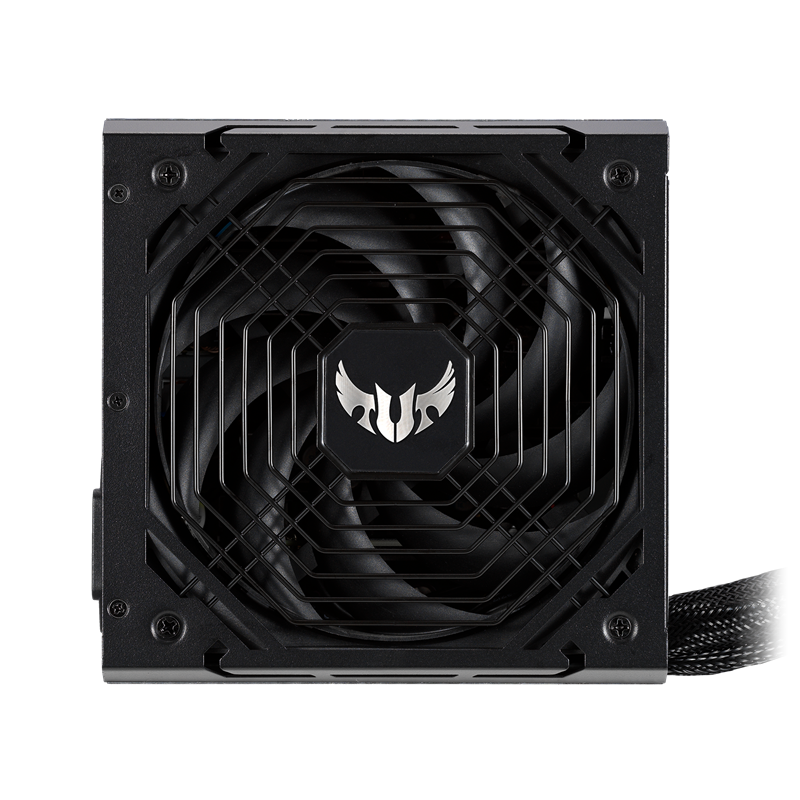

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
