ASUS TUF GAMING H570-PRO WIFI

Warranty - 3 years
$403.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$403.00 SGD each
Local Shipping
Local Warranty
Secure payments

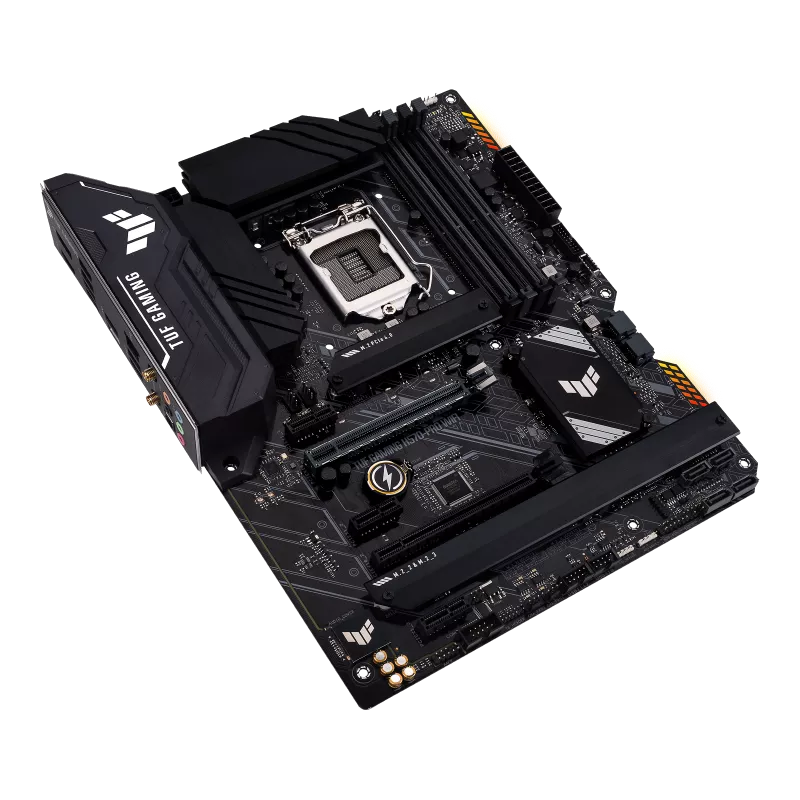

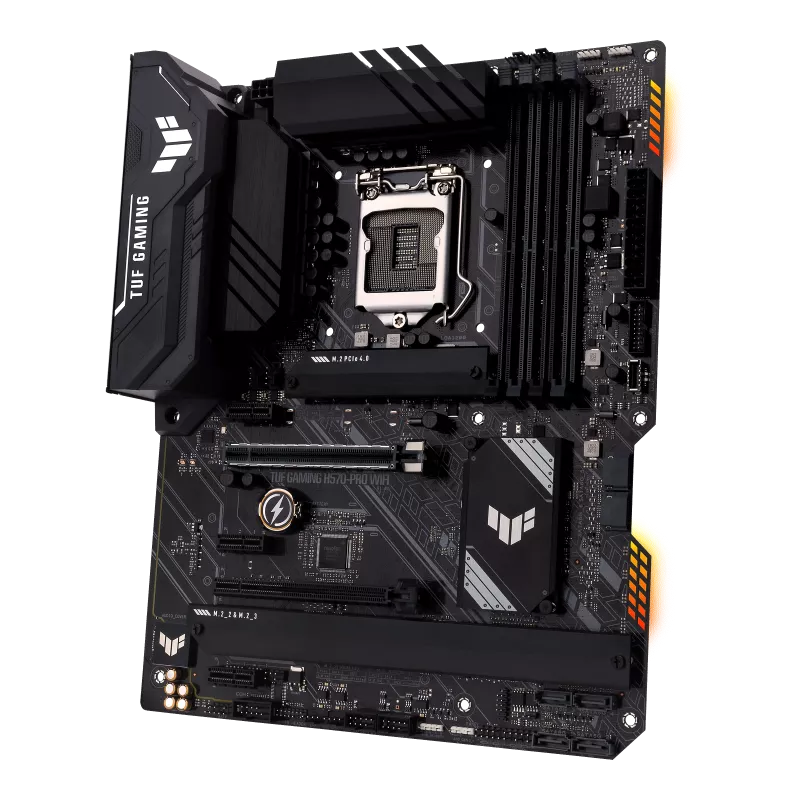

Intel® H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel® WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type C®, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.
  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Core™ processors
  • Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
  • Made for online gaming: Intel® WiFi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
Model
TUF GAMING H570-PRO WIFI
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
H570
Memory

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x HDMI 2.0

* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
Expansion Slots

Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel® 10th processors support PCIe 3.0 x16

Intel® H570 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

3 x PCIe 3.0 x1 slots

* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports



Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel® 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® H570 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

6 x SATA 6Gb/s ports

* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

4 x USB 2.0 ports (4 x Type-A)




Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

- Audio cover

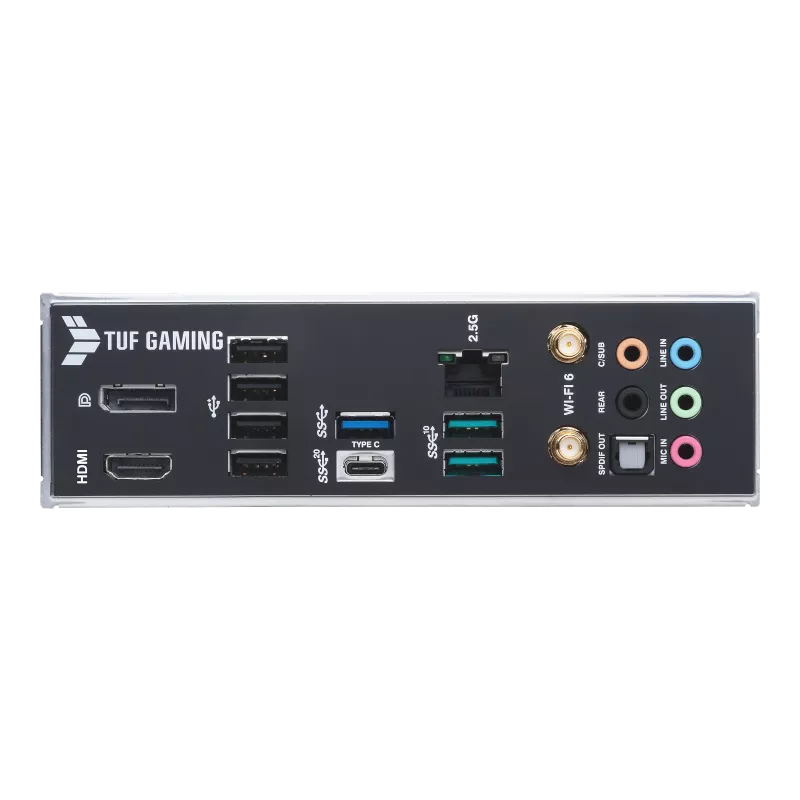

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- TUF LANGuard

- Overvoltage Protection

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 4

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

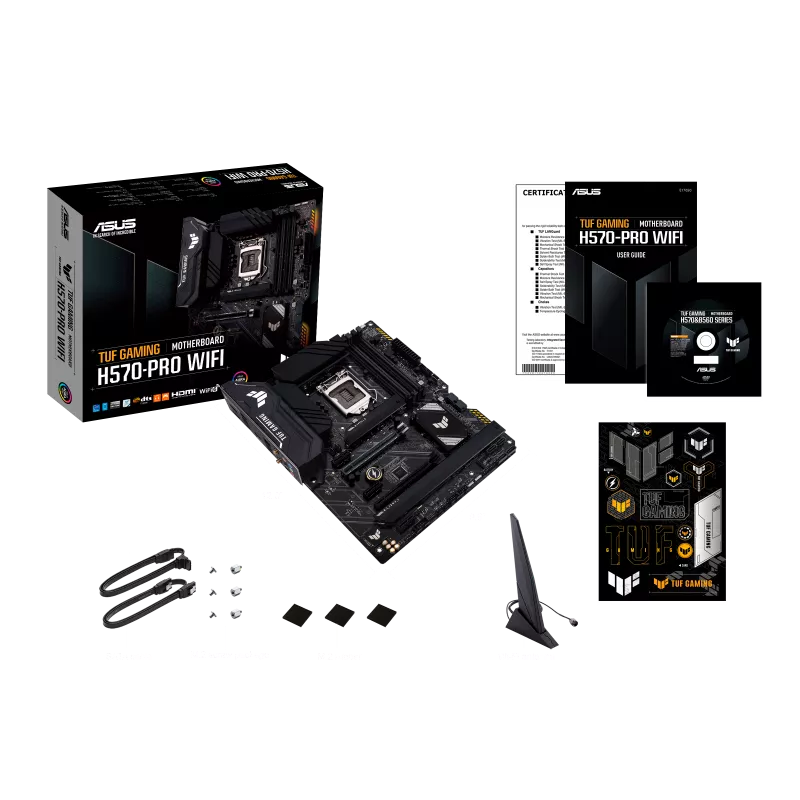

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

2 x M.2 Rubber Packages

2 x M.2 SSD screw packages

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual

Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 24.4cm
