Model

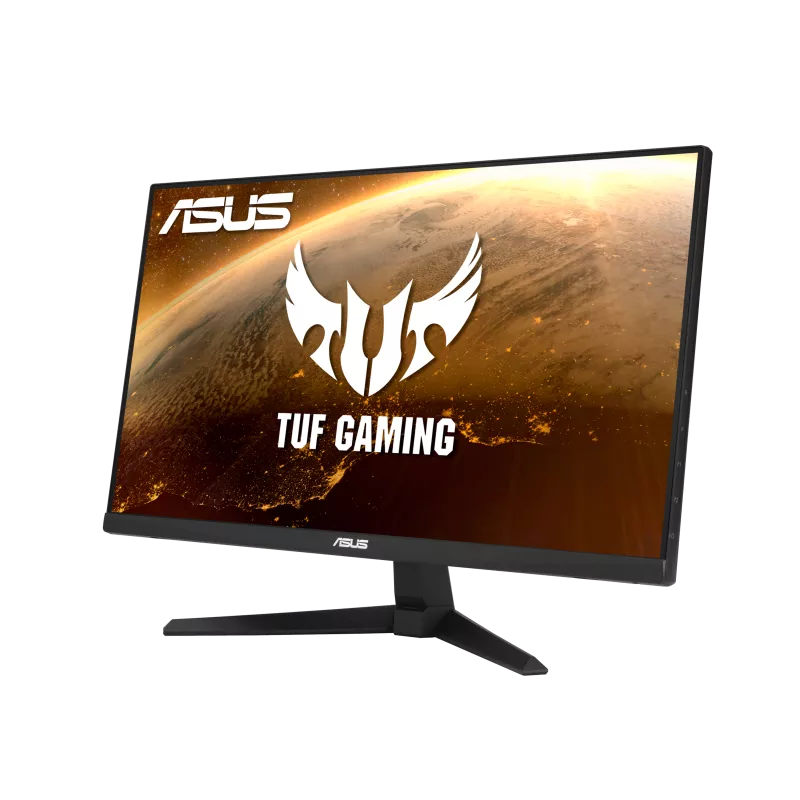

TUF GAMING VG249Q1A
Display
Panel Size (inch) : 23.8
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 527.04 x 296.46 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.2745mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 1ms MPRT
Refresh Rate (Max) : 165Hz
Flicker-free : Yes
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 527.04 x 296.46 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.2745mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 1ms MPRT
Refresh Rate (Max) : 165Hz
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
GameVisual : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
HDCP : Yes
Extreme Low Motion Blur : Yes
VRR Technology : Yes (Adaptive-Sync)
GameFast Input technology : Yes
Shadow Boost : Yes
Low Blue Light : Yes
GameVisual : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
HDCP : Yes
Extreme Low Motion Blur : Yes
VRR Technology : Yes (Adaptive-Sync)
GameFast Input technology : Yes
Shadow Boost : Yes
Low Blue Light : Yes
Audio Feature
Speaker : Yes(2Wx2)

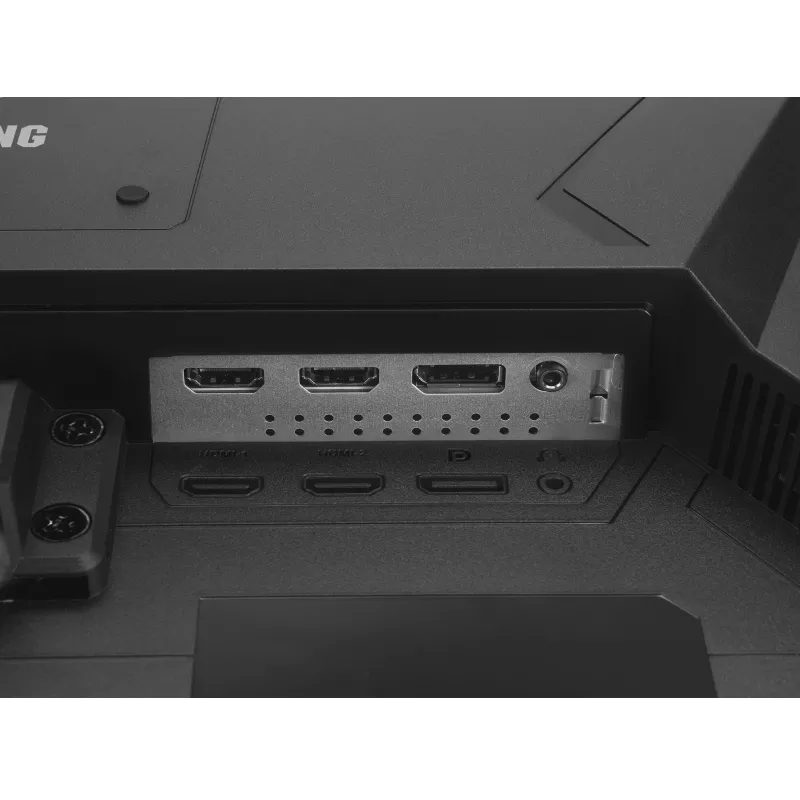

I/O Ports
DisplayPort 1.2 x 1
HDMI(v1.4) x 2
Earphone Jack : Yes
HDMI(v1.4) x 2
Earphone Jack : Yes
Signal Frequency
Digital Signal Frequency : HDMI: 30~180 KHz (H) / 48~144 Hz (V)
DP: 200~200 KHz (H) / 48~165 Hz (V)
DP: 200~200 KHz (H) / 48~165 Hz (V)
Power Consumption
Power Consumption : <21W*
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design

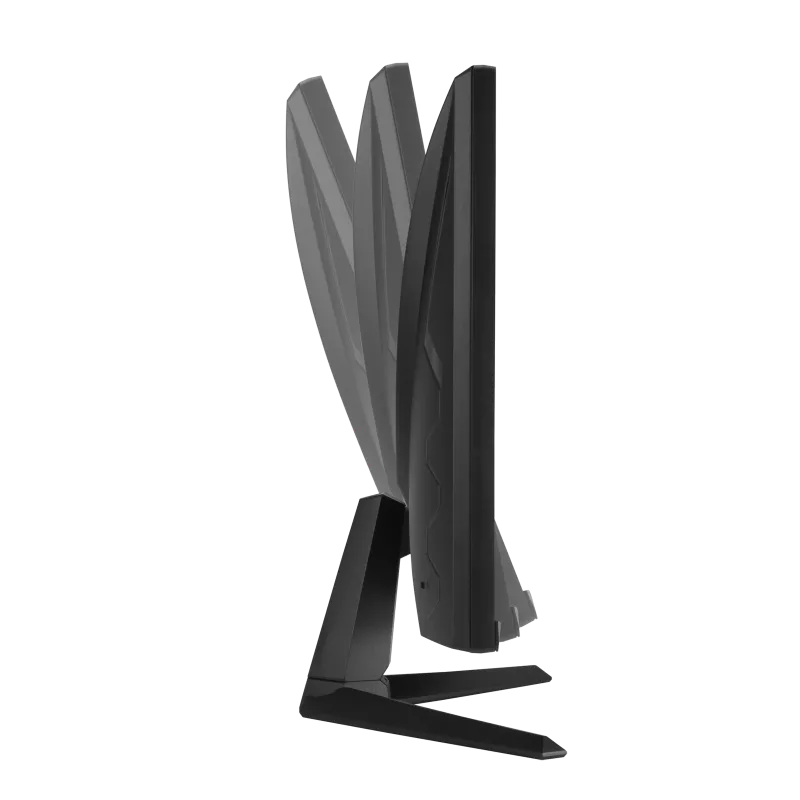

Tilt : Yes (+23° ~ -5°)
Height Adjustment : No

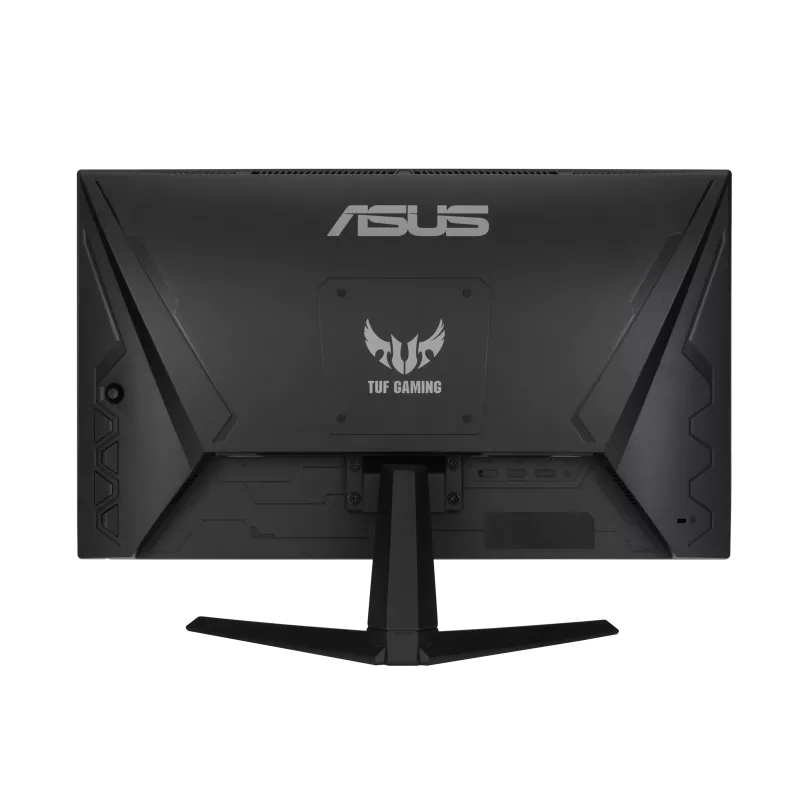

VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Height Adjustment : No
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 54.10 x 39.33 x 17.40 cm (21.30" x 15.48" x 6.85")
Phys. Dimension without Stand (W x H x D) : 54.10 x 32.33 x 5.78 cm (21.30" x 12.73" x 2.28")
Box Dimension (W x H x D) : 60.00 x 45.50 x 16.40 cm (23.62" x 17.91" x 6.46")
Box Dimension (W x H x D) : 60.00 x 41.20 x 16.40 cm (23.62" x 16.22" x 6.46")
Phys. Dimension without Stand (W x H x D) : 54.10 x 32.33 x 5.78 cm (21.30" x 12.73" x 2.28")
Box Dimension (W x H x D) : 60.00 x 45.50 x 16.40 cm (23.62" x 17.91" x 6.46")
Box Dimension (W x H x D) : 60.00 x 41.20 x 16.40 cm (23.62" x 16.22" x 6.46")
Weight (Esti.)
Net Weight : 3.47 kg (7.65 lbs)
Net Weight without Stand : 2.9 kg (6.39 lbs)
Gross Weight : 5.6 kg (12.35 lbs)
Net Weight without Stand : 2.9 kg (6.39 lbs)
Gross Weight : 5.6 kg (12.35 lbs)
Accessories (vary by regions)
DisplayPort cable
HDMI cable
L-shaped Screwdriver
Power cord
Quick start guide
Warranty Card
HDMI cable
L-shaped Screwdriver
Power cord
Quick start guide
Warranty Card
Operation Temperature / Humidity
Operation Temperature : 0~+40°C
Certificate
TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync Premium
TÜV Low Blue Light
AMD FreeSync Premium
