Model
ASUS ZenScreen MB249C
Display
Panel Size (inch) : 23.8
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 527.04(H) x 296.46 (V) mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.2745mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 75Hz
Flicker-free : Yes
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 527.04(H) x 296.46 (V) mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.2745mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 75Hz
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
DisplayWidget : Yes, DisplayWidget Lite
Low Blue Light : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
DisplayWidget : Yes, DisplayWidget Lite
Low Blue Light : Yes
Audio Feature
Speaker : Yes(1Wx2)
I/O Ports
USB-C x 1 (DP Alt Mode)
HDMI(v1.4) x 1
Earphone Jack : Yes
USB-C Power Delivery : 60W
HDMI(v1.4) x 1
Earphone Jack : Yes
USB-C Power Delivery : 60W
Signal Frequency
Digital Signal Frequency : HDMI: 24~84 KHz (H)/ 48~75Hz (V)
USB-C: :84KHz (H) / 48~75 Hz (V)
USB-C: :84KHz (H) / 48~75 Hz (V)
Power Consumption
Power Consumption : 13W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+20° ~ -5°) with arm
Swivel : Yes (+90° ~ -90°) with arm
Pivot : Yes (0° ~ 90° Clockwise) with arm
Height Adjustment : 0~180mm with arm
Z-axis Adjust.:Extend / Retract 0~144mm
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Swivel : Yes (+90° ~ -90°) with arm
Pivot : Yes (0° ~ 90° Clockwise) with arm
Height Adjustment : 0~180mm with arm
Z-axis Adjust.:Extend / Retract 0~144mm
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 53.93 x 71.14 x 30.22 cm (21.23" x 28.01" x 11.90")
Phys. Dimension without Stand (W x H x D) : 53.93 x 34.63 x 2.36 cm (21.23" x 13.63" x 0.93")
Box Dimension (W x H x D) : 60.00 x 42.60 x 12.40 cm (23.62" x 16.77" x 4.88")
Phys. Dimension without Stand (W x H x D) : 53.93 x 34.63 x 2.36 cm (21.23" x 13.63" x 0.93")
Box Dimension (W x H x D) : 60.00 x 42.60 x 12.40 cm (23.62" x 16.77" x 4.88")
Weight (Esti.)
Net Weight : 4.84 kg (10.67 lbs)
Net Weight without Stand : 2.85 kg (6.28 lbs)
Gross Weight : 7.6 kg (16.76 lbs)
Net Weight without Stand : 2.85 kg (6.28 lbs)
Gross Weight : 7.6 kg (16.76 lbs)
Accessories (vary by regions)

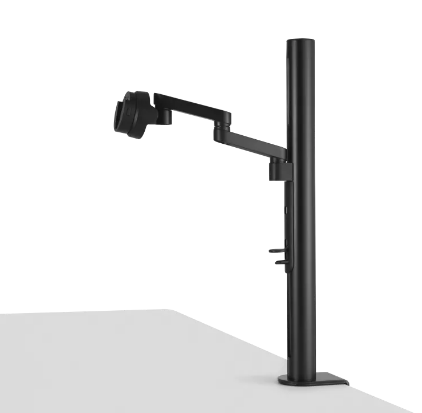

C-Clamp Arm
HDMI cable
L-shaped Screwdriver

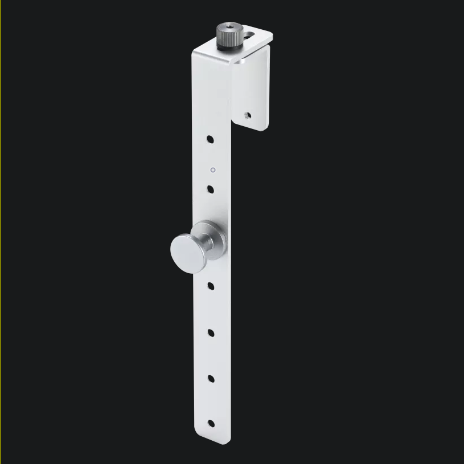

Partition hook
Power adapter
Power cord
Quick start guide
USB-C cable
Warranty Card
HDMI cable
L-shaped Screwdriver
Partition hook
Power adapter
Power cord
Quick start guide
USB-C cable
Warranty Card
Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync
FSC MIX
TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync
FSC MIX
