Model

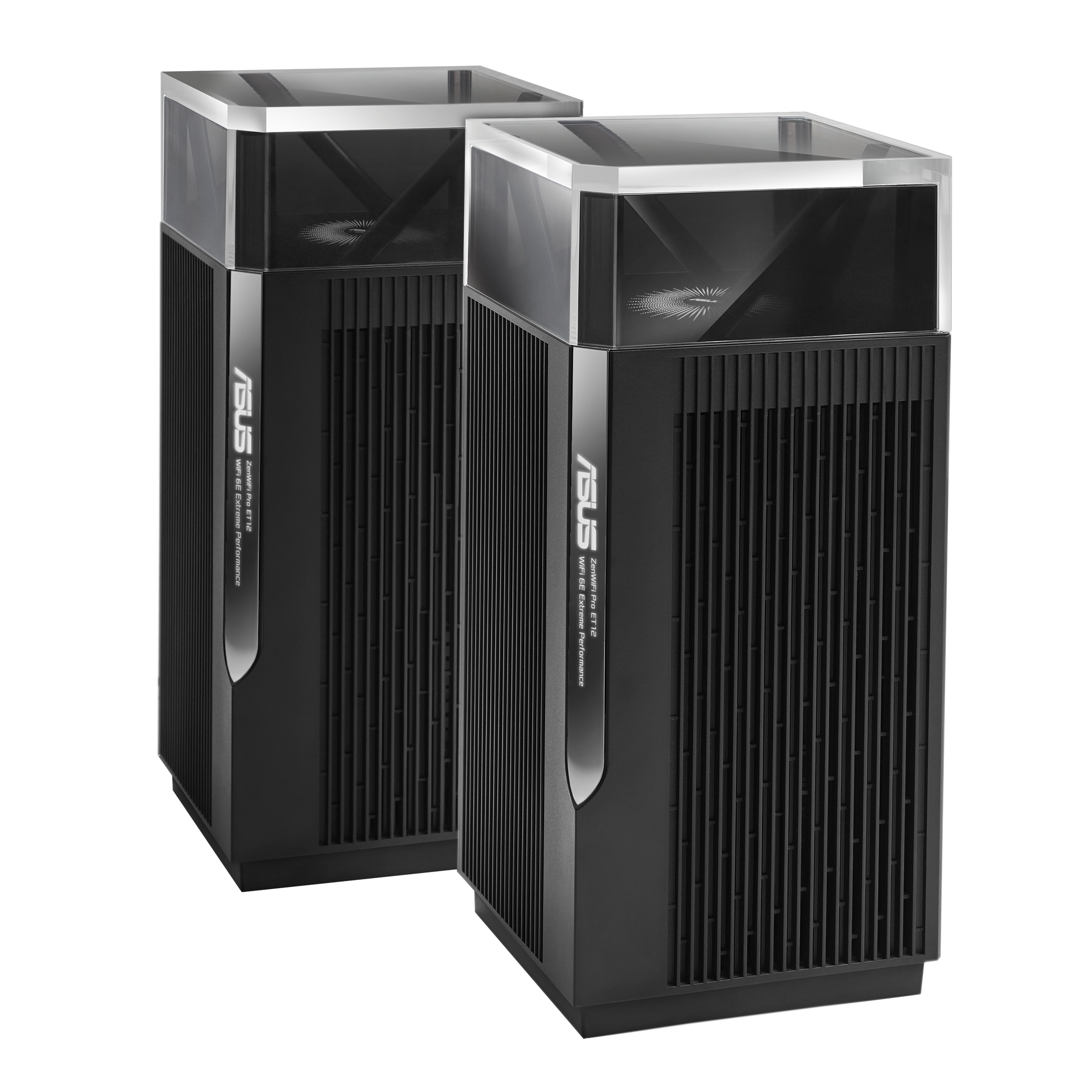

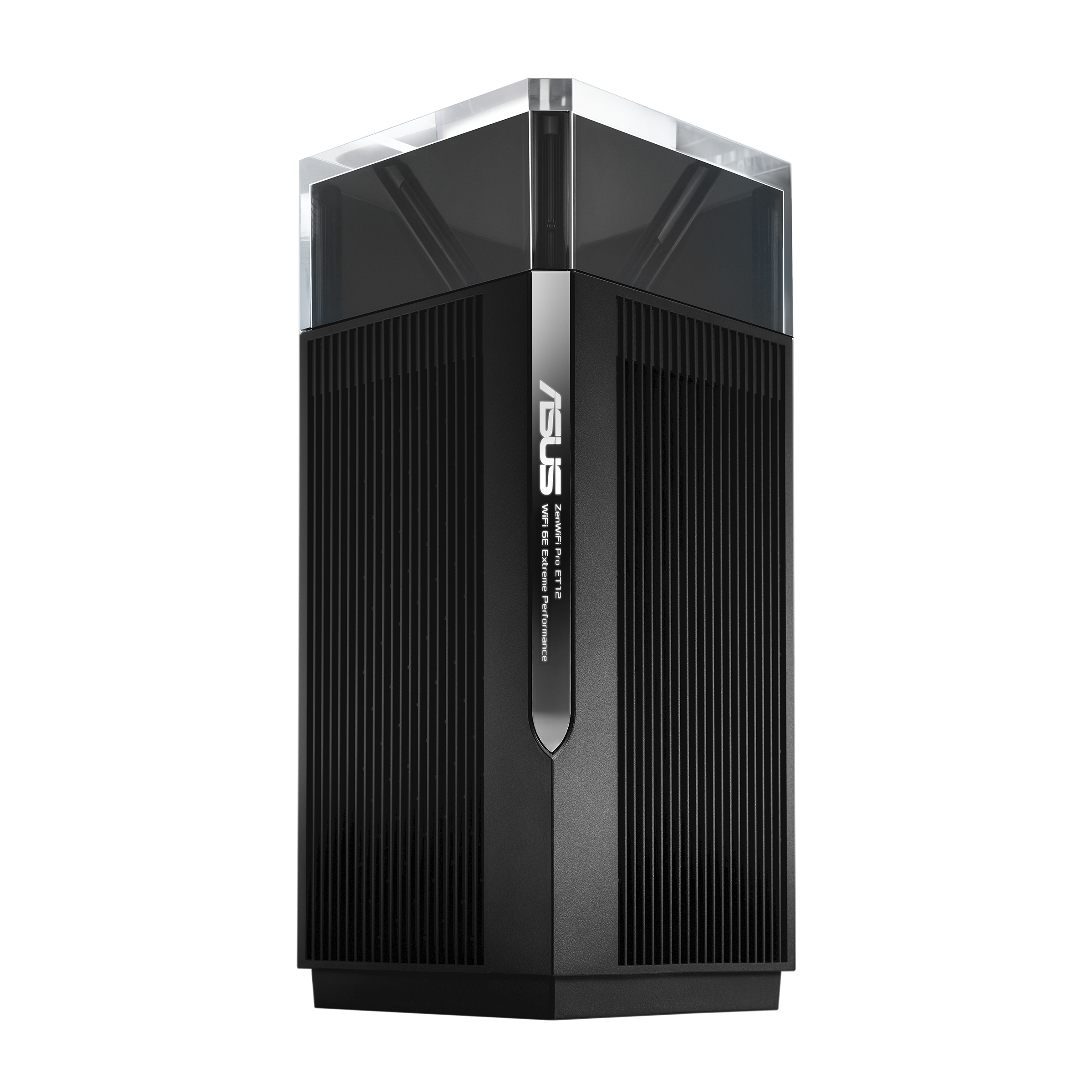

ASUS ZenWiFi Pro ET12
Model Name
ET12(2-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6
Product Segment
AXE11000 ultimate AXE performance : 1148+4804+4804Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 4804 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 4804 Mbps
Antenna
internal antenna x 10
Transmit / Receive
2.4GHz 4x4
5GHz 4x4
6GHz 4x4
5GHz 4x4
6GHz 4x4
Processor
2.0 GHz quad-core 64bits processor
Memory
256 MB Flash
1GB RAM
1GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz, 5 GHz, 6 GHz
Operating Mode
Wireless router mode
Repeater mode
Access point mode
Media bridge mode
Repeater mode
Access point mode
Media bridge mode
I/O Ports
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
Status x 1
Status x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package Content
ZenWiFi Pro ET12
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1500 g
Product Dimensions
115 x 115 x 241 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Router APP
APP: ASUS Router APP
Guest Network
Support Guest Network
• Maximum Guest Network Rule : Max 9 rules
• Maximum Guest Network Rule : Max 9 rules
Security
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support
WPS
Let's Encrypt
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
WPS
Let's Encrypt
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
AiProtection
AiProtection Pro
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
Adaptive QoS
Traffic Monitor
Traffic Analyzer
Traffic Monitor
Traffic Analyzer
WAN
Dual WAN
WAN Aggregation
DMZ
DDNS
WAN Aggregation
DMZ
DDNS
LAN
IGMP Snooping
IPTV
LAN Link Aggregation
Wake on LAN (WOL)
IPTV
LAN Link Aggregation
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
WiFi MAC Address Filter
• Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Administration
Diagnosis Tools
Feedback System
System Log
Feedback System
System Log

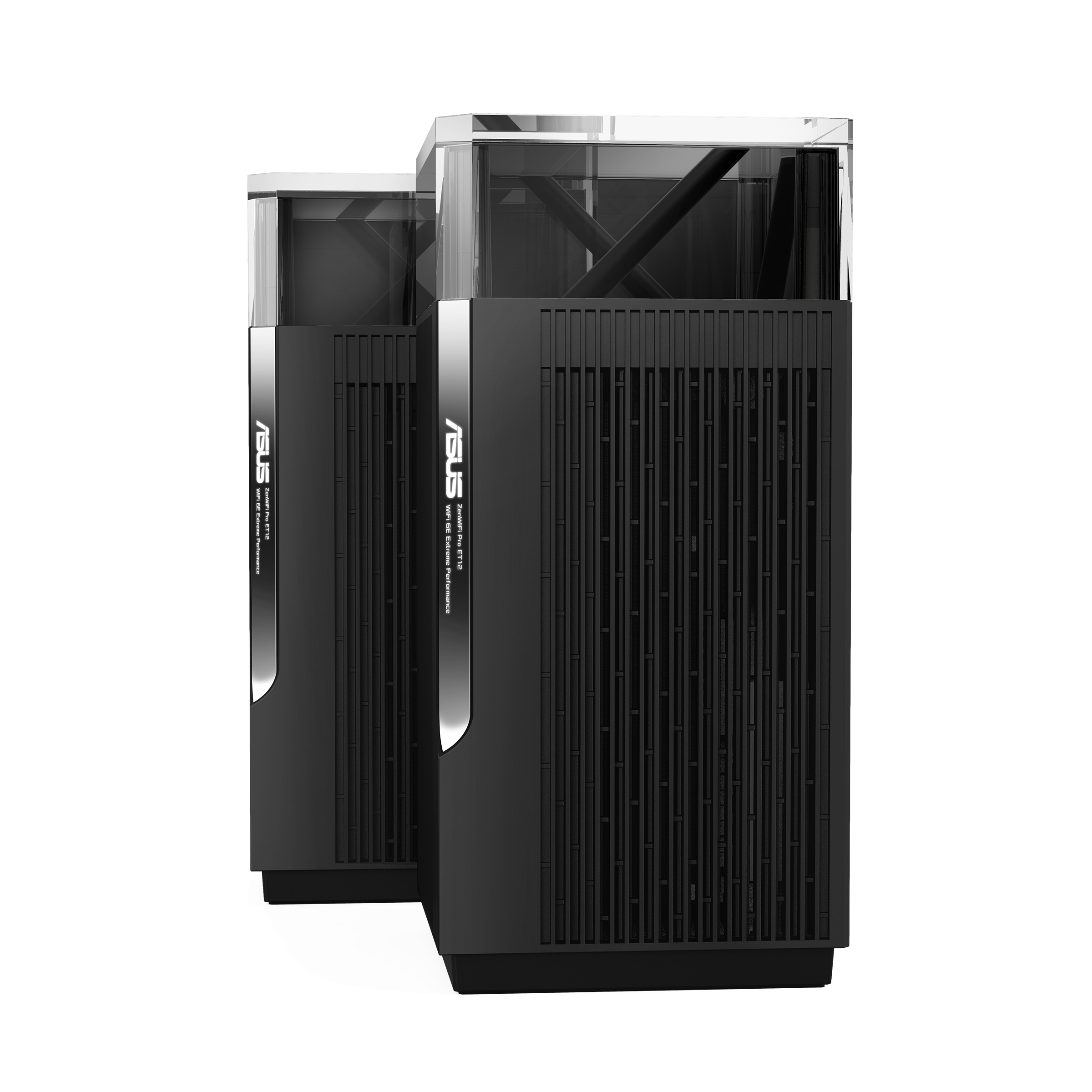

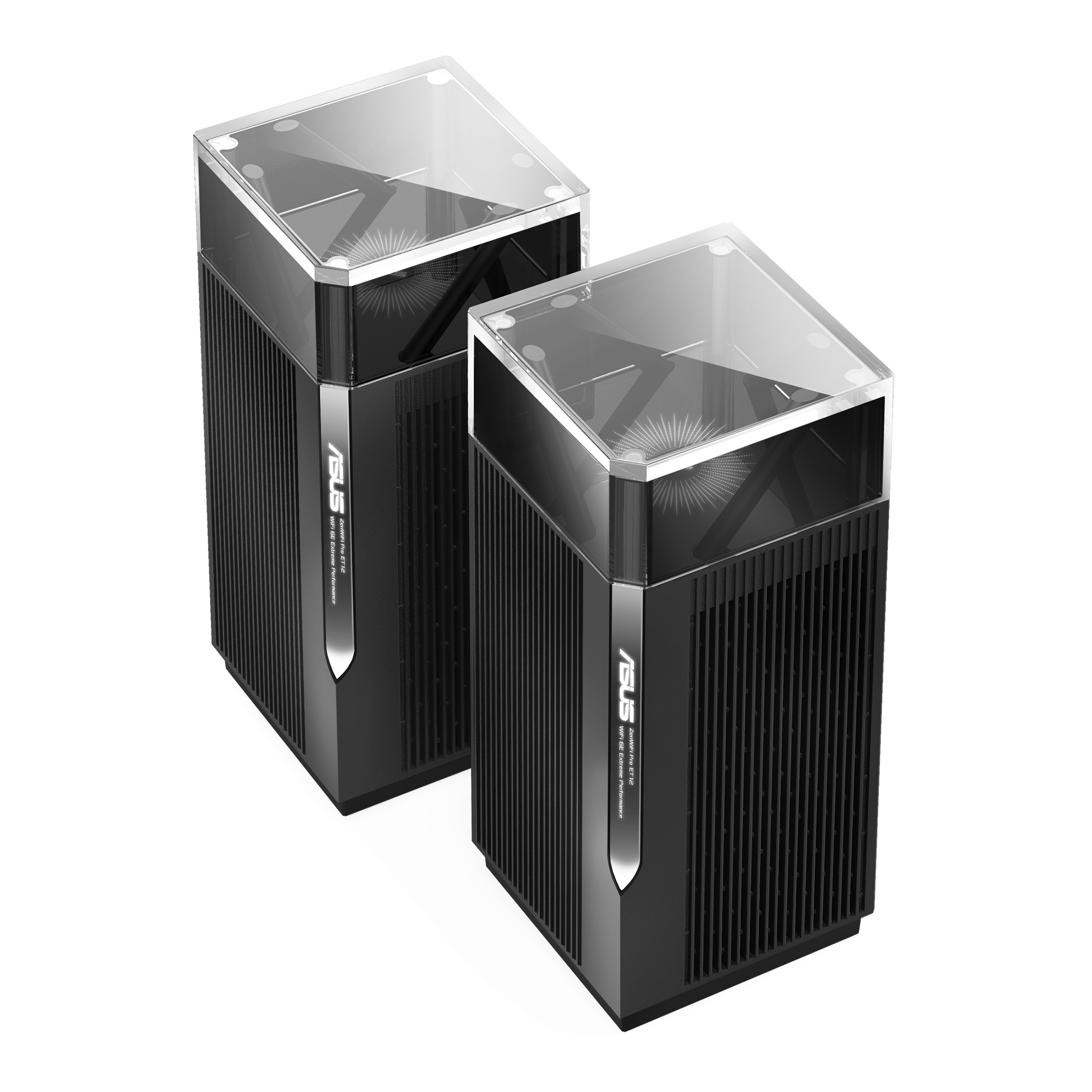

ASUS ZenWiFi Pro ET12
Wider Range with Superior Speed
ZenWiFi Pro is the new paradigm for whole-home mesh WiFi, combining performance and beauty in a perfectly balanced package. Working with the ASUS WiFi 6E ecosystem, it takes the productivity and entertainment capabilities of your whole-home network to the next level.
Learn more about WiFi 6E
More Streams, More Bandwidth
ZenWiFi Pro ET12 is a 12-stream device, with combined total data rates up to 11000 Mbps. This boosts its capacity for transmitting and receiving data to large numbers of devices simultaneously, reducing dead zones and giving ZenWiFi Pro ET12 the performance edge for the busiest home networks.
RangeBoost Plus
ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, and it improves coverage for all your WiFi devices including legacy devices. Using a next-gen flagship Broadcom WiFi chipset and a 2.0GHz 64-bit quad-core CPU, RangeBoost Plus leverages multiple exclusive ASUS technologies to dramatically improve WiFi signal range and coverage by up to 38%*.
6000 sq.ft.
6+ rooms
3000 sq.ft.
4+ rooms
*Measured using WiFi 6 client connected at 200 Mbps to WiFi 6 router with RangeBoost Plus, compared to same WiFi 6 client connected at 200 Mbps to WiFi 5 router without RangeBoost Plus.

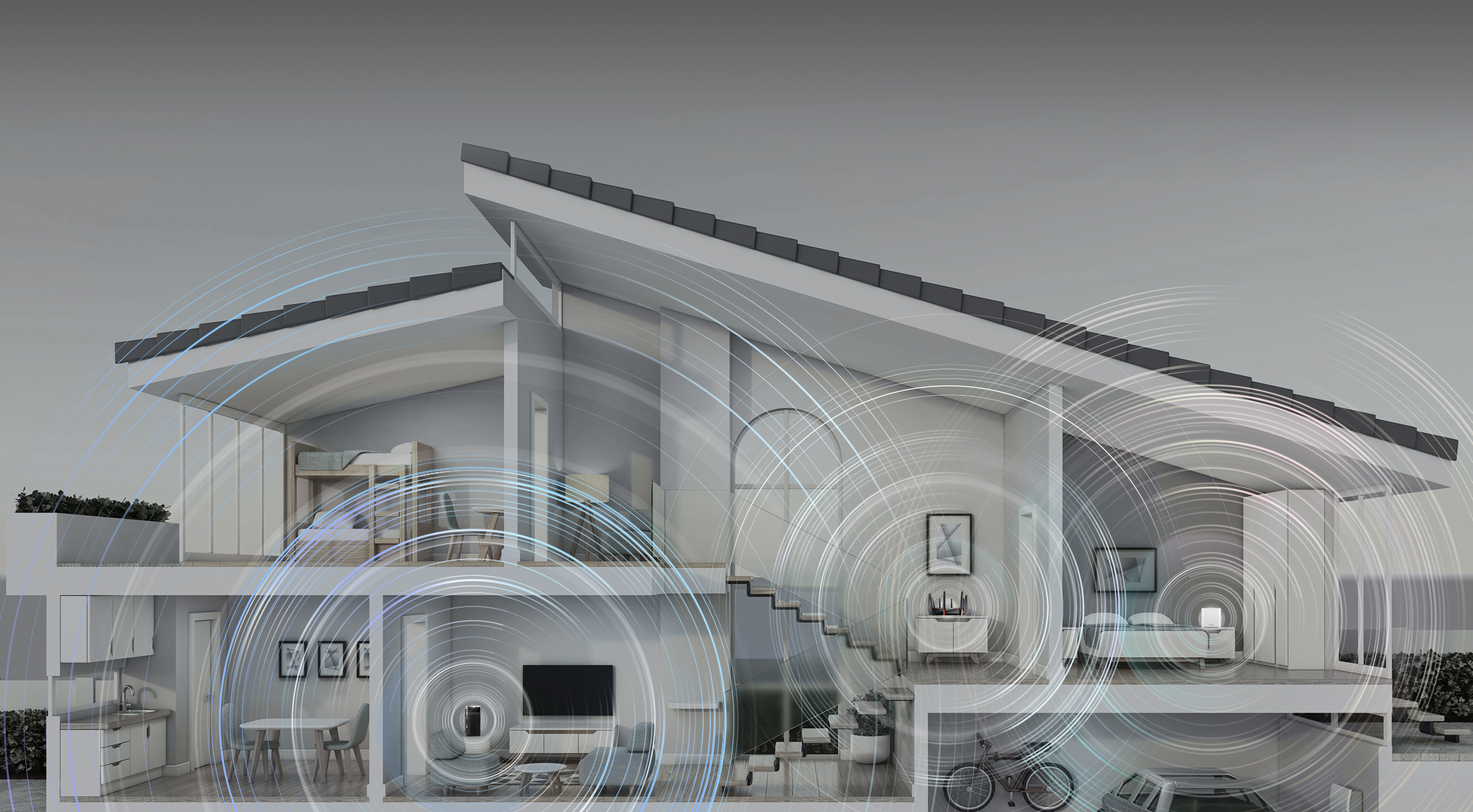

Easy Scalability for Flexible Networking
With ASUS AiMesh, it's easy to add extra nodes for improved coverage or new features — simply add any AiMesh-compatible router!
Learn more about AiMesh

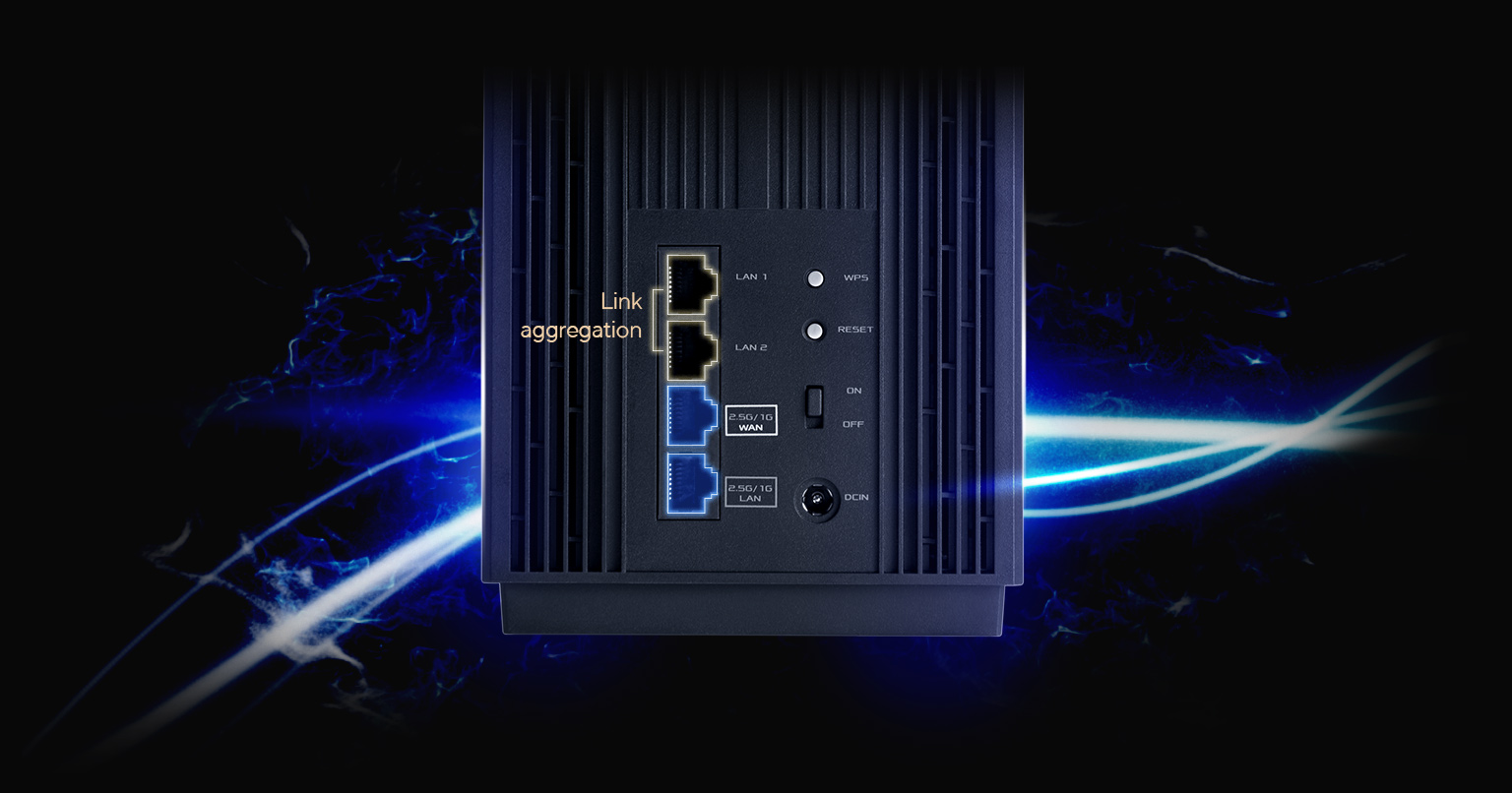

Dual 2.5G LAN and WAN Ports
ZenWiFi Pro ET12 has both a 2.5G LAN port and a 2.5G WAN port, so you can enjoy full 2.5 Gbps speeds all the way from a compatible ISP to your compatible wired devices.
Read more about link aggregation
New 6 GHz Band for Stable Backhaul
5 GHz and 2.4 GHz bands are getting more and more crowded with the growing number of home devices. The new 6 GHz band is reserved exclusively for WiFi 6E devices, so there's no interference from other legacy devices. This makes it ideal for use as a stable backhaul connection. You can also select the wired Ethernet for the backhaul connection between nodes. Alternatively, you can choose automatic mode and let ZenWiFi Pro ET12 choose the best connection type based on your environment. The choice is always yours!
-
Smart connect
![Smart connect]()
-
Dedicated backhaul
![Dedicated backhaul]()
-

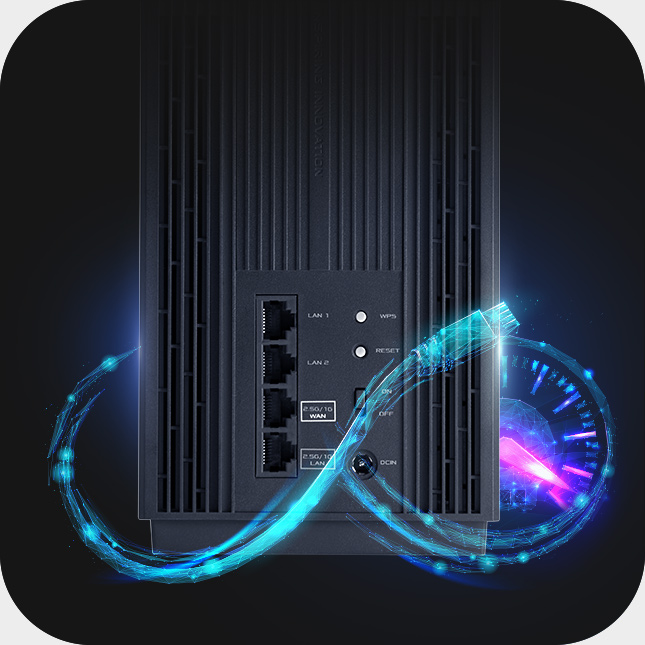

Ethernet backhaul
![Ethernet backhaul]()

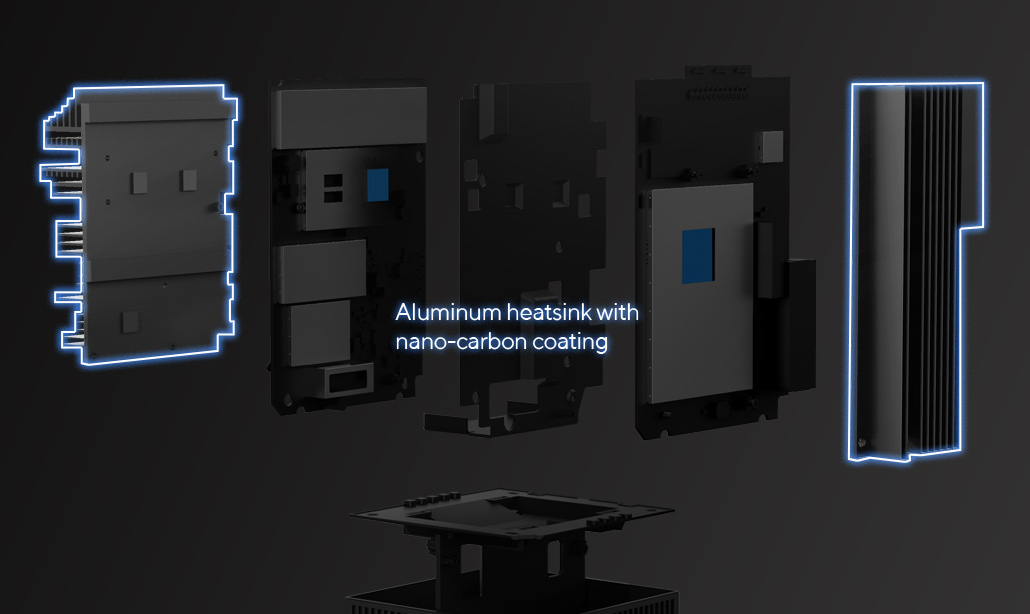

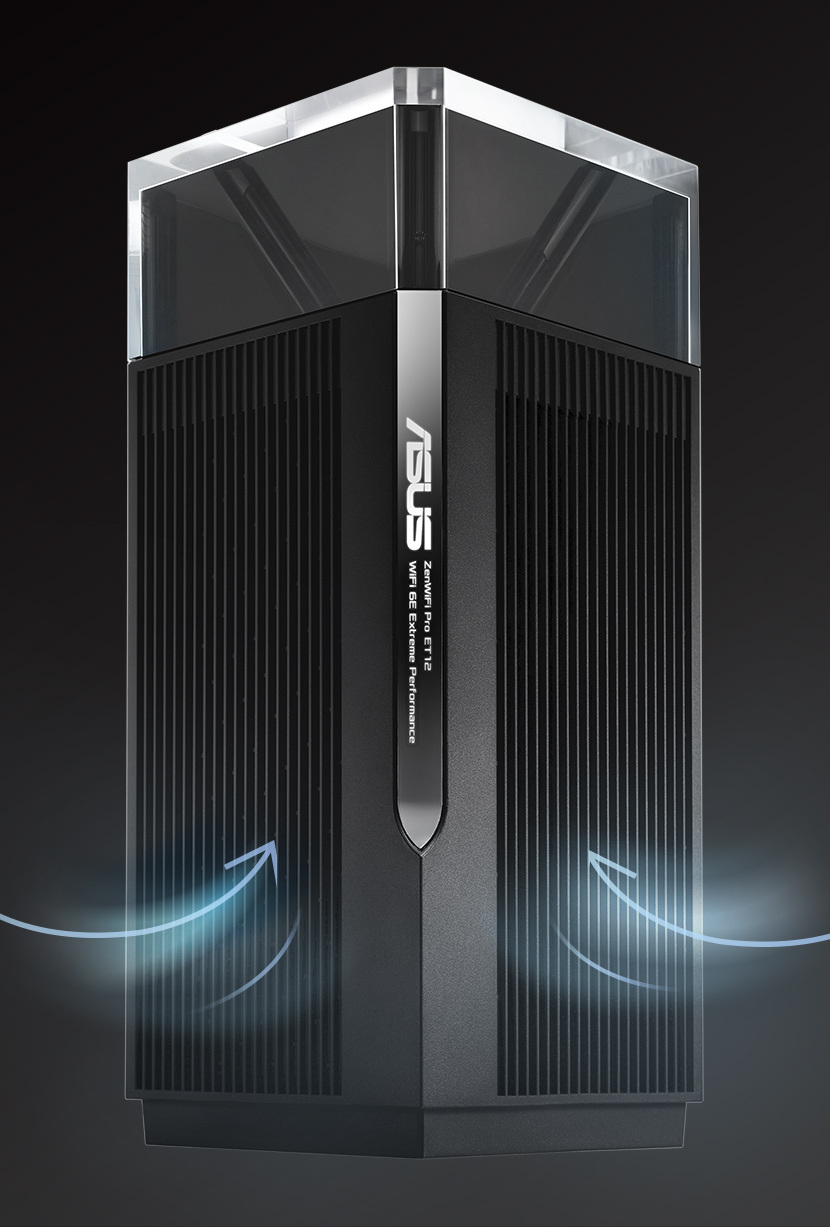

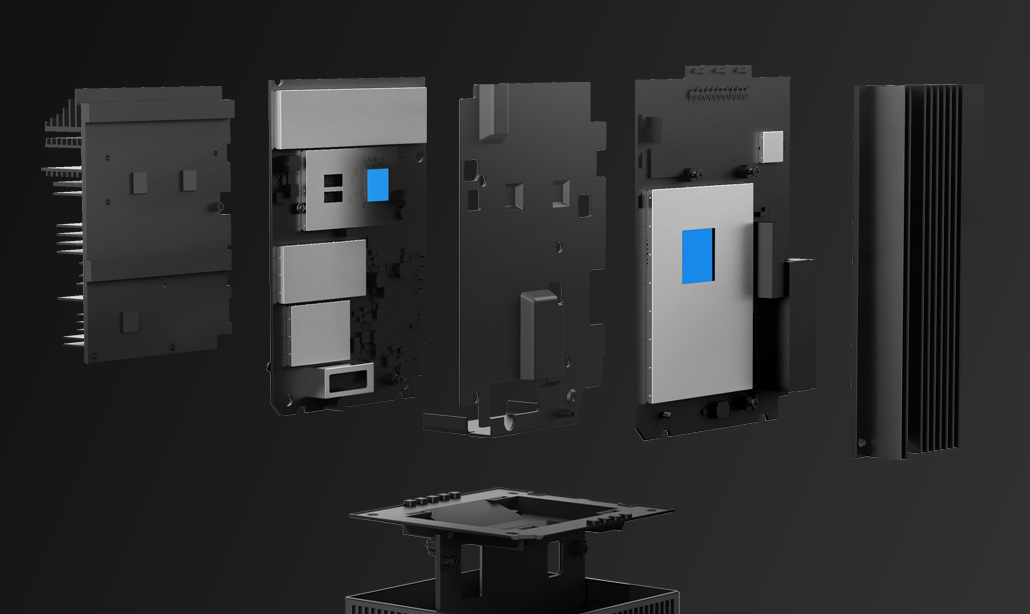

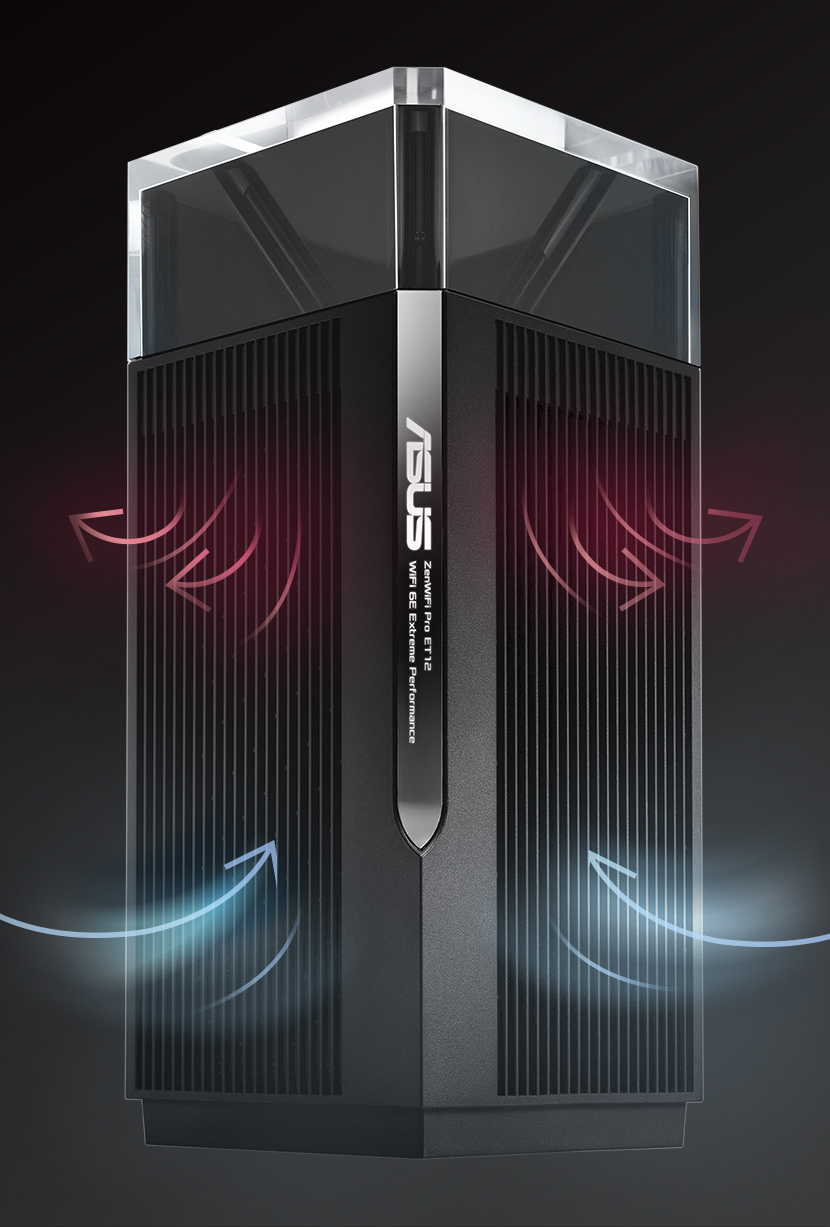

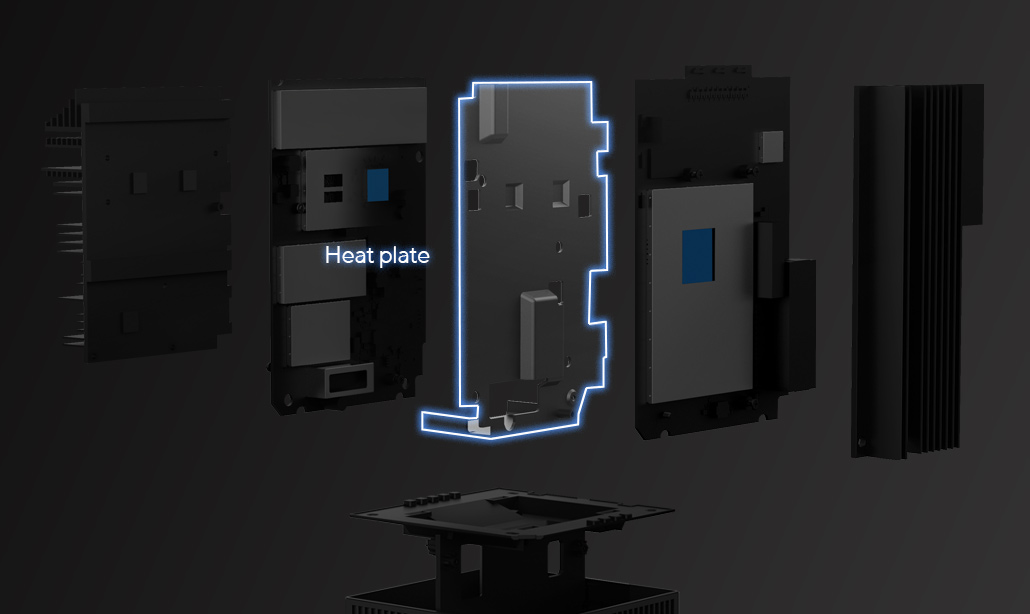

Engineered for Performance
ZenWiFi Pro ET12 is engineered to deliver maximum WiFi performance — with throughput improved by up to 18%*— from the latest Broadcom WiFi chipset and CPU . The eight external antennas are carefully located and angled within the special transparent compartment on the top of the router, minimizing interference while maximizing signal coverage.
*The data compares with former WiFi 6 platform.
Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, especially if your network hosts devices without virus protection, such as IoT devices. ZenWiFi Pro ET12 includes lifetime free AiProtection Pro, including advanced Parental Controls, and also uses the latest WPA3 security protocol.
Learn more about ASUS network security
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via ZenWiFi Pro ET12 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi Pro ET12, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
