Product Name
ELITE 502
Product Name
ELITE 502 White
Model Number
ELITE 502: E502-KGNN-S00
Model Number
ELITE 502 White: E502-WGNN-S00
Color(s)
ELITE 502: Black / ELITE 502 White: White
Materials - ExteriorSteel
Materials - Right Side PanelSteel
Materials - Left Side PanelTG
Dimensions (L x W x H)
474 x 230 x 481 mm(Incl. Protrusions), 435 x 230 x 465 mm(Excl. Protrusions)
Volume (incl. Protrusions)49.73 L
Motherboard Support
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots
7
5.25" Drive Bays
N/A
3.5" Drive Bays
2
2.5" Drive Bays
2 (Max.6)

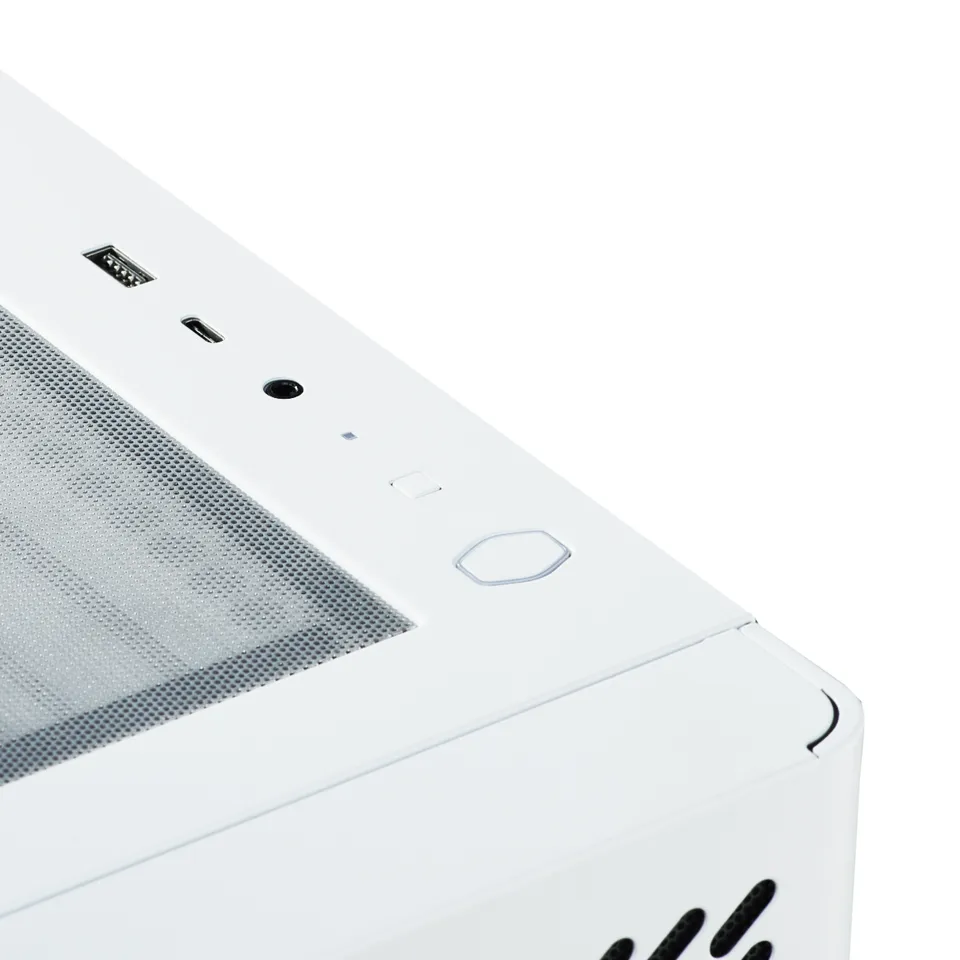

I/O Panel - USB
Ports1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
I/O Panel - Audio In / Out
3.5 mm Combo x 1
Fan Support - Front
(Filtered) 140 mm x 3 / 120 mm x 3
Fan Support - Top
(Filtered) 140 mm x 2 / 120 mm x 3
Fan Support - Rear1x 120mm
Pre-installed Fans - Front3x 120mm ARGB Fans
Pre-installed Fans - TopN/A
Pre-installed Fans - RearN/A
Radiator Support - Front120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
Radiator Support - Top120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear120mm
Clearance - CPU Cooler
170mm
Clearance - PSU
170mm, 210mm (w/o HDD Cage)
Clearance - Graphics Card (installed 3.5"HDD BRK)
360 / 410 mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray
33-35 mm
Dust Filters
Top, Front, Bottom
Power Supply Support
ATX
Warranty
2 years
Series
Elite Series
Size
Mid Tower
