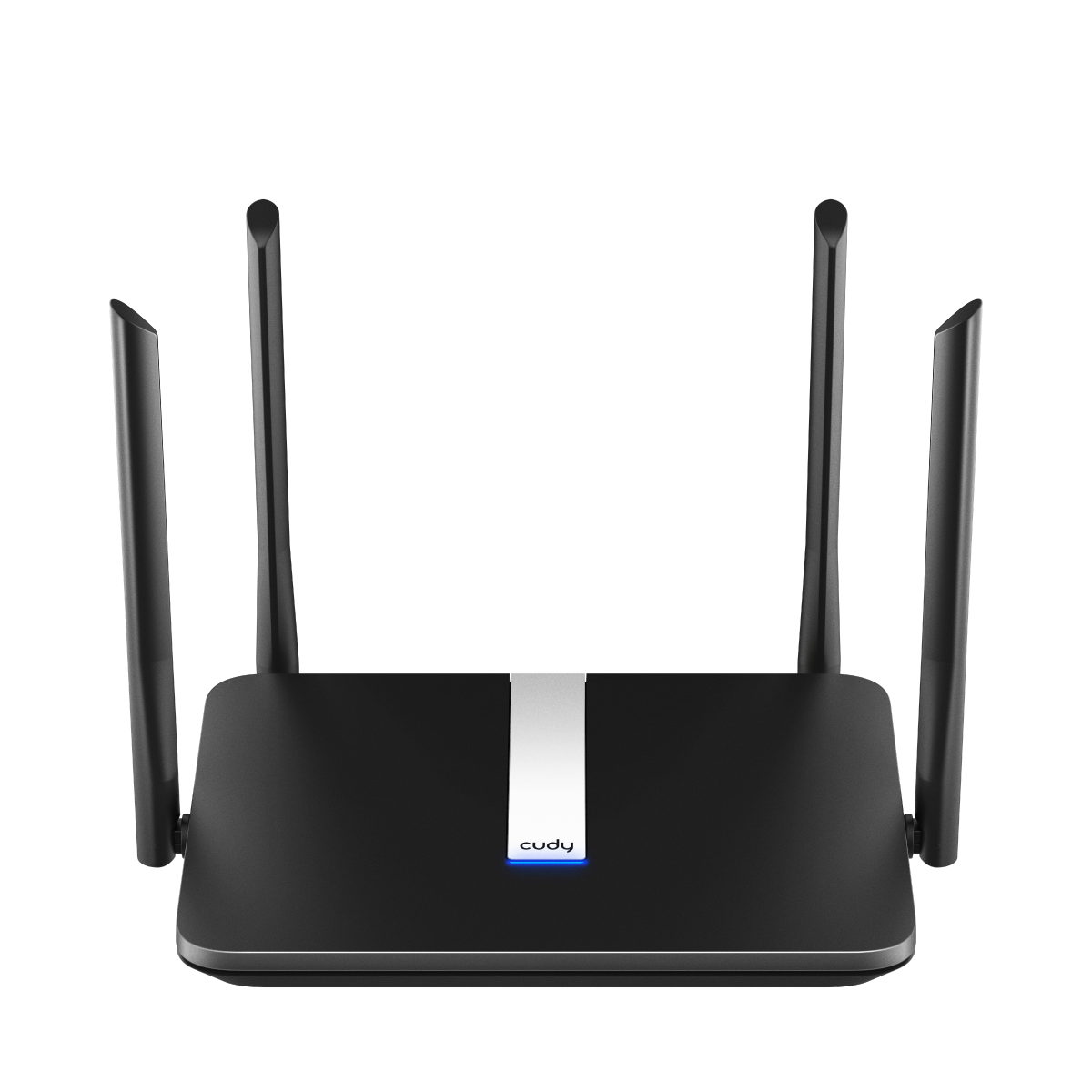

CUDY X6 2.0 AX1800 Gigabit Mesh Wi-Fi 6 Router

Name: CUDY X6 2.0 AX1800 Gigabit Mesh Wi-Fi 6 Router
Brand: CUDY
SKU: CDY-X6 2.0
Price: 79 SGD
Availability: InStock

Warranty - 1 year

$79.00 SGD

(tax included)

Quantity

Only 1 left

Local Shipping

Local Warranty

Secure Payment

Please Whatsapp +65 85004522 first for stock availability before making payment and checkout

Hardware Specs

Model Version	X6 2.0
CPU	Chipset	MT7621
	CPU Details	880 MHz Dual-Core, MIPS1004Kc
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	256 MB (2 Gbit) DDR3
Wireless	5 GHz Wi-Fi Speed	1201 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	5 GHz Antenna Gain Max	6.04dBi
	2.4 GHz Antenna Gain Max	5.97dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')

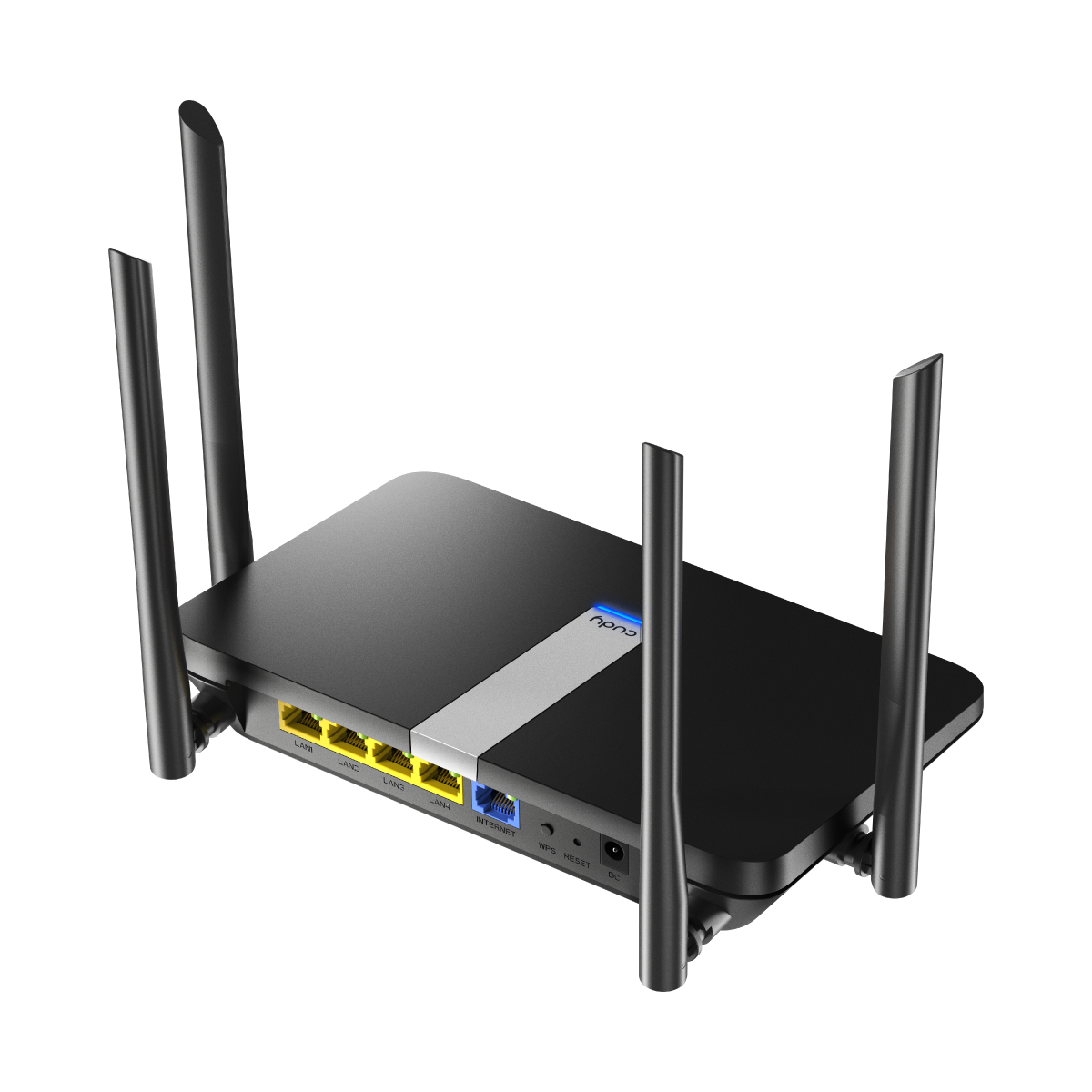

Interfaces	Gigabit RJ45 Ports	5
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	210×85×15.6 mm 8.27×3.35×0.61 inches
	Product Weight	330 g (11.64 oz.)

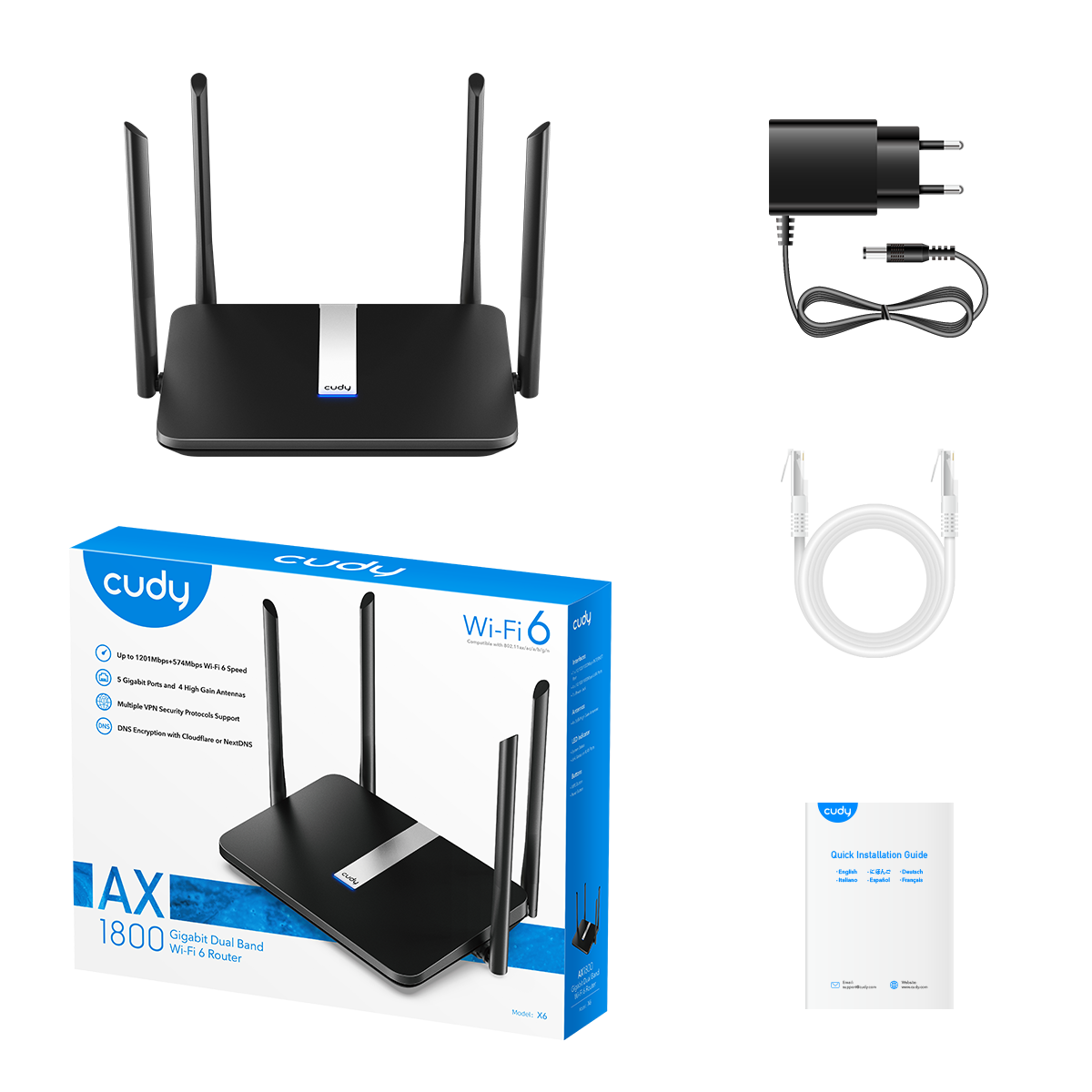

Package Content	X6 Power Adapter Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	EU: 792 g (27.94 oz.) US: 770 g (27.16 oz.)
	Retail Package Dimension	226×95.5×98.5 mm 8.9×3.76×3.88 inches
	Units per Carton	10
	Carton Dimension	49.5×23.8×21.5 cm 19.49×9.37×8.46 inches
	Carton Gross Weight	EU: 9.1 kg (20.06 lbs) US: 8.4 kg (18.52 lbs)
	Carton Net Weight	EU: 7.9 kg (17.42 lbs) US: 7.7 kg (16.98 lbs)

Software Specs

Model Version	X6 2.0
CPU	Chipset	MT7621
	CPU Details	880 MHz Dual-Core, MIPS1004Kc
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	256 MB (2 Gbit) DDR3
Wireless	5 GHz Wi-Fi Speed	1201 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	5 GHz Antenna Gain Max	6.04dBi
	2.4 GHz Antenna Gain Max	5.97dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces	Gigabit RJ45 Ports	5
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop Wall-mount
	Dimension	210×85×15.6 mm 8.27×3.35×0.61 inches
	Product Weight	330 g (11.64 oz.)
Package Content	X6 Power Adapter Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	EU: 792 g (27.94 oz.) US: 770 g (27.16 oz.)
	Retail Package Dimension	226×95.5×98.5 mm 8.9×3.76×3.88 inches
	Units per Carton	10
	Carton Dimension	49.5×23.8×21.5 cm 19.49×9.37×8.46 inches
	Carton Gross Weight	EU: 9.1 kg (20.06 lbs) US: 8.4 kg (18.52 lbs)
	Carton Net Weight	EU: 7.9 kg (17.42 lbs) US: 7.7 kg (16.98 lbs)

Software Specs

Model Version	X6 2.0
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
	Max Capacity	256
	Recommended Client Upper Limit	80
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	true
	WAN Mode	DHCP Static IP PPPOE
	Internet Failover Sequence	WAN WISP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Captive Portal	True
	Wake on LAN	True
	Online Detection	True
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Intenent On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
