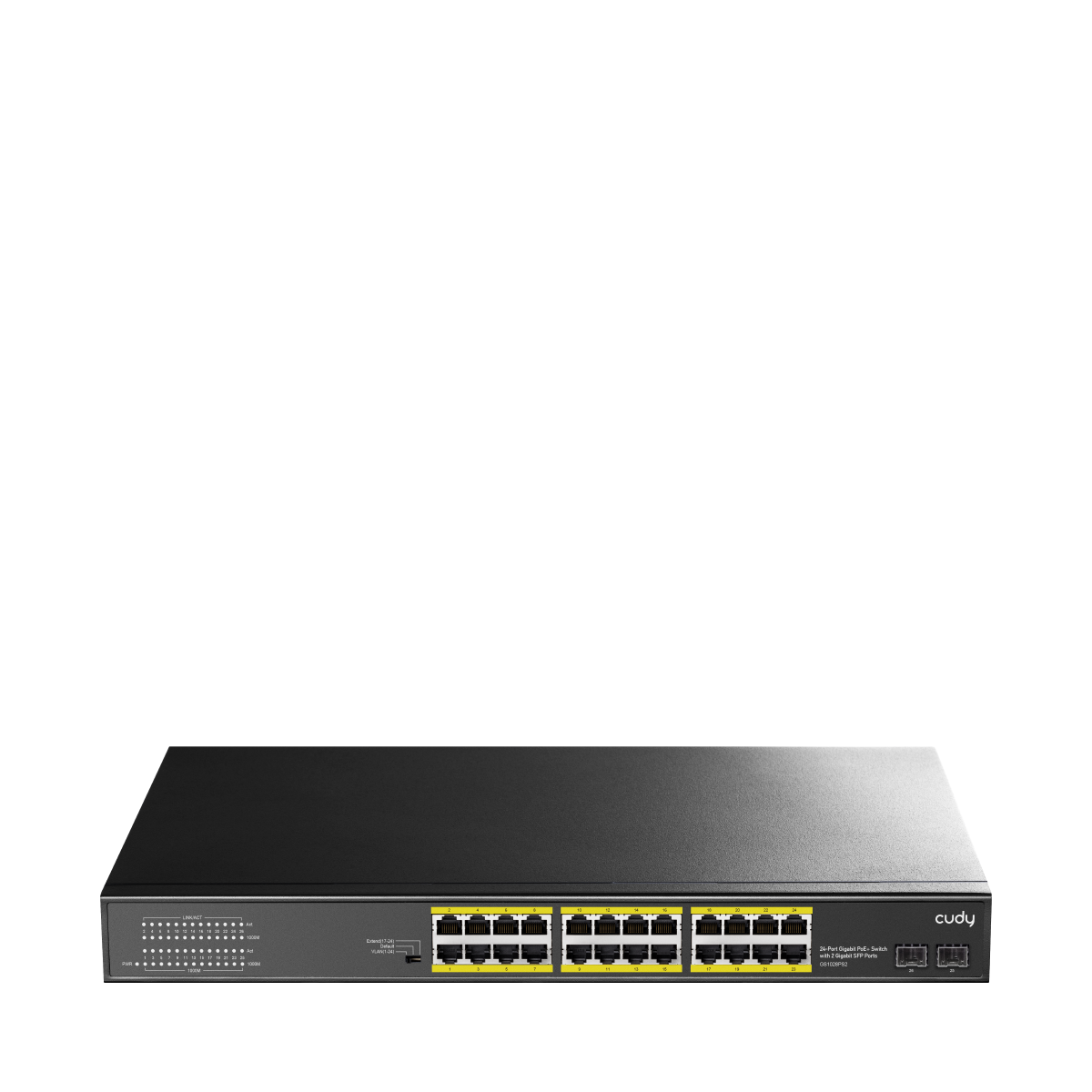

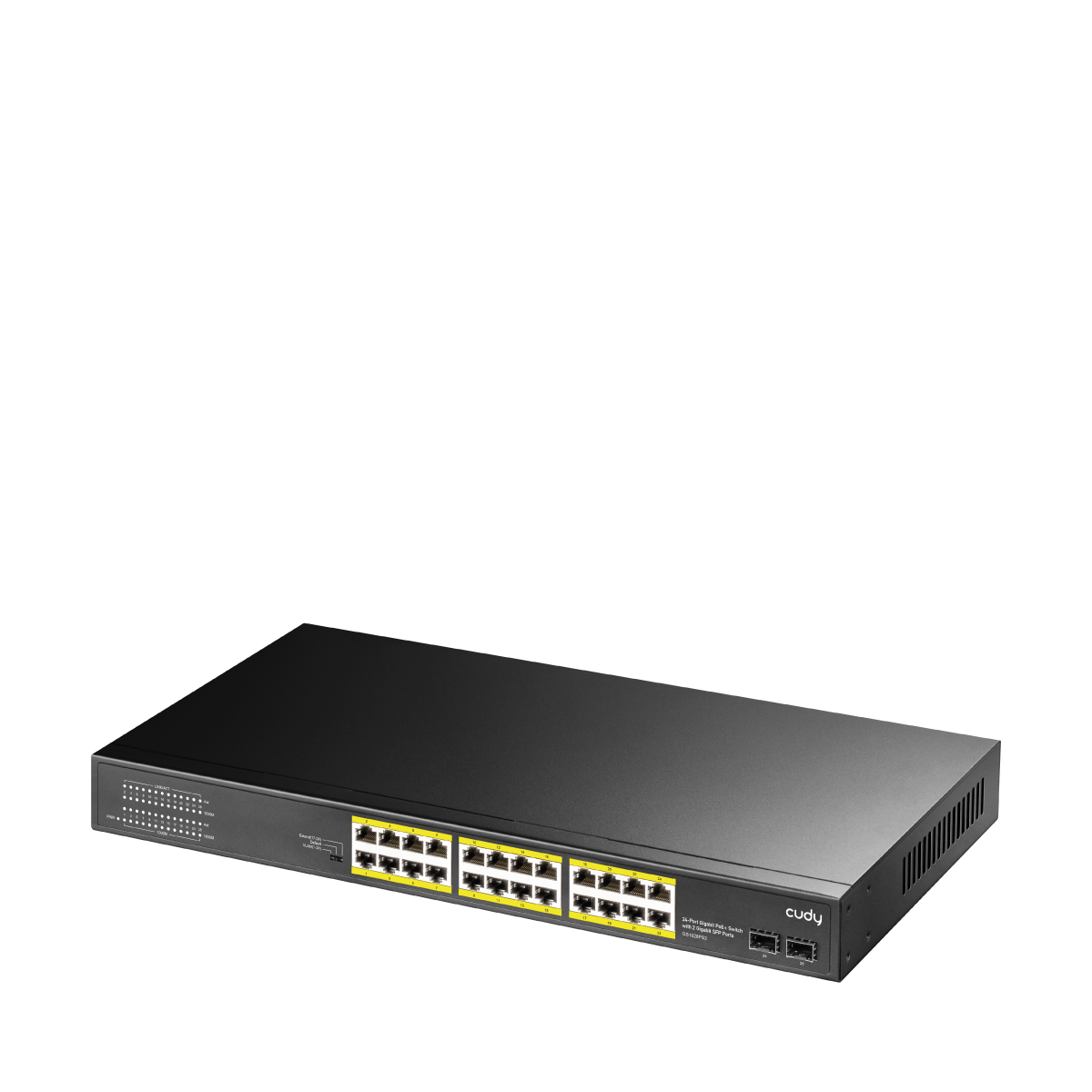

A rack-mounted 24-GbE, 2-SFP PoE switch with a 300W power supply and a silent cooling system.
- 24× GbE with 802.3at/af PoE
- 2× Uplink SFP
- 300W Power Supply
- Default/VLAN/Extend Modes
- Desktop, Rack-Mount
- 440×204×44 mm (17.32×8.03×1.73″)
| Model Version | GS1028PS2 1.0 | |
|---|---|---|
| Interfaces | 1.25G SFP Slots | 2 |
| Gigabit RJ45 Ports | 24 | |
| Gigabit RJ45 PoE Ports | #1~#24 | |
| Max Power on a Single PoE Port | 30W | |
| PoE Port Notes | The PoE ports comply with IEEE 802.3at/af standards. | |
| Extend Mode Ports | #17~#24 | |
| VLAN Mode Ports | #1~#24 | |
| LED |
|
|
| Power Input | AC Inlet | |
| Performance | Copper Speed and Distance |
|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. | |
| Optical Spec and Distance | Depends on the Installed Optical Module | |
| MAC Address Table | 8192 | |
| Max Switching Capacity | 52 Gbps | |
| Max Forwarding Rate | 38.68 Mpps | |
| Power | Power Methods | AC |
| AC | 100-240V~, 50/60Hz | |
| Power Supply | 300W | |
| Max Power Excluding PoE | 10W | |
| Switching | 802.3 Protocols |
|
| Reliability | Grounding Methods | Three-Prong Plug |
| EMS | IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 6kV | |
| Environment | Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing |
|
| Mechanical | Dimension | 440×204×44 mm 17.32×8.03×1.73 inches |
| Product Weight | 2905 g (102.47 oz.) | |
| Casing Material | Metal | |
| Installation |
|
|

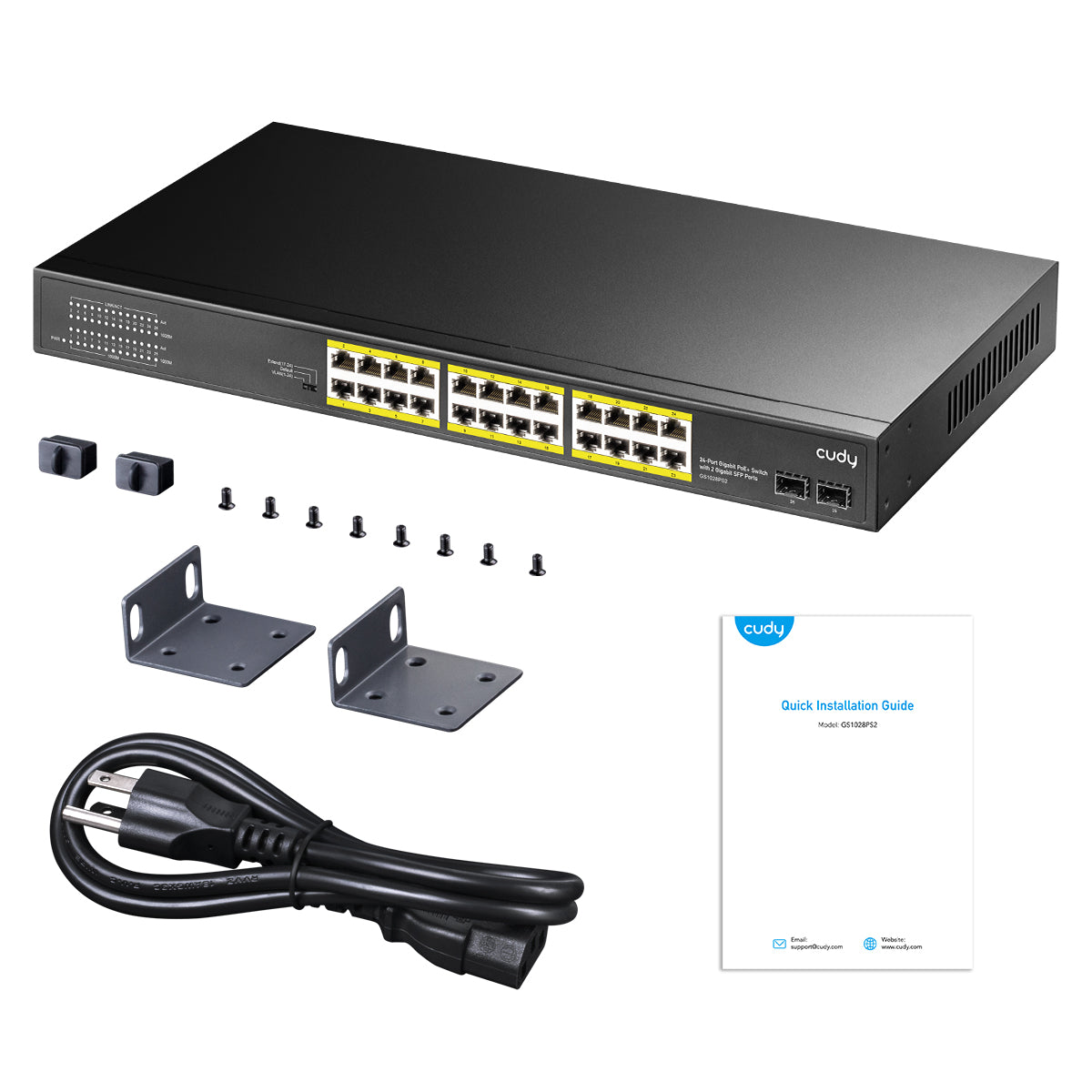

| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU: 3464 g (122.19 oz.) |
| Carton Net Weight | EU: 17.3 kg (38.14 lbs) | |
| Carton Gross Weight | EU: 18.5 kg (40.79 lbs) | |
