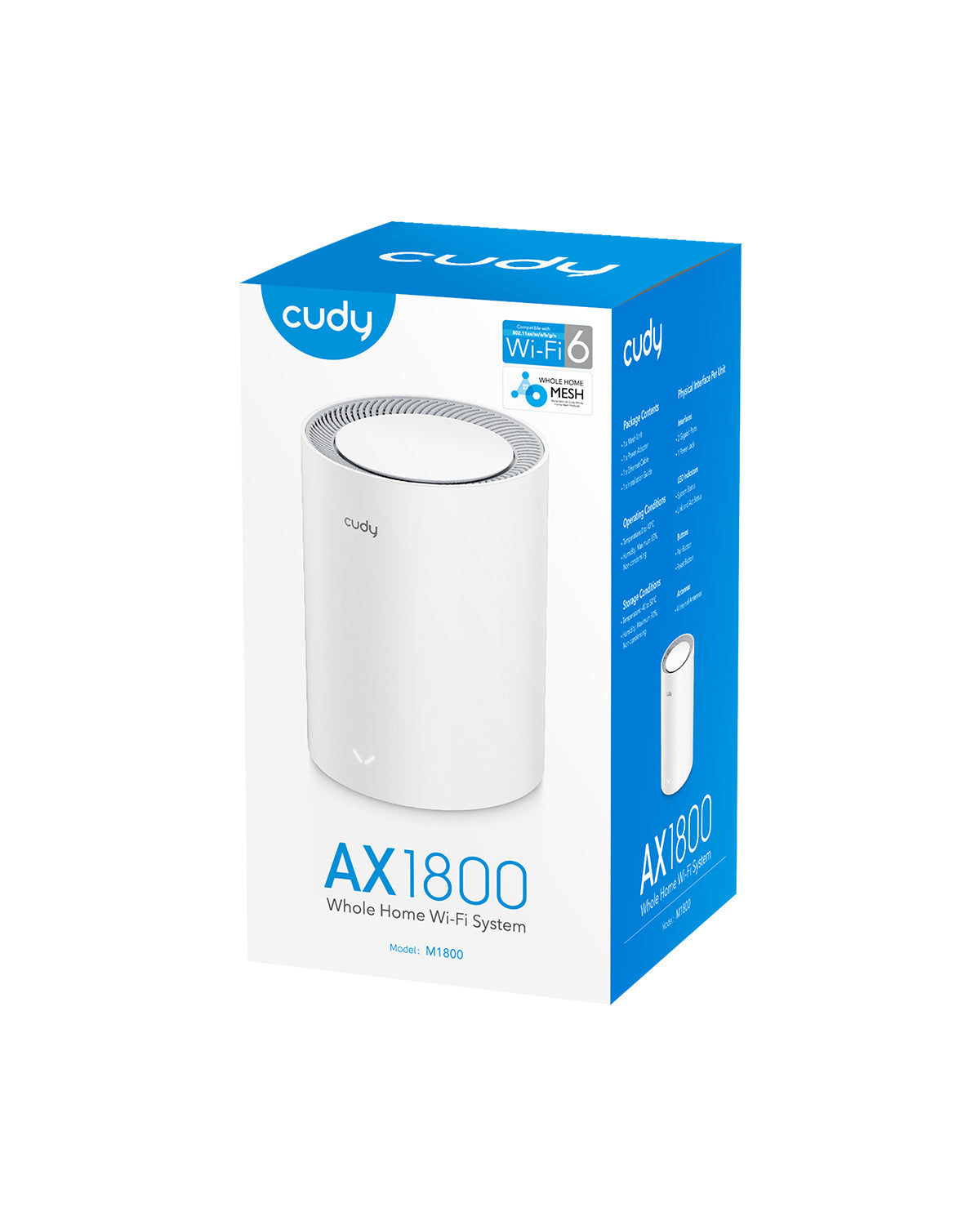

CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System
1/ 3
Home / Routers & Mesh / CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System Router (2-Pack)

CUDY M1800 2.0 AX1800 Gigabit Mesh Wi-Fi 6 System Router (2-Pack)

Warranty - 1 year
$169.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$169.00 SGD each
Local Shipping
Local Warranty
Secure payments
Hardware Specs
Model Version M1800 2.0
CPU Chipset MT7621
  CPU Details 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
  DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
  2.4 GHz Wi-Fi Speed 574 Mbps
  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 4× Internal
  5 GHz Antenna Gain Max 6.04dBi
  2.4 GHz Antenna Gain Max 4.9dBi
  FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
  Beamforming True
  Range Performance Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
  Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
  Multi-Pack Indoor Coverage 2 Pack: 360 m² (3900 sq ft)
3 Pack: 500 m² (5500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
Interfaces Gigabit RJ45 Ports 2
  Ethernet Notes Port 1 as default WAN port, both as LAN ports on Mesh satellite units
  LED
  • System
  • Speed/Link/ACT of Ethernet Port
  Physical Buttons
  • WPS Button
  • Reset Button
  Power Input DC Jack
Power Power Methods DC
  DC 12V 1A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
  Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
  Product Weight 358 g (12.63 oz.)

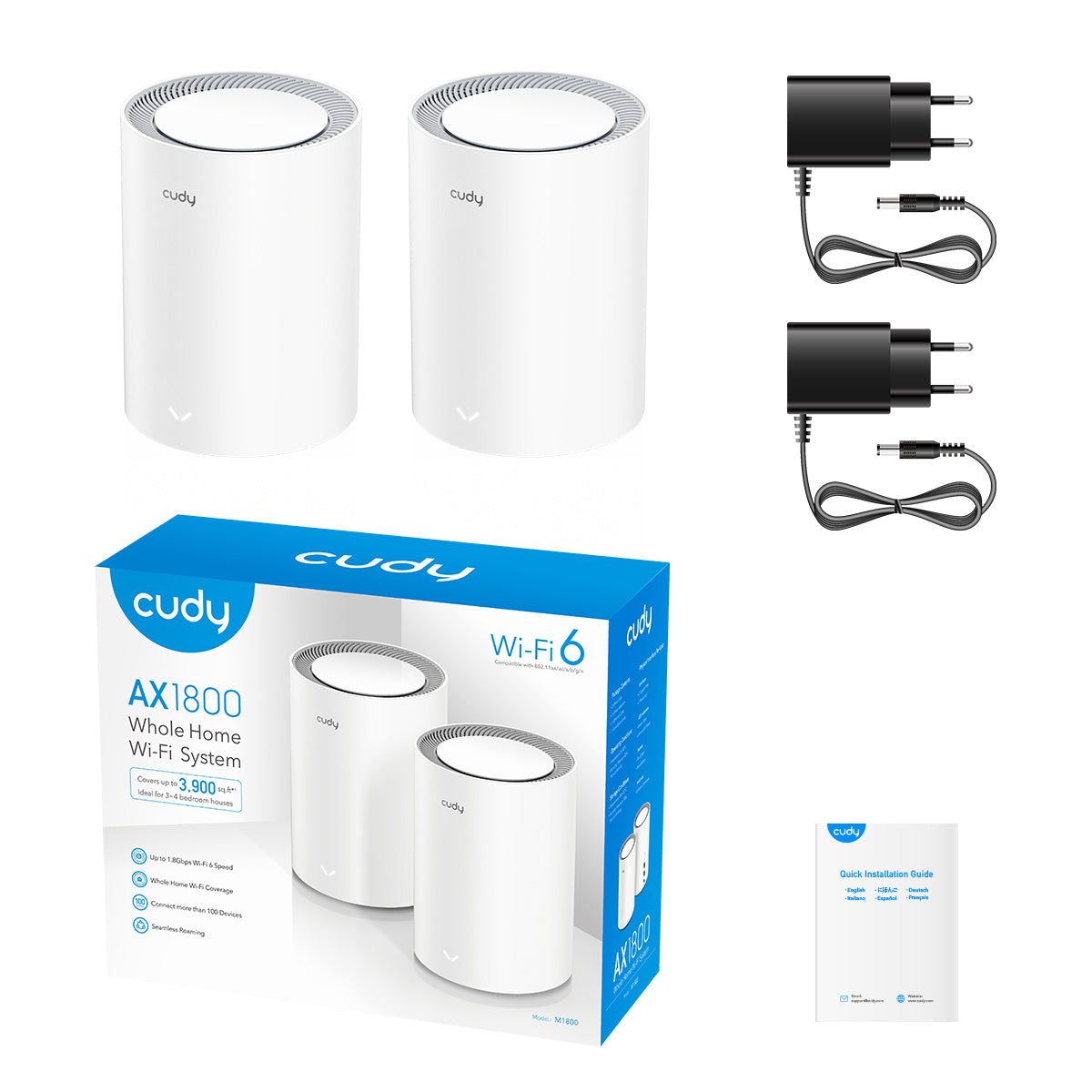

Package Content
  • M1800
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • 1-Pack | EU / US: 685 g (24.16 oz.)
  • 2-Pack | EU / US: 1312 g (46.28 oz.)
  • 3-Pack | EU / US: 1877 g (66.21 oz.)
  Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
  Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
  Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
  Carton Gross Weight
  • 1-Pack | EU / US: 12.6 kg (27.78 lbs)
  • 2-Pack | EU / US: 12.0 kg (26.46 lbs)
  • 3-Pack | EU / US: 8.5 kg (18.74 lbs)
  Carton Net Weight
  • 1-Pack | EU / US: 11.0 kg (24.25 lbs)
  • 2-Pack | EU / US: 10.5 kg (23.15 lbs)
  • 3-Pack | EU / US: 7.5 kg (16.53 lbs)
