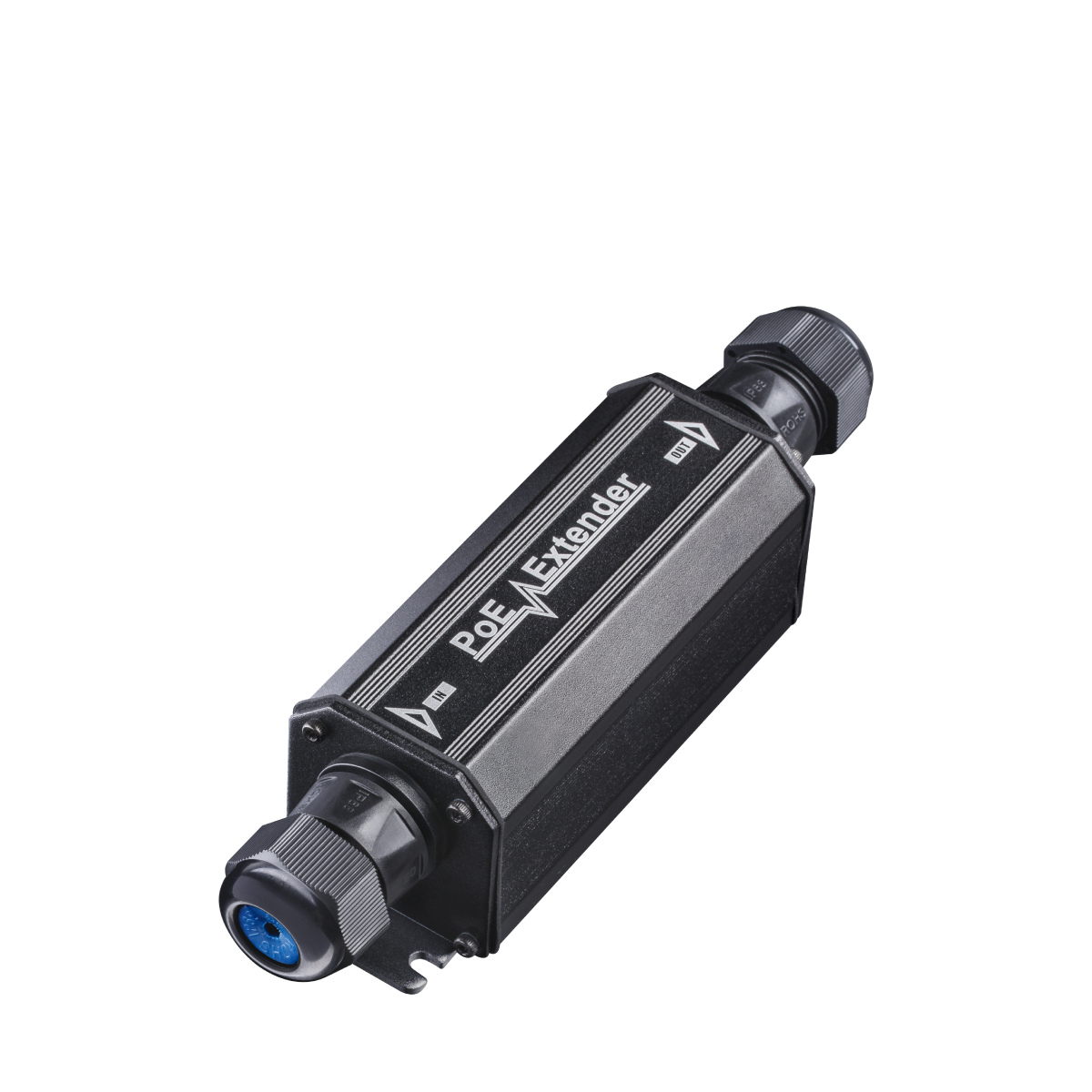

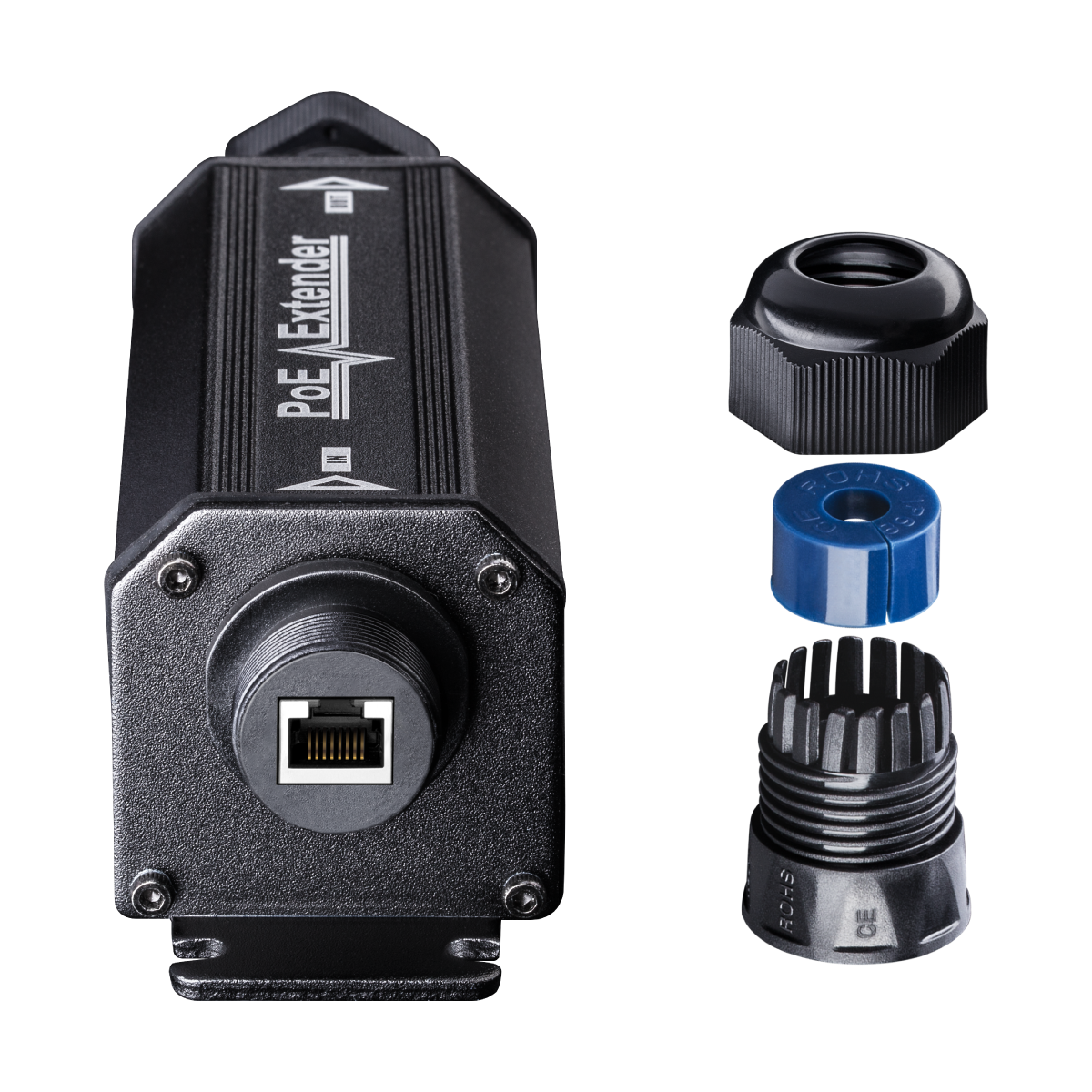

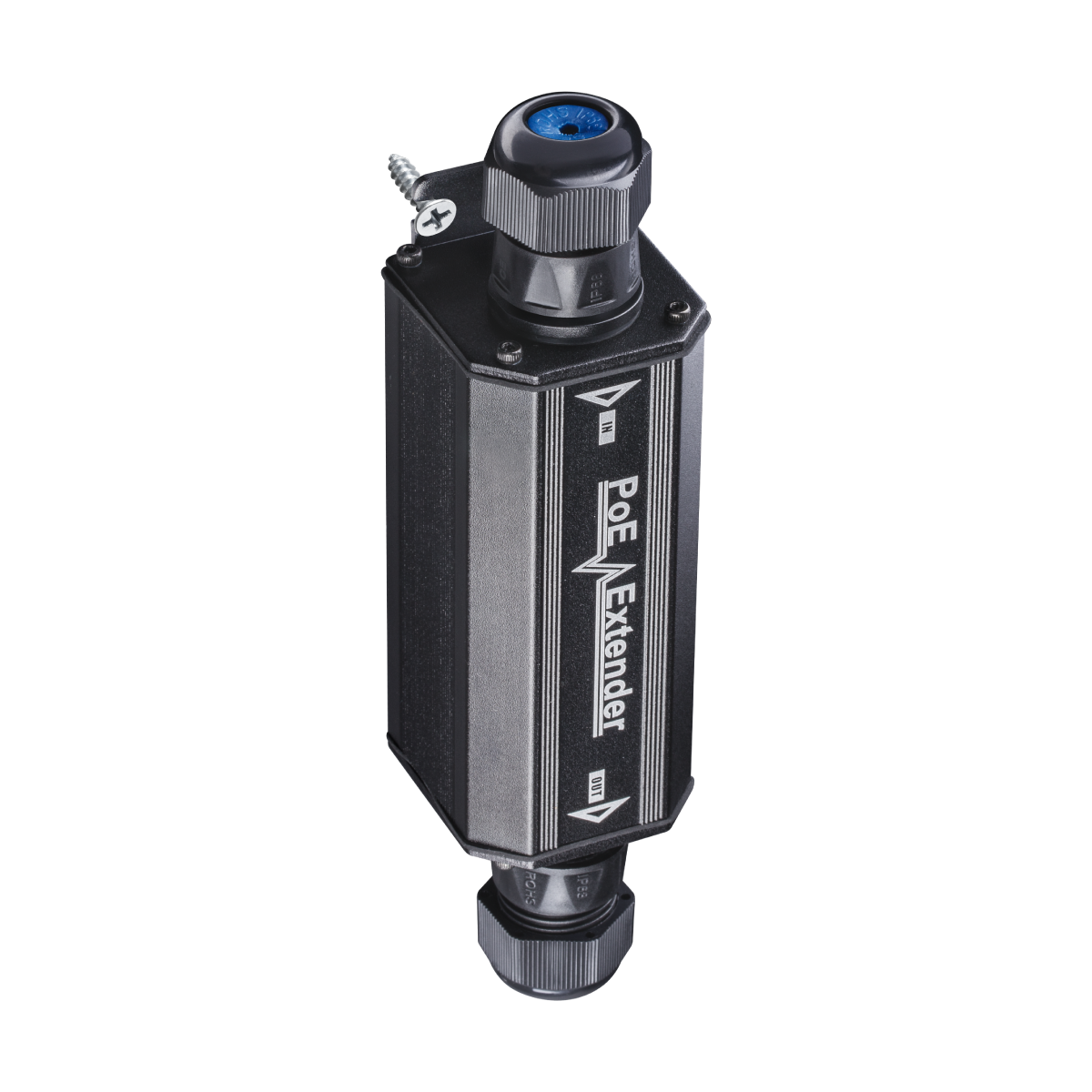

CUDY POE15 1.0 Outdoor Gigabit PoE Extender

Name: CUDY POE15 1.0 Outdoor Gigabit PoE Extender
Brand: CUDY
SKU: CDY-POE15
Price: 99 SGD
Availability: InStock

$99.00 SGD

(tax included)

Quantity

Only 1 left

Local Shipping

Local Warranty

Secure payments

Model Version	POE15 1.0
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE
PoE	Uplink Stream	1× GbE, 802.3at/af
	Uplink PIN Assignment	Mode A / Mode B
	Downlink Stream	1× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating
Power	Power Input	≥30W is recommended
	Max Power Output	30W
	Max Power Output Note	The actual power output depends on input
	Max Power Consumption (W)	2W
Reliability	Client Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection Automatic Voltage Regulation
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
	Grounding Methods	Grounding Point
	Environment	Ambient Operating Temperature: -25~55 ℃ (-13~131 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~100% non-condensing Storage Humidity: 5%~95% non-condensing
	Ingress Protection Rating	IP67
Certifications	FCC, CE
Mechanical	Install in a Daisy Chain	Up to 3 extenders in a chain
	Installation	Desktop Wall-mount
	Dimension	185×45×45 mm 7.28×1.77×1.77 inches
	Casing Material	Metal
	Product Weight	250 g (8.82 oz.)
Package Content	POE15 Mounting Kit Installation Guide
Ordering Information	Retail Package Dimension	152×76×54 mm 5.98×2.99×2.13 inches
	Retail Package Weight	307 g (10.83 oz.)
	Carton Net Weight	15.3 kg (33.73 lbs)
	Carton Gross Weight	16.15 kg (35.6 lbs)
