• Wi-Fi 6– Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity.
• Bandwidth– Featuring a 160 MHz bandwidth and 1024QAM, DIR X3060Z delivers true Gigabit speeds of up to 3 Gbps.
• Powerful CPU– Powered by a powerful dual core CPU, this full featured Gigabit Wi-Fi 6 router allows numerous bandwidth intensive tasks to run smoothly at the same time.
• High Gain Antennas– High gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
Specifications
| Standards | • Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
|
| Wi-Fi Speeds | • AX3000 • 5 GHz: 2402 Mbps (802.11ax 160Mhz) • 2.4 GHz: 574 Mbps (802.11ax 40Mhz) |
|
| Wi-Fi Range | • Bedroom Houses • 5 * Fixed High Performance Antennas • Multiple antennas form a signal boosting array to cover more directions and large areas • Beamforming • Concentrates wireless signal strength towards clients to expand Wi-Fi range~ • High Power FEM • Improves transmission power to strengthen signal coverage |
|
| Wi-Fi Transmission Power | • CE:<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) • FCC:<30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) |
|
| Modes | • Router Mode, Bridge Mode | |
| Processor | • 1G Arm9 Dual Core CPU | |

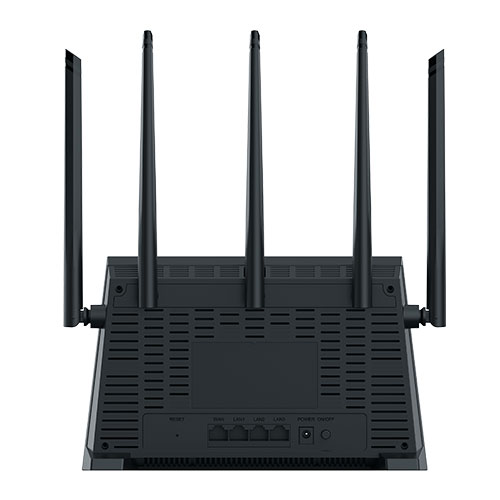

| Ethernet Ports | • 1 × Gigabit WAN Port • 3 × Gigabit LAN Ports |
|
| Connectors & Buttons | • Power On/Off, WPS, Reset Button | |
| Power | • 12V 1.5A DC | |
| Wi-Fi Encryption | • WPA, WPA2, WPA3 | |
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • DDoS Attack Prevention |
|
| Guest Network | • 1 × 5 GHz Guest Network • 1 × 2.4 GHz Guest Network |
|
| Protocols | • IPv4, IPv6 | |
| WAN Types | • DHCP, Static IP, PPPoE | |
| Easy Mesh | • Easy Mesh™ Supported • Coverage your whole home with 3 x Devices |
|
| NAT Forwarding | • Port Forwarding, DMZ, UPnP | |
| IPTV | • IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN | |
| DHCP | • DHCP Client List, Server | |
| DDNS | • DynDNS | |
| Management | • Web based Configuration (HTTP) • Remote Management • Telnet Management • TR069 • TR143 • TR181 • TR098 • Web Based Firmware Upgrade • CWMP • Diagnostic Tools |
|
| Package Contents | • Wi-Fi Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
|
| System Requirements | • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser • Cable or DSL Modem (if needed) • Subscription with an internet service provider (for internet access) |
|
| Certifications | • CE, FCC | |
| Environment | • Operating Temperature: 0℃~40℃ • Storage Temperature: -40℃~70℃ • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
