• 2.4GHz up to 300Mbps
• LTE Downlink: Up to 150Mbps
• LTE Uplink: Up to 50Mbps
• 3 x 10/100Mbps LAN, 1 x 10/100Mbps WAN/LAN
• 2 x 3G/4G Antennas
• 2 x WI-FI Antennas
• Support WPA3 Wireless security
• Support TR069 management*
• Supports WAN Failover (3G/4G & Wired broadband connection)
• In-built VPN Client for secure connection
Specifications
| Frequency Support | • FDD LTE: B1/3/5/7/8/20/28 • TDD 38,40,41 • WCDMA:B1/5/8 |
|

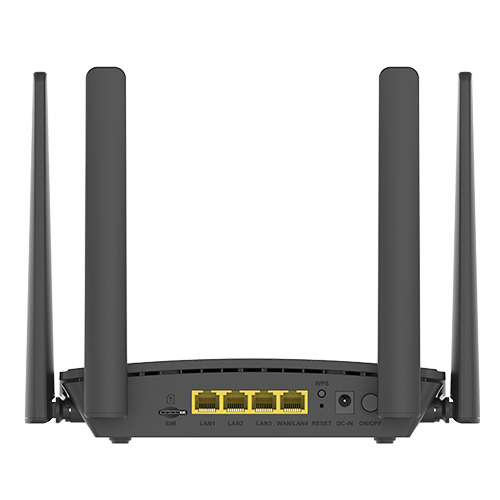

| Device Interfaces | • 1x 10/100 Fast Ethernet WAN port • 3x 10/100 Fast Ethernet LAN ports • 1x Reset button • 1 x WPS button • 1 x Power jack Power jack • 1 x Power switch • 2 x 5dBi external LTE antennas • 2 x 5dBi external 2.4G antennas • 1 x Power switch • 1x LTE Interface • 1x Nano SIM card Slot |
|
| Data Rates | • 2.4GHz up to 300Mbps | |
| Standards | • 802.11b/g/n | |
| Wi-Fi Data Rates | • HT20: up to 144 Mbps • HT40: up to 300 Mbps |
|
| Wireless Encryption | • Wi-Fi Protected Setup (WPS) • WPA/WPA2/WPA3 wireless encryption • 64/128-bit WEP (Wired Equivalent Privacy) • Wireless ACL MAC address filtering |
|
| Firewall | • Network Address Translation (NAT) • Stateful Packet Inspection (SPI) |
|
| Advanced Features | • WAN fail over • Port forwarding • IPsec VPN pass through • QoS Flow Control • TR-069 remote management • DMZ • IGMP proxy and MLD for IPTV • DHCP server, DHCP client • URL, IP,MAC filter • Virtual server • DDNS • IPv6 • Denial of Service (DoS) protection • Embedded AP with 4 SSIDs • Router, AP, Wireless client, WISP , Repeater mode |
|
| Dimensions | • 222x 147x 42 mm (Wx D x H) | |
| Weight | • 240 g | |
| Power | • Input: 100 ~ 240 V • Output: 12 V / 1A |
|
| Temperature | • Operating: -10°C to 40°C • Storage: -40°C to 70 °C |
|
| Humidity | • Operating: 10% to 95% non-condensing • Storage: 10% to 95% non-condensing |
|
| Certifications | • CE • ROHS |
