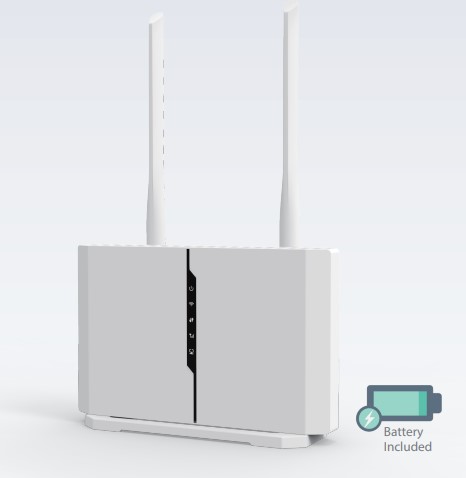

D-Link’s DWR-M972V LTE CAT7 WiFi AC1200 Router is equipped with 802.11ac and
802.11n dual-band capabilites, maximizing users wireless flexibility. In addition to modile
broadband access, the DWR-M972V provides a physical WAN port that supports a wide
variety of connection types, including; PPPoE, static IP, dynamic IP (DHCPclient). Upholding
D-Link’s safety and security standards, the DWR-M972V supports firewall implementaion as
well as flexible filter rules in order to protect every device on your network. With a robust
web-based UI, users can easily change, backup or restore network settings if necessary.
Fast Mobile Internet andWireless AC
DWR-M972V LTE CAT7 WiFi AC1200 Router lets you connect to your 4G LTE mobile network
with throughput speeds of up to 300 Mbps1
, giving you the speed you need for fast,
responsive Internet access. In addition to this, the DWR-M972V uses wireless AC technology
meaning that connected wireless clients can reach speeds of up to 1200 Mbps1
, utilizing the
DWR-M972V dual band mode while benefiting from the enhanced range and reliability of
the 802.11ac wireless standard.
Reliable, Uninterrupted Internet Connection
The Gigabit Ethernet WAN port allows you to attach a DSL or cable modem as the primary or
backup link, while auto-failover ensures an uninterrupted connection by automatically
connecting to your 4G LTE network whenever the WAN link is lost. The built-in QoS
management feature also prioritizes traffic to ensure that the most important data receives
optimum bandwidth.
Easy to Set Up and Use
Set up your network in minutes; the DWR-M972V comes equipped with an easy-to-follow
setup to get you up and running right away. Older wireless devices utilize 802.11g/b bands
are still compatible with the LTE CAT7 WiFi AC1200 Router, enabling you to be online and get
started in no time, without any issues.
Features
Connectivity
• Share your 3G/4G connection with multiple
devices
• Built-in LTE module for high speed mobile
network access
• Max physical data rates of up to 1200Mbps
• Backwards compatible to IEEE 802.11b/g/n
standards
• 1x Gigabit WAN/LAN port to connect to
broadband Internet
• 3x Gigabit Ethernet LAN ports to connect wired
devices
• Fast Wireless 802.11ac/n/g/b/a
• Easy-to-use web GUI
• RJ11 Port for VoLTE, uses advanced audio
processing algorithms to make voice calls
clearer
• 2 x 2000mAh battery included ( Last up to
2.5 Hours)
Security Features
• Industry-standard WPA/WPA2 encryption
• Network Address Translation (NAT) firewall
• Support Internet access control, like URL
blocking, MAC filtering
• Stateful Packet Inspection (SPI) firewall

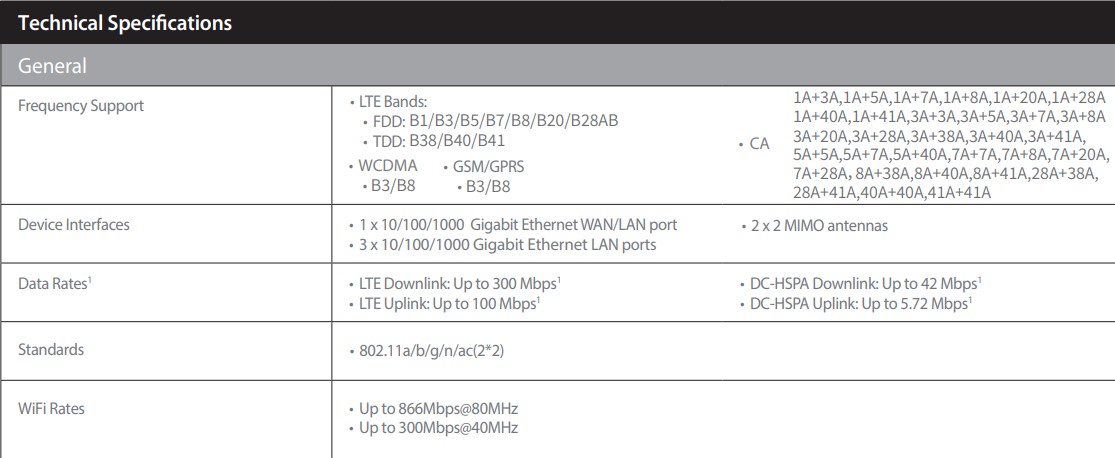

Technical Specifications
General
Frequency Support
• GSM/GPRS
•

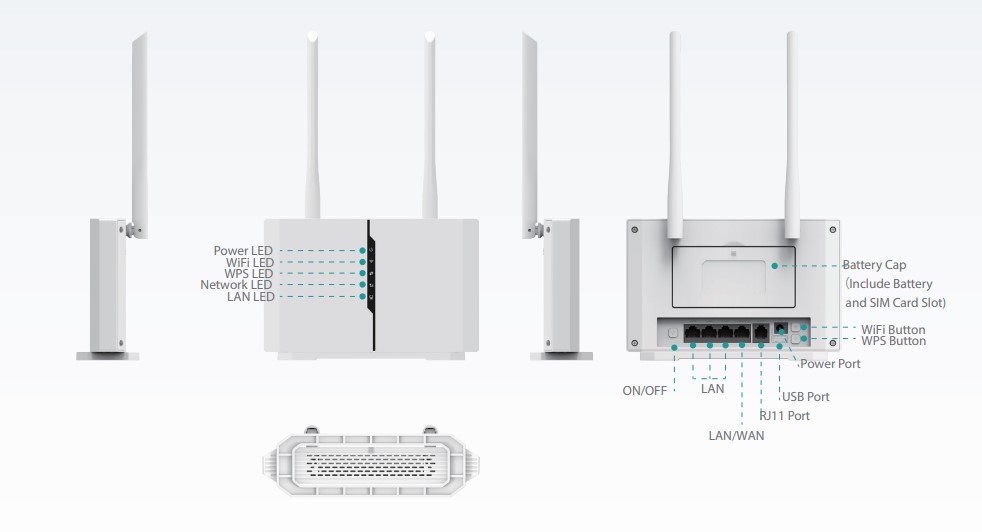

Device Interfaces • 1 x 10/100/1000 Gigabit Ethernet WAN/LAN port
• 3 x 10/100/1000 Gigabit Ethernet LAN ports
• 2 x 2 MIMOantennas
Data Rates1 • LTE Downlink: Up to 300 Mbps1
• LTE Uplink: Up to 100 Mbps1
• DC-HSPA Downlink: Up to 42 Mbps1
• DC-HSPA Uplink: Up to 5.72 Mbps1
Standards • 802.11a/b/g/n/ac(2*2)
WiFi Rates • Up to 866Mbps@80MHz
• Up to 300Mbps@40MHz

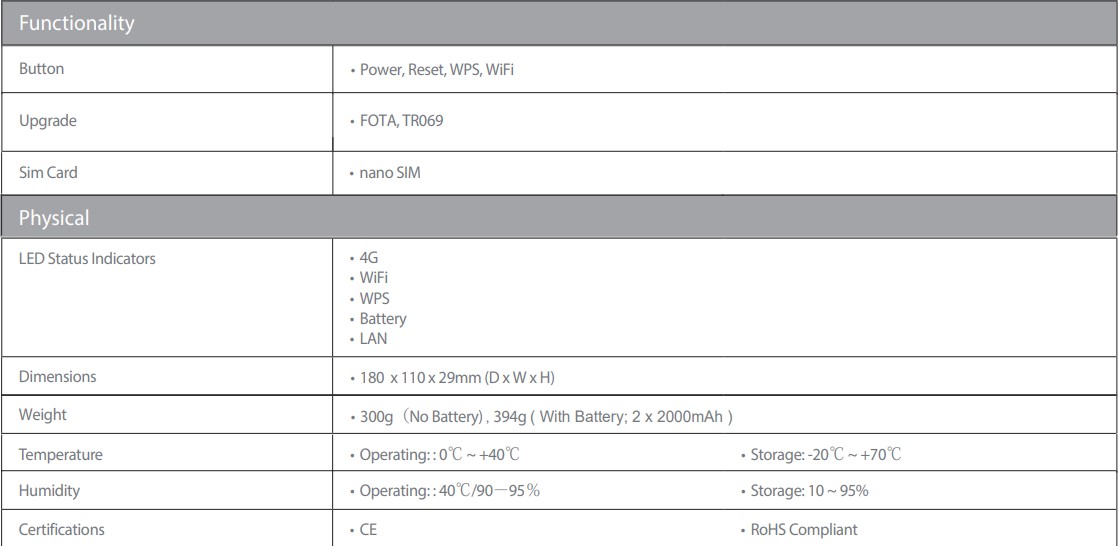

Functionality
Button • Power, Reset, WPS, WiFi
Upgrade • FOTA, TR069
LED Status Indicators • 4G
• WiFi
• WPS
• Battery
• LAN
Dimensions • 180 x 110 x 29mm (D x W x H)
Temperature • Operating: : 0℃ ~ +40℃ • Storage: -20℃ ~ +70℃
Humidity • Operating: : 40℃/90－95％ • Storage: 10 ~ 95%
Certifications • CE • RoHS Compliant

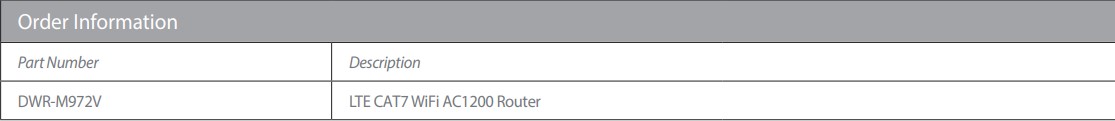

Order Information
Part Number Description
DWR-M972V LTE CAT7WiFi AC1200 Router
