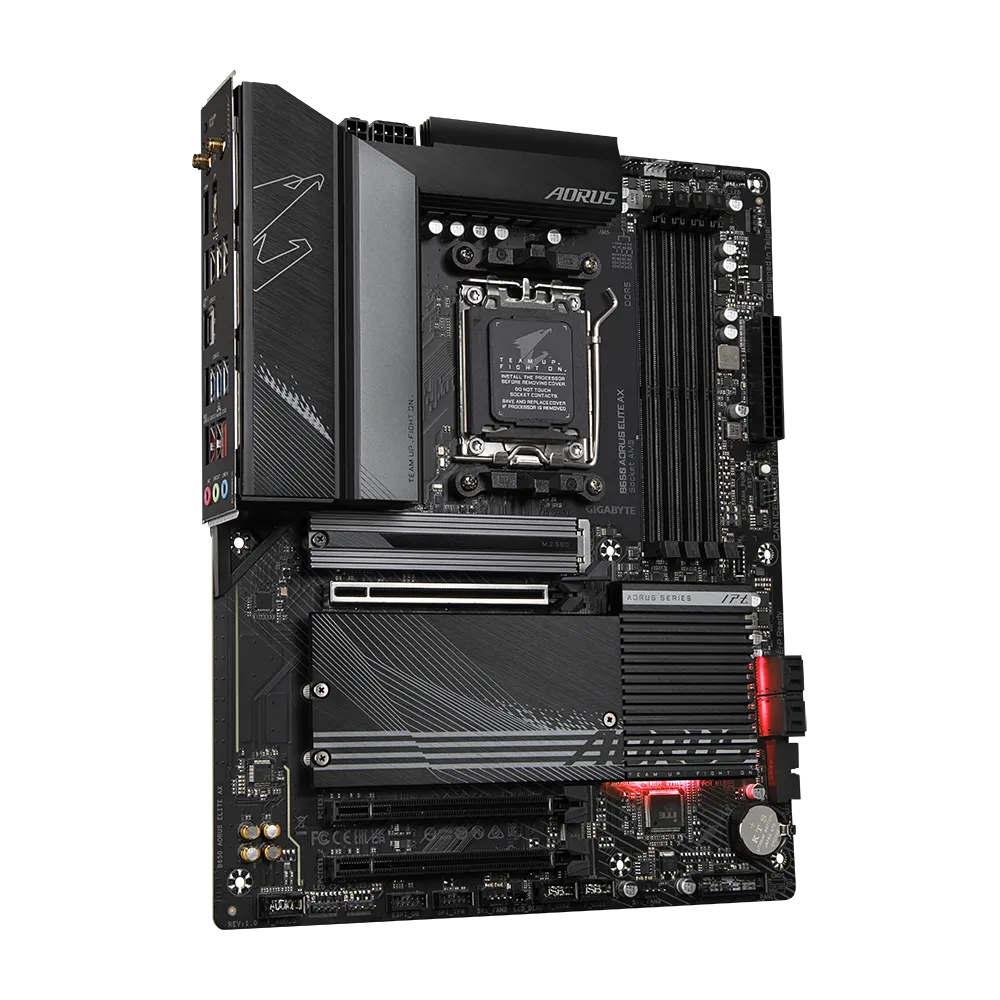

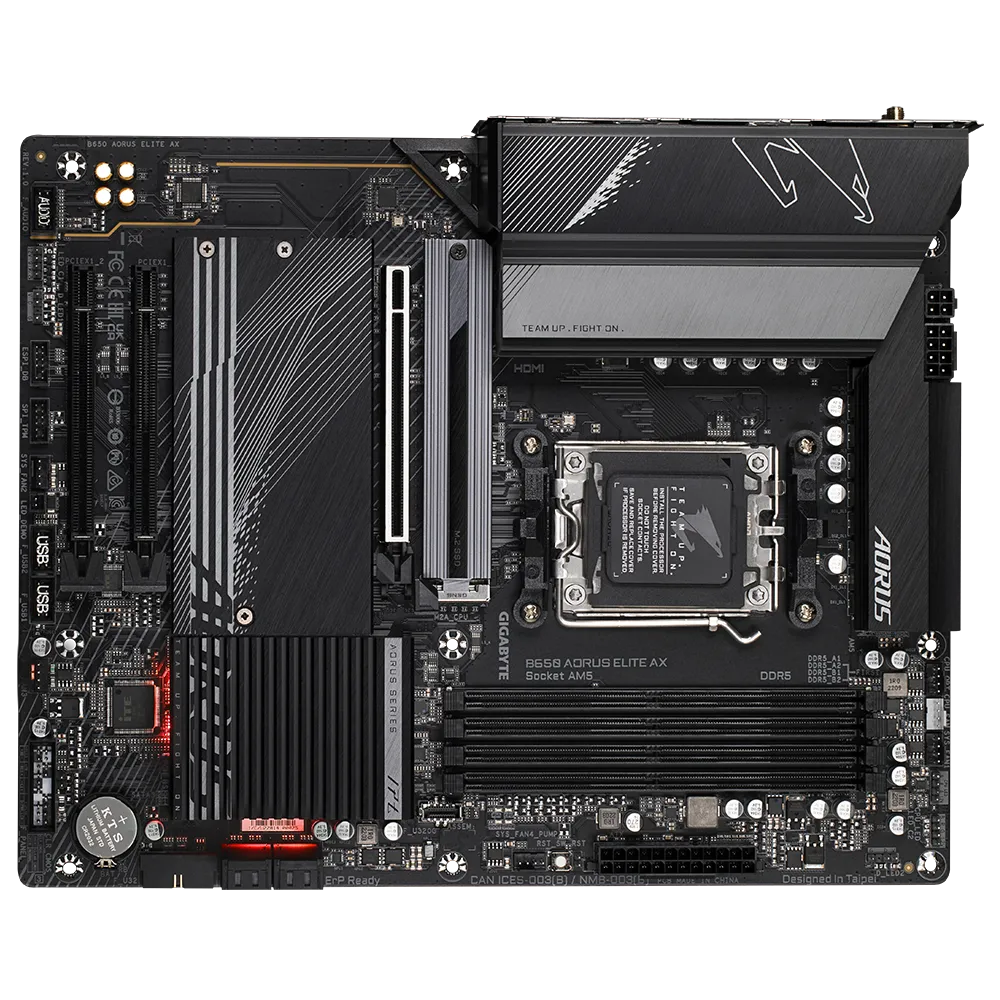

GIGABYTE B650 AORUS ELITE AX

Warranty - 3 years
$409.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$409.00 SGD each
Local Shipping
Local Warranty
Secure payments
  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B650
  • Memory
    1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard
    Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 3 x M.2 Socket 3 connectors
    12. 4 x SATA 6Gb/s connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    16. 1 x USB 3.2 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    19. 1 x reset button
    20. 1 x reset jumper
    21. 1 x Clear CMOS jumper

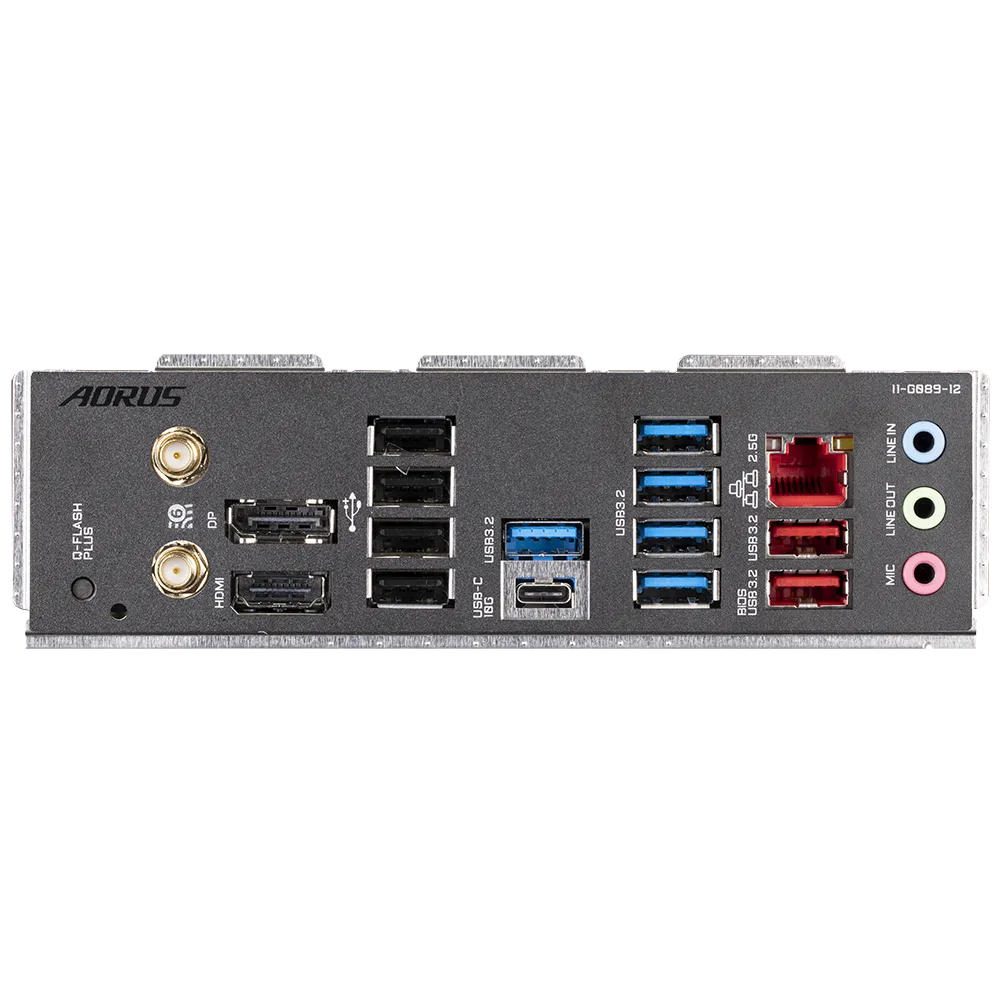

  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 2 x SMA antenna connectors (2T2R)
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    6. 2 x USB 3.2 Gen 2 Type-A ports (red)
    7. 5 x USB 3.2 Gen 1 ports
    8. 4 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
