CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
-
Chipset
- Intel® B660 Express Chipset
-
Memory
- Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
-
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
-
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
-
LAN
- Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Wireless Communication moduleWIFI Module
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
-
Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
- 1 x PCI Express x16 slot, running at x16
-
Storage InterfaceCPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
-
USBChipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 3.2 Gen 1 ports on the back panel
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 1 x system fan header
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
-

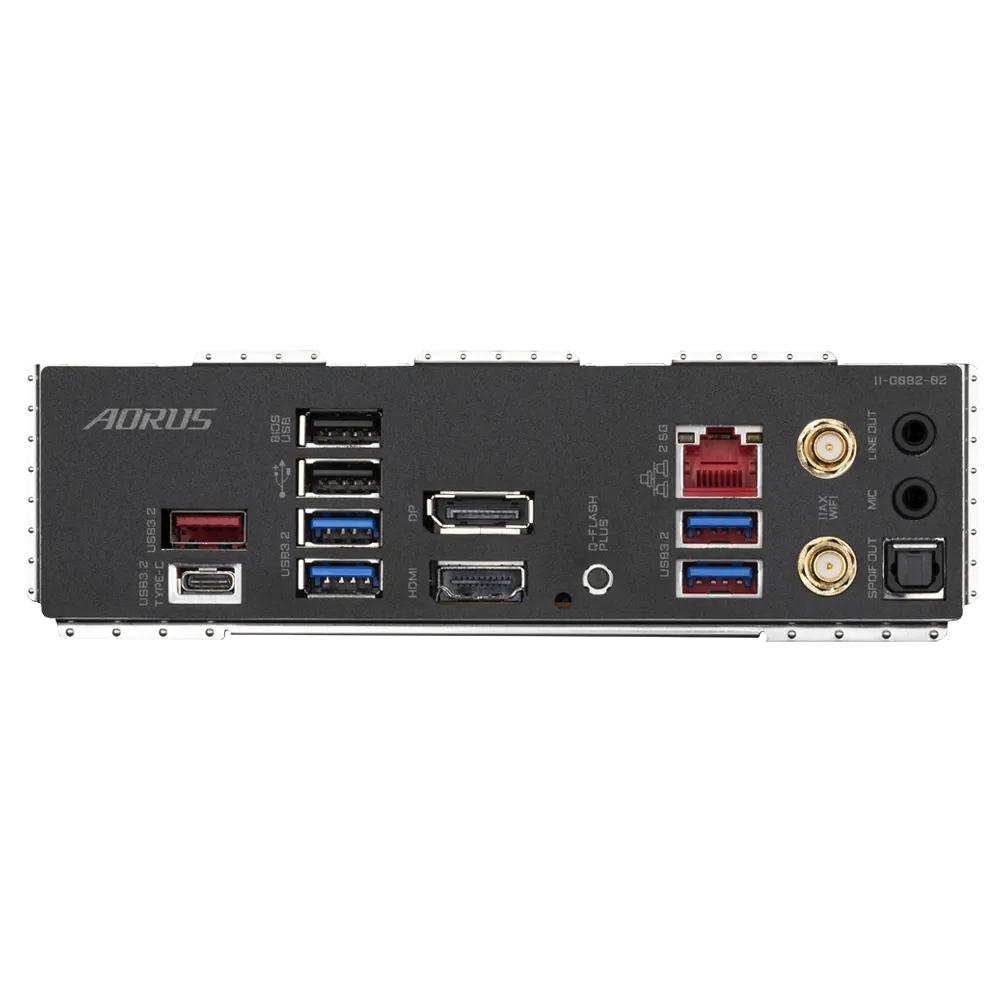

Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x DisplayPort
- 1 x HDMI 2.0 port
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x SMA antenna connectors (2T2R)
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundled Software
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form Factor
- Mini-ITX Form Factor; 17.0cm x 17.0cm
