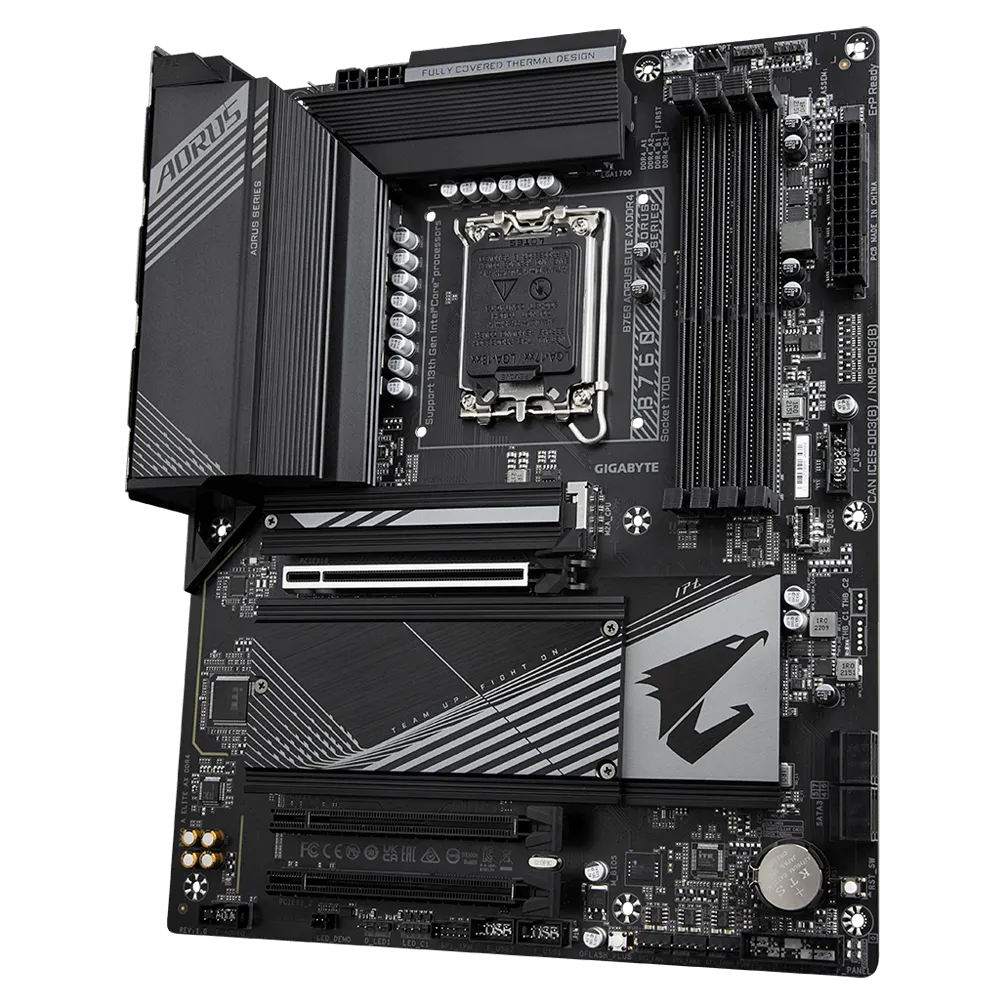

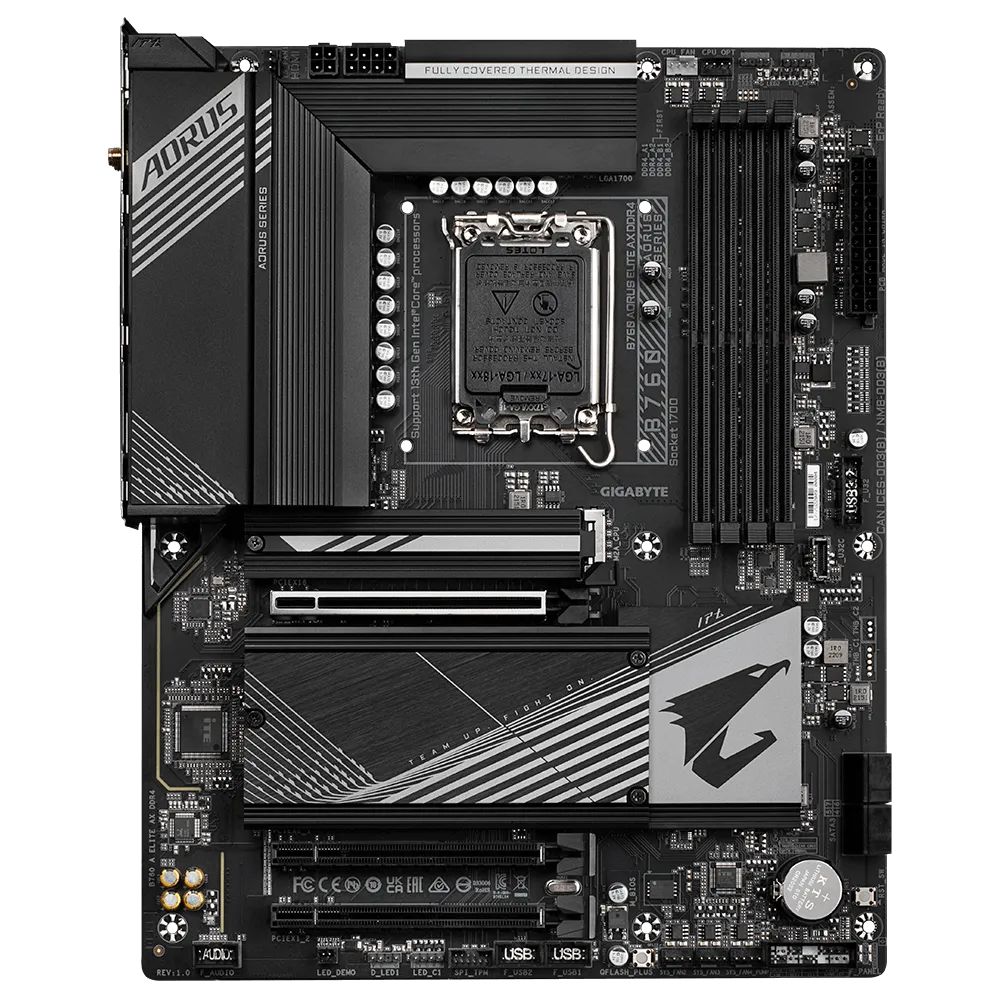

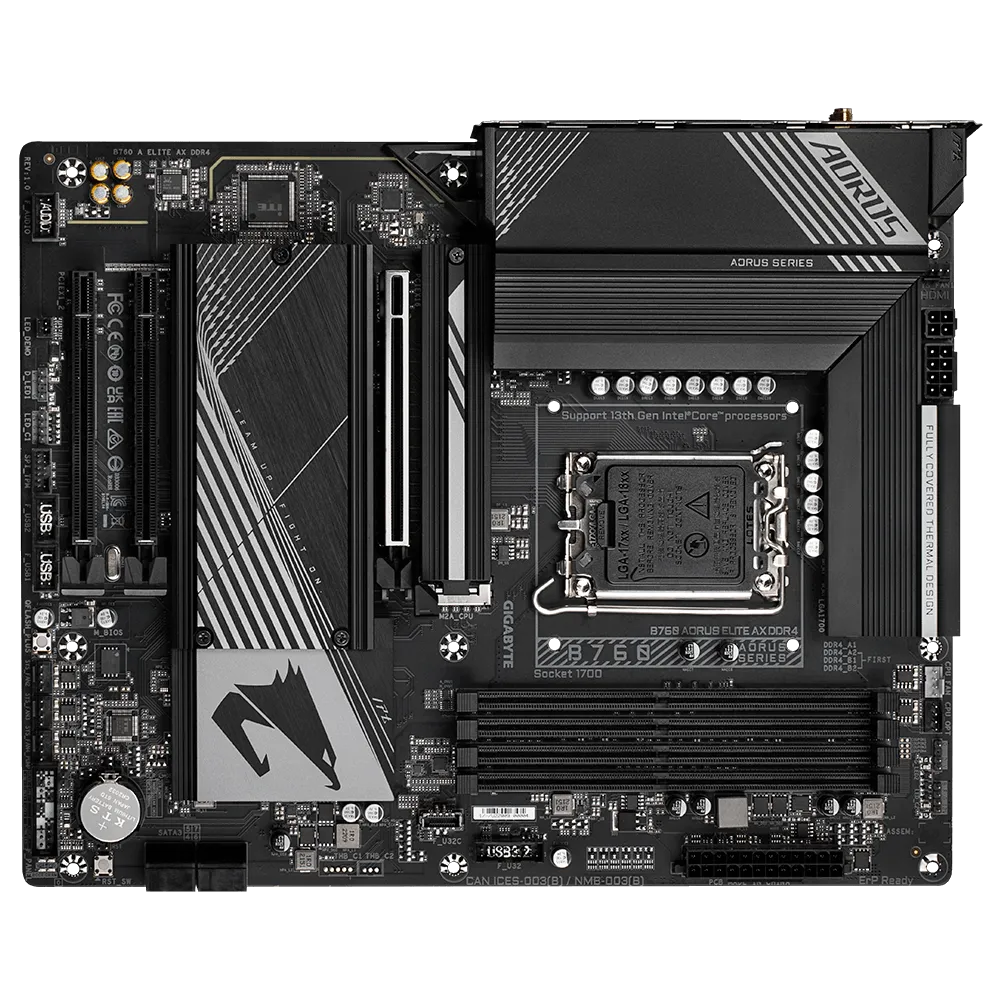

GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
GIGABYTE B760 AORUS ELITE AX DDR4
1/ 6

GIGABYTE B760 AORUS ELITE AX DDR4

Warranty - 3 years
$279.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$279.00 SGD each
Local Shipping
Local Warranty
Secure payments
  • CPU
    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    2. L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel® B760 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x CPU fan/water cooling pump header
    6. 3 x system fan headers
    7. 1 x system fan/water cooling pump header
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 3 x M.2 Socket 3 connectors
    11. 4 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x reset button
    19. 1 x Q-Flash Plus button
    20. 1 x reset jumper
    21. 1 x Clear CMOS jumper

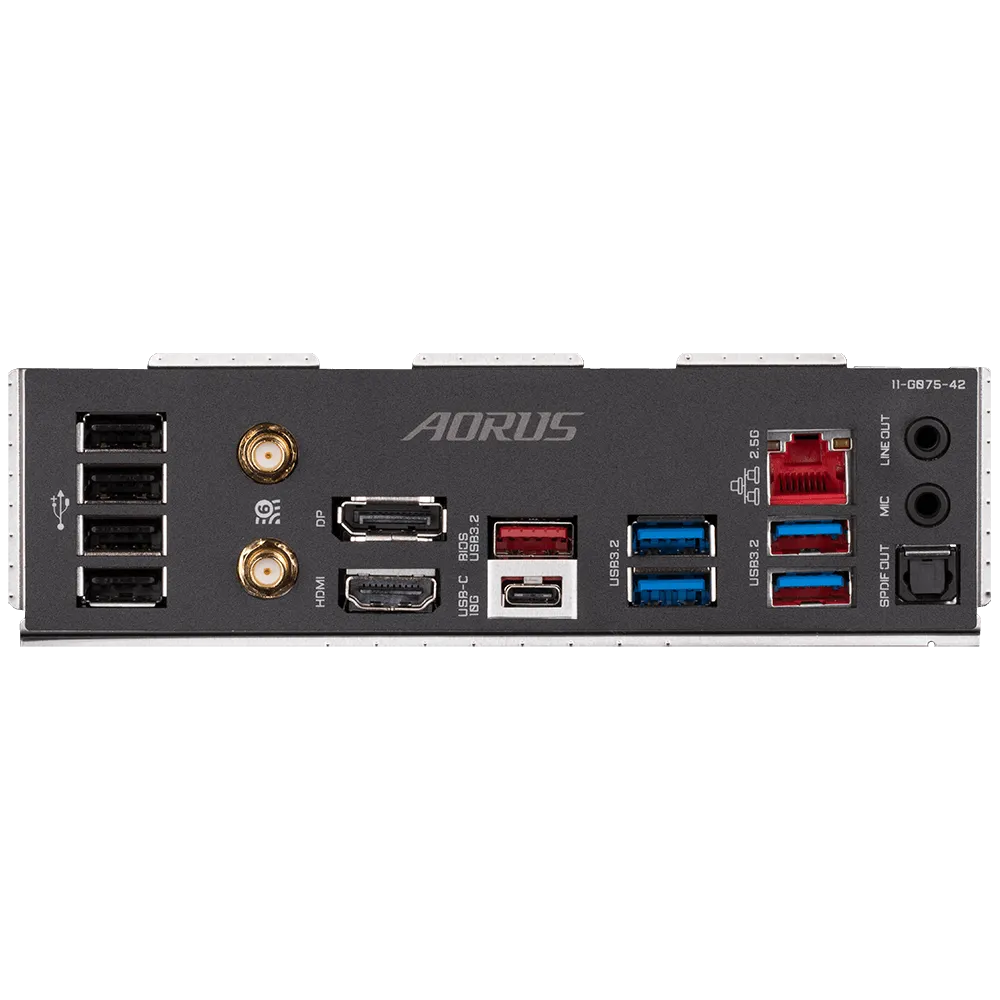

  • Back Panel Connectors
    1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI port
    7. 1 x DisplayPort
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 2 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
