Graphics ProcessingGeForce RTX™ 5060 Ti
-
Core Clock2647 MHz (Reference card :2572 MHz)
-
CUDA® CoresTBD
-
Memory Clock28 Gbps
-
Memory Size16 GB
-
Memory TypeGDDR7
-
Memory Bus128 bit
-
Card BusPCI-E 5.0
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=281 W=119 H=40 mm
-
PCB FormATX
-
DirectXDirectX 12 API
-
OpenGL4.6
-
Recommended PSU650W
-
Power Connectors8 Pin*1
-

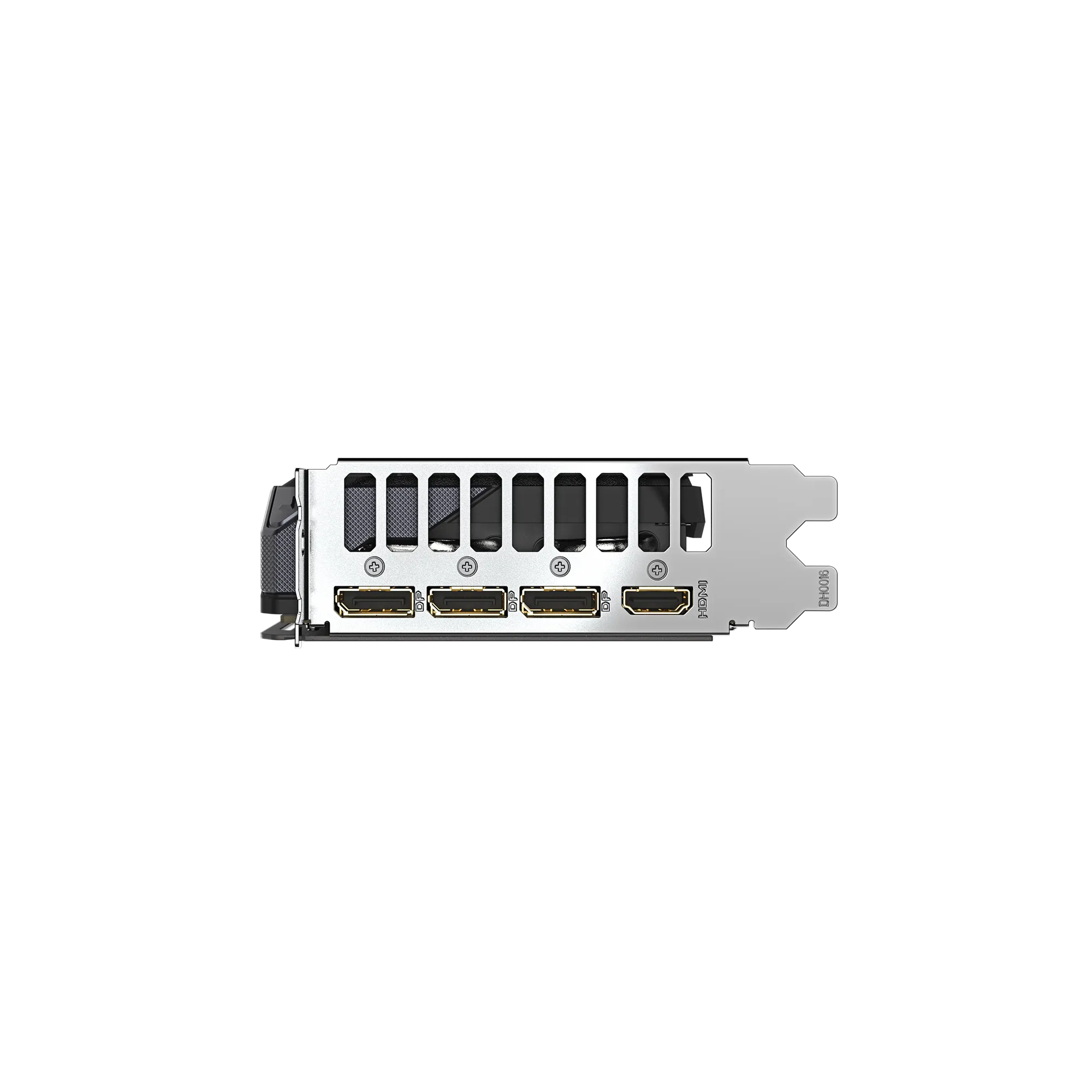

OutputDisplayPort 2.1b *3
HDMI 2.1b *1 -
AccessoriesQuick guide
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
