General Specifications
SupportA2DP 1.3, AVRCP 1.6

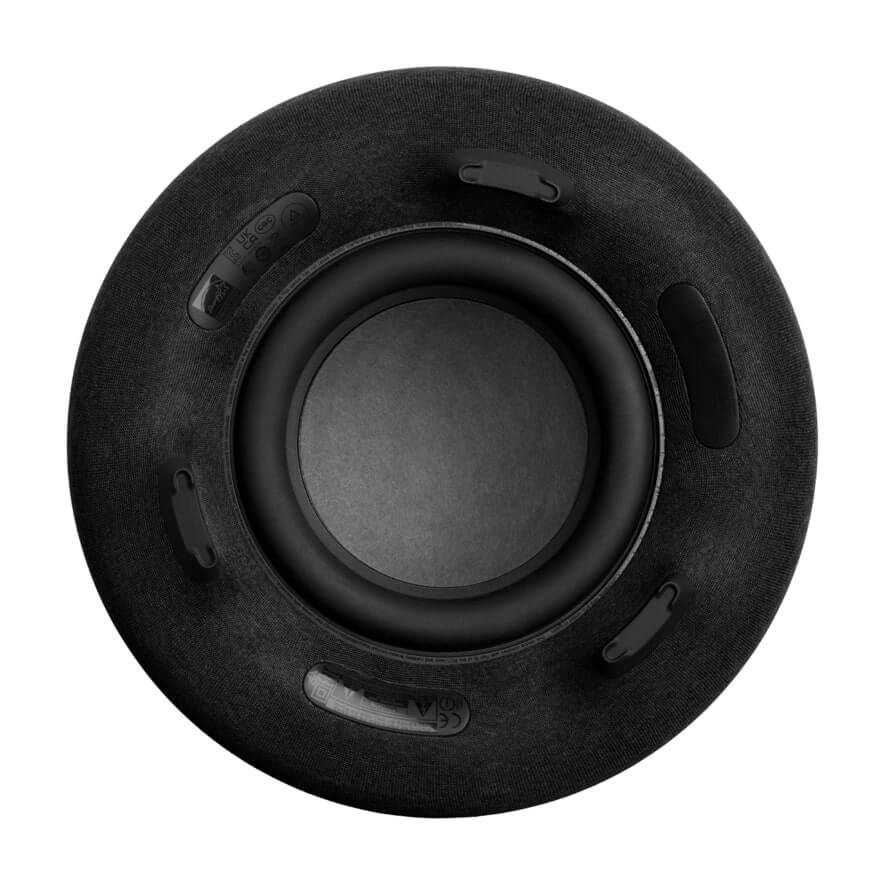

Transducers40 mm x 6 pcs (Mid-high range); 130 mm x 1 pc (Subwoofer)
Rated power2 x 15 W RMS + 1 x 100 W RMS
Frequency response45 Hz – 20 kHz (-6 dB)
Signal to noise ratio80 dB at 15 W (Mid-high range); 80 dB at 100 W (Subwoofer)
Power supply100 – 240 V ~ 50/60 Hz
Dimensions
Dimension (H x W x D)283.6 x 232 x 232 mm / 11.2” x 9.1” x 9.1”
Weight3.6 kg (7.9 lb)
Control and Connection Specifications
Bluetooth version4.2
Bluetooth transmitter power0 – 9 dBm
Bluetooth transmitter frequency range2.402 – 2.480 GHz
Bluetooth transmitter modulationGFSK, π/4 DQPSK, 8DPSK
Technical Specifications
- Bluetooth version: 4.2
- Support: A2DP 1.3, AVRCP 1.6
- Transducers: 40 mm x 6 pcs (Mid-high range); 130 mm x 1 pc (Subwoofer)
- Rated power: 2 x 15 W RMS + 1 x 100 W RMS
- Frequency response: 45 Hz – 20 kHz (-6 dB)
- Signal to noise ratio: 80 dB at 15 W (Mid-high range); 80 dB at 100 W (Subwoofer)
- Power supply: 100 – 240 V ~ 50/60 Hz
- Bluetooth transmitter power: 0 – 9 dBm
- Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
- Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
- Dimension (H x W x D): 283.6 x 232 x 232 mm / 11.2” x 9.1” x 9.1”
- Weight: 3.6 kg (7.9 lb)
