Features
- BiCS FLASH™
- NVMe™ 2.0d Technology
- M.2 2280 Form Factor
- PCIe® Gen4 x4
- SSD Utility Management Software
Performance Made Affordable
Upgrading from a SATA SSD or PCIe® 3.0 SSD can feel like you've purchased an entirely new system. EXCERIA BASIC SSD series balance price and performance so you have enough funds left over for other.
NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 2.0d technology, EXCERIA BASIC SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

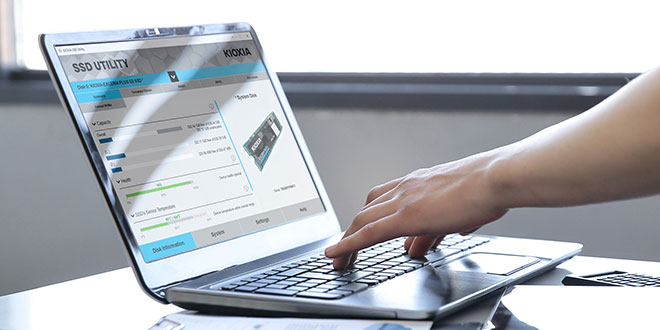

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
EXCERIA BASIC SSD Product Specifications
Capacity / dimensions
-
Capacity
1TB, 2TB
-
Form Factor
M.2 Type 2280-S3-M
-
Interface
PCI Express® Base Specification Revision 4.0 (PCIe®)
-
Flash Memory type
BiCS FLASH™ QLC
-
Interface Maximum Speed
64 GT/s (PCIe® Gen4x4)
-
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.38 mm
-
Interface Protocol
NVM Express™ Base Specification 2.0d
-
Weight
5.6 g (typ.)
Performance
-
Max Sequential Read Speed*1
1TB: 7,200 MB/s
2TB: 7,300 MB/s -
Max Sequential Write Speed*1
1TB: 6,600 MB/s
2TB: 6,800 MB/s -
Max Random Read Speed*2
1,000,000 IOPS
-
Max Random Write Speed*2
1TB: 1,150,000 IOPS
2TB: 1,250,000 IOPS -
Endurance: TBW (Total Bytes Written)*3
1TB: 300 TB
2TB: 600 TB -
MTTF
1.5 million hours
Operating environment / protection performance
-
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
-
Storage Temperature
-40 ℃ to 85 ℃
-
Certification
RoHS compliant*5
-
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
-
Vibration
25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
-
Supply Voltage
3.3 V ±5 %
-
Power Consumption
PS3: 50 mW (typ.)
PS4: 3 mW (typ.) -
Power Consumption (Active)
1TB: 3.8 W (typ.)
2TB: 4.3 W (typ.)
Compatibility
-
Connector Type
M.2 M key Socket
-
Target Applications
Client desktops and laptops
Others
-
Services and Support
Up to 5-year manufacturer's warranty*4
-
Performance Optimization
TRIM, Idle Time Garbage Collection, Host Memory Buffer
Product Info
-
1TB
PN: LSF10Z001TG8
EAN: 4582761161108 -
2TB
PN: LSF10Z002TG8
EAN: 4582761161115
