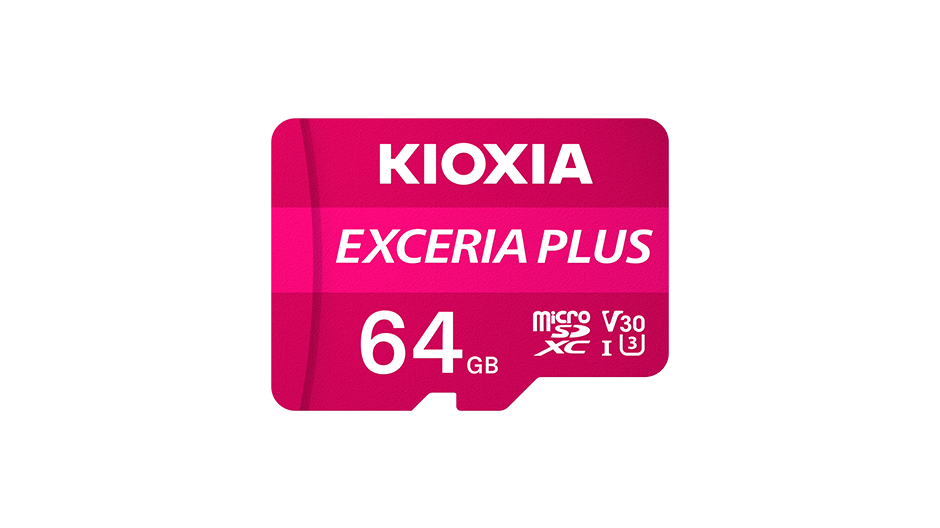

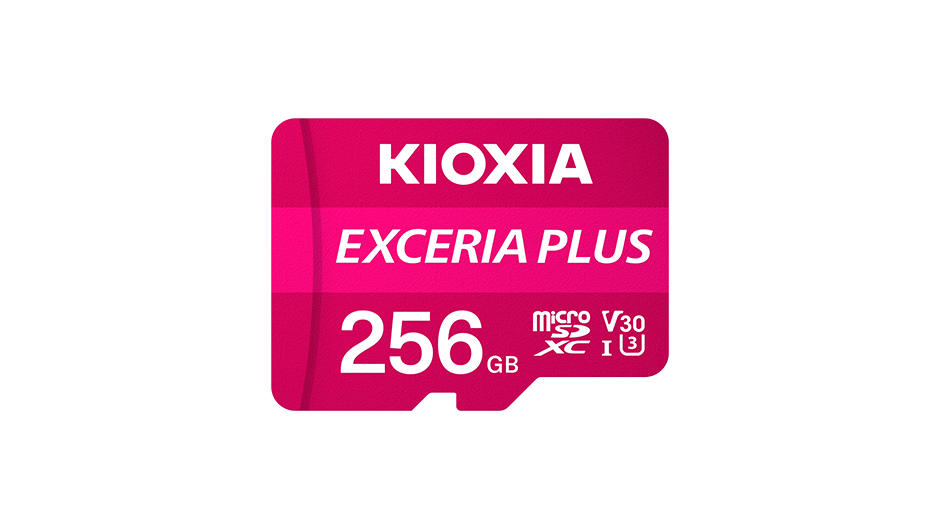

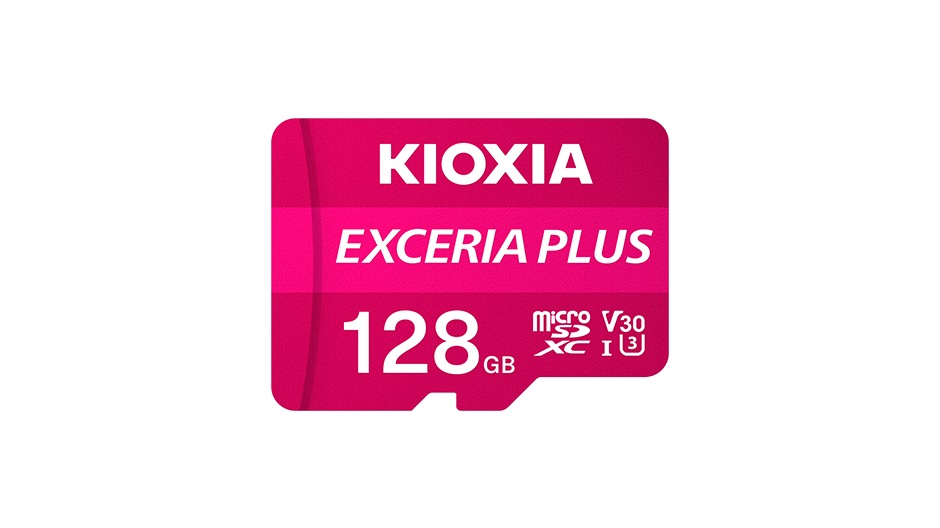

EXCERIA PLUS microSD Memory Product Specifications
Capacity / dimensions
-
Capacity
32GB (microSDHC), 64GB, 128GB, 256GB, 512GB, 1TB (microSDXC)
-
Approximate Usable Capacity*2
28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB, 921.6GB
-
Interface
UHS-I
-
Dimension (LxWxH)
15.0 x 11.0 x 1.0 mm
-
Weight
Approx. 0.3 g
Performance
-
Max Read Speed*1
100 MB/s (64GB, 128GB, 256GB, 512GB, 1TB)
98 MB/s (32GB) -
Max Write Speed*1
85 MB/s (256GB, 512GB, 1TB)
65 MB/s (32GB, 64GB, 128GB) -
UHS Speed Class*3
U3
-
Video Speed Class*3
V30
-
SD Speed Class*3
C10
-
Application Performance Class*4
A1
Operating environment / protection performance
-
Operating Temperature
-25 ℃ to 85 ℃ (no condensation)
-
Certification
RoHS compliant*5
-
Waterproof
Compatible with IPX7*6,11
-
X-ray Proof
ISO7816-1 compliant*7,11
-
Shock Proof
Passed 5 meter drop test*8,11
-
Overheating/Ignition Prevention
Electrical fuse is mounted*9,11
-
ESD Immunity
Resistant to electrostatic discharge*10,11
-
Compatibility
-
Target Applications
Cameras, mobile phones, tablets, and drones.
-
32GB and Under
Compatible with microSDHC and microSDXC supporting host devices corresponding to FAT32 file system.
-
64GB and Over
Compatible with microSDXC supporting host devices corresponding to exFAT file system.
Others
-
Services and Support
5-year limited warranty
-
Included
SD Adapter LADP1
-
Copyright Protection (CPRM)
Supported
Product Info
-
32GB
PN: LMPL1M032GG2
EAN: 4582563850996 -
64GB
PN: LMPL1M064GG2
EAN: 4582563851009 -
128GB
PN: LMPL1M128GG2
EAN: 4582563851016 -
256GB
PN: LMPL1M256GG2
EAN: 4582563851023 -
512GB
PN: LMPL1M512GG2
EAN: 4582563851030 -
1TB
PN: LMPL1M001TG2
EAN: 4582563853782
