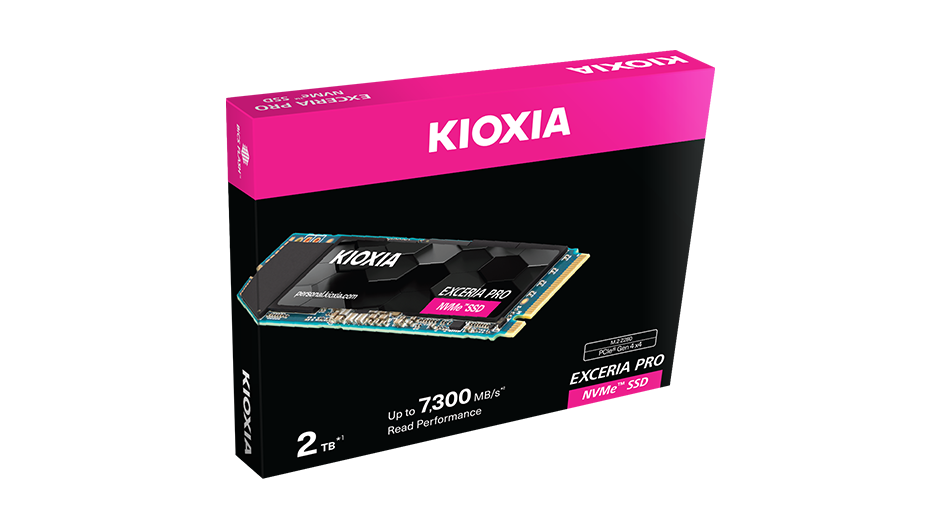

EXCERIA PRO SSD Product Specifications
Capacity / dimensions
-
Capacity
1TB, 2TB
-
Form Factor
M.2 Type 2280-S2-M
-
Interface
PCI Express® Base Specification Revision 4.0 (PCIe®)
-
Flash Memory type
BiCS FLASH™ TLC
-
Interface Maximum Speed
64 GT/s (PCIe® Gen4x4)
-
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.23 mm
-
Interface Command
NVM Express™ Revision 1.4 command set
-
Weight
1TB: 7.6 g (typ.)
2TB: 8.0 g (typ.)
Performance
-
Max Sequential Read Speed*1
7,300 MB/s
-
Max Sequential Write Speed*1
6,400 MB/s
-
Max Random Read Speed*2
1TB: 1,000,000 IOPS
2TB: 800,000 IOPS -
Max Random Write Speed*2
1TB: 1,100,000 IOPS
2TB: 1,300,000 IOPS -
Endurance: TBW*3
1TB: 400 TB
2TB: 800 TB -
MTTF
1.5 million hours
Operating environment / protection performance
-
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
-
Storage Temperature
-40 ℃ to 85 ℃
-
Certification
RoHS compliant*5
-
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
-
Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
-
Supply Voltage
3.3 V ±5 %
-
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.) -
Power Consumption (Active)
8.9 W (typ.)
Compatibility
-
PCI Express
Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
-
Connector Type
M.2 M key Socket
-
Target Applications
Client desktops and laptops
Others
-
Services and Support
Up to 5-year manufacturer's warranty*4
-
Performance Optimization
TRIM, Idle Time Garbage Collection
Product Info
-
1TB
PN: LSE10Z001TG8
EAN: 4582563854048 -
2TB
PN: LSE10Z002TG8
EAN: 4582563854055
