INFO
-
- Product name
- UltraGear
- Year
- Y23
DISPLAY
-
- Size [Inch]
- 27
- Size [cm]
- 68.5
-
- Resolution
- 3840 x 2160
- Panel Type
- IPS
-
- Aspect Ratio
- 16:9
- Pixel Pitch [mm]
- 0.1554 x 0.1554
-
- Brightness (Min.) [cd/m²]
- 320
- Brightness (Typ.) [cd/m²]
- 400
-
- Color Gamut (Min.)
- DCI-P3 90% (CIE1976)
- Color Gamut (Typ.)
- DCI-P3 95% (CIE1976)
-
- Color Depth (Number of Colors)
- 1.07 B
- Contrast Ratio (Min.)
- 700:1
-
- Contrast Ratio (Typ.)
- 1000:1
- Response Time
- 1ms (GtG at Faster)
-
- Refresh Rate (Max.) [Hz]
- 144
- Viewing Angle (CR≥10)
- 178º(R/L), 178º(U/D)
FEATURES
-
- HDR 10
- YES
- VESA DisplayHDR™
- DisplayHDR™ 400
-
- HDR Effect
- YES
- Color Calibrated in Factory
- YES
-
- HW Calibration
- HW Calibration Ready
- Flicker safe
- YES
-
- Reader Mode
- YES
- Color Weakness
- YES
-
- NVIDIA G-Sync™
- G-SYNC Compatible
- AMD FreeSync™
- FreeSync Premium
-
- VRR
- YES
- Black Stabilizer
- YES
-
- Dynamic Action Sync
- YES
- Crosshair
- YES
-
- FPS Counter
- YES
- User Defined Key
- YES
-
- Auto Input Switch
- YES
- RGB LED Lighting
- Hexagon Lighting
-
- Smart Energy Saving
- YES
- Others (Feature)
- DTS HP:X (4-pole H/P Out)
SW APPLICATION
-
- LG Calibration Studio (True Color Pro)
- YES
- OnScreen Control (LG Screen Manager)
- YES

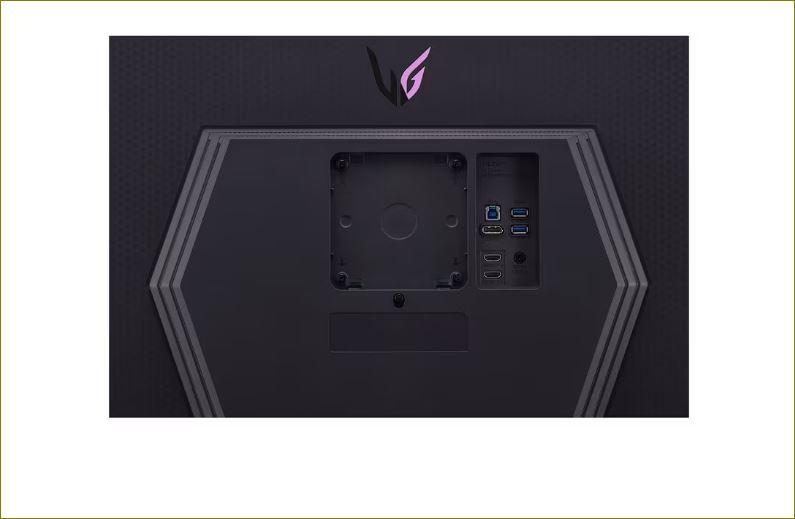

CONNECTIVITY
-
- HDMI
- YES (2ea)
- DisplayPort
- YES (1ea)
-
- DP Version
- 1.4 (DSC)
- USB Upstream Port
- Yes(1ea/ver3.0)
-
- USB Downstream Port
- YES(2ea/ver3.0)
- Headphone out
- 4-pole (Sound+Mic)
SOUND
-
- DTS HP:X
- YES
POWER
-
- Type
- External Power(Adapter)
- AC Input
- 100~240V (50/60Hz)
-
- Power Consumption (Typ.)
- 50W
- Power Consumption (Max.)
- 55W
-
- Power Consumption (Sleep Mode)
- Less than 0.5W
- Power Consumption (DC Off)
- Less than 0.3W
MECHANICAL
-

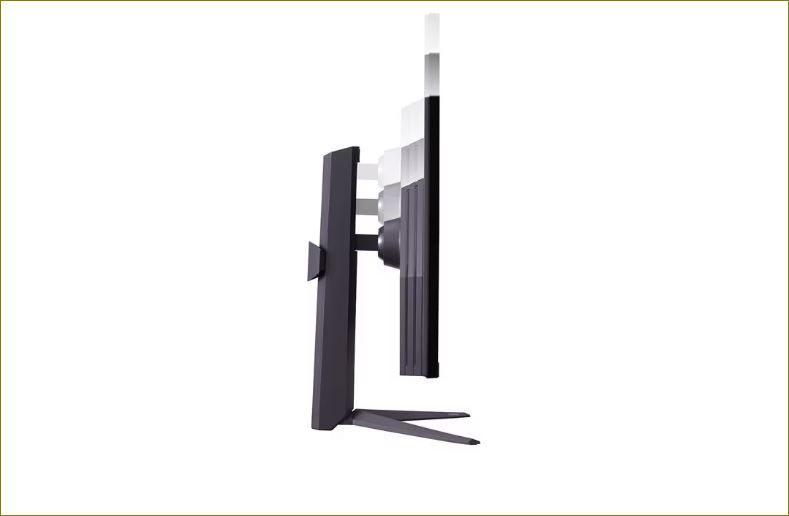

- Display Position Adjustments
- Tilit/Height/Swivel/Pivot
- Wall Mountable [mm]
- 100 x 100
DIMENSIONS/WEIGHTS
-
- Dimension with Stand (W x H x D) [mm]
- 613.5 x 577.7 x 253.7(↑)
613.5 x 467.7 x 253.7(↓)
- Dimension without Stand (W x H x D) [mm]
- 613.5 x 371.6 x 51.3
-
- Dimension in Shiping (W x H x D) [mm]
- 691 x 184 x 498
- Weight with Stand [kg]
- 6.4
-
- Weight without Stand [kg]
- 4.5
- Weight in Shipping [kg]
- 8.8
ACCESSORY
-
- HDMI
- YES (ver 2.1)
- Display Port
- YES
-
- USB A to B
- YES
- Others (Accessory)
- Cable holder / Mouse holder
