INFO
-
Product name
UltraGear
-
Year
Y22
DISPLAY
-
Size (cm)
120.7193 cm(47.53)
-
Resolution
3840 x 2160
-
Panel Type
OLED
-
Aspect Ratio
16:9
-
Pixel Pitch
0.274 x 0.274 mm
-
Brightness (Min.)
264 cd/m² (@SDR 25% APL)
-
Brightness (Typ.)
330 cd/m² (@SDR 25% APL)
-
Color Gamut (Typ.)
DCI-P3 99% (CIE1976)
-
Color Depth (Number of Colors)
1.07B
-
Contrast Ratio (Min.)
1,200,000 : 1 @25% APL
-
Contrast Ratio (Typ.)
1500000:1
-
Response Time
0.1ms (GtG)
-
Refresh Rate (Max.) [Hz]
138 (O/C)
-
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
FEATURES
-
HDR 10
Yes
-
HDR Effect
Yes
-
Color Calibrated in Factory
Yes
-
HW Calibration
HW Calibration Ready
-
Reader Mode
Yes
-
NVIDIA G-Sync™
G-SYNC Compatible
-
AMD FreeSync™
FreeSync Premium
-
VRR
Yes
-
Black Stabilizer
Black Stabilizer
-
Dynamic Action Sync
Yes
-
Crosshair
Yes
-
FPS Counter
Yes
-
OverClocking
Yes
-
User Defined Key
Yes
-
RGB LED Lighting
Hexagon Lighting
-
Smart Energy Saving
Yes
-
Others (Feature)
Hexagon Lighting, VESA DSC Tech. DTS HP:X (4-pole H/P Out)
SW APPLICATION
-
LG Calibration Studio (True Color Pro)
Yes
-
OnScreen Control (LG Screen Manager)
Yes

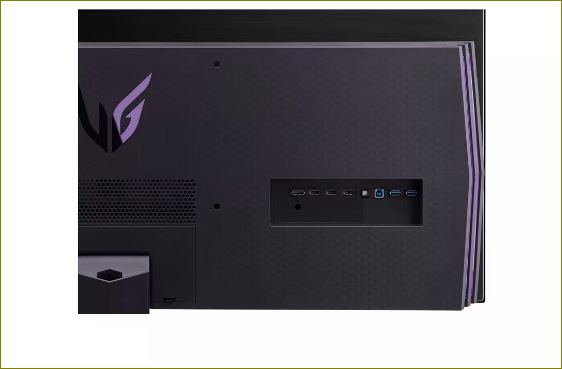

CONNECTIVITY
-
HDMI
Yes (3ea)
-
DisplayPort
Yes (1ea)
-
DP Version
1.4
-
USB Upstream Port
Yes(1ea/ver3.0)
-
USB Downstream Port
Yes (2ea/ver3.0)
-
SPDIF out (Optical Digital Audio Out)
Yes
-
Headphone Out
4-pole (Sound+Mic)
SOUND
-
Speaker
20W x 2
-
DTS HP:X
Yes
POWER
-
Type
Built-in Power
-
AC Input
100~240V (50/60Hz)
-
Power Consumption (Typ.)
175W
-
Power Consumption (Max.)
253W
-
Power Consumption (Sleep Mode)
Less than 0.5W
-
Power Consumption (DC Off)
Less than 0.3W
MECHANICAL
-
Wall Mountable
300 x 200 mm
DIMENSIONS/WEIGHT
-
Dimension with Stand (W x H x D)
1070.6 x 659.7 x 184.8mm
-
Dimension without Stand (W x H x D)
1070.6 x 623.9 x 46.6mm
-
Dimension in Shiping (W x H x D)
1285 x 771 x 173mm
-
Weight with Stand
16.8kg
-
Weight without Stand
15.5kg
-
Weight in Shipping
19.3kg
ACCESSORY
-
HDMI
Yes
-
Display Port
Yes
-
USB A to B
Yes
-

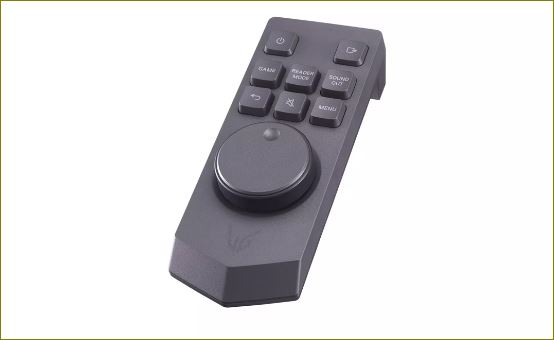

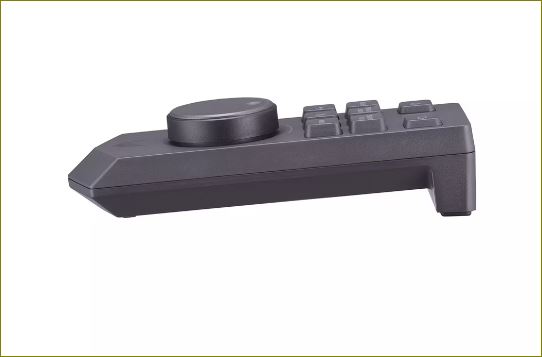

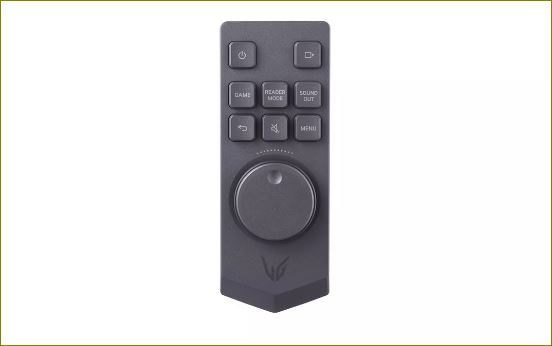

Remote Controller
Yes
-
Others (Accessory)
Back Door(Purple Gray), Cable Cover(Purple Gray), Screw(Black, M4 X L20), Battery(AAA x 2EA)
