SPECIFICATIONS
| Model NAME | O11 DYNAMIC | |
| Model NO. | O11DX BLACK | O11DW WHIHTE |
| Color | BLACK | WHITE |
| Dimensions | (W)272mm x(H)446mm x(D)445mm | |
| Case Type | Tower Chassis | |
| Structure | Dual chamber | |
| Materials | (Front)Tempered Glass+Aluminum (Side)Tempered Glass (Body)Steel | |
| Expansion Slot | 8 | |
| Drive Support | 6 x 2.5″SSD or 3 x 2.5″SSD+ 3 x 3.5″ HDD | |
| I/O Ports | USB3.0 x2 , HD Audio USB3.1 Type-C x1 , HD Audio | |
| M/B Type | E-ATX / ATX / Micro-ATX / Mini-itx | |
| Fan | (Top) 120mm x3 / 140mm x2(Option) (Side) 120mm x3(Option) (Bottom) 120mm x3 (Option) | |
| Radiator | (Top) 360/280 (Side) 360 (Bottom) 360 | |
| VGA Card | length ≤420mm , height ≤159mm | |
| CPU Cooling | ≤155mm | |
| PSU | 2，(L)210mm~255mm(max) | |
| Filter | (Top) x1，(Side) x2, (Bottom) x1 | |

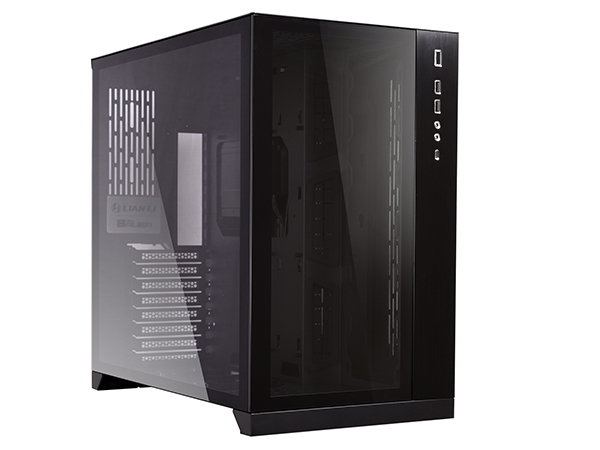

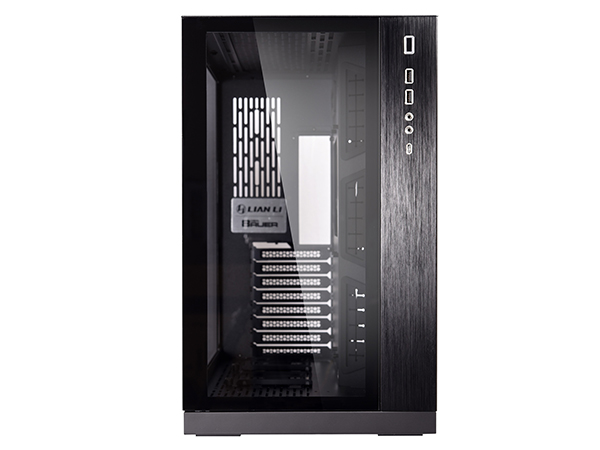

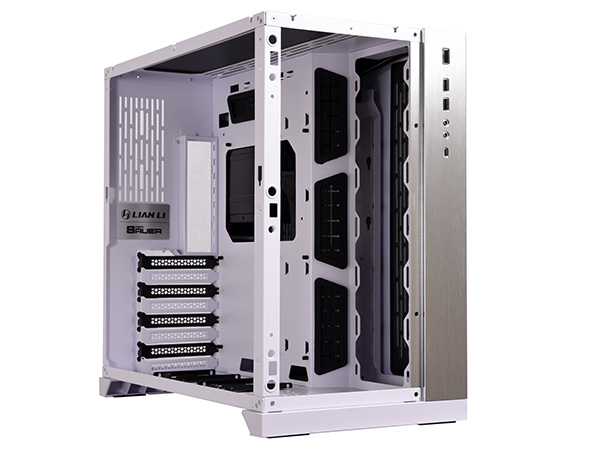

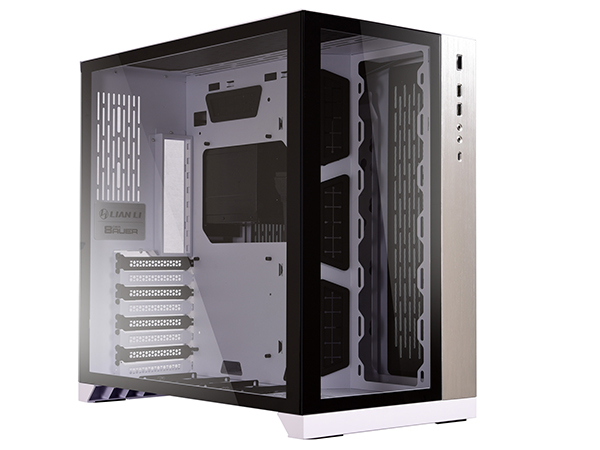

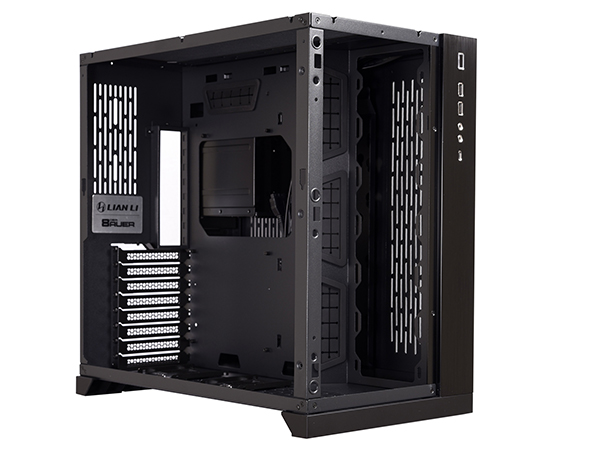

O11 DYNAMIC
-SPACE OPTIMIZATION CHASSIS-
The O11 DYNAMIC is the combination of modern design and art. Through years of researching,collecting feedback and redesigning; We have successfully craft the best edition of the dual chamber chassis.
Display your hardware like
Modern Architecture
Experience the full view seamless front and side tempered glasses like a show room

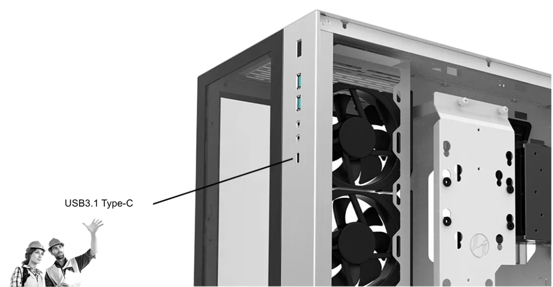

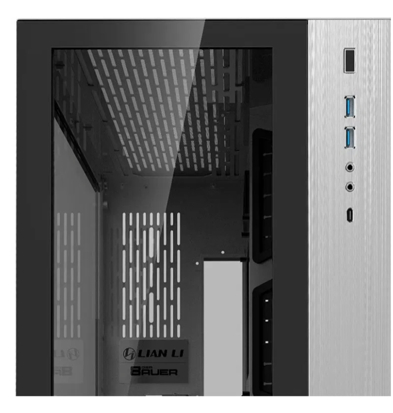

USB3.1 Type-C, Test the limit of transferring Speed
Type-C(USB 3.1) 1280MB/

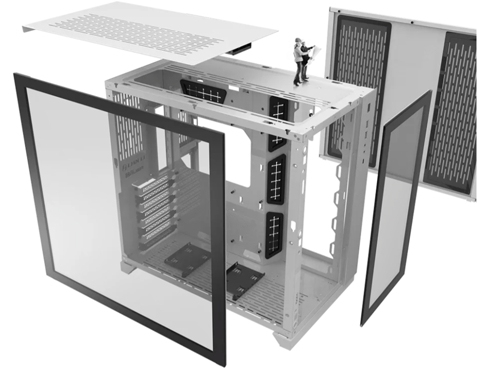

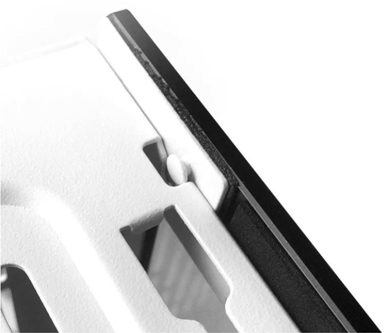

Patented Designed Glass Mounting Mechanism
The two bolt on the steel pieces adhering on the glass secure the panel with ease

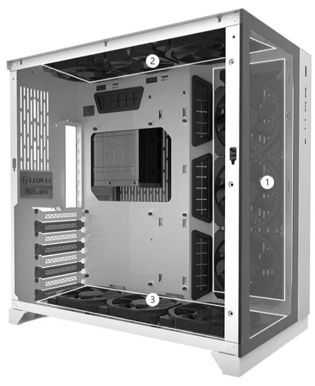

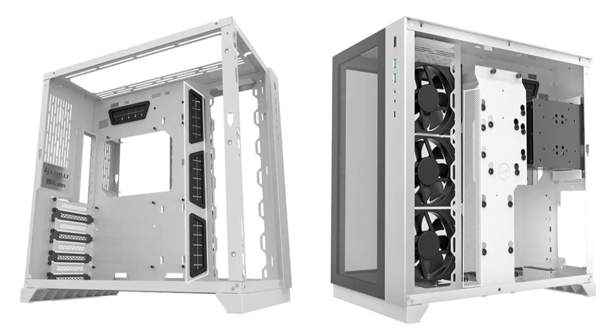

The potential of housing Multiple Radiators
Top/Bottom/Side can be mounted for up to three 360 Radiators without interference

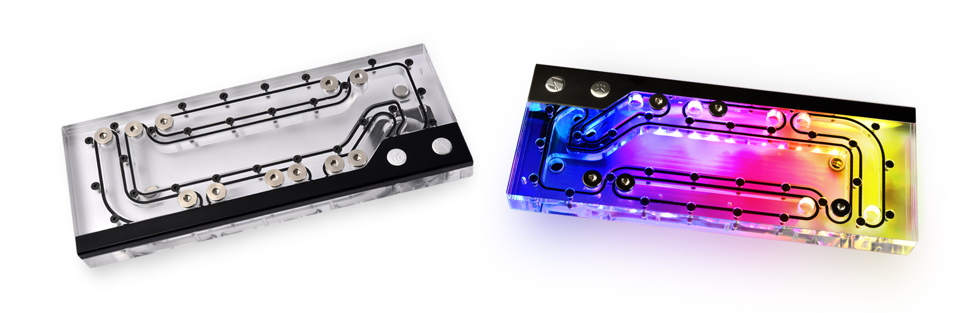

O11D DISTRO-PPLATTE G1
Designed By EKWB

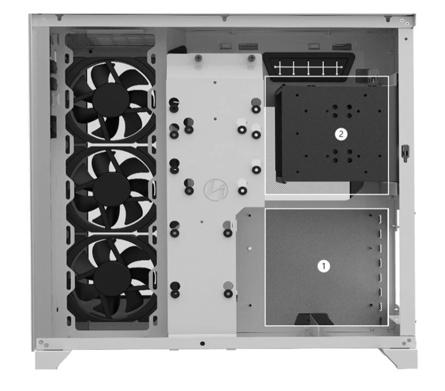

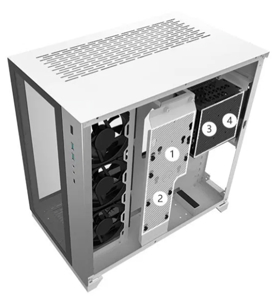

Dual PSUs Capability for efficiency
The drive caddy can be swapped for second PSUs or can be switched to the lower position.

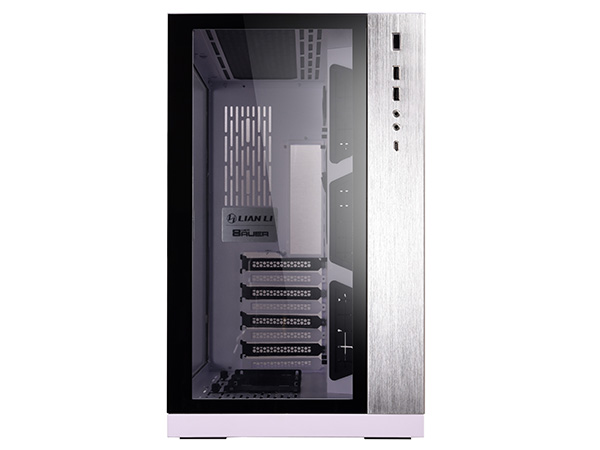

The Combination of the glass and aluminum,
Wide front glass combines with brush aluminum in proper proportion
Double Layer Cable Management Design
The angled motherboard tray and the back side cable management bar seal the and exclude any cable mess
6 Hard Drive Capability
Support up to 6 SSD, and 3 HDD
4 x Dust Filter, Complete Dust Protection
Bottom/top/ Side panels are all equipped with magnetic dust filters to prevent any dust infiltration
0.8mm SECC, Sturdy Build Construction
The Chassis’ body Structure is made out of 0.8mm thick SECC; Offer Sturdy and Strong Foundation
