Specifications
Product Number
GS305P
Speed
Gigabit
Number of Ports
5
PoE Max Power Supplied
(All Ports)
55.5W
Connector Type
Metal
Switch Housing
Metal
Short Cable Power Saving
Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
Yes
Jumbo Frame Support
9,720 bytes
MAC Table Size
2K
Packet Buffer Size
128 KB
DC Power Adapter
48V / 1.25A
IEEE 802.1P QoS
Yes
Max Power Consumption (Watts)
60.0W
Acoustic Noise Level @ 25° C (dBA)
0 dBA (Fanless)
Operating Temperature
0° to 40°C (32° to 104°F)
MTBF
2,244,211 hours
Electromagnetic compliance
(A or B)
Class A
Form Factor
Desktop or Wall-Mountable
Warranty Information
3-year Limited Hardware Warranty
PoE Ports / Max Power Per Port
Ports 1-4 / 15.4W (802.3af)
LEDs
Power, Link/Activity (Left), Ports 1-4: PoE Power (Right)
Physical Specifications
Dimensions:158 x 101 x 29 mm
Weight: 0.41 kg
Model Description

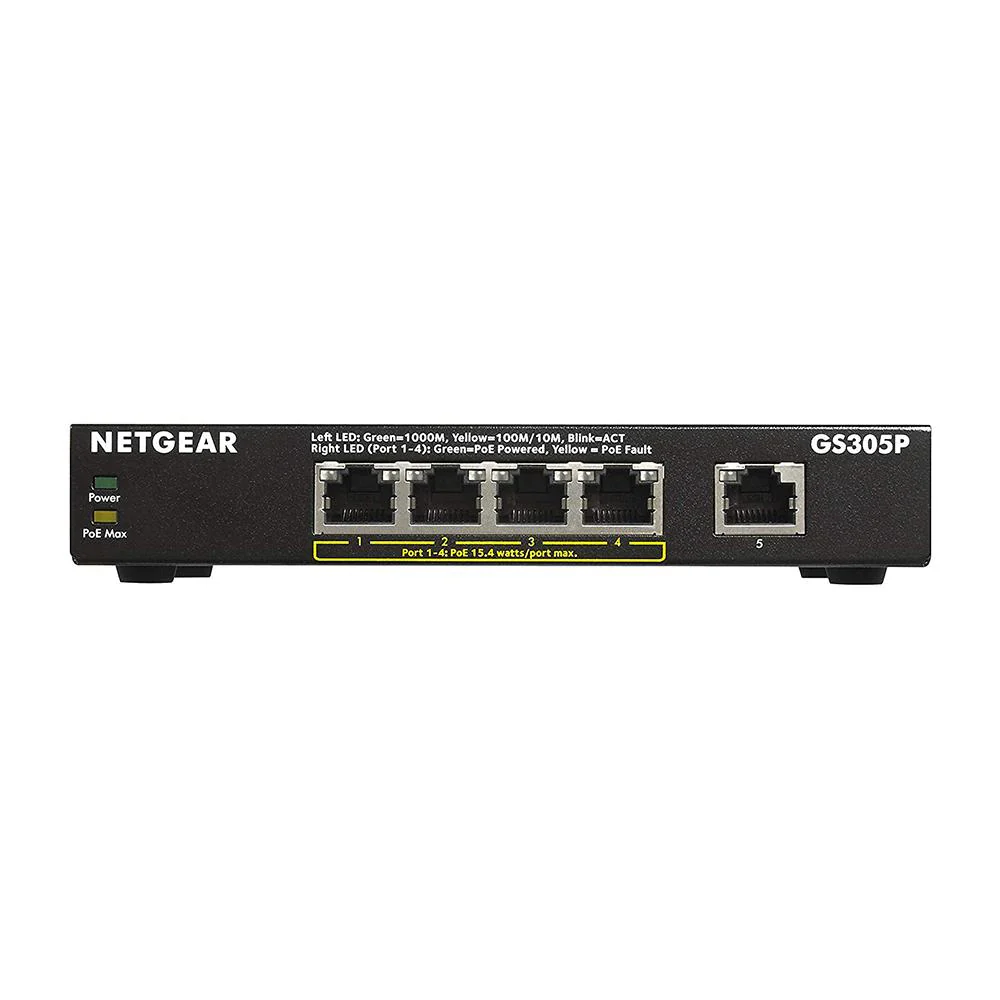

5-Port Gigabit Ethernet Switch with 4-Ports PoE
