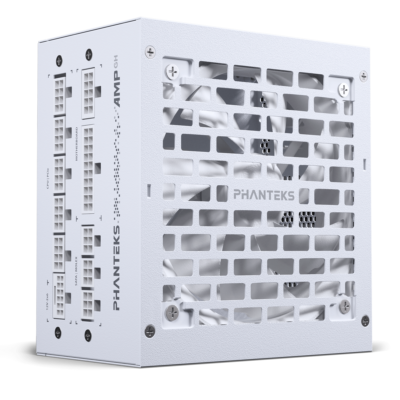

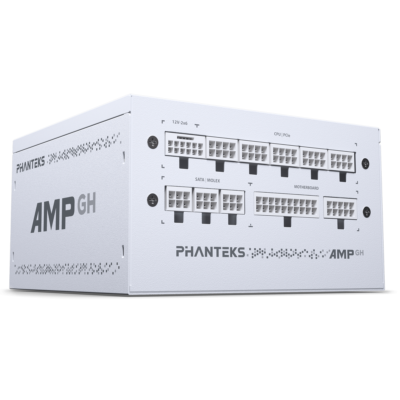

Phanteks AMP GH 750W Fully Modular Power Supply

Name: Phanteks AMP GH 750W Fully Modular Power Supply
Brand: Phanteks
SKU: PH-P750GH_BK01
Price: 159 SGD
Availability: InStock

Warranty - 8 years limited

$159.00 SGD

(tax included)

Quantity

Only 1 left

Local Shipping

Local Warranty

Secure payments

12V-2×6 Cable Included

Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
Fully Modular Design, individually textured cables for easy installation and reduced clutter.
Latest PCIe Gen5.1 GPU Connector, 12V-2×6 connector providing up to 450W of power through a single cable.
Improves compatibility with any chassis.

Packed With Features

Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120 mm Hydraulic Dynamic Bearing Fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Backpanel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.

Premium Hybrid Mode

A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.

Specifications

General

Model No.

PH-P750GH_BK01

UPC Code

EU | 886523510437
UK | 886523510499
US | 886523510550

Color

Black

Dimensions

Length x Width x Height

140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in

Power Output

750W

PCIe GEN5 OUTPUT

450W

80 Plus

Gold

TECHNICAL DETAILS

Cooling Fan

120 mm Hydraulic Bearing fan

Back Plate

Fully modular

MTFB

> 100.000 hrs at 25˚C (Excluding DC fan)

Power Supply Output Connectors

Mainboard – 1x
CPU | PCIe – 5x
SATA | Molex – 3x
12V-2×6 – 1x

Output Protection

OPP _{(Overpower Protection)}
OVP _{(Over Voltage Protection)}
UVP _{(Under voltage protection)}
SCP _{(Short Circuit Protection)}
OCP _{(Over Current Protection)}
OTP _{(Over Temperature Protection)}
No-Load Protection
Reset Protection

Output Voltage	12V	5V	3.3V	-12V	5VSB
Maximum Output	62A	20A	20A	0.3A	2.5A
Maximum Capacity	744W	100W		3.6W	12.5W
DC Output	750W
AC Output	200-240V ~ 10A 50-60Hz

Extra

Net Weight

1.40 kg | 3.08 lbs

Gross Weight

3.20 kg | 7.05 lbs

Warranty

8 Years limited

Scope of Delivery

1x AMD 750W Power supply unit
1x C13 Power cord _(1500mm)

Textured Cables

1x 18+10-Pin Mainboard _{(610 mm)}
2x 4+4-Pin CPU _{(650 mm)}
4x 6+2-Pin PCI-E _{(750 mm)}
1x 12V-2×6 _{(720 mm)}
3x 6-Pin 4-SATA _{(450 – 150 | 150 | 150 mm)}
1x 6-Pin 2-SATA + 2-Molex _{(450 – 150 | 150 | 150 mm)}

Accessory Box

1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
