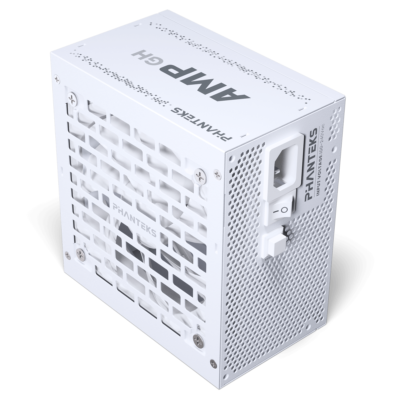

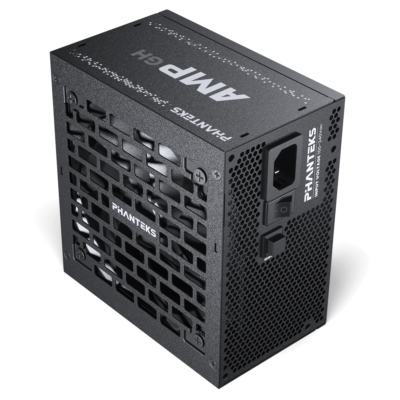

Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2×6 connector delivers up to 600W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
Specifications
General
UPC Code
EU | 886523510598
UK | 886523510451
US | 886523510512
Color
Black
Dimensions
Length x Width x Height
140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
Power Output
1000W
PCIe GEN5 OUTPUT
600W
80 Plus
Platinum
TECHNICAL DETAILS

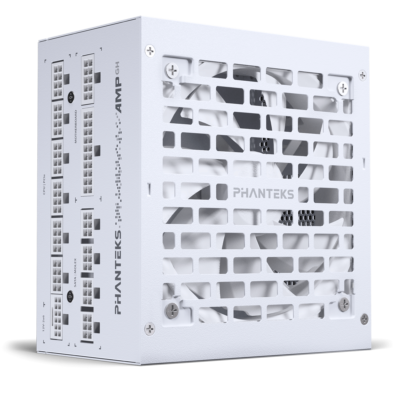

Cooling Fan
120 mm Hydraulic bearing fan
Back Plate
Fully modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)

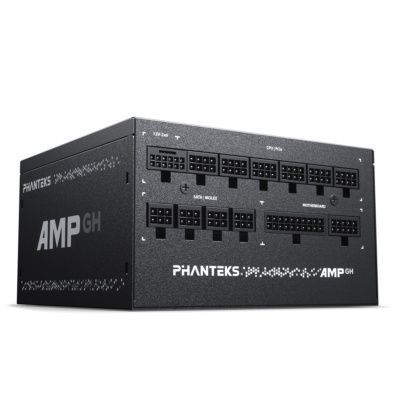

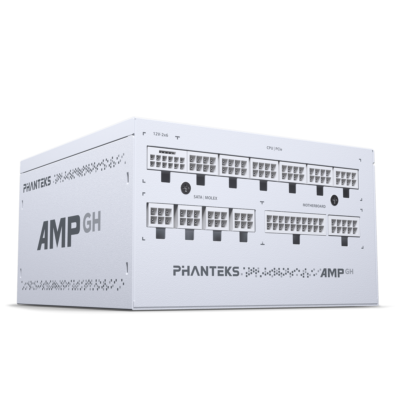

Power Supply Output Connectors
Mainboard – 1x
CPU | PCIe – 5x
SATA | Molex – 3x
12V-2×6 – 1x
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
| Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB | |
|---|---|---|---|---|---|---|
| Maximum Output | 83A | 20A | 20A | 0.3A | 3A | |
| Maximum Capacity | 996W | 120W | 3.6W | 15W | ||
| DC Output | 1000W | |||||
| AC Output | 100-240V ~ 12-6A 50-60Hz | |||||
Extra
Net Weight
1.40 kg | 3.08 lbs
Gross Weight
3.20 kg | 7.05 lbs
Warranty
8 Years limited
Scope of Delivery
1x AMP GH 1000W Power supply unit
1x C13 Power cord (1500mm)
Textured Cables
1x 18+10-Pin Mainboard (610 mm)
2x 4+4-Pin CPU (650 mm)
4x 6+2-Pin PCI-E (750 mm)
1x 12V-2×6 (720 mm)
3x 6-Pin 4-SATA (450 – 150 | 150 | 150 mm)
1x 6-Pin 2-SATA + 2-Molex (450 – 150 | 150 | 150 mm)
Accessory Box
1x User’s manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
