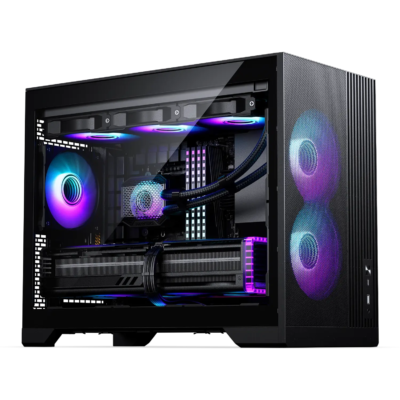

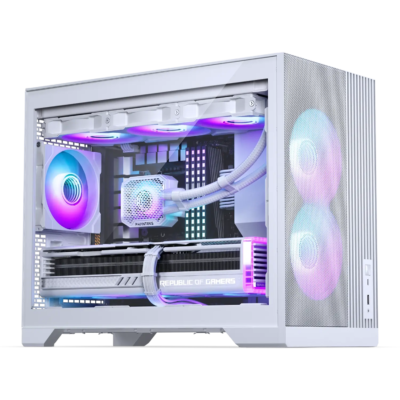

XT M3
Compact Micro ATX Gaming Chassis
The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis

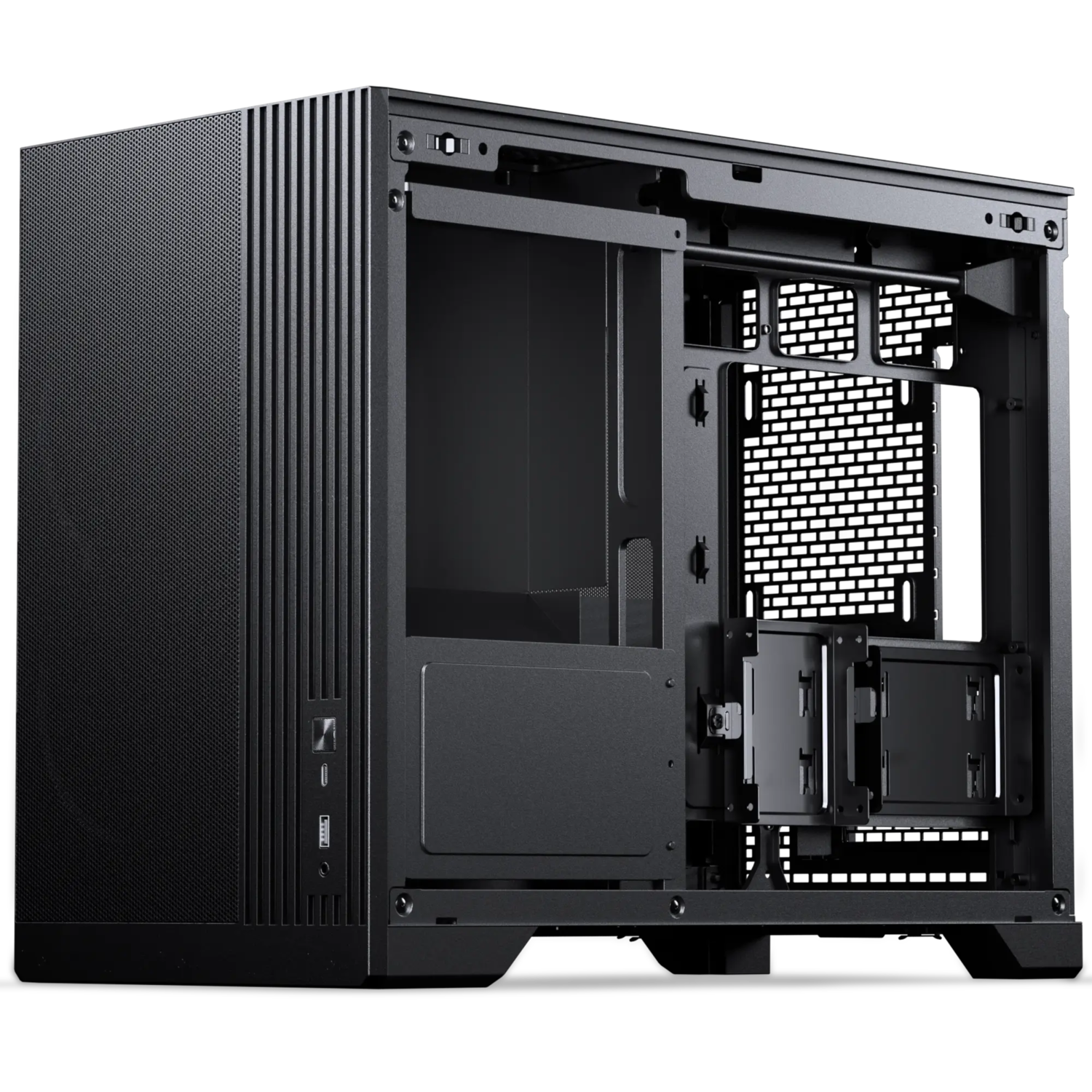

Organized by Design

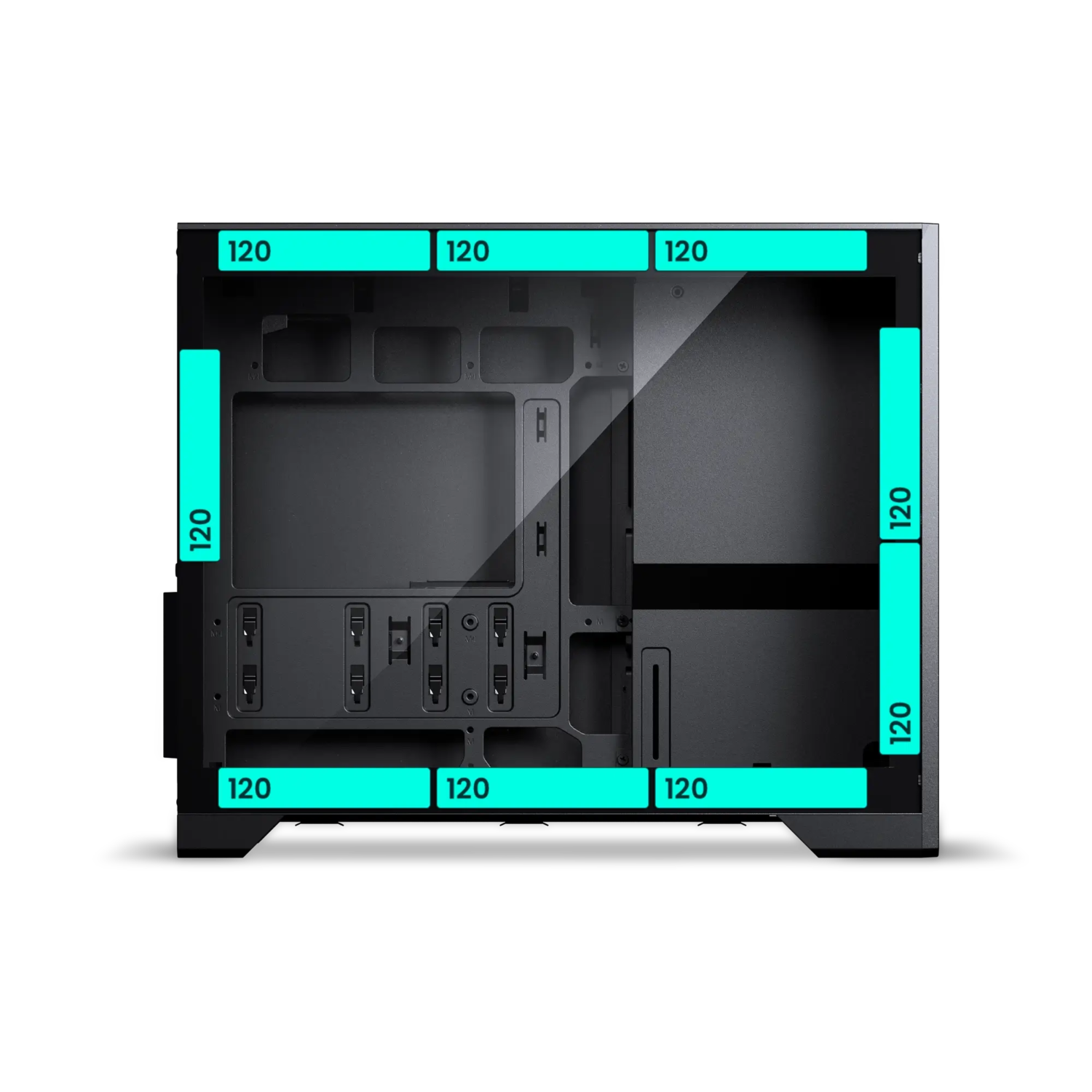

Fan Positions

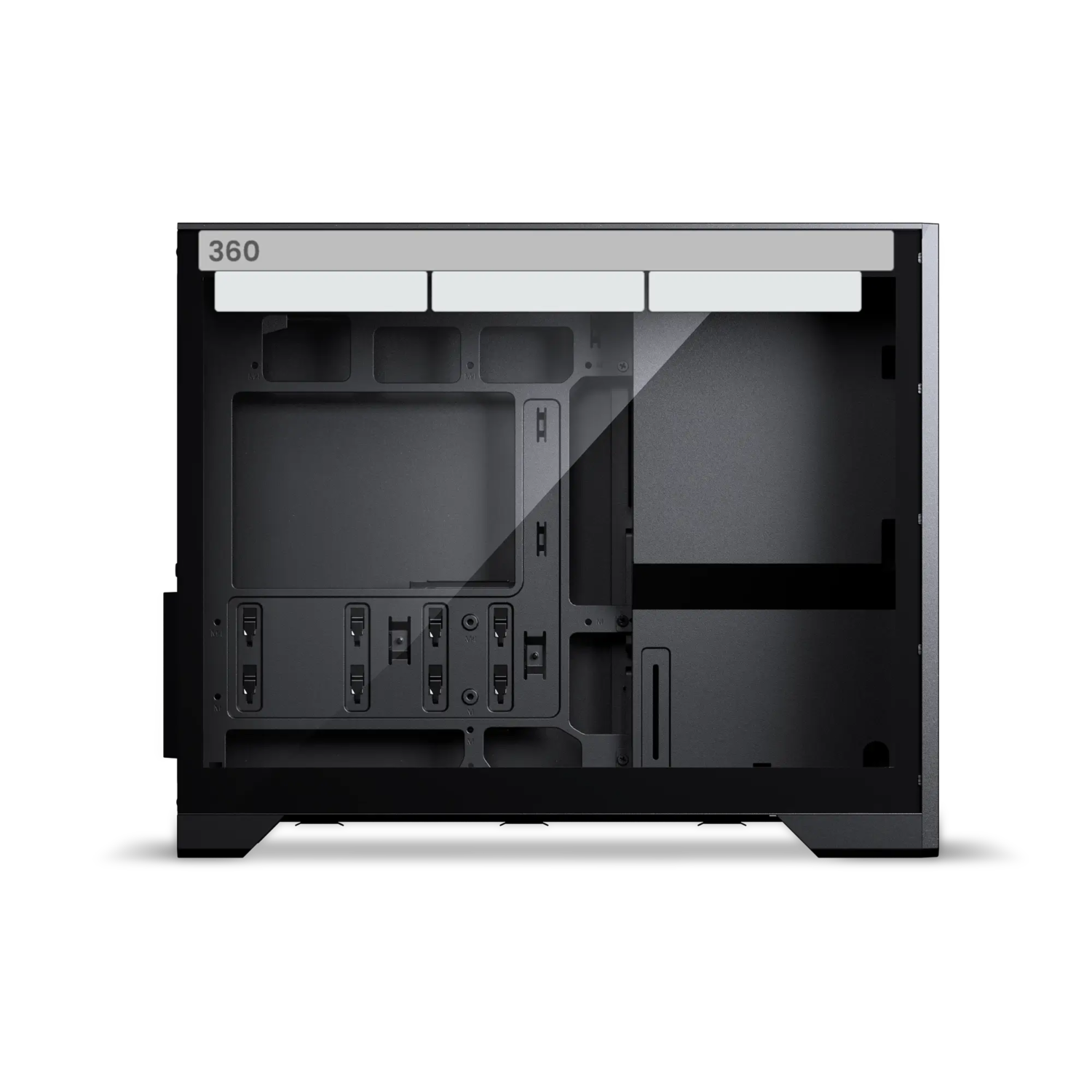

Radiator Positions
Storage
Specifications
General
Case Dimensions
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
From Factor
Compact microATX tower
Mainboard Support
Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass window | ABS plastic
Color
Black
Expansion Slots
4
Vertical GPU Support
No
Internal 2.5″ Positions
2
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 2x 2.5″ SSD
Front I/O
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Fans 120 | 140
Total Fans
9 | –
Top
3 | –
Front
2 | –
Side
– | –
Rear
1 | –
Bottom
3 | –
Radiator 120 | 140
Top
Max. 360 | –
Front
– | –
Rear
– | –
Bottom
– | –
Clearance
CPU Cooler
Height
175 mm | 6.88 in
GPU
Length
430 mm | 15.94 in
Without front fans installed
GPU
Width
175 mm | 6.88 in
Power Supply
150 mm | 5.90 in
Top 360 Radiator
Length x Width x Height
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Extra
Net Weight
5.57 kg | 12.28 lbs
Gross Weight
6.90 kg | 15.21 lbs
Warranty
5 Years Limited
Scope of Delivery
1x XT M3 chassis
1x SSD bracket Pre-installed
1x HDD bracket Pre-installed
Accessory Box
9x Zip ties
1x Stand-off removal tool
1x GPU support
Screws
17x Mainboard | SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-off
