Technical Specifications
-
Picture/Display
- Panel Size
-
23.8 inch / 60.5 cm
- Aspect ratio
-
16:9
- LCD panel type
-
IPS technology
- Backlight type
-
W-LED system
- Pixel pitch
-
0.275 x 0.275 mm
- Optimum resolution
-
1920 x 1080 @ 60Hz
- Brightness
-
250 cd/m²
- Display colors
-
16.7 M
- Color gamut (typical)
-
NTSC 72% (CIE 1931)
- Contrast ratio (typical)
-
1000:1
- SmartContrast
-
50,000,000:1
- Response time (typical)
-
5 ms (Gray to Gray)*
- Viewing angle
-
-
178º (H) / 178º (V)
-
@ C/R > 10
-
- Picture enhancement
-
SmartImage
- Effective viewing area
-
527 (H) x 296.5 (V)
- Scanning Frequency
-
30 - 85 kHz (H) / 48 - 75 Hz (V)
- sRGB
-
Yes
- Flicker-free
-
Yes
- Pixel Density
-
93 PPI
- LowBlue Mode
-
Yes
- EasyRead
-
Yes
-
Touch
- Ingress protection
-
IP65 - front only
- Operating system
-
Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions*
- Sealability
-
Touchscreen sealed to bezel; Touchscreen sealed to LCD
- Touch active area
-
527 mm (H) x 296.5 mm (V)
- Touch glass hardness
-
7 H
- Touch interface
-
USB
- Touch method
-
Stylus, Finger, Glove*
- Touch points
-
10 point
- Touch technology
-
Projected capacitive
- Palm rejection area
-
>= 30 x 30 mm
- Touch glass coating
-
Glare
-

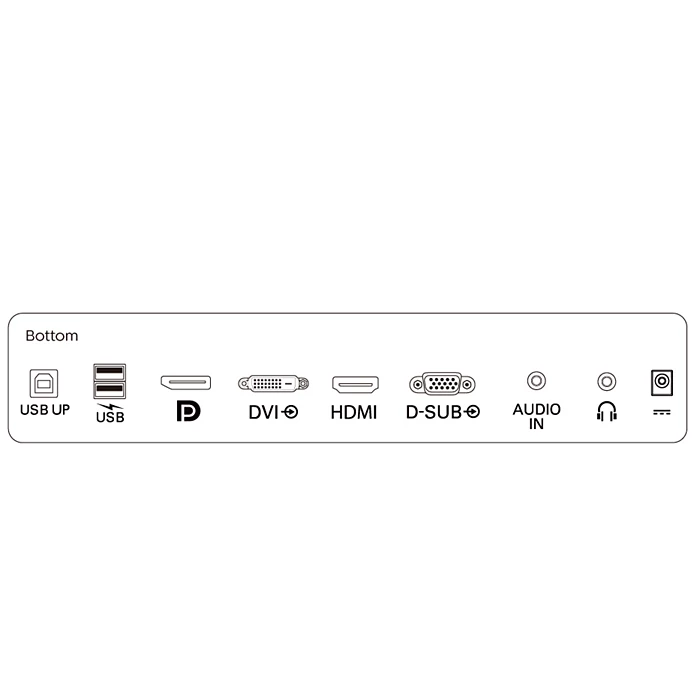

Connectivity
- Signal Input
-
-
VGA (Analog )
-
DVI-D (digital, HDCP)
-
DisplayPort 1.2
-
HDMI 1.4
-
- USB
-
USB 3.1x2 (1 w/fast charging)*
- Sync Input
-
-
Separate Sync
-
Sync on Green
-
- Audio (In/Out)
-
-
PC audio-in
-
Headphone out
-
- HDCP
-
HDCP: HDCP 1.4 (HDMI / DP / DVI)
-
Convenience
- Built-in Speakers
-
2 W x 2
- Plug & Play Compatibility
-
-
DDC/CI
-
sRGB
-
Windows 10 / 8.1 / 8 / 7
-
- User convenience
-
-
SmartImage
-
Input
-
Brightness
-
Menu
-
Power On/Off
-
- OSD Languages
-
-
Brazil Portuguese
-
Czech
-
Dutch
-
English
-
Finnish
-
French
-
German
-
Greek
-
Hungarian
-
Italian
-
Japanese
-
Korean
-
Polish
-
Portuguese
-
Russian
-
Simplified Chinese
-
Spanish
-
Swedish
-
Traditional Chinese
-
Turkish
-
Ukrainian
-
- Other convenience
-
-
Kensington lock
-

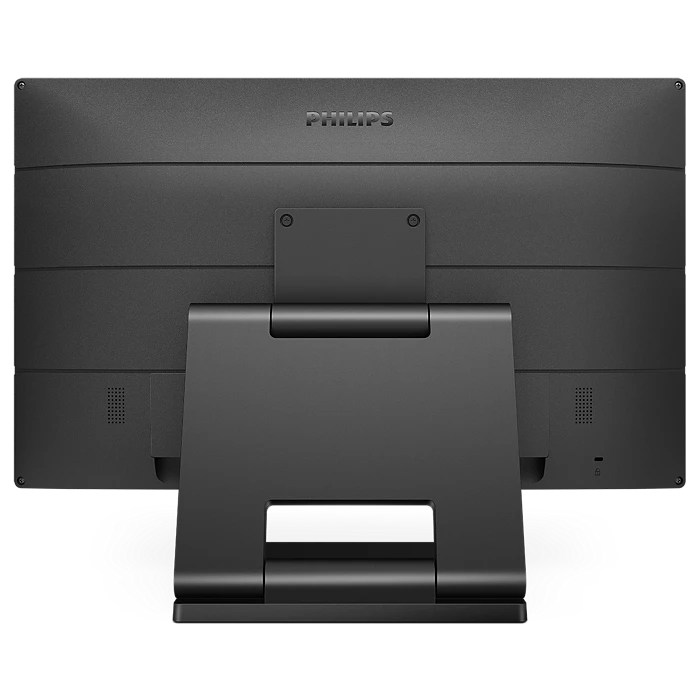

VESA mount (100x100mm)
-
- Control software
-
SmartControl
-

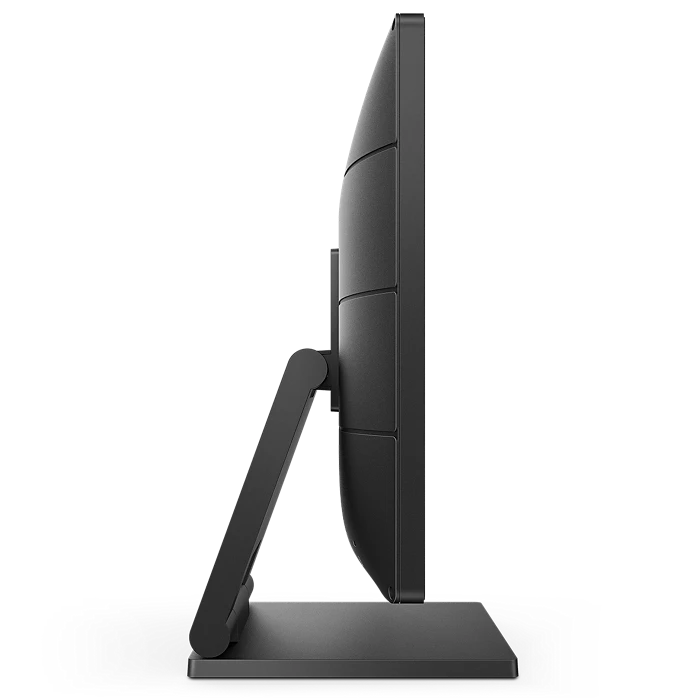

Stand
- Height adjustment
-
184 (Horizontal), 75 (Vertical) mm
- Tilt
-
-5 ~ 90 degree
- Folding angle
-
0 ~ 70 degree
-
Power
- ECO mode
-
11.5 W (typ.)
- Power supply
-
-
External
-
100-240VAC, 50-60Hz
-
- Off mode
-
< 0.3 W (typ.)
- On mode
-
15.68 W (typ.) (EnergyStar test method)
- Standby mode
-
< 0.5 W (typ.)
- Power LED indicator
-
-
Operation - White
-
Standby mode- White (blinking)
-
-
Dimensions
- Packaging in mm (WxHxD)
-
620 x 433 x 168 mm
- Product without stand (mm)
-
554 x 338 x 50 mm
- Packaging in inch (WxHxD)
-
24.4 x 17.0 x 6.6 inch
- Product without stand in inch
-
21.8 x 13.3 x 2.0 inch
- Product with stand(max height)
-
554 x 413 x 227 mm
- Product with stand(max height)
-
21.8 x 16.3 x 8.9 inch
-
Weight
- Product with packaging (kg)
-
11.06 kg
- Product with stand (kg)
-
8.15 kg
- Product with packaging (lb)
-
24.33 lb
- Product with stand (lb)
-
17.93 lb
- Product without stand (kg)
-
4.86 kg
- Product without stand (lb)
-
10.69 lb
-
Operating conditions
- Altitude
-
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
- Temperature range (operation)
-
0°C to 40°C °C
- Relative humidity
-
20%-80 %
- Temperature range (storage)
-
-20°C to 60°C °C
- MTBF (demonstrated)
-
70,000 hrs (excluded backlight)
-
Sustainability
- Environmental and energy
-
-
EnergyStar 8.0
-
EPEAT*
-
TCO Certified
-
RoHS
-
WEEE
-
- Recyclable packaging material
-
100 %
- Specific Substances
-
-
PVC / BFR free housing
-
Mercury free
-
-
Compliance and standards
- Regulatory Approvals
-
-
CB
-
CE Mark
-
FCC Class B
-
SEMKO
-
UKRAINIAN
-
ICES-003
-
TUV/GS
-
TUV Ergo
-
CU-EAC
-
EAEU RoHS
-
cETLus
-
-
Cabinet
- Finish
-
Texture
- Foot
-
Black
- Front bezel
-
Black
- Rear cover
-
Black
-
What's in the box?
- Cables
-
D-Sub cable, DVI-D cable, DP cable, USB-A to B cable, Audio cable, Power cable
- Monitor with stand
-
Yes
- User Documentation
-
Yes
