Technical Specifications
-
Picture/Display
- Panel Size
-
23.8 inch / 60.5 cm
- Aspect ratio
-
16:9
- LCD panel type
-
IPS technology
- Backlight type
-
W-LED system
- Pixel pitch
-
0.2745 x 0.2745 mm
- Brightness
-
300 cd/m²
- Display colors
-
16.7 M
- Color gamut (typical)
-
DCI-P3:81.39%, NTSC 89.36%, Adobe RGB 87.82%, sRGB: 102.66%
- Contrast ratio (typical)
-
1500:1
- SmartContrast
-
Mega Infinity DCR
- Response time (typical)
-
4 ms (Gray to Gray)*
- Viewing angle
-
-
178º (H) / 178º (V)
-
@ C/R > 10
-
- Picture enhancement
-
SmartImage
- Maximum resolution
-
1920 x 1080 @ 120 Hz (HDMI/DP Overclock) *
- Effective viewing area
-
527.04 (H) x 296.46 (V) mm
- Scanning Frequency
-
VGA: 30 KHz - 85 KHz (H) / 48 Hz - 75 Hz (V); HDMI/DP: 30 KHz - 140 KHz (H) / 48 Hz - 120 Hz (V)
- sRGB
-
Yes
- Flicker-free
-
Yes
- Pixel Density
-
92.56 PPI
- LowBlue Mode
-
Yes
- Display Screen Coating
-
Anti-Glare, 3H, Haze 25%
- MPRT
-
1 ms
- EasyRead
-
Yes
- Adaptive sync
-
Yes
-
Connectivity

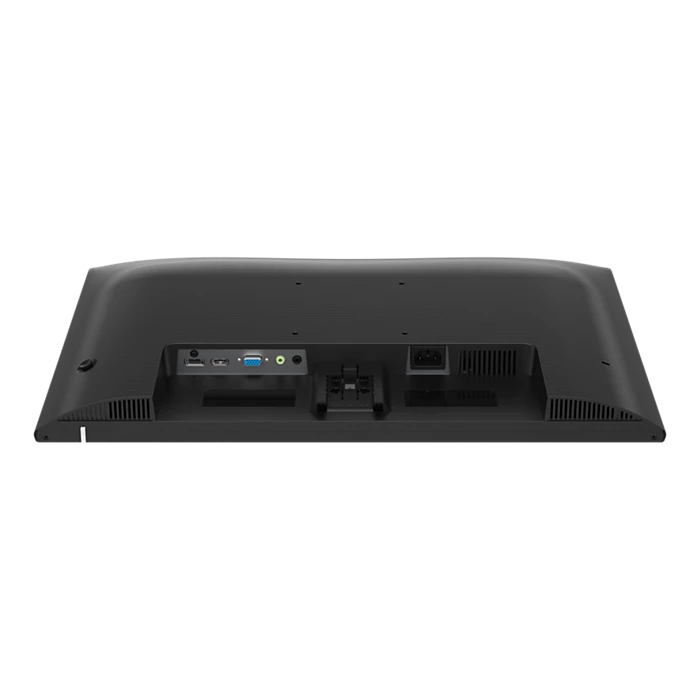

- Signal Input
-
VGA x 1, HDMI 1.4 x 1, DisplayPort 1.2 X 1
- Sync Input
-
Separate Sync
- Audio (In/Out)
-
-
Audio out
-
Audio-in
-
- HDCP
-
HDCP 1.4 (HDMI, DisplayPort)
-
Convenience
- Built-in Speakers
-
2W X 2
- Plug & Play Compatibility
-
-
DDC/CI
-
Mac OS X
-
sRGB
-
Windows 11 / 10
-
- User convenience
-
-
Power On/Off
-
Menu
-
Volume
-
Input
-
SmartImage
-
- OSD Languages
-
-
Brazil Portuguese
-
Czech
-
Dutch
-
English
-
Finnish
-
French
-
German
-
Greek
-
Hungarian
-
Italian
-
Japanese
-
Korean
-
Polish
-
Portuguese
-
Russian
-
Simplified Chinese
-
Spanish
-
Swedish
-
Traditional Chinese
-
Turkish
-
Ukrainian
-
- Other convenience
-
-
Kensington lock
-

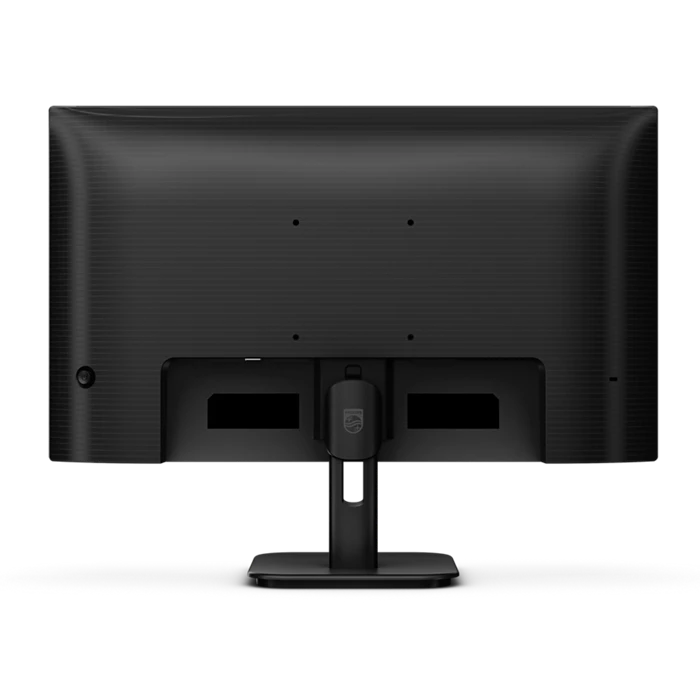

VESA mount (100x100mm)
-
-
Stand
- Tilt
-
-5/20 degree
-
Power
- Power supply
-
-
Internal
-
100-240VAC, 50-60Hz
-
- Off mode
-
0.3 W (typ.)
- On mode
-
16.3 W (typ.)
- Standby mode
-
0.5 W (typ.)
- Power LED indicator
-
-
Operation - White
-
Standby mode- White (blinking)
-
-
Dimensions
- Packaging in mm (WxHxD)
-
610x370x124 mm
- Product without stand (mm)
-
542x316x45 mm
- Product with stand(max height)
-
542x417x180 mm
-
Weight
- Product with packaging (kg)
-
4.68 kg
- Product with stand (kg)
-
2.94 kg
- Product without stand (kg)
-
2.59 kg
-
Operating conditions
- Altitude
-
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
- Temperature range (operation)
-
0 to 40 °C
- MTBF
-
50,000 hrs (excluding backlight) hour(s)
- Relative humidity
-
20%-80 %
- Temperature range (storage)
-
-20 to 60 °C
-
Sustainability
- Environmental and energy
-
RoHS
- Recyclable packaging material
-
100 %
- Specific Substances
-
Mercury free
-
Compliance and standards
- Regulatory Approvals
-
-
CB
-
CE Mark
-
TUV/ISO9241-307
-
TUV-BAUART
-
EAC
-
EAEU RoHS
-
MEPS
-
PSB
-
PSE
-
BSMI
-
VCCI
-
UKCA
-
EMF
-
FCC
-
ICES-003
-
-
Cabinet
- Color
-
Black
- Finish
-
Textured
