Technical Specifications
-

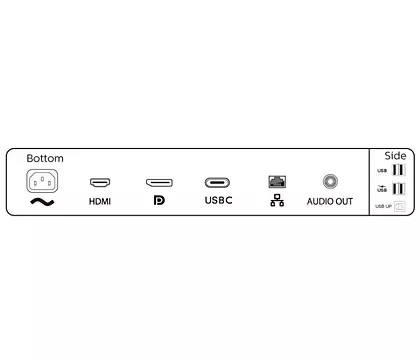

Connectivity
- Signal Input
-
DisplayPort 1.2 x 1, HDMI 2.0 x 1, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 90 W)
- Sync Input
-
Separate Sync
- Audio (In/Out)
-
Headphone out
- RJ45
-
Ethernet LAN up to 1G*, Wake On Lan
- USB:
-
USB-C x 1, USB-B x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
- HDCP
-
HDCP 1.4 (DP / USB-C), HDCP 2.2 (HDMI)
-
Picture/Display
- Panel Size
-
34 inch / 86.36 cm
- Aspect ratio
-
21:9
- LCD panel type
-
VA LCD
- Backlight type
-
W-LED system
- Pixel pitch
-
0.23175 x 0.23175 mm
- Brightness
-
300 cd/m²
- Display colors
-
16.7 M
- Color gamut (typical)
-
NTSC 100%*, sRGB 119%*, Adobe RGB 90%*
- Contrast ratio (typical)
-
3,000:1
- SmartContrast
-
80,000,000 :1
- Response time (typical)
-
4 ms (Gray to Gray)*
- Viewing angle
-
-
178º (H) / 178º (V)
-
@ C/R > 10
-
- Picture enhancement
-
SmartImage
- Maximum resolution
-
3440 x 1440 @ 100 Hz*
- Effective viewing area
-
797.2 (H) x 333.7 (V) - at a 1500 R curvature*
- Scanning Frequency
-
30 - 160 kHz (H) / 48 - 100 Hz (V)
- sRGB
-
Yes
- Delta E
-
< 2 (sRGB)
- Flicker-free
-
Yes
- Pixel Density
-
110 PPI
- LowBlue Mode
-
Yes
- Display Screen Coating
-
Anti-Glare, 2H, Haze 25%
- SmartUniformity
-
93 ~ 105%
- EasyRead
-
Yes
- Adaptive sync
-
Yes
-
USB
- Power delivery
-
USB PD version 3.0
- Super speed
-
Data and Video transfer
- DP
-
Built-in Display Port Alt mode
- USB-C max. power delivery
-
Up to 90W (5V/3A; 7V/3A; 9V/3A; 10V/3A;12V/3A; 15V/3A; 20V/4.5A)
- USB-C
-
Reversible plug connector
-
Convenience
- Built-in Speakers
-
5 W x 2
- Plug & Play Compatibility
-
-
DDC/CI
-
Mac OS X
-
sRGB
-
Windows 10 / 8.1 / 8 / 7
-
- User convenience
-
-
SmartImage
-
Input
-
User
-
Menu
-
Power On/Off
-
- OSD Languages
-
-
Brazil Portuguese
-
Czech
-
Dutch
-
English
-
French
-
Finnish
-
German
-
Greek
-
Hungarian
-
Italian
-
Japanese
-
Korean
-
Portuguese
-
Polish
-
Russian
-
Simplified Chinese
-
Spanish
-
Swedish
-
Traditional Chinese
-
Turkish
-
Ukrainian
-
- Other convenience
-
-
Kensington lock
-
VESA mount (100x100mm)
-
- Control software
-
SmartControl
- MultiView
-
-
PIP/PBP mode
-
2x devices
-
-

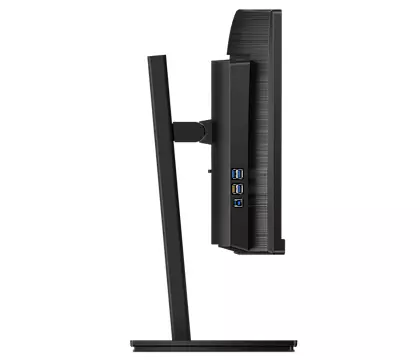

Stand
- Height adjustment
-
180 mm
- Swivel
-
-180/180 degree
- Tilt
-
-5/30 degree
-
Power
- ECO mode
-
34 W (typ.)
- Power supply
-
-
Built-in
-
100-240VAC, 50-60Hz
-
- Off mode
-
Zero watts with Zero switch
- On mode
-
28.36 W (typ.) (EnergyStar test method)
- Standby mode
-
0.3 W (typ.)
- Power LED indicator
-
-
Operation - White
-
Standby mode- White (blinking)
-
-
Dimensions
- Packaging in mm (WxHxD)
-
904 x 525 x 282 mm
- Product without stand (mm)
-
807 x 367 x 110 mm
- Packaging in inch (WxHxD)
-
35.6 x 20.7 x 11.1 inch
- Product without stand in inch
-
31.8 x 14.4 x 4.3 inch
- Product with stand(max height)
-
807 x 601 x 250 mm
- Product with stand(max height)
-
31.8 x 23.7 x 9.8 inch
-
Weight
- Product with packaging (kg)
-
15.32 kg
- Product with stand (kg)
-
11.49 kg
- Product with packaging (lb)
-
33.70 lb
- Product with stand (lb)
-
25.28 lb
- Product without stand (kg)
-
7.79 kg
- Product without stand (lb)
-
17.14 lb
-
Operating conditions
- Altitude
-
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
- Temperature range (operation)
-
0°C to 40 °C
- Relative humidity
-
20%-80 %
- Temperature range (storage)
-
-20°C to 60 °C
- MTBF (demonstrated)
-
70,000 hrs (excluded backlight)
-
Sustainability
- Environmental and energy
-
-
PowerSensor
-
LightSensor
-
EnergyStar 8.0
-
TCO Certified
-
RoHS
-
- Recyclable packaging material
-
100 %
- Specific Substances
-
-
Mercury free
-
PVC / BFR free housing
-
-
Compliance and standards
- Regulatory Approvals
-
-
CB
-
cETLus
-
FCC Class B
-
ICES-003
-
CE Mark
-
TUV/GS
-
TUV Ergo
-
CU-EAC
-
UKRAINIAN
-
TUV Eye Comfort certified
-
-
Cabinet
- Finish
-
Texture
- Foot
-
Black
- Front bezel
-
Black
- Rear cover
-
Black
-
What's in the box?
- Cables
-
HDMI cable, DP cable, USB-C/A Y cable, Power cable
- Monitor with stand
-
Yes
- User Documentation
-
Yes
