Technical Specifications
-

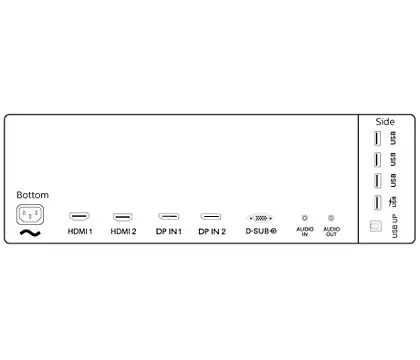

Connectivity
- Signal Input
-
-
VGA (Analog )
-
DisplayPort 1.2 x 2
-
HDMI 2.0 x 2
-
- Sync Input
-
-
Separate Sync
-
Sync on Green
-
- Audio (In/Out)
-
-
PC audio-in
-
Audio out
-
- USB:
-
USB-B x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
- HDCP
-
HDCP 2.2 (HDMI / DP)
-
Picture/Display
- Panel Size
-
42.51 inch / 108 cm
- Aspect ratio
-
16:9
- LCD panel type
-
IPS technology
- Backlight type
-
W-LED system
- Pixel pitch
-
0.2451 x 0.2451 mm
- Brightness
-
400 cd/m²
- Display colors
-
Color support 1.07 billion colors
- Color gamut (typical)
-
NTSC 88%*, sRGB 102%*
- Contrast ratio (typical)
-
1200:1
- SmartContrast
-
50,000,000:1
- Response time (typical)
-
5 ms (Gray to Gray)*
- Viewing angle
-
-
178º (H) / 178º (V)
-
@ C/R > 10
-
- Picture enhancement
-
SmartImage
- Maximum resolution
-
3840 x 2160 @ 60 Hz*
- Effective viewing area
-
941.184 (H) x 529.416 (V) mm
- Scanning Frequency
-
30 - 140 kHz (H) / 23 - 75 Hz (V)
- sRGB
-
Yes
- Delta E
-
3
- Flicker-free
-
Yes
- Pixel Density
-
103.46 PPI
- Display Screen Coating
-
3H, Haze 1%
- SmartUniformity
-
96 ~ 105%
-
Convenience
- Built-in Speakers
-
5 W x 2
- Plug & Play Compatibility
-
-
DDC/CI
-
Mac OS X
-
sRGB
-
Windows 10 / 8.1 / 8 / 7
-
- User convenience
-
-
SmartImage
-
Input
-
User
-
Menu
-
Power On/Off
-
- OSD Languages
-
-
Brazil Portuguese
-
Czech
-
Dutch
-
English
-
Finnish
-
French
-
German
-
Greek
-
Hungarian
-
Italian
-
Japanese
-
Korean
-
Polish
-
Portuguese
-
Russian
-
Simplified Chinese
-
Spanish
-
Swedish
-
Traditional Chinese
-
Turkish
-
Ukrainian
-
- Other convenience
-
-
Kensington lock
-
VESA mount (200x200mm)
-
- Control software
-
SmartControl
- MultiView
-
-
PIP (2x devices)
-
PBP (4x devices)
-
-
Power
- ECO mode
-
53.3 W (typ.)
- Power supply
-
-
Built-in
-
100-240VAC, 50-60Hz
-
- Off mode
-
Zero watts with Zero switch
- On mode
-
100 W (typ.)
- Standby mode
-
0.3 W
- Power LED indicator
-
-
Operation - White
-
Standby mode- White (blinking)
-
-
Dimensions
- Packaging in mm (WxHxD)
-
1070 x 680 x 186 mm
- Product without stand (mm)
-
973 x 561 x 64 mm
- Product with stand(max height)
-
973 x 633 x 259 mm
-
Weight
- Product with packaging (kg)
-
14.74 kg
- Product with stand (kg)
-
11.78 kg
- Product without stand (kg)
-
11.06 kg
-
Operating conditions
- Altitude
-
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
- Temperature range (operation)
-
0°C to 40°C °C
- Relative humidity
-
20%-80 %
- Temperature range (storage)
-
-20°C to 60°C °C
- MTBF (demonstrated)
-
70,000 hrs (excluded backlight)
-
Sustainability
- Environmental and energy
-
RoHS
- Recyclable packaging material
-
100 %
- Specific Substances
-
-
PVC / BFR free housing
-
Mercury free
-
-
Compliance and standards
- Regulatory Approvals
-
-
CB
-
SEMKO
-
PSB
-
CE Mark
-
-
Cabinet
- Finish
-
Texture
- Foot
-
Dark Grey
- Front bezel
-
Black
- Rear cover
-
Black
-
What's in the box?
- Accessory
-
Remote control
