Technical Specifications
-

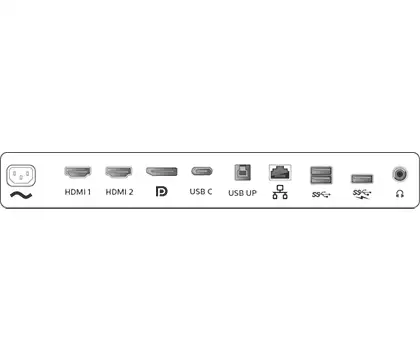

Connectivity
- Signal Input
-
DisplayPort 1.4* x 1, HDMI 2.0 b x 2, USB-C x 1 (upstream, power delivery up to 90 W)
- Sync Input
-
Separate Sync
- Audio (In/Out)
-
Headphone out
- RJ45
-
Ethernet LAN up to 1G*, Wake on LAN
- HDCP
-
HDCP 1.4 (HDMI / DP / USB-C), HDCP 2.2 (HDMI / DP / USB-C)
- HBR3
-
HBR3 (USB-C)
- USB Hub
-
USB 3.2 Gen 2, USB-B upstream x 1, USB-A downstream x 3 (with x 1 fast charge B.C 1.2)
-
Picture/Display
- Panel Size
-
48.8 inch / 124 cm
- Aspect ratio
-
32:9
- LCD panel type
-
VA LCD
- Backlight type
-
W-LED system
- Pixel pitch
-
0.233 x 0.233 mm
- Brightness
-
450 cd/m²
- Display colors
-
1.07B (8bit + FRC)
- Color gamut (typical)
-
NTSC 103%*, sRGB 121%*, Adobe RGB 91%*
- Color gamut (min.)
-
BT. 709 Coverage: 99.67%*, DCI-P3 Coverage: 94.62%*
- Contrast ratio (typical)
-
3000:1
- SmartContrast
-
80,000,000:1
- Response time (typical)
-
5 ms (Gray to Gray)*
- Viewing angle
-
-
178º (H) / 178º (V)
-
@ C/R > 10
-
- Picture enhancement
-
SmartImage
- Maximum resolution
-
5120 x 1440 @ 70 Hz*
- Effective viewing area
-
1193.5 (H) x 335.7 (V) mm at a 1800R curvature*
- Scanning Frequency
-
30 - 230 kHz (H) / 48 - 70 Hz (V); Adaptive sync (for HDMI/DP)
- sRGB
-
Yes
- Delta E
-
< 2
- Flicker-free
-
Yes
- Pixel Density
-
109 PPI
- LowBlue Mode
-
Yes
- Display Screen Coating
-
Anti-Glare, 2H, Haze 25%
- SmartUniformity
-
97 ~ 102%
- EasyRead
-
Yes
- Adaptive sync
-
Yes
- HDR
-
DisplayHDR 400 certified (DP / HDMI)
-
USB
- Power delivery
-
USB PD version 3.0
- Super speed
-
Data and Video transfer
- DP
-
Built-in Display Port Alt mode
- USB-C max. power delivery
-
Up to 90W (5V/3A; 9V/3A; 10V/3A;12V/3A; 15V/3A; 20V/4.5A)
- USB-C
-
Reversible plug connector
-
Convenience
- Built-in Speakers
-
5 W x 2
- Plug & Play Compatibility
-
-
DDC/CI
-
Mac OS X
-
sRGB
-
Windows 10 / 8.1 / 8 / 7
-
- User convenience
-
-
SmartImage
-
Input
-
User
-
Menu
-
Power On/Off
-
- OSD Languages
-
-
Brazil Portuguese
-
Czech
-
Dutch
-
English
-
Finnish
-
French
-
German
-
Greek
-
Hungarian
-
Italian
-
Japanese
-
Korean
-
Polish
-
Portuguese
-
Russian
-
Simplified Chinese
-
Spanish
-
Swedish
-
Traditional Chinese
-
Turkish
-
Ukrainian
-
- Other convenience
-
-
Kensington lock
-
VESA mount (100x100mm)
-
- Control software
-
SmartControl
- MultiView
-
PBP (2x devices)
- Built-in webcam
-
Pop-up 2.0 megapixel FHD camera with microphone and LED indictor (for Windows 10 Hello)
-
Stand
- Height adjustment
-
130 mm
- Swivel
-
-/+ 20 degree
- Tilt
-
-5~15 degree
-
Power
- ECO mode
-
43.3 W (typ.)
- Power supply
-
-
Built-in
-
100-240VAC, 50-60Hz
-
- Off mode
-
Zero watts with Zero switch
- On mode
-
41.25 W (typ.) (EnergyStar test method)
- Standby mode
-
0.3 W (typ.)
- Power LED indicator
-
-
Operation - White
-
Standby mode- White (blinking)
-
-
Dimensions
- Packaging in mm (WxHxD)
-
1308 x 384 x 553 mm
- Product without stand (mm)
-
1194 x 369 x 156 mm
- Product with stand(max height)
-
1194 x 568 x 303 mm
-
Weight
- Product with packaging (kg)
-
21.48 kg
- Product with stand (kg)
-
15.30 kg
- Product without stand (kg)
-
11.00 kg
-
Operating conditions
- Altitude
-
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
- Temperature range (operation)
-
0°C to 40 °C
- Relative humidity
-
20%-80 %
- Temperature range (storage)
-
-20°C to 60 °C
- MTBF (demonstrated)
-
70,000 hrs (excluded backlight)
-
Sustainability
- Environmental and energy
-
-
EnergyStar 8.0
-
EPEAT*
-
TCO Certified Edge
-
RoHS
-
WEEE
-
- Post consumer recycled plastic
-
85%
- Recyclable packaging material
-
100 %
- Specific Substances
-
-
PVC / BFR free housing
-
Mercury free
-
-
Compliance and standards
- Regulatory Approvals
-
-
CB
-
CE Mark
-
FCC Class B
-
cETLus
-
CU-EAC
-
TUV Ergo
-
TUV/GS
-
ICES-003
-
PC-Recycle
-
PSB
-
-
Cabinet
- Finish
-
Texture
- Foot
-
Black
- Front bezel
-
Black
- Rear cover
-
Black
-
Accessories
- Included Accessories
-
Philips RC6 remote control
-
-
